TECHNI MOBILi RTA-2706A Complete Computer Workstation Desk Instruction Manual
- June 13, 2024
- TECHNI MOBILi
Table of Contents
ASSEMBLY INSTRUCTIONS
MODEL RTA-2706A
Assembly video also available online attechnimobili.com
RTA-2706A Complete Computer
Workstation Desk G05 190716
Thank you for purchasing one of our products.
Please read carefully the assembly instructions before the installation.
Do not discard this manual or any of the packaging material until the unit has
been completely assembled.
PARTS LIST
SCREWS
PART| QTY.| ITEM|
---|---|---|---
A| 4| 6X35 MM|
B| 14| 6X50 MM|
C| 8| 4X14 MM|
D| 4| 4×4 MM|
E| 4| 4×28 MM|
F| 4| 3X15 MM|
G| 4| 6×12 MM|
H| 4| 4×8 MM|
| 1| |
BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS.
- Do a quick inventory to make sure the product contains all the parts and hardware.
- Missing, damaged and defective parts can be replaced at no cost to you. Please refer to the CONTACT card included with the product.
- The replacement parts service is limited to the continental United States. If you reside in Hawaii, Puerto Rico, U.S. Dependencies or other countries, please contact the supplier from where the unit was purchased.
- If during assembly you find an issue or need clarification, please contact our Customer Service for assistance. Please refer to the CONTACT card included with the product.
- On each step read the instructions and analyze the illustrations thoroughly before proceeding to do the assembly.
- Make sure you understand which hardware will be used on each step. Using the wrong size of screw, bolt or pin might strip the threads or cause damage to the part in which it is being used.
- To avoid misalignments, always leave the screws loose and tighten them until all pieces are positioned correctly.
- Do not overtighten or force the screws as they might break, strip, damage the threads of the holes or get stuck inside the part.
- Sometimes the laminate might cover partially or entirely the hole on a panel, but the hole should still be located under the laminate.
- If there is no visible hole for the screw, pass and press the tip of your finger over the area where the hole should be located to feel the indentation, and once found, carefully pierce the laminate to reveal the hole underneath.
- If the hole seems too small for the screw, first make sure you are using the correct size of screw and that it’s been installed in the correct hole. If the hole still appears to be too small, carefully pierce the laminate to reveal the hole’s actual size.
This unit uses cam bolts and locks. The following explains how to use them.
This is not an assembly step; it is a guide for when you are actually doing
the assembly using this kind of hardware.
- Screw the bolt into the corresponding panel.
- In the other panel, insert the cam lock and align it so it can properly receive the bolt, then join both panels (the cam locks might come pre-installed in this unit).
- The panels might have a very small gap which is normal; turn the cam lock clockwise to lock the parts together and the gap will also close.

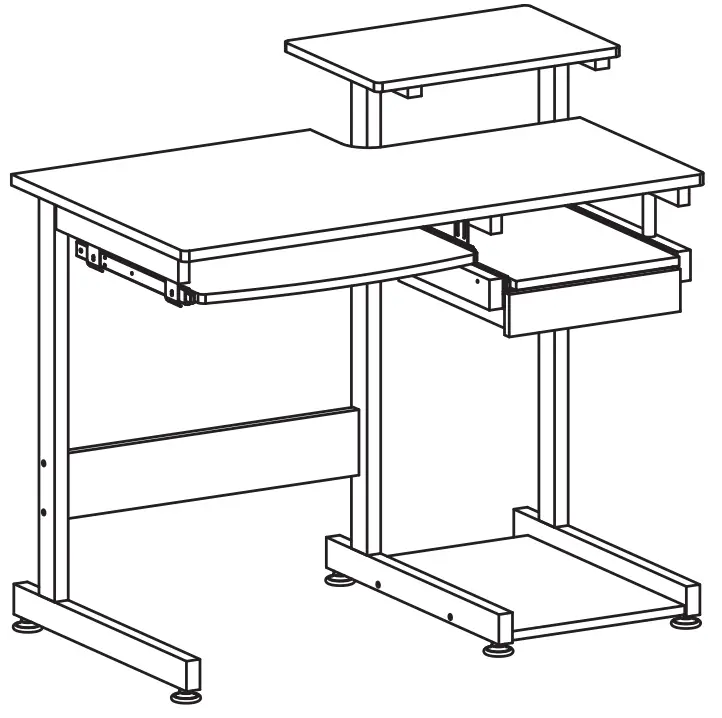

ATTENTION: THIS UNIT ASSEMBLES ONLY AS SHOWN IN THE ILLUSTRATION, WITH THE KEYBOARD TRAY ON THE LEFT AND THE DRAWER ON THE RIGHT. SWITCHING IS NOT POSSIBLE.
STEPS
• Insert the Studs (4) at
the bottom of the Left, Central & Right Structures (1,2&3).
• Use screws E to assemble one pair of Sliders (14) to the
Central & Right Structures (2&3) noting that the they must slide-out to the
front of the desk. You will find four holes in the metal structures, use the
top two.
ATTENTION: This item assembles only as shown, so if the
Main Panel does not fit, review the steps 3, 4 and 5 for the correct position
of the structures.• Carefully place the Main Panel (8) over the structures (1, 2 & 3) making sure the holes coincide.
Then, and from underneath, insert the screws B thru the structures and into the panel but leave them loose to allow flexibility, and tighten them only after all 6 screws are in position.
AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE
FOLLOWING CARE AND MAINTENANCE WARNINGS:
- Do not exceed the indicated weight limits.
- Do not expose the surfaces to direct sunlight or to extreme environmental conditions.
- Clean the surfaces preferable with a clean cloth damped in a solution of mild soap and water, then dry with a clean towel.
- Do not use solvents or abrasive materials to clean the unit.
- If you decide to use a cleaning agent, test first on an area hidden from view such as underneath the tabletop.
- Do not seat on the unit or lean against it.
- Do not allow small children to climb over the unit or play underneath.
- Do not allow small children to reach inside the drawer or any of the moving panels without your supervision.
- The unit must be handled by at least 2 persons when moving in the same or adjacent rooms.
- Before moving the unit, make sure to remove any object that is heavy or might fall off, and try to handle it from their structures. Lifting from the tabletop alone might put too much stress on the screws which can lead to part damage/separation.
- When lifting the unit, use both hands and bend your knees, not your backs.
- When transporting the unit to places far away, protect and secure the unit to avoid damage in transit.
- Shall any part of the unit become defective during the warranty period, replacement parts might be available to you at no charge. Please refer to the WARRANTY card included with the product.
- The warranty does not extend to regular wear and tear, nor the manufacturer assumes liability for damages or consequences due to accidents, incorrect assembly, negligence, improper use, modifications, or not heeding the above warnings.
- The warranty is limited to the continental United States. If you reside in Hawaii, Puerto Rico, U.S. Dependencies or other countries, please contact the supplier from where the unit was purchased.
RTA-2706A
