Hawkley NTA01A103-1A Tacoma Stubby Front Bumper User Manual

Hawkley NTA01A103-1A Tacoma Stubby Front Bumper

Product Information

Specifications:

• Model: 2016-2023 Toyota Tacoma
• Material: Q235A
• Product Dimensions: 46.4 x 12.68 x 8.6 inches
• Package Dimensions: 50 x 13.77 x 11.8 inches
• Product Weight: 66.1 lbs

Frequently Asked Questions

• Q: Can I install the front bumper without professional help?
  • A: While it is possible to install the front bumper yourself, it is recommended to seek professional assistance for proper installation.
• Q: Are additional tools required for maintenance after installation?
  • A: Regular maintenance may require basic tools like a wrench, screwdriver, and cleaning supplies to ensure the bumper stays in good condition.

Specifications

Thank you for purchasing the FRONT BUMPER. Please read this manual carefully and keep it properly if you need to refer to it afterward. If you need any support or assistance, please contact us with your product model number and order number, and our support team will help you solve problems.

WARNING

• This product is designed primarily to enhance the appearance of the vehicle.
• Do not rely in any way on the components of this product to protect against injury or death in the event of an accident.
• To reduce the risk of serious injury or property damage, please read all safety messages and understand all instructions and procedure notices before attempting to install or use this product.

CAUTION

• Properly torque and recheck fasteners and security of step tread after 250 miles and inspect frequently. Do not use if damaged.

REQUIRED TOOLS

Parts Information

Note: spare parts such as N19、W27、W25、B27、B20、W16 and W43 are provided with 1PCS each (included in the number of parts details).

Installation Instructions

• Step 1: Open the carton and take out the parts. Check whether the number of components is complete.
• Step 2: Remove the original bumper and prepare the parts needed to install the bumper.
• Step 3: Take off the air dam.
  • Note： If the car does not have air dam, this step can be ignored.
  1. Tighten out the screws inside each wheel.
  • NOTE: Turned the tire out to give yourself some space.
  • Repeat that on the other side.
  2. Tighten out the screws under neath the front of this plastic chin.
• Step 4: Remove the original bumper.
  • Grab this front plastic trim part underneath and it since not reusing it anyways.
• Step 5: Cut out the trim piece.

1. Make a mark and cut out the trim piece.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-7](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-7.png)
2. Remove this plastic piece on our crash bar.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-8](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-8.png)
  *  **Tips:** It’s just held in by a couple of clips so you just have to depress, and discarded it.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-9](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-9.png)
3. sanding it and clean up some of these edges.

• Step 6: Install the ⑦U-rubber strip.
• Step 7: Remove the aluminum crash.

1. Tighten out the 6pcs bolts.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-12](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-12.png)
2. Tighten out 1pcs bolt on each underside.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-13](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-13.png)

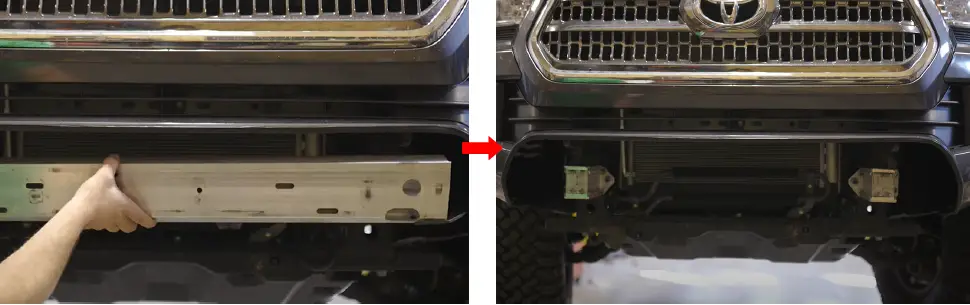

3. Move out the aluminum crash.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-14](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-14.png)

• Step 8: Remove the aluminum crash bar mounting brackets.
• Step 9: Remove the two frame end caps and one tow hook.
• Step 10: Remove the skip plate.
• Step 11: Cut the little plastic pieces off.
• Step 12: Remove 2pcs 12mm bolts on this power steering cooler, 1pcs bolt around the corner on the top of the frame.
• Step 13: Remove 2pcs 14mm bolts on each side, let the sway bar move down.
• Step 14: Install our 2pcs relocation plates that move the cooler toward the inside.
• Step 15: Remove the upper grille.

1. Open the hood. Tighten out the 2pcs bolts as shown.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-22](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-22.png)
2. Take off the 2pcs clips on wither side of the grille.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-23](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-23.png)
3. There is a wiring harness connected to the body from the grille here. Disconnect the plug of the wiring harness. Remove these 2pcs clips so you can pull it away from the grille and disconnect it up the plug.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-24](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-24.png)
  *  **Note：** If the car does not have wiring harness(Model for TRD), this step can be ignored.
  *  **Tips:** There’s a little bit easier to pinch the clip with pair of needle nose and push down.![Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-25](https://manuals.plus/wp-content/uploads/2024/04/Hawkley-NTA01A103-1A-Tacoma-Stubby-Front-Bumper-FIG-25.png)

• Step 16: Moutning the New Bumper.

1. Mounting the light bar ②bracket L/R.
