kogan KAQLED50XQ9610STA QLED 50 Inch Smart HDR 4K Android TV User Guide
- June 5, 2024
- Kogan
Table of Contents
KAQLED50XQ9610STA QLED 50 Inch Smart HDR 4K Android TV
User Guide
androidtv
KOGAN QLED 50″ SMART HDR 4K TV
SERIES 9 XQ9610 (KAGLED50X09610STA)
COMPONENTS

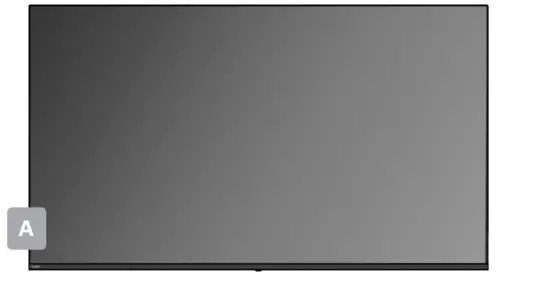

A Kogan QLED 50″ Smart HDR 4K TV
B Remote control
C Stand (x2)
D M4 x 20mm screw (x4)
E AM battery (0)
F Quick-start guide
G Warranty card
NOT INCLUDED
Phillips head screwdriver, antenna cable, broadband Internet connection.
REMOTE CONTROL OVERVIEW
-
**** Power, press to enter or exit standby mode
-
Mute to toggle sound on/off
-
Number buttons to select channels or input passwords
-
info displays the current program information
-
Electronic Program Guide DTV mode
-
options to display TV options with optional, adjustable settings
-
EXIT the current interface
-
Direction buttons for navigating menus and settings
-
OK Enter selects the current item or confirm selection, display the Channel list in DTV mode
-
← Bock to the previous menu
-
Home to access the home page
-
NETFLIX to open app homepage
-
YOUTUBE to open the app homepage
-
to open the app homepage.
-
GOGGLE Play to open the app homepage.
-
Google Assistant to launch the built-in virtual assistant for voice commands
-
Volume to adjust the volume up or down
-
Program to scroll channels
-
Source displays the list of input source channels.
-
Teletext to show/hide Teletext (Teletext not available in Australia or New Zealand)
USB Press to switch to the USB source.
Audio to select available languages and audio channels.
SUBT Subtitles to select subtitles
Start playback in media mode;
MIX mode in Teletext
II Pause in media/PVR mode;
Timeshift function in OW mode
Stop in media/PVR mode;
Hold the Teletext page on display, press again to release
Record in OW mode;
Change the size of Teletext screen
Reverse playback rapidly in media mode;
Subtitle mode or Submenu
Skip to previous in media mode;
Index page
Skip to next in media mode;
Reveal hidden information in some Teletext pages
Advance playback rapidly in media mode;
Cancel Teletext but not exit -
Colour buttons for navigational use within apps
ASSEMBLY AND INSTALLATION
BEFORE YOU GET STARTED
Spread cushioning flat to lay the TV on. This will help to prevent damage.
-
Stand assembly
a. Attach stands to the base of the TV, ensuring ‘L’ and ‘R’ markings on the TV and stands match.
b. Insert two 20mm screws for each stand and use a Phillips head screwdriver (not supplied) to tighten.
-
Remote control assembly
a. Open the battery compartment cover on the backside.
b. Insert two 1.5V AAA size batteries, making sure to match the polarity markings (+ / -) of the batteries with the diagram inside the compartment.
c. Replace the battery compartment cover.
Please use Lithium AAA Batteries for the Remote -
Connect to an antenna
a. Connect an antenna cable (not supplied) via the ‘ANT’ input port at the back of the TV.
b. Ensure the antenna cable is also connected to a working antenna, either via an antenna wall socket in your home or directly.
-
Turning TV on
Plug the power cord into a suitable power outlet, then press the POWER (0) button on the remote control, making sure to aim it at the sensor at the front of the TV. Alternatively, you can press the power button on the lower side of the back panel of the TV.
TURNING TV OFF
Press the POWER ****button on the remote control to enter standby mode. To
power down the TV completely, unplug the power cord from the power outlet. Do
not leave your set in standby mode for long periods of time. If you will not
use the TV for a long time, it is recommended to unplug the set from both the
power outlet and aerial.
FIRST TIME SETUP
When turning the TV on for the first time, the Welcome screen will appear.
Use the /., v, and OK buttons to navigate the following options.
Language
Select your menu language.
Bluetooth
Your Android TV remote control has Bluetooth capabilities. Follow the
onscreen prompts to pair the remote with the TV. This will allow you to use
voice commands with your remote via the Google Assistant button.
Quickly set up with Android phone
If you have an Android smartphone, you can easily transfer your phone’s Wi-
Fi network and Google account to your TV. If not, select ‘Skip.
Select Wi-Fi network
Your Android TV will automatically scan for wireless networks nearby.
Ensure the TV is within range of your wireless modem or router, and have your
password handy. Follow the prompts to input your password and connect your TV
to your selected network.
If you’d prefer to connect an Ethernet cable to connect to the internet,
simply insert the cable (not supplied) to the ‘LAN’ input port at the back of
the TV(4a) , and ensure that it is correctly connected to the internet.
Google Account sign-in
Linking your Google Account to your Android TV will allow you to install
new apps from the Play store, as well as receive recommendations, movies, and
more from Google.
Terms of Service
This page will allow you to read each of the Google Terms of Service,
Privacy Policy, and Google Play Terms of Service in full, and to accept.
Choose a name for your TV
Give you TV a name to help identify it when casting or connecting to it
from other devices. Select a preset option or enter a custom name.
Install additional apps
Get started with some of our handpicked selections from the Play Store.
Following this, you will be shown a brief overview of Android TV’s
features.
Following these options, the Auto Tuning screen will appear. Ensure you have
an antenna cable connected to the ‘ANT’ input port at the back of the TV (4a).
The auto-tuning function will search for and save all available free-to-air TV
channels. After confirming your settings, the process will automatically
begin. The number of searched channels will be displayed on the screen. When
setup is complete, you will be able to access the Home page.
eARC Enhanced Audio Return Channel. If you want to use the search
function, Please set the EDID version to EDID version 2.1 (Settings->Device
Preferences->Inputs-HDMI EDID Version). In addition, the eARC switch needs to
be turned on.Settings->Device Preferences->Sound->eARC.
HOME PAGE
-
Google Assistant
Click to launch the built-in virtual assistant, which will begin listening for voice commands. Give it o try, ask “What’s the weather today?” -
Text search
Enter text manually to search TV apps. -
System notifications
This option will only appear when notifications are present -
Source
Access free-to-air channels (‘DTV) or other input source channels. -
Internet connection
This will display as a VVi-Fi or LAN icon, depending on your connection. Select for connectivity options. -
Settings
Access the global settings menu. -
Clock
Time and date settings can be adjusted in the global settings. -
Apps
Access the App Centre to display all installed apps. Free-to-air channels con be accessed under the ‘Live TV’ option. -
Favorites list
A customizable list of apps available with a single click -
Play next
Displays the program you are watching or have queued to play next. You can add to this list by long-pressing the ox button, then selecting “Add to play next”. If the play next queue is empty, it will not be shown on the home page. -
Pinned channels
Show the program list of pinned channels. The order of this list can be adjusted by pressing < from the channel icon and selecting the “<>” icon. Empty channels will not be shown on the Home Page. -
Customize channels
Add or remove pinned channels from the home page.
-
SETTING
Global settings To access the global settings menu (5a), simply navigate to
the icon on the Home screen. Here you will find all of the adjustable options
for Android TV’s interface, connectivity, and apps.
In live tv mode, you can also press the* Quick Menu button on your remote
control and use the < /> buttons to navigate to the Settings option.
Quick Menu Options for your Live TV (Input, picture, sound. Power, Advanced Options) can be accessed by pressing the * Quick Menu button on your remote controL Use < / ) buttons to navigate through the submenus. and Abe buttons to access Channel and Recording/Time Shift options.
BASIC TROUBLESHOOTING
Poor picture and sound quality
- Try a different channel
- Adjust the antenna
- Check all connections
No picture or sound in the TV status
- Try another channel
- Press the TV/AV button
- Make sure TV is plugged in
- Check the antenna connection
No sound or sound is too low at maximum volume
- Check the volume settings on any external speakers connected to your television
- Adjust the TV volume accordingly
- Check another channel or input
- Check that MUTE hasn’t been turned on
No color, wrong color or tints
- Make sure the program itself is broadcast in color
- Select the picture menu, then adjust the HUE and Color Tuner
Picture rolls vertically
- Check all connections
Blurred or snowy picture, distorted sound
- Check the direction, location, and connections to your antenna
- Issues may be caused by the use of an indoor antenna (poor signal)
Remote control malfunctions
- Replace remote control batteries
- Check battery terminals
- If the Remote is out of range, move closer to the TV
- Remove any obstructions between the remote and IR sensor of the TV
- Make sure the power cord to your TV is plugged in and turned on Image is not centered on the screen
- Adjust the horizontal and vertical position
“No Signal” on HDMI source
- Test the device with a different HDMI cable
- Plug the device into another HDMI port
- Try a different device connected to the cable and port
- Perform a factory reset on your
For our full TV troubleshooting guide and extended User Manual for this TV, head online to help.kogan.com
Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered
trademarks of Dolby Laboratories Licensing Corporation. Manufactured under
license from Dolby Laboratories. Confidential unpublished works. Copyright ©
2012-2021 Dolby Laboratories. All rights reserved.
Need more information?
This is a Quick Start Guide, and while we hope that this has given you the
assistance needed for a simple set-up, a full user guide outlining all of this
product’s instructions and features can be found online at
help.kogan.com
