Installing the Machine

Installation Requirements

Remove all the tape.

About the Manuals

1. Getting Started (This manual):
   Read this manual fi rst. This manual describes the installation of the machine, the settings, and a caution. Be sure to read this manual before using the machine.

2. MF Driver Installation Guide (Visit the website):
   This manual describes software installation.
   You can access
   http://canon.com/oip-manual to read the User’s Guide that describes all functions of this machine

3. User’s Guide (Visit the website):
   You can access
   http://canon.com/oip-manual to read the User’s Guide that describes all functions of this machine.

Navigating the Menu and Text Input Method

N avigating the Menu

Item selection or moving the cursor among the menu items
Select an item with [▲] or [▼]. Proceed to the next hierarchy with or [▶]. Return to the previous hierarchy with or [◀].

Setting confi rmation
Press . However, when appears on the display, select , and then press .

Text Input Method

Changing entry mode Press [▼] to select , and then press . You can also press to change the entry mode.

Entering text, symbols, and numbers
Enter with the numeric keys or .
Moving the cursor (Entering a space)
Move with [◀] or [▶]. Move the cursor to the end of the text and press [▶] toenter a space.

Deleting characters
Delete with . Pressing and holding deletes all characters

| Entry mode:| Entry mode:| Entry mode:
---|---|---|---
| @ .| /| 1
| ABC| abc| 2
| DEF| def| 3
| GHI| ghi| 4
| JKL| jkl| 5
| MNO| mno| 6
| PQRS| pqrs| 7
| TUV| tuv| 8
| WXYZ| wxyz| 9
| (Not available)| 0
| (space) – . * # ! “ , ; : ^ ` _ = / | ‘ ? $ @ % & + \ ˜ ( ) [ ] { } < >| (Not available)

Connecting the Power Cord and Turning ON the Power

Do not connect the USB cable at this time. Connect it when installing software.

Specifying the Initial Settings

The forest time you turn on the power, follow the instructions on the screen. For details on navigating the menu and how to input the numbers, see “Navigating the Menu and Text Input Method” (   P.8).

Complete settings starting with language and through to date and time

Follow the instructions on the screen, set the language, region, time zone, and date and time.

• MF244dw/MF232w Only

MF244dw/MF232w

MF241d

Setting a Remote UI PIN (MF244dw/MF232w Only)

You can set a PIN for access to the Remote UI. Protect the machine from unauthorized access by only allowing users with access privileges to use the machine. To specify settings later, please refer to “Setting a Remote UI PIN” in the User’s Guide

User’s Guide “Setting a Remote UI PIN”

Choosing the Method to Connect the Machine

Connecting via a Wired LAN (MF244dw/ MF232w Only)
You can connect the machine to a wired router. Use the LAN cables to connect the machine to the wired router (access point).

• Connect the computer to the router by cable or wirelessly.
• Make sure that there is an available port in the router to connect the machine and the computer.
• Have a LAN Cable of Category 5 twisted-pair cable or higher ready

Connecting via a USB cable
You can connect the machine to the computer using a USB cable

Make sure that the USB cable you use has the following mark.

Connecting via a Wireless LAN (MF244dw/ MF232w Only)
You can connect the machine to a wireless router*. Since it is wirelessly connected, no LAN cables are needed.

A wireless router (access point) that supports IEEE802.11b/g/n is required.
Connect the computer to the router by cable or wirelessly.

If you do not sure whether your router is wireless or wired:
See the instruction manual provided with your network device, or contact the manufacturer.

Check if your router has a button
Select from the following two methods depending on the router (access point) that you are using.

• There is a button.
  You can easily setup if your router (access point) has a button, and if the mark is on the router.

• There is no button.
  If there is no button on your router (access point), manually select your SSID and complete the settings.

Direct Connection (MF244dw/MF232w Only)
Connect a mobile device to the machine wirelessly and
directly without routing through a wireless LAN router (or
access point).
User’s Guide “Can Be Used Conveniently with a Mobile Device” ▶ “Make Direct Connection (Access Point Mode)”

Choosing the Method to Connect: Via Wireless LAN or Other Method

**MF244dw/MF232w

**

Yes

There is a button.
Start from step 4 of “Push Button Mode” (P.11).
There is no button.
Start from step 4 of “Setting the Access Point Manually” (P.12)

No

Connect to the computer via a wired LAN
Proceed to “Connecting via a Wired LAN (MF244dw/MF232w Only)” (P.10).
Connect to the computer via a USB cable
Proceed to “Connecting via a USB Cable” (P.10).
Connect to the computer via a wireless LAN later
Proceed to “Connecting via a Wireless LAN (MF244dw/MF232w Only)” (P.11).

MF241d
Connect to the computer via a USB cable
Proceed to “Connecting via a USB Cable” (P.10)

Connecting via a Wired LAN (MF244dw/MF232w Only)

Checking Before the Setup

Are the computer and the router (or hub) properly connected using a LAN cable?
For more information, see the instruction manual for the network device you are using, or contact the networking device manufacturer.

Have the network settings on the computer been completed?
If the computer is not properly confi gured, you may not be able to use the wired LAN connection even after completing the following settings

NOTE

• You cannot connect both the wired LAN and wireless LAN at the same time. In addition, the machine is set to the “Wired LAN” by default.
• When you connect to a network environment that is not security protected, your personal information could be disclosed to third parties. Please use caution.
• If you connect through a LAN in the offi ce, contact your network administrator.

Connecting via a Wired LAN

Connect the LAN cable

The IP address will be automatically confi gured in 2 minutes. If you want to set the IP address manually, see the following items.
User’s Guide “Network” ▶ “Connecting to a Network” ▶ “Setting IP Addresses”

Install the driver and software using the provided DVD-ROM.
See “For details on the installation procedures:” (P.13).
Proceed to “Setting a Paper Size and Type” (P.13).

Connecting via a USB Cable

Install the Driver and Software

Install the driver and software on the provided DVD-ROM.
See “For details on the installation procedures:” (P.13).
Proceed to “Setting a Paper Size and Type” (P.13).

NOTE

• If you connected the USB cable before installing, fi rst remove the USB cable and then re-install.

Connecting via a USB Cable

Follow the MF Driver Installation Guide to connect the USB cable.

Proceed to “Setting a Paper Size and Type” (P.13)

Connecting via a Wireless LAN (MF244dw/MF232w Only)

Checking Before the Setup

Is the computer connected to the router (access point) correctly by a LAN cable or wireless LAN?
For more information, see the instruction manual for the network device you are using, or contact the networking device manufacturer.

Have the network settings on the computer been completed?
If the computer is not properly confi gured, you may not be able to use the wireless LAN connection even after completing the following settings.

NOTE

• You cannot connect both the wired LAN and wireless LAN at the same time. In addition, the machine is set to the “Wired LAN” by default.
• When you connect to an unsecured network environment, your personal information could be disclosed to third parties. Please use caution.
• If you connect through a LAN in the offi ce, contact your network administrator.

Checking the Router
Select the connection method to the wireless LAN. Select from the following two methods depending on the router (access point) that you are using

There is a button.
This machine supports WPS (Wi-Fi Protected Setup). You can easily set up if your router (access point) has a button, and if the mark is on the router.

If you are not sure whether or not your router supports WPS, please see the manual included in the product, or contact the product manufacturer.

There is no button.

If there is no button on your router (access point), you may manually select SSID and complete the settings. In this case, you need to remember SSID and network key of your router (access point). See “1 Check SSID or Network Key for a Wireless LAN Router/ Access Point.” (P.12) to learn how to fi nd out your SSID and network key.
To set up with the WPS PIN code method/To set up manually:
User’s Guide “Connecting to a Wireless LAN”

Setting Wireless LAN (MF244dw/MF232w Only)

Push Button Mode

1. Press .

2. Select , and then press .

3. Select , and then press . If a screen appears asking whether to enable the wireless LAN, select , and then press .

4. Read the message that is displayed, and then press .

5. Select , and then press

6. Select , and then press

7. Press and hold the button until the lamp lights or blinks.
   You should press the WPS button within 2 minutes after you select in step 6. The time that you should hold the button may vary depending on the router you are using.

8. Wait approximately 2 minutes after the connection. IP address is set during this period of time.

When an error message appears:

Press to close the screen, check whether or not the network key is correct, and then retry the settings. If the access point cannot be detected even after retrying, see the following

User’s Guide “When an Error Message Appears”
When checking the network connection:
You can check if the machine is properly connected to the network by using a computer that is connected to the network.
User’s Guide “Viewing Network Settings”
To set IP address manually:
User’s Guide “Connecting to a Wireless LAN”

Setting the Access Point Manually

1. Check SSID or Network Key for a Wireless LAN Router/Access Point.
   • Check the label on the Wireless LAN router.
   • You can check the SSID or the network key using “Canon MF / LBP Wireless Setup Assistant,” which is included in the DVD-ROM supplied with the machine.

If the information of the wireless LAN router is not displayed, click the [Refresh] button. If the information is not displayed when you click the [Refresh] button, check if the computer settings for a wireless LAN router (access point) are complete.

2. Write down the name of SSID and network key displayed in step 1. When multiple access points are displayed, write all SSIDs that are displayed.

3. Press

4. Select , and then press

5. Select , and then press If a screen appears asking whether to enable the wireless LAN, select , and then press

6. Read the message that is displayed, and then press

7. Select , and then press

8. Select , and then press

   Select a wireless LAN router.
   If multiple matched SSIDs are displayed, select the ID that is listed fi rst (the one with the strongest signal).

   Enter the network key that you have written down.

   • Enter the network key using the numeric keys.
   • Select , and then press

   Select , and then press

   After the <Connected.> screen is displayed, wait until the Wi-Fi indicator stops blinking and turns on.

   Wait approximately 2 minutes after the connection.
   IP address is set during this period of time.

   When an error message appears:
   Press   to close the screen, check whether or not the network key is correct, and then retry the settings. If the access point cannot be detected even after retrying, see the following.
   User’s Guide “When an Error Message Appears”
   To set IP address manually:
   User’s Guide “Connecting to a Wireless LAN”

   For details on the installation procedures:
   Install the driver and software using the provided DVD ROM.

   You can also download the driver from the Canon website. For details on the installation procedures, see the MF Driver Installation Guide.

   For Mac OS users:
   The DVD-ROM supplied with this machine may not include the printer driver for Mac OS. This is different depending on when you purchase the machine. Please find and download the appropriate driver on our Canon homepage. For further information on installation or using the driver, see the manual for the driver

   Setting a Paper Size and Type
   Following the instructions on the screen, set the paper size and type.



   Perform Useful Tasks

   You can use various functions in this machine. Following functions are the overview of the main functions that you can use routinely.

   Copy
   Enlarged/Reduced Copies
   You can enlarge or reduce standard size documents to copy on standard size paper or specify the copy ratio in percentage.


   *2-Sided Copying
   You can copy 1-sided documents on both sides of paper.
   **

   Collating
   You can sort copies into sets arranged in page order


   Reduced Layout
   You can reduce the amount of paper by printing multiple documents onto one sheet.

   Copying ID Card
   You can make a copy of a 2-sided card onto one side of paper.

   Print
   Enlarged/Reduced Printing
   *2-Sided Printing
   Reduced Layout**
   You can reduce the amount of paper by printing multiple documents onto one sheet.

   *Booklet Printing

   Poster Printing Watermark Printing
   Displaying a Preview before Printing Selecting a “Profi le”**

   Network Settings**
   This machine comes equipped with a network interface that you can construct a network environment easily. You can print a document, use the network scan from all computers which are connected with the machine. The machine supports to increase work effi ciency as a shared machine in the offi ce

   **Scan
   Saving the Documents Using the Operation Panel of the Machine

   Saving the Documents Using Operations from a Computer
   **

   • Scanning with the MF Scan Utility

   • Scanning from an Application

   • Scanning with the WIA Drive

   Remote UI**
   You can understand the condition of the machine from the computers on the network. You can access the machine and manage jobs or specify various settings via network. * MF244dw/MF241d Only ** MF244dw/MF232w Only

   Replacing Toner Cartridge

   Toner cartridges are consumables. When the toner becomes nearly empty or has run out completely in the middle of a job run, a message appears on the screen, or the following problems may occur. Take the appropriate action accordingly.

   When a Message Appears
   When the toner becomes nearly empty in the middle of a job run, a message appears on the screen

   Message| When the message is displayed on the screen| Description and Solutions
   ---|---|---
   <Preparing a cartridge is recommended| When the toner cartridge needs a replacement soon| Shake the toner cartridge to evenly distribute the toner inside the cartridge.
   User’s Guide “Before Replacing the Toner Cartridge”
   We recommend that the toner cartridge be replaced before printing high- volume documents.
   User’s Guide “How to Replace Toner Cartridges

   | When the toner cartridge has reached the end of its life| this message does not disappear, replace the toner cartridge. You can continue printing, but the print quality cannot be guaranteed. User’s Guide “Replacing Toner Cartridges

   When white streaks appear on the output, or the output is partially faded:
   When white streaks appear on the output or the output is partially faded, the toner cartridge has almost reached the end of its life,even if no message appears on the screen. When the print quality becomes unacceptable, see the following to fi x the problem.

   When White Streaks Appear on the Output or the Output Is Partially Faded
   When the toner nearly runs out, white streaks appear on the output, or the output is partially faded. No message appears on the screen, if the toner nearly runs out. Replace the toner cartridge when white streaks appear on the output, or the output is partially faded **.

   When this problem occurs:
   Follow the steps in the procedure below before replacing the toner cartridge. The machine continues printing until the toner runs out completely.
   User’s Guide “Before Replacing the Toner Cartridge”
   When the print quality is still unacceptable:**
   If the problem persists after you have followed the steps in the procedure below, replace the toner cartridge.
   User’s Guide “How to Replace Toner Cartridges”

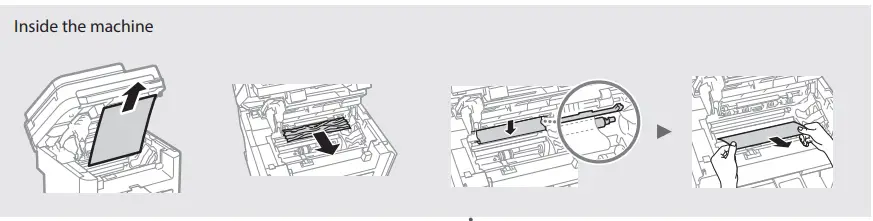

   Clearing Paper Jams

   If the following screen appears, a paper jam has occurred inside the

   machine. Follow the procedure displayed on the screen to remove the jammed document or paper. This manual indicates only areas where paper jams occur. For details on each function, see the User’s Guide.



   Appendix
   Important Safety Instructions

   This chapter describes important safety instructions for the prevention of injury to users of  this machine and others, and damage to property. Read this chapter before using the machine, and follow the instructions to use the machine properly. Do not perform any operations not described in this manual. Canon will not be responsible for any damages resulting from operations not described in this manual, improper use, or repair or changes not performed by Canon or a third party authorized by Canon. Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may not be covered under your Limited Warranty

   WARNING
   Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

   CAUTION
   Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

   IMPORTANT
   Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly and avoid damage to the machine or property

   Installation
   To use this machine safely and in a trouble-free way, carefully read the following precautions and install the machine in an appropriate location.

   WARNING
   Do not install in a location that may result in a fi re or electrical shock

   • A location where the ventilation slots are blocked (too close to walls, beds, sofas, rugs, or similar objects)
   • A damp or dusty location
   • A location exposed to direct sunlight or outdoors
   • A location subject to high temperatures
   • A location exposed to open fl ames
   • Near alcohol, paint thinners or other fl ammable substances

   Other warnings

   • Do not connect unapproved cables to this machine. Doing so may result in a fi re or electrical shock.
   • Do not place necklaces and other metal objects or containers fi lled with liquid on the machine. If foreign substances come in contact with electrical parts inside the machine, it may result in a fi re or electrical shock.
   • If any foreign substance falls into this machine, unplug the power plug from the AC power outlet and contact your local authorized Canon dealer

   Do not install in the following locations
   The machine may drop or fall, resulting in injury.

   • An unstable location
   • A location exposed to vibrations

   CAUTION
   Do not install in the following locations
   Doing so may result in damage to the machine.

   • A location subject to temperature and humidity extremes, whether low or high
   • A location subject to dramatic changes in temperature or humidity
   • A location near equipment that generates magnetic or electromagnetic waves
   • A laboratory or location where chemical reactions occur
   • A location exposed to corrosive or toxic gases
   • A location that may warp from the weight of the machine or where the machine is liable to sink (a carpet, etc.)

   Avoid poorly ventilated locations
   This machine generates a slight amount of ozone and other emissions during normal use. These emissions are not harmful to health. However, they may be noticeable during extended use or long production runs in poorly ventilated rooms. To maintain a comfortable working environment, it is recommended that the room where the machine operates be appropriately ventilated. Also avoid locations where people would be exposed to emissions from the machine.

   Do not install in a location where condensation occurs
   Water droplets (condensation) may form inside the machine when the room where the machine is installed is heated rapidly, and when the machine is moved from a cool or dry location to a hot or humid location. Using the machine under these conditions may result in paper jams, poor print quality, or damage to the machine. Let the machine adjust to the ambient temperature and humidity for at least 2 hours before use

   In altitudes of above sea level 3,000 m or higher
   Machines with a hard disk may not operate properly when used at high altitudes of about 3,000 meters above sea level, or higher.

   Leveling feet (only for products with leveling feet)
   Do not remove the machine’s leveling feet after the machine has been installed, as this may cause the machine to fall or tip over, resulting in personal injury

   Connecting the Telephone Line (Only for Products with a Fax Function)
   This machine conforms to a analog telephone line standard. The machine can be connected to the public switched telephone network (PSTN) only. If you connect the machine to a digital telephone line or a dedicated telephone line, it might impede proper operation of the machine and could be the cause of damage. Make sure to confi rm a type of telephone line before connecting the machine. Contact your optical fi ber line or IP telephone line service providers if you want to connect the machine to those telephone lines

   When using wireless LAN (only for products with a wireless LAN function)

   • Install the machine at a distance of 50 meters or less from the wireless LAN router.
   • As far as possible, install in a location where communication is not blocked by intervening objects. The signal may be degraded when passing through walls or fl oors.
   • Keep the machine as far as possible from digital cordless phones, microwave ovens, or other equipment that emits radio waves.
   • Do not use near medical equipment. Radio waves emitted from this machine may interfere with medical equipment, which may result in malfunctions and accidents.

   Power Supply
   WARNING

   • Use only a power supply that meets the specifi ed voltage requirements. Failure to do so may result in a fi re or electrical shock.
   • Do not use power cords other than the one provided, as this may result in a fi re or electrical shock.
   • The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.
   • Do not modify, pull, forcibly bend, or perform any other act that may damage the power cord. Do not place heavy objects on the power cord. Damaging the power cord may result in a fi re or electrical shock.
   • Do not plug in or unplug the power plug with wet hands, as this may result in an electrical shock.
   • Do not use extension cords or multi-plug power strips with the machine. Doing so may result in a fi re or electrical shock.
   • Do not wrap the power cord or tie it in a knot, as this may result in a fi re or electrical shock.
   • Insert the power plug completely into the AC power outlet. Failure to do so may result in a fi re or electrical shock.
   • Remove the power plug completely from the AC power outlet during a thunder storm. Failure to do so may result in a fi re, electrical shock, or damage to the machine.
   • Make sure that the power supply for the machine is safe, and has a steady voltage.
   • Keep the power cord away from a heat source; failure to do this may cause the power cord coating to melt, resulting in a fi re or electrical shock.
   • If excessive stress is applied to the connection part of the power cord, it may damage the power cord or the wires inside the machine may disconnect. This could result in a fi re. Avoid the following situations:
     • Connecting and disconnecting the power cord frequently.
     • Tripping over the power cord.
     • The power cord is bent near the connection part, and continuous stress is being applied to the power outlet or the connection part.
     • Applying excessive force on the power plug

   CAUTION
   Install this machine near the power outlet and leave suffi cient space around the power plug so that it can be unplugged easily in an emergency

   IMPORTANT
   When connecting power

   • Do not connect the power cord to an uninterruptible power source. Doing so may result in malfunction of or damage to the machine at power failure.
   • If you plug this machine into an AC power outlet with multiple sockets, do not use the remaining sockets to connect other devices.
   • Do not connect the power cord to the auxiliary AC power outlet on a computer.

   Other precautions
   Electrical noise may cause this machine to malfunction or lose data.
   Handling
   WARNING

   • Immediately unplug the power plug from the AC power outlet and contact an authorized Canon dealer if the machine makes an unusual noise, emits an unusual smell, or emits smoke or excessive heat. Continued use may result in a fi re or electrical shock.
   • Do not disassemble or modify this machine. There are high-voltage and high-temperature components inside the machine. Disassembly or modifi cation may result in a fi re or electrical shock.
   • Place the machine where children will not come in contact with the power cord and other cables or gears and electrical parts inside the machine. Failure to do so may result in unexpected accidents.
   • Do not use fl ammable sprays near this machine. If fl ammable substances come into contact with electrical parts inside this machine, it may result in a fi re or electrical shock.
   • When moving this machine, be sure to turn OFF the power of this machine, and then unplug the power plug and interface cables. Failure to do so may damage the power cord or interface cables, resulting in a fi re or electrical shock.
   • When plugging or unplugging a USB cable when the power plug is plugged into an AC power outlet, do not touch the metal part of the connector, as this may result in an electrical shock.
   • Use a modular cable that is shorter than 3 meters.
   • Use a USB cable that is shorter than 3 meters.

   If the operating noise concerns you
   Depending on the use environment and operating mode, if the operating noise is of concern, it is recommended that the machine be Installed in a place other than the offi ce.

   If you are using a cardiac pacemaker
   This machine generates a low level magnetic fl ux. If you use a cardiac pacemaker and feel abnormalities, please move away from this machine and consult your physician immediately

   CAUTION

   • Do not place heavy objects on this machine as they may fall, resulting in injury.
   • For safety, unplug the power plug if the machine will not be used for a long period of time.
   • Use caution when opening and closing covers to avoid injury to your hands.
   • Keep hands and clothing away from the rollers in the output area. If the rollers catch your hands or clothing, this may result in personal injury.
   • The inside of the machine and the output slot are very hot during and immediately after use. Avoid contact with these areas to prevent burns. Also, printed paper may be hot immediately after being output, so use caution when handling it. Failure to do so may result in burns.

   Feeder (only for products with a feeder)

   • Do not press down hard on the feeder when using the platen glass to make copies of thick books. Doing so may damage the platen glass and result in personal injury.
   • Close the feeder gently to avoid catching your hands, as this may result in personal injury.
   • Close the feeder gently to avoid catching your hands in the back of the feeder, as this may result in personal injury.

   Finisher (only for products with a fi nisher)

   • Do not place your hands in the part of the tray where stapling is performed (near the rollers), especially pay careful attention to the sharp staples, as this may result in personal injury.

   Paper drawer (only for products with a paper drawer)

   • Do not insert your hand into the machine while the paper drawer is removed, as this may
     result in personal injury

   Energy Saver key (only for products with an Energy Saver key)

   • Press   (Energy Saver) for safety when the machine will not be used for a long period of time, such as overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.

   Laser Safety
   This product is confi rmed as a Class 1 laser
   product in IEC60825-1:2007 and EN60825-1:2007.

   CLASS 1 LASER PRODUCT LASER KLASSE 1 APPAREIL À LASER DE CLASSE 1 APPARECCHIO LASER DI CLASSE 1 PRODUCTO LÁSER DE CLASE 1 APARELHO A LASER DE CLASSE 1 LUOKAN 1 LASER-TUOTE LASERPRODUKT KLASS 1

   The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confi ned within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

   • Never open covers other than those instructed in the manuals for this machine.
   • If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.

   CAUTION
   Use of controls, adjustments, or performance of procedures other than those specifi ed in this manual may result in hazardous radiation exposure

   Other precautions

   • Follow the instructions on the caution label attached to this machine.
   • Do not subject the machine to strong shocks or vibration.
   • Do not forcibly open and close doors, covers, and other parts. Doing so may result in damage to the machine.
   • Do not turn the main power switch OFF or open the covers while the machine is in operation. This may result in paper jams.

   Maintenance and Inspections
   Clean this machine periodically. If dust accumulates, the machine may not operate properly. When cleaning, be sure to observe the following. If a problem occurs during operation, see Troubleshooting. If the problem cannot be resolved or you feel the machine requires an inspection, see When a Problem Cannot Be Solved.

   WARNING

   • Before cleaning, turn OFF the power and unplug the power plug from the AC power outlet. Failure to do so may result in a fi re or electrical shock.
   • Unplug the power plug periodically and clean  with a dry cloth to remove dust and grime. Accumulated dust may absorb humidity in the air and may result in a fi re if it comes into contact with electricity.
   • Use a damp, well wrung-out cloth to clean the machine. Dampen cleaning cloths with water only. Do not use alcohol, benzenes, paint thinners, or other fl ammable substances. Do not use tissue paper or paper towels. If these substances come into contact with electricalparts inside the machine, they may generate static electricity or result in a fi re or electrical shock.
   • Check the power cord and plug periodically for rust, bent prongs, fraying, cracks, or excessive heat generation. Use of poorlymaintained power cord or plug may result in a fi re or electrical shock.

   CAUTION

   • The inside of the machine has hightemperature and high-voltage components. Touching these components may result in injury or burns. Do not touch any part of the machine that is not indicated in the manual.
   • When loading paper or removing jammed paper, be careful not to cut your hands with the edges of the paper.

   Legal Limitations on the Usage of Your Product and the Use of Images
   Using your product to scan, print or otherwise reproduce certain documents, and the use of such images as scanned, printed or otherwise reproduced by your product, may be prohibited by law and may result in criminal and/or civil liability. A non-exhaustive list of these documents is set forth below. This list is intended to be a guide only. If you are uncertain about the legality of using your product to scan, print or otherwise reproduce any particular document, and/or of the use of the images scanned, printed or otherwise reproduced, you should consult in advance with your legal advisor for guidance.

   • Paper Money
   • Travelers Checks
   • Money Orders
   • Food Stamps
   • Certifi cates of Deposit
   • Passports
   • Postage Stamps (canceled or uncanceled)
   • Immigration Papers
   • Identifying Badges or Insignias
   • Internal Revenue Stamps (canceled or uncanceled)
   • Selective Service or Draft Papers
   • Bonds or Other Certifi cates of Indebtedness
   • Checks or Drafts Issued by Governmental Agencies
   • Stock Certifi cates
   • Motor Vehicle Licenses and Certifi cates of Title
   • Copyrighted Works/Works of Art without Permission of Copyright Owner

   Safety-Related Symbols

   Power switch: “ON” position
   Power switch: “OFF” position
   Power switch: “STAND-BY” position
   Push-push switch “ **ON” “OFF”
   Protective earthing terminal
   Dangerous voltage inside. Do not open
   covers other than instructed.
   CAUTION:** Hot surface. Do not touch.
   Class II equipment
   Moving parts: Keep body parts away from moving parts

   [NOTE]
   Some of symbols shown above may not be affi xed depending on the product.

   **Laser Safety Label

   **

   Consumables

   WARNING Do not dispose of used toner cartridges in open fl ames. Also, do not store toner cartridges or paper in a location exposed to open fl ames. This may cause the toner or paper to ignite, and result in burns or fi re.

   Notice
   Product Name
   Safety regulations require the product’s name to be registered.
   In some regions where this product is sold, the following name(s) in parentheses ( ) may be registered instead.
   imageCLASS MF244dw (F173700)
   imageCLASS MF241d (F173700)
   imageCLASS MF232w (F171900)

   EMC requirements of EC Directive
   This equipment conforms with the essential EMC requirements of EC Directive. We declare that this product conforms with the EMC requirements of EC Directive at nominal mains input 230 V, 50 Hz although the rated input of the product is 220 to 240 V, 50/60 Hz. Use of shielded cable is necessary to comply with the technical EMC requirements of EC Directive.

   E-Waste Rule
   You can see the information about proper handling equipment after use in the latest User’s Guide (HTML manual) from the Canon website  (<http://canon.com

   /oip-manual).

   Regulatory information for users in Singapore
   imageCLASS MF244dw/MF232w includes approved Wireless LAN Module (Model name: AW-NM383)

   Complies with IDA Standards DA103787

   Regulatory information for users in Thailand
   imageCLASS MF244dw/MF232w includes approved Wireless LAN Module (Model name: AW-NM383).
   This telecommunication equipment conforms to NTC technical requirement.

   Regulatory information for users in Argentina
   Incluye módulo Wireless LAN Module Marca AzureWave, Modelo AW-NM383, CNC C-13282

   CNC DE COMUNICACIONES

   Regulatory information for users in Uruguay
   imageCLASS MF244dw contains URSEC approved Wireless LAN Module (Model name: AW-NM383).

   Disclaimers

   • The information in this document is subject to change without notice.
   • CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OF USE OR NONINFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.
   • The following applies in California, USA only: The battery included with your product contains Perchlorate Material and may require special handling. See http://www.dtsc.ca.gov/hazardouswaste/ perchlorate/ for details.

   About This Manual

   Keys and Buttons Used in This Manual

   The following symbols and key names are a few examples of how keys to be pressed are expressed in this manual.

   • Operation panel keys : [Key icon] Example:
   • Display:
   • Buttons and items on the computer display: [Preferences]

   Illustrations and Displays Used in This Manual
   Illustrations and displays used in this manual are which of imageCLASS MF244dw unless specifi ed.

   Trademarks
   Mac is a trademark of Apple Inc. Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel, and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/ or other countries.
   Other product and company names herein may be the trademarks of their respective owners

   Third Party Software (MF244dw / MF232w) This Canon product (the “PRODUCT”) product includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the “SOFTWARE”) are subject to license conditions (1) through (9) below.

   1. You agree that you will comply with any applicable export control laws, restrictions or  regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.
   2. Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE.
   3. You may use the SOFTWARE solely for use with the PRODUCT.
   4. You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE.
   5. Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign all of your rights to the PRODUCT and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions.
   6. You may not decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.
   7. You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.
   8. You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT.
   9. The human-readable portion (the source code) of the SOFTWARE is not licensed to you.

   Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions.
   Please refer to the other license conditions of third-party software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at http:// canon.com/oip- manual.
   By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.

   Third Party Software (MF241d)
   This Canon product (the “PRODUCT”) product includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the “SOFTWARE”) are subject to license conditions (1) through (9) below.

   1. You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.
   2. Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE. Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE.
   3. You may use the SOFTWARE solely for use with the PRODUCT.
   4. You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE.
   5. Notwithstanding the foregoing, you maytransfer the SOFTWARE only when (a) you assign all of your rights to the PRODUCT and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions.
   6. You may not decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.
   7. You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.
   8. You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT
   9. The human-readable portion (the source code) of the SOFTWARE is not licensed to you.
      By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.

   References

   • Canon - User Manuals
   • Canon Global
   • dtsc.ca.gov/hazardouswaste/
   • Manual-Hub.com – Free PDF manuals!

   Read User Manual Online (PDF format)

   Read User Manual Online (PDF format)  >>

   Download This Manual (PDF format)

   Download this manual  >>

   Canon User Manuals

   Canon EF Camera Owner’s Manual

   Canon

   Canon SX260 Digital Camera with 20x Image Stabilized Zoom Operational Guide

   Canon

   Canon GP-4000 Graphics Printers User Guide

   Canon

   Canon G4270 Megatank All In One Supertank Inkjet Printer Instructions

   Canon

   Canon RC-IP100 PTZ Remote Camera Controller User Manual Remote Camera Controller User Manual

   Canon

   Canon PV-223 Mini Photo Printer for Smartphones User Guide

   Canon

   Canon MP11DX Printing Calculator User Manual

   Canon

   Canon CR-N500 Remote Camera Installation Guide

   Canon

   Canon G2270 PIXMA MegaTank All In One SuperTank Inkjet Printer User Guide

   Canon

   Canon 8905 Multifunction Printer Copier User Guide

   Canon

   Canon TC-20M High Quality Large Format Printing Installation Guide

   Canon

   Canon TC-20M Large Format Printers Instruction Manual

   Canon

   Canon P170-DH-3 Printing Calculator Instructions

   Canon

   Canon EOS 5D Mark IV DSLR Camera Instructions

   Canon

   Canon MF1440 Multifunction Printer User Guide

   Canon

   Canon LC-210L Electronic Calculator Instructions

   Canon

   Canon 6130250 Document Scanner Product List South User Manual

   Canon

   canon MF655Cdw All-In-One Printer User Guide

   Canon

   Canon PZ-E2B Power Zoom Adapter Instructions

   Canon

   Canon TR7600 Home Office Printer Instruction Manual

   Canon

   Related Manuals

   SAMSUNG A3LSMG991JPN Smartphone User Guide

   Samsung

   Cotogni EA11 Wireless Earbuds User Manual

   COTOGNI

   OPTICON OPH-1005 Handheld Data Portable Terminal User Guide

   OPTICON

   HUSKY N2R482478W5B 5 Shelf Steel Shelving Unit User Guide

   Husky

   Fuzion PT-500 Mini Digital Scale User Manual

   Fuzion

   PHILIPS 9290040674 Radii Ultra Efficient Solar Lights User Manual

   Philips

   Glastender C1SB Self Contained Side Serviced Coolers Instruction Manual

   Glastender

   Fantech 427390 Replacement Circuit Board Instructions

   fantech

   Quuppa Q35 Real Time Locating System Installation Guide

   Quuppa

   RHINO HPP14 FLEX Hydraulic Power Pack User Manual

   RHINO

   timberk T-WSS30-N41D-V Electric Storage Water Heater Instruction Manual

   TIMBERK

   Vishay Semiconductors ILD205T Optocoupler, Phototransistor Output Dual Channel User Manual

   Vishay Semiconductors

   unilevel UNG6631 Multi Line Green Beam Laser User Manual

   unilevel

   SIAVONCE LYS-K-S260-11 37 Inch W Gray Big and Tall Fabric Recliner Instructions

   SIAVONCE

   Kmart Lightning Scooter Instructions

   Kmart

   INVENTO All Sensor with Clamp In Valves User Manual

   INVENTO

   aiwa 24AN4503-12HD 24 inch HD Compatible 12V Android TV Owner’s Manual

   Aiwa

   NATIONAL GEOGRAPHIC 80-76530 Excursion Series 42mm Open Bridge Roof Binoculars Instruction Manual

   NATIONAL GEOGRAPHIC

   DAEWOO SDA1569 Stainless Steel Jug Kettle User Manual

   Daewoo

   Haier HCE200D Chest Freezer User Manual

   Haier

   S400 Maytronics Dolphin Robotic Pool Cleaner User Manual

   maytronics

   Shenzhen Xinkeying Digital DT96 Smart Watch User Manual

   Shenzhen Xinkeying Digital

   E-POWIND PA-45W Mac Book Air Charger User Manual

   E-POWIND

   yussa Blood Pressure Smart Watch User Guide

   yussa

   Milwaukee M18 FUEL SAWZALL Reciprocating Saw Owner’s Manual

   Milwaukee

   HamiltonBeach PROFESSIONAL B96 Professional Blender Instruction Manual

   HamiltonBeach PROFESSIONAL

   cudy M1200 Dual Band Whole Home WiFi Mesh System User Manual

   cudy

   joyside K03B Series PEGreen Greenhouse Instruction Manual

   joyside

   SENSIRION SHTV3 Flagship RH T Sensor Generation Installation Guide

   SENSIRION

   COLAZE PD15R-FAQ 4500 Sq. Ft 70 Pint Dehumidifier for Basement User Guide

   COLAZE

   Contact Us   Privacy Policy   8.074ms

   ↑
