CM901MIR
QUICK START GUIDE
Multimedia Receiver with USB Mirror featuring a 9″ Digital TFT Display
This Quick Start Guide gives you the basics to start using your CM901MIR.
Please visithttps://www.jensenmobile.com/user-manuals.html to download a
complete owner’s manual or call customer service at
1-888-921-4088 (Monday-Friday, 9AM-5PM
EST).
Designed and Engineered in USA
Wiring Diagram – Inputs/Outputs
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using
an incorrect fuse could cause damage. The unit uses (1) 15 amp ATC mini style
fuse located on the power connector.
Wiring Notes:
Subwoofer outputs
The Subwoofer preamp audio outputs (Blue jacket with Black RCA) is active in
all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
Installation
Before You Start
- Disconnect negative battery terminal. Consult a qualified technician for instructions.
- Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
INSTALLATION GUIDE
See the enclosed installation guide for more details.
Control Locations
The radio display features the following functions and displays:
- Voice Activation Button
- SOURCE/HOME
- Power/Volume/Mute
- Previous Button
- Next Button
- RESET / USB Port

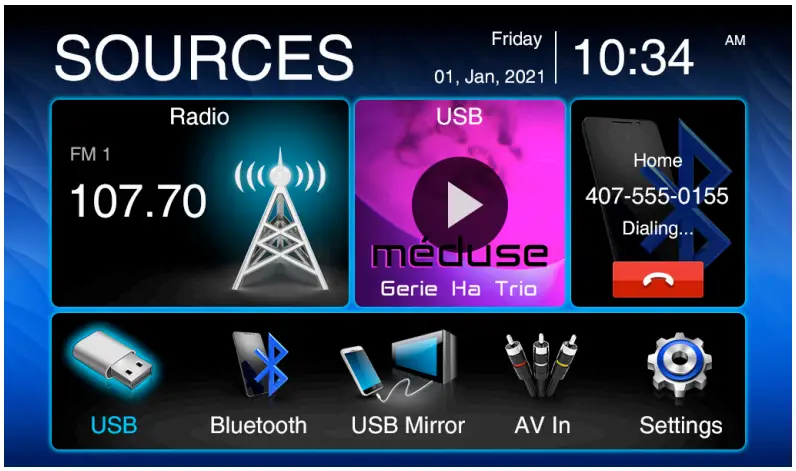

Main Menu
In main menu, press the desired iconto enter the corresponding mode: Radio/USB/Bluetooth/USB Mirror/AV In/Settings.
Tuner Operation
(1) Main Menu
(2) Current Mode Indicator
(3) Preset Stations
(4) Local/Distance
(5) AS/PS
(6) Keypad
(7) EQ
(8) Seek Tune Up
(9) Seek Tune Down
(10) AM
(11) FM
USB Operation
From the main menu, touch the USB icon on the main screen.
(1) Main Menu
(2) Current Mode Indicator
(3) List
(4) Repeat
(5) Random
(6) Search
(7) EQ
(8) Track Up
(9) Play/Pause
(10) Track Down
Bluetooth Operation
Before using Bluetooth
Before you can use a Bluetooth device to make hands-free calls or stream
audio. it must be authenticated. This is also referred to as “pairing” a
device.
Pairing a New Device
The unit broadcasts the pairing signal constantly when no devices are
currently connected. Complete the pairing sequence from your Bluetooth device.
Refer to the owner’s manual for your device for more details. The device
name is “CM901MIR”. The unit can be in any mode of operation when pairing is
performed. On certain phones, pairing may need to be done more than once.
Connect
The head unit will automatically connect to the last connected device when the
connect feature is set to Auto connect On.
If the connect feature is set to Auto Connect Off, the head unit will not
automatically connect to any device.
Bluetooth Phone
From the main menu. touch the Bluetooth on the screen.
Bluetooth icon will appear anytime a Bluetooth device is connected.
Dialing a Number
Press to display keypad and dial a number.
Making and Ending a Call
Press to connect a call, and press to end a call.
Transferring Audio
Press to transfer audio between the head unit and mobile phone.
Streaming Audio
Press to play or pause the music.
Press to skip to the previous track.
Press to advance to the next track.
USBMirror™ Operation
Drong Screen App’s QR Code
To set up USB Mirroring capabilities, select USB Mirroring from the main menu and follow the on-screen directions for connecting your Android or iPhone. Once completed, the unit will mirror phone display onto the unit’s on-screen display. To return to the main menu, press the lower left corner of the screen to display and select the home button.
Note: Apple and Android operating system updates may cause your receiver to malfunction. This can usually be solved by doing a software/firmware update on the receiver. To see if your receiver has the latest firmware, contact customer service at 1-888-921-4088.
Audio Operation
Press the Settings icon on the main menu screen to adjust Fader and Balance controls, Equalizer (8-Band Tone Control and 8 Presets EQ Settings).
General Operation
From the Main Menu screen, select Setup to access the Settings menu and select from eight categories represented by the icons on the top of the screen: General, Audio, Display, Others. Select the category, and adjust any of the available options using the touch screen.
One-Year (or Two-Year*) Limited Warranty
This warranty gives you specific legal rights. You may also have other rights
which vary from state to state.
Namsung America Inc warrants this product to the original purchaser to be free
from defects in material and workmanship for a period of one year (or two
years*) from the date of the original purchase.
Namsung America Inc agrees, at our option, during the warranty period, to
repair any defect in material or workmanship or to furnish an equal new,
renewed or comparable product (whichever is deemed necessary) in exchange
without charges, subject to verification of the defect or malfunction and
proof of the date of purchase. Subsequent replacement products are warranted
for the balance of the original warranty period.
Who is covered? This warranty is extended to the original retail
purchaser for products purchased from an authorized JENSEN dealer and used in
the U.S.A.
What is covered? This warranty covers all defects in material and
workmanship in this product. The following are not covered: software,
installation/removal costs, damage resulting from accident, misuse, abuse,
neglect, product modification, improper installation, incorrect line voltage,
unauthorized repair or failure to follow instructions supplied with the
product, or damage occurring during return shipment of the product. Specific
license conditions and copyright notices for the software can be found via
www.jensenmobile.com.
Warranty Coverage
Limited 1-year warranty when purchased from an authorized Jensen dealer.
or
*Limited 2-year warranty when purchased from and professionally installed by an authorized Jensen dealer.
(Proof of purchase and Installation required)
What to do?
- Before you call for service, check the troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save you a service call.
- If you require service during the warranty period, you must carefully pack the product (preferably in the original package) and ship it by prepaid transportation with a copy of the original receipt from the retailer to an authorized service center.
- Please describe your problem in writing and include your name, a return UPS shipping address (P.O. Box not acceptable), and a daytime phone number with your shipment.
- For more information and for the location of the nearest authorized service center please contact us by one of the following methods:
• Call us toll-free at 888-921-4088
(Monday-Friday, 9:00 a.m,to 5:00 p.m,EST)
• E-mail us at cs@jensenmobile.com
Exclusion of Certain Damages: This warranty is exclusive and in lieu of any and all other warranties, expressed or implied, including without limitation the implied warranties of merchantability and fitness for a particular purpose and any obligation, liability, right, claim or remedy in contract or tort, whether or not arising from the company’s negligence, actual or imputed. No person or representative is authorized to assume for the company any other liability in connection with the sale of this product. In no event shall the company be liable for indirect, incidental or consequential damages.
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
