Instructions for use electrical loco
ELECTRIC LOCOMOTIVES Rh
1018

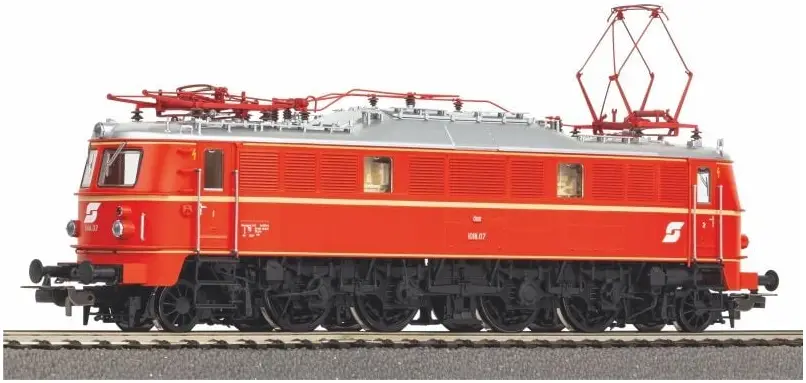

The prototype:
In 1937, the Austrian Federal Railways ordered eight locomotives from the
Floridsdorf locomotive factory based on the German E 18. They were intended
for use on the newly electrified Western Railway.
The requirements of the Western route resulted in a number of changes to the
design such as higher ventilation grilles, stronger transformers or more
powerful AMS701 traction motors. The gear ratios were slightly less than the E
18, resulting in a top speed of 130 km/h (81mph), but the starting tractive
effort and continuous output were significantly increased. Due to political
developments, the Austrian locomotives were delivered to the Deutsche
Reichsbahn beginning in 1940.
After the war, the Austrian Federal Railways (OBB) reclassified their eight
locomotives as BR 1018.
These engines underwent a rebuilding program.
The most visible modification was the redesign of the cab faces. The main
switch and other electrical apparatus were replaced with standard ÖBB
components.
OBB’s 1018 fleet remained in service until the early 1990’s, with the 1018.05
being kept operational until 2001 for fan trips.
Safety Notes:
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate
collection systems)
This marking shown on the product or its literature, indicates that it should
not be disposed with other household wastes at the end of this working life.
To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources. Household
users should contact either the retailer where they purchased this product, or
their local govemment office, for details of where and how they can take this
item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
This is a Model, not a Toy!
Please keep the enclosed manual for future reference!
Attention! Due to the nature of its construction, this product contains
some functional sharp edges! If used incorrectly there is a possibility of
danger.
This model should only be operated using an approved transformer marked as
follows :
Alternating current: max. Load: 16 V ~ , Commutation tension: 24 V ~
Direct voltage: max. Driving tension: 12 V
If used frequently, oil the wheelsets with a drop of non-resinous, acid-free
sewing machine oil! In order to achieve the best possible running and traction
properties, it is advisable to run the locomotive in for 25 minutes forwards
and 25 minutes in reverse without load. Clean rails are essential for good
performance.
PIKO Art.-Nr.:
56301 Loco-Oil
56300 Precision engine oiler w fine dosage
Change the Traction Tyres:
Assignment of PluX interface:
F0f / F0r – white headlight front and rear
AUX1 – train end light (red)
AUX2 – train end light front (red)
AUX3 – machine room light
AUX5 – engine driver greeting (dim)
AUX6 – driver cab light front (FS1)
AUX7 – driver cab light rear (FS2)
Note only for DC version:
With this locomotive interference will not occur if the condenser normally
fitted in the track connection section has a minimum capacity of 680 nano
farads.
Attention:
Safety instructions in other languages, please see: www.piko-
shop.de
