1. Introduction

Dear customer,
Thank you for purchasing this product.
This product complies with the statutory national and European requirements.
To maintain this status and to ensure safe operation, you as the user must observe these operating instructions!

Important

Keep these operating instructions for reference and provide them together with the product to any third party.
If there are any technical questions, please contact: www.conrad.com/contact

2. Explanation of symbols

The symbol with the lightning in the triangle is used if there is a risk to your health, e.g. due to an electric shock.
The symbol with the exclamation mark in the triangle is used to indicate important information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and advice on operation.

3. Intended use

This product is a 1:16 scale remote controlled car and is suitable for use in rough terrain. The four-wheel-drive train ensures speed and grip even for on- road. To keep the motor cool, it is equipped with an aluminium heat sink. It pairs with a splash proof 2 in 1 receiver and electronic speed controller. There are also 2 LED headlights for fun night adventures.

4. Delivery content

• Fully assembled car
• Transmitter (remote control)
• Rechargeable car battery
• USB charger cable
• Operating instructions

5. Spare parts list

Please visit www.conrad.com and enter the Item No. in the search box, then scroll down to “Documents & Downloads” and look for a “Spare Parts List”.
Only use genuine spare parts

6. Up-to-date operating instructions

Download the latest operating instructions at www.conrad.com/downloads or scan the QR codeshown. Follow the instructions on the website.

7. Safety instructions

Before using| •       Please read the manual (with a parent, guardian, or responsible adult).
---|---
While operating| •       Please do not use on a public street, this could cause serious accidents, personal injuries and/or property damage.

•       Please do not use near pedestrians, small children or animals.

•       Please do not use in small or confined areas.

Before operating| •       Make sure that all screws and nuts are properly tightened.

•       Turn ON the transmitter first, and then turn ON the receiver. This will prevent the car

from losing control.

•       Check the transmitter batteries have sufficient charge before driving to avoid losing

control of the model.

After using| •       Turn OFF the receiver first, and then turn OFF the transmitter. This will prevent the

car from losing control.

•       After using the product, it is necessary to perform routine maintenance such as checking for dirt and debris which may cause obstruction to moving parts. Failure to do this can result in increased wear and damage to the motor and chassis.

Battery safety| •       Please be careful when handling the battery. It will be hot after running. If any of the

battery connection wires are frayed, a short circuit can cause a fire.

Read the operating instructions carefully and especially observe the safety information. If you do not follow the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property.
Such cases will invalidate the warranty/guarantee. Normal wear and tear during operation (e.g. worn tyres, worn-out gear wheels) and accidental damages (e.g. broken car parts) are excluded from the guarantee and warranty.

a) General

• This product is not a toy and not suitable for children under 14 years of age unless closely supervised by a responsible

• For safety and licensing reasons, unauthorised conversion and/or modifications to the product are notpermitted.

• Do not leave packaging material lying around This may become dangerous playing material for children.

• Protect the device from extreme temperatures, high humidity, moisture, flammable gases, steam and solvents.

• Do not place the product under any mechanical

• If it is no longer possible to operate the product safely, take it out of operation and protect it from any accidental Safe operation can no longer be guaranteed if the product:

  • is visibly damaged,
  • is no longer working properly,
  • has been stored for extended periods in poor ambient conditions or
  • has been subjected to any serious transport-related

• Consult an expert when in doubt about the operation, safety or connection of the

If you have questions which remain unanswered by these operating instructions, contact our technical support service or other technical personnel.

b) Driving the car

• Make sure you are sufficiently insured for the operation of the model, e.g. by a personal liability insurer. If you already have personal liability insurance, check with your insurance company if the operation of the model is also insured.
• Only use the model when it is within your sight.
• Only use the model when you are fully alert and able to respond. As is the case when driving a real car, fatigue, alcohol or medications can affect your ability to respond.
• Avoid driving in very low outdoor temperatures. Plastic parts lose their elasticity in cold temperatures. This can result in serious damage even after a minor accident.
• The operation and handling of remote controlled model vehicles must be learned! If you have never driven such a vehicle before, drive particularly carefully and get used to the reactions of the car to the remote control commands first.
• Do not drive during thunderstorms, under high-voltage power lines or in the proximity of radio masts.
• Do not drive in rain, through wet grass, water, mud or snow. The receiver/controller unit in the vehicle is splash-water protected, but the model is not water-resistant or water-tight. The transmitter must not get damp or wet!
• Always keep the transmitter on while the vehicle is in operation

8. Battery information and safety

a) General information

• Do not leave any batteries/rechargeable batteries lying around. There is a risk of batteries being swallowed by children or pets. If swallowed, consult a doctor immediately!
• Batteries/rechargeable batteries must never be short-circuited, disassembled or thrown into fire. There is a danger of explosion!
• Batteries/rechargeable batteries must not get damp or wet.
• Always observe the correct polarity (plus/+ and minus/-) when installing/inserting batteries.
• Leaking or damaged batteries/rechargeable batteries can cause chemical burns to skin. Wear suitable protective gloves when handling them.
• Liquids leaking from batteries/rechargeable batteries are chemically highly aggressive. Objects or surfaces that come into contact with them may take severe damage. Therefore, keep batteries/rechargeable batteries in a suitable location.

b) Li-Ion battery

• Always observe the instructions of the manufacturer.
• Remove the battery from the model when you are not using it.
• Do not leave the battery unattended while charging.
• Observe that the battery is regularly run empty and then charged fully to maintain complete performance.
•  Never charge the battery right after use. Always leave it to cool off first (at least 5 – 10 minutes) before charging.
• Always store the battery in a suitable battery container to prevent damage and/or short-circuits.
• Never damage the battery. Damaging the casing might cause an explosion or a fire!
• Do not charge the battery if the external insulation or housing is damaged, or if the battery is deformed or swollen. This may cause a fire or explosion!
• The battery may be delivered uncharged and must be charged before use. Before it reaches its maximum capacity, several complete discharge and charge cycles are necessary.
• Recharge the battery regularly (about every 2-3 months), since deep discharge may result otherwise, which willdamage it

c) AA (rechargeable) batteries

• (Rechargeable) batteries should be removed from the device if it is not used for a long period of time to avoid damage through leaking.
• All (rechargeable) batteries should be replaced at the same time. Mixing old and new (rechargeable) batteries in the device can lead to (rechargeable) battery leakage and device damage.
• (Rechargeable) batteries must not be dismantled, short-circuited or thrown into fire. Never recharge non-rechargeable batteries. There is a risk of explosion!

d) Charging the model battery

• (If provided) only use the provided charger to charge the battery.
• Always remove and completely disconnect the battery from the model before charging.
• Never leave the battery unattended while charging.
• Never cover the charger and the battery when charging is in progress.
• Disconnect the battery from the charger when the battery is fully charged.
• The charger and the rechargeable battery must not get damp or wet. This may result in a fatal electric shock or cause a fire or explosion!
• Do not expose the charger or battery to extremely high/low temperatures or direct sunlight.
• Never use an excessive charging current. Observe the manufacturer’s specifications for the ideal/maximum charging current.
• Keep a sufficient distance between the charger and the battery while charging.
• Do not wear any metal or conductive materials, such as jewellery (necklaces, bracelets, rings, etc.) while you are working with the charger or battery. Short-circuit poses a danger of burns and explosion.
• When charging, place the battery on a heat-insensitive surface. It is normal that a certain amount of heat is generated during charging.

9. Operating elements

a) Model car

A Battery
B Battery connection
C Hook and loop fastener
D USB charging connector
E Headlamp
F Antenna
G Receiver/speed controller
H LED indicator
I Receiver power button
J Motor
K Heat sink
L Shock absorber
M Body post

b) Transmitter (remote control)

1. Antenna
2. Steering
3. Throttle lever (forward, reverse, stop)
4. Battery compartment.
5. STEERING TRIM: Steering trim adjust
6. LED (flashes slowly when the battery is low)
7. Speed switch: Limits the throttle response (lowest setting = 40 % of maximum speed)
8. TEERING REV: for reversing the steering function (steering servo reverse switch)
9. ON/OFF switch
10. AUX. button (disabled for this car)

10. Getting ready for driving

a) Charge the car battery

Important:

• Observe “8. Battery information and safety” on page 24”.
• Only use the included charger to charge the battery pack. Disconnect the battery and remove it from the car before charging.
• USB power source: Before connecting, make sure that the USB power source can deliver sufficient current, otherwise you may damage the source. Do not use a USB port of a computer, keyboard or USB hub without a power adapter as the current supplied by these ports is insufficient.

Connect one end of the charger to the battery charging connector and the other end to a suitable power supply capable of delivering 5 V/DC 2 A via USB A.

Blinking

| •       Disconnect the battery/batteries and charger from the power supply.

•       Replace the battery/batteries with new one(s).

b) Insert the transmitter batteries

• Open the battery compartment and insert 2x AA 1.5 V batteries, matching polarities shown inside the compartment.
• Replace the cover.

Use new batteries if the LED blinks slowly after switching it on.

c) Remove/replace the cover

• The car body is mounted onto body posts using clips.
•  Remove these to take the cover off.

d) Insert car battery

Important
Only use the battery/batteries supplied with the car. Never operate the car using a power adaptor, not even for test purposes.

1. Release the hook and loop fastener.
2. Connect the battery lead.
3. Cinch the hook and loop fastener to secure the battery.

Make sure the cables are tucked away before fitting the car body

11. Driving

Important
Please complete the steps outlined in ““10. Getting ready for driving” on page 28.”.

a) Switch the transmitter and receiver ON

Important
Never reach into the drive, and do not stop the wheels with your hand.

1. Switch the transmitter ON.
   – The LED will blink quickly to indicate it is waiting to connect to the receiver.
   – The LED will be solid on when successfully connected.

2. Switch the receiver ON.
   – Press and hold the receiver power button for approximately 3 seconds.

3.  Check the following:
   Do not touch the throttle lever during checking!
   – STEERING TRIM” The dial should be in the middle position so that the wheels are facing forward. You can fine tune the trim later. See section “c) Adjusting trim/speed/steering inputs” on page 31”.

4. Replace the car body.

5.  The car is now ready for driving.

b) Driving the model

Important

• Never point the transmitter aerial towards the vehicle as it will decrease the range.
• The maximum range will be achieved when the aerial of the transmitter and vehicle are both vertical.

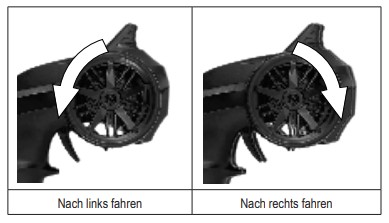

Steering

Forward/stop/reverse

Important

• When driving the car for the first time, set the SPEED SWTCH dial to the lowest setting. This will make the car easier to control. Increase the top speed as your handling improves.
• Stopping: To stop the car, take your finger off the throttle lever (return it to the middle/neutral position).

c) Adjusting trim/speed/steering inputs

STEERING TRIM

• Use this to set the neutral point for the front wheels.
•  If the car does not drive in a straight line when the steering wheel is in the middle position (hands off), slowly adjust the dial to correct the steering.

SPEED SWITCH

• Use this to limit the maximum speed. The minimum setting is 40 % of the maximum speed.

STEERING REVERSE

• Flip the STEERING REVERSE switch if the car turns in the opposite direction to your input. Do not do this while the car is moving!

12. Finished driving

Important

• Risk of burns! The motor, the speed controller and battery pack gets hot during operation! Do not touch these parts immediately after operation.
• Let the vehicle cool down at least 5 to 10 minutes before inserting a new battery and driving it again.

1. Remove the car body.

2. Switch the receiver OFF.
   – Press and hold the receiver power button for approximately 3 seconds.
   – The LED will turn off.

3. Disconnect the battery
   – Remove it for charging or before storing it.
   – Fully charge the car battery before storing it.

4. Switch the transmitter OFF.

13. Tuning

a) Spring preload

• The shock absorbers are fitted with a threaded ring to adjust spring tension (preload). You can increase or decrease the spring tension by adjusting the ring.
• Springs adjusted to the correct length allow the suspension to hold the weight of the car properly, resist leaning into turns, prevent the chassis from bottoming out, increase traction, and fine tune the ride height.
• Make sure the preload is the same on both sides.
• Experiment with different settings and positions to get the best results

b) Shock absorber position

• Tuning options:
  – Adjustable front axle: Yes
  – Adjustable rear axle: Yes

• The shock absorbers can be mounted on the lower suspension arms in various positionsthat will affect the ride height, camber, andspring loading angle.

• Make sure the position is the same on both ides.


14. Troubleshooting

The car does not move.

| •       Check that the remote control and car are switched on.

•       Check for any loose or damaged parts/wires/connectors.

•       Car battery may be flat. Charge the battery.

•       The speed controller heat protection circuit may have been triggered. Stop using and let the speed controller cool down.

The car runs slowly.

| •       Car battery may be low. Charge the battery.

•       Check if any moving parts are obstructed by dirt or debris. Immediately clear any obstructions/clean if necessary.

•       Check if the SPEED SWITCH dial is set to low.

There is little or no throttle response but you can steer.| •       Car battery may be low. Charge the battery.

•       Make sure you are within transmission range.

The car is noisy.| Check if any moving parts are obstructed by dirt or debris. Immediately clear any obstructions/clean if necessary.

The car does not move in a straight line.

| •       You may need to adjust the STEERING TRIM.

•       Check the alignment and adjust if needed. See section “Tuning” for further information.

Cannot charge the batteries.

| •       Make sure the power source can deliver sufficient charging current.

•       The battery or charger may be damaged and need replacing. Contact

customer service or a qualified technician.

The car battery heats up when charging and driving the car.| This is normal.
Steering inputs are reversed.| Flip the STEERING REVERSE switch.

15. Care and maintenance

Important:

• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as they can cause damage to the housing and malfunctioning e.g. damage to electronics and discolouration of body.
• Never wash the vehicle with water, e.g. using a high-pressure cleaner. This will destroy the vehicle.
• Before cleaning or servicing, turn off the car and remove the batteries. Let all parts (e.g. motor, battery) cool down completely.
• Remove all dust and dirt e.g. with a long-haired clean brush, a vacuum cleaner and/or compressed air.
• A soft cloth, slightly dampened, can be used to wipe the car body. Wipe gently to avoid scratch marks.

16. Declaration of Conformity (DOC)

Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product conforms to the\ 2014/53/EU directive.
Click on the following link to read the full text of the EU declaration of conformity: www.conrad.com/downloads
Select a language by clicking on a flag symbol and enter the product order number in the search box. You can then download the EU declaration of conformity in PDF format.

17. Disposal

a) Product
Electronic devices are recyclable waste and must not be disposed of in the household waste. At the end of its service life, dispose of the product in accordance with applicable regulatory guidelines.
Remove any inserted (rechargeable) batteries and dispose of them separately from the product.

b) (Rechargeable) batteries

You as the end user are required by law (Battery Ordinance) to return all used (rechargeable) batteries. Disposing of them in the household waste is prohibited.
Contaminated (rechargeable) batteries are labeled with this symbol to indicate that disposal in the domestic waste is forbidden. The designations for the heavy metals involved are: Cd = Cadmium, Hg = Mercury, Pb = Lead (name on (rechargeable) batteries, e.g. below the trash icon on the left). Used (rechargeable) batteries can be returned to collection points in your municipality, our stores or wherever (rechargeable) batteries are sold. You thus fulfill your statutory obligations and contribute to the protection of the environment.

18. Technical data

a Car

Scale……………………………………………………….      1:16
Drive………………………………………………………..    Four-wheel drive via cardan shaft
Differential in front and rear axles Motor      RC 390 brushed motor
Suspension…………………………………………………   Independent 4x adjustable springs
Speed……………………………………………………..     . max. 30 km/h
Dimensions (L x W x H)…………………………….. 272 x 220 x 126 mm
Tyre dimensions (W x Ø)……………………………. 42 x 79 mm
Wheelbase………………………………………………….   173 mm
Ground clearance…………………………………………. 40 mm
Weight……………………………………………………..     approx. 705 g (without batteries)

b)   Car battery

Rechargeable battery……………………………………. Li-Ion 7.4 V 800 mAh
Type…………………………………………………………      14500
Charging time……………………………………………… approx. 2 hrs
Running time……………………………………………….  8 mins

c)   Transmitter (remote control)

Power supply……………………………………………..2x AA 1.5 V batteries
Frequency range ……………………………………….2.404 – 2.472 GHz
Transmission power…………………………………. 0 dBm
Transmission range……………………………………approx. 80 m (open area)
Channels………………………………………………….   2
Dimensions (W x H x D)………………………..   154 x 202 x 91 mm
Weight…………………………………………………….   approx. 168 g (without batteries)

d)   USB charger cable

Input………………………………………………………… 5 V/DC 2 A via USB A
Output……………………………………………………… 7.4 V/DC 1000 mA
Cable length……………………………………………….54 cm

Read More About This Manual & Download PDF:

References

• France.fr : Explore France and its wonders - Explore France
• Conrad Electronic » Alle Teile des Erfolgs
• Conrad Electronic » All parts of success
• Conrad Electronic – Alle Teile des Erfolgs
• Conrad Electronic » All parts of success
• Contact
• Download center
• Conrad Electronic Online Shop » Alle Teile des Erfolgs
• Conrad Electronic » All parts of success

Read User Manual Online (PDF format)

Read User Manual Online (PDF format)  >>

Download This Manual (PDF format)

Download this manual  >>
