legrand Adrone WNAL63 Wireless Smart Dimmer with Netatmo Instruction Manual
- June 6, 2024
- Legrand
Table of Contents
No: 341335 - 05/21
adorne™
WNAL63 Wireless Smart Dimmer with Netatmo
Installation Instructions
Catalog Number(s): WNAL63
Country of Origin: Made in China
WNAL63
Wireless Smart Dimmer
Wall plate sold separately
- Frame
- Wireless Smart Dimmer
- Ground Wire
- Wall Plate
REGULATORY INFORMATION
FCC NOTICE: This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
a minimum distance of 90 mm between the transmitter’s radiating structure(s)
and the body of the user or nearby persons.
NOTE: Any changes or modifications to this device that are not expressly
approved by the manufacturer will void the warranty and the user’s authority
to operate the equipment.
Contains FCC ID: 2AU5D-ASWDM
IC NOTICE: This device complies with Industry Canada license-exempt RSS
standards. Operation is subject to the following two conditions: (1) this
device may not cause interference; and (2) this device must accept any
interference, including interference that may cause undesired operation of the
device.
RF EXPOSURE STATEMENT: This equipment meets the SAR evaluation limits given in
RSS-102 Issue 5 requirements at the minimum separation distance of 90 mm to
the human body. Note: Any changes or modifications to this device that are not
expressly approved by the manufacturer, will void the warranty and the user’s
authority to operate the equipment.
IC: 25764-ASWDM
HVIN: WNAL63
For more information and helpful how-to videos, visitwww.adornemyhome.com/install.
INSTALLATION INSTRUCTIONS
Please read these instructions completely before you begin. This adorne ™
wireless dimmer remote is designed for installation in standard electrical
boxes. However, some of the installation methods vary slightly from
traditional methods. If you do not understand these instructions or are unsure
of your abilities, seek the assistance of a qualified electrician.
Use only with Legrand adorne™ system.
1
Choose a place to install the Device
For indoor installation only. This device can be installed in any standard
electrical wall box of any gang size, or on any flat wall surface.
2
NOTE: Skip section 2, if installing in an electrical box.
Wall Surface Installation
Use provided double sided stickers to install on a tiled or other smooth
surface. Markings on the back of the device indicate location for the
stickers. If the wall surface is uneven or rough where the adhesive may not
work, use drywall screws if going on a wall stud or drywall anchor if stud is
not present.

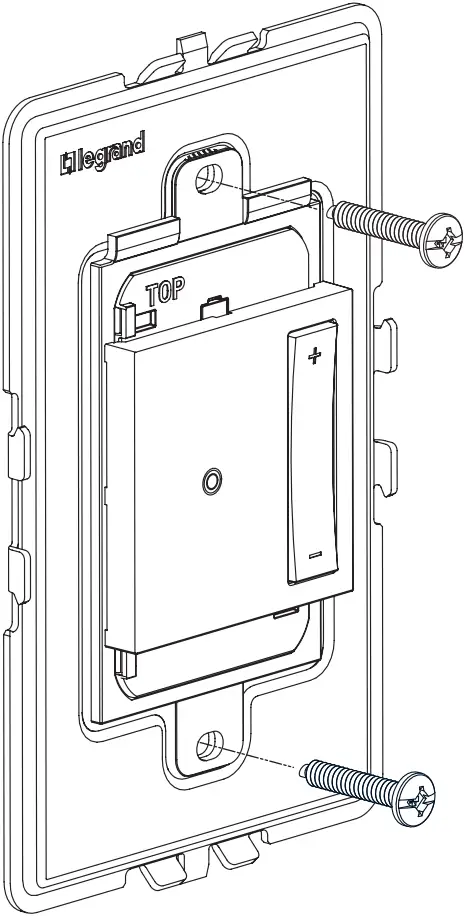

Using Adhesive Using Screws
Adhesive mounting is not the recommended mounting method utilizing real materials, cast metal or Hubbardton Forge® Wall Plates
3
WARNING
To prevent severe shock or electrocution, always disconnect power at the
service panel before beginning work.
WARNING
Failure to connect the ground wire will result in an unsafe installation
that could lead to personal injury.
Note: Skip Section 3, if installing on a wall surface.
Electrical box installation
Remove the grounding wire label from back of device to access the ground wire.
Connect it to box ground using provided end cap.
If installing this device with sofTap smart dimmer with Netatmo, WNAL50 or
other wired Netatmo devices, follow their instructions on how to terminate the
spare wires in the box.
Mount device to wall box with screws provided. Tighten screws just enough to
hold frame in place. Do NOT overtighten.
a
b
c
In case of multi-gang installation, replace the provided frame with adorne™
multi gang frame.
While holding the frame with one hand, push the device up slightly until it
snaps out and then pull it out of the frame.
Secure the device to the multi gang frame using frame mounting screws.
Remove spacers from the frame.
Since this dimmer fills the frame completely, you will not need the spacers.
From the back of the frame, pinch the tabs on the spacer to release.
4
Snap wall plate to frame.
There are three click-stops to adjust the fit of the wall plate to the dimmer
and the wall.
NOTE: To remove wall plate, insert a small, flat screwdriver in notches on wall plate and twist gently to pry from frame.
Never apply cleaner directly to the dimmer or wall plate. Apply to a soft cloth and use cloth to remove any smudges from the product.
5
Set Up Your System
Remove battery insulation tab before starting the setup.
a. Download and launch the Legrand Home + Control app. The app is available on
the App Store or on Google Play.
b. Connect your smart device to your home network by following the step by
step instructions in the app.
c. Use the app to control your smart device.
6
Getting to Know Your Battery Powered Dimmer
| Item | Name | Description |
|---|---|---|
| 1 | LED Indicator Light | Indicates the current state of device during setup |
| 2 | EZ Button | Used to initiate setup |
| 3 | Battery | CR2032 3V battery – Replaceable |
LED Indicator Light Explanations
| State of Light | Explanation |
|---|---|
| Blinking Green | Device is attempting to connect to the network. |
Reset to Factory Default
Deleting a device from the app will reset it to factory defaults.
To manually reset the device to factory defaults press and hold the EZ button for 15 seconds until you see the LED blink green and red then release. The LED will turn off when the reset is complete.
Due to ongoing product improvements, Legrand reserves the right to change
specifications without notice. For the most recent instruction sheets or more
information on this product, please see this link or scan the QR code:
https://www.legrand.us/p/wnal63w1
- EZ Button
- LED
Battery Replacement
The device includes a CR2032 battery. To replace the battery, Remove the cover
as shown.
Technical Assistance:
877-295-3472
www.adornemyhome.com/install
LIMITED TWO-YEAR WARRANTY
Limited two-year warranty information for adorne™ products is available at
www.legrand.us/adorne/warranty.
Limited warranty information for adorne™ products may also be obtained free of
charge by sending a written request, along with your proof of purchase
(including purchase date), to:
Legrand
Attn: adorne Customer Service/Warranty Department
50 Boyd Avenue
Syracuse, NY 13209
No: 341335 - 05/21
© Copyright 2021 Legrand All Rights Reserved.
