Led2 LINO 90 Ceiling Linear Lamp Instruction Manual

June 12, 2024
Led2

Led2 logo

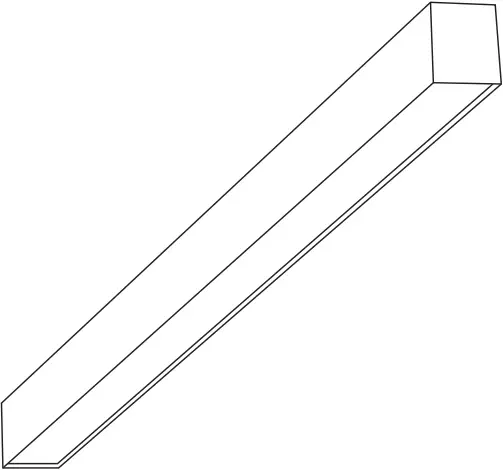

LINO 90/120/150


Led2 - installation technician The installation may only be carried out by a technician

This product contains a light source of energy efficiency class D


A. Suspension

(1)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 1

(2)

LINO 90 80 cm
LINO 120 110 cm
LINO 150 140 cm

Led2 LINO 90 Ceiling Linear Lamp - Suspension 2

(3)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 3

(4)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 4

(5)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 5

(6)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 6

  1. ON/OFF
  2. DALI
  3. PUSH DIM

(7)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 7

  1. max 50mm

  2. 6311801- WHITE
    6311803 – BLACK

  3. ON/OFF

  4. DALI

  5. PUSH DIM

(8)

Current selection by DIP-switch

LINO 90

Pin1| Pin2| Pin3|

Currents (mA)

| W
---|---|---|---|---
| | | |
OFF| OFF| OFF|

450

| 18
ON| OFF| OFF|

500

| 20
ON| ON| OFF|

550

| 22
ON| ON| ON|

600

| 24

LINO 120

Pin1| Pin2|

Currents (mA)

| W
---|---|---|---
| | |
OFF| OFF|

500

| 21
OFF| ON|

600

| 25
ON| OFF|

700

| 29
ON| ON|

800

| 33

LINO 150

Pin1| Pin2|

Currents (mA)

| W
---|---|---|---
| | |
OFF| OFF|

900

| 37
OFF| ON|

1050

| 43
ON| OFF|

1100

| 45
ON| ON|

1200

| 49

(9)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 9

  1. CCT SWITCH
    3000K / 3500K / 4000K

  2. CLICK

(10)

  1. 6311001- WHITE
    6311003 – BLACK

! ONLY FOR P/N – DIRECT/INDIRECT VERSION !
INSTALLING INDIRECT LED BOARD

(1)

(2)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 12

  1. LINO INDIRECT LED KIT
    LINO 90   –   6310751
    LINO 120  –  6310851
    LINO 150  –  6310951

  2. BROWN

  3. BLACK

  4. RED


B. Surface

(1)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 1

(2)

Led2 LINO 90 Ceiling Linear Lamp - Suspension 2

(3)

Led2 LINO 90 Ceiling Linear Lamp - Surface 3

(4)

![Led2 LINO 90 Ceiling Linear Lamp - Surface 3Led2 LINO 90 Ceiling Linear Lamp

(5)

Current selection by DIP-switch

LINO 90

Pin1| Pin2| Pin3|

Currents (mA)

| W
---|---|---|---|---
| | | |
OFF| OFF| OFF|

450

| 18
ON| OFF| OFF|

500

| 20
ON| ON| OFF|

550

| 22
ON| ON| ON|

600

| 24

LINO 120

Pin1| Pin2|

Currents (mA)

| W
---|---|---|---
| | |
OFF| OFF|

500

| 21
OFF| ON|

600

| 25
ON| OFF|

700

| 29
ON| ON|

800

| 33

LINO 150

Pin1| Pin2|

Currents (mA)

| W
---|---|---|---
| | |
OFF| OFF|

900

| 37
OFF| ON|

1050

| 43
ON| OFF|

1100

| 45
ON| ON|

1200

| 49

(6)

Led2 LINO 90 Ceiling Linear Lamp - Surface 6

  1. CLICK
  2. ON/OFF
  3. DALI
  4. PUSH DIM

(7)

Do not use screws

  1. 6311001- WHITE
    6311003 – BLACK

C. Continuous connection

(1) ! Align profile with hole in the connector

Led2 LINO 90 Ceiling Linear Lamp - Continous connection
1

(2)

Led2 LINO 90 Ceiling Linear Lamp - Continous connection
2

(3)

Led2 LINO 90 Ceiling Linear Lamp - Continous connection
3

  1. LOCK

(4)

Led2 LINO 90 Ceiling Linear Lamp - Continous connection
4

CAUTION!
Turn off the main power before proceeding with the installation in order to prevent possible shock. The installation may only be carried out by a technician or a qualified person. If the lamp has a lampshade/diffuser, handle it carefully as it is fragile. With an integrated LED light source, only a technician or a qualified person can make the replacement. The manufacturer is not responsible for the incorrect use and assembly of its products.


Led2 - Labels


CONNECTION – DIMMABLE VERSION – OPTIONAL

(1)                      PUSH DIM

220-240 V 50/60 Hz
Led2 LINO 90 Ceiling Linear Lamp - CONNECTION 1

(2)                DALI/PUSH DIM

220-240 V 50/60 Hz
Led2 LINO 90 Ceiling Linear Lamp - CONNECTION 2

(3)                          DALI DIM

220-240 V 50/60 Hz
Led2 LINO 90 Ceiling Linear Lamp - CONNECTION 3

(4)                            TRIAC DIM

220-240 V 50/60 Hz
Led2 LINO 90 Ceiling Linear Lamp - CONNECTION 4

  1. Phase cut
    Triac dimmer

  2. Trailing edge
    Leading edge


CAUTION!
Turn off the main power before proceeding with the installation in order to prevent possible shock. The installation may only be carried out by a technician or a qualified person. If the lamp has a lampshade/diffuser, handle it carefully as it is fragile. With an integrated LED light source, only a technician or a qualified person can make the replacement. The manufacturer is not responsible for the incorrect use and assembly of its products.
