Aeotec AEO_GP-AEOWP05 Smart Things Outlet WiFi User Guide
- September 30, 2024
- Aeotec
Table of Contents
- Aeotec AEO_GP-AEOWP05 Smart Things Outlet WiFi
- Product Information
- Product Usage Instructions
- Package contents
- Important safety information
- Connect Aeotec Smart Outlet
- Using Aeotec Smart Outlet
- LED display
- Factory reset your Aeotec Smart Outlet
- References
- Read User Manual Online (PDF format)
- Download This Manual (PDF format)
Aeotec AEO_GP-AEOWP05 Smart Things Outlet WiFi
Product Information
Specifications:
- Product: Aeotec Smart Outlet
- Compatibility: SmartThings app on iOS or Android
- Power Source: Aeotec Wi-Fi technology
Product Usage Instructions
Familiarize Yourself with Aeotec Smart Outlet:
Package contents: Aeotec Smart Outlet, User manual
Important Safety Information:
Read, keep, and follow instructions. Clean with a dry cloth. Avoid heat
sources. Use specified attachments and accessories.
Connect Aeotec Smart Outlet:
Auto-detect pairing:
- Open SmartThings App
- Plug Aeotec Smart Outlet into the socket
- Follow the on-screen prompts to complete the pairing process
SmartThings Device Catalog:
- From the Home screen, tap the Plus (+) icon and select Device
- Select Partner Devices, then Aeotec -> Plugs -> Aeotec Wi-Fi Smart Plug
- Follow the instructions in the app to complete the setup
Scan Nearby Pairing:
- From the Home screen, tap Plus (+) icon and select Device
- Press Add Device and then Scan Nearby
- Select your Smart Outlet when it appears and follow further instructions
Using Aeotec Smart Outlet:
Aeotec Smart Outlet will appear as a Plug or Switch widget in the SmartThings
app. Follow these steps to view device information:
- Open SmartThings app
- Scroll down to your Aeotec Smart Outlet
- Tap on the Aeotec Smart Outlet widget to view detailed information
You can use the Smart Outlet in automations to control your SmartThings home automation network. For more information on programming automations, visit the provided link.
FAQ:
- Q: Can I use multiple Aeotec Smart Outlets in one SmartThings network?
A: Yes, you can use multiple Aeotec Smart Outlets within the same SmartThings network for controlling various devices.
Aeotec Smart Outlet is designed to control plugged devices without Aeotec
Smart Home Hub (http://aeotec.com/smartthings). It’s powered by Aeotec Wi-Fi
technology.
Aeotec Smart Outlet requires the SmartThings app, which is available on iOS or
Android mobile phones.
Package contents
- Aeotec Smart Outlet
- User manual
Important safety information
- Read, keep, and follow these instructions. Heed all warnings.
- Clean only with a dry cloth.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Only use attachments and accessories specified by the Manufacturer.
Connect Aeotec Smart Outlet
There are 3 different methods to pair your Aeotec Smart Outlet, each set of steps will be provided for each connection method.
- Auto-detect pairing
- Open SmartThings App
- Plug Aeotec Smart Outlet into the socket.
- When the plug is automatically recognized by SmartThings, tap on add.
- Login with your SmartThings/Samsung account.
- Connect to the Wi-Fi of Smart Outlet when prompted
- Select your Wi-Fi SSID and enter your Wi-Fi password.
- Choose a Room for the device and touch OK.
- SmartThings device catalog
- From the Home screen, tap the Plus (+) icon and select Device.
- Select Partner Devices, Select Aeotec -> Plugs -> Aeotec Wi-Fi Smart Plug.
- Follow the instructions in the SmartThings app.
- When the plug has been recognized, tap on it.
- Login with your SmartThings/Samsung account.
- Connect to the Wi-Fi of the Smart Outlet when prompted
- Select your Wi-Fi and enter your Wi-Fi password.
- Choose a Room for the device and touch OK.
- Scan Nearby pairing
- From the Home screen, tap Plus (+) icon and select Device.
- Press “Add device”.
- Press “Scan Nearby”.
- Select your Smart Outlet when it appears.
- Follow the further instructions in the App until your Smart Outlet is connected.
- Choose a Room for the device and tap OK.
Using Aeotec Smart Outlet
Aeotec Smart Outlet is now a part of your Smart Home Hub network. It will
appear as a Plug or Switch widget that can display status and overall power
consumption.
Its device information can be fully viewed in SmartThings app by:
- Open SmartThings
- Scroll down to your Aeotec Smart Outlet
- Then tap Aeotec Smart Outlet widget.
- On this screen, it should display:
- ON/OFF
- Watt Meter
- Consumption meter
- Timer
- On-Time
- Off-Time
You may use Smart Outlet in an Automation to control your SmartThings home automation network. To learn more about programming Smart Home Hub automation (https://aeotec.freshdesk.com/a/solutions/articles/6000240462), follow that link.

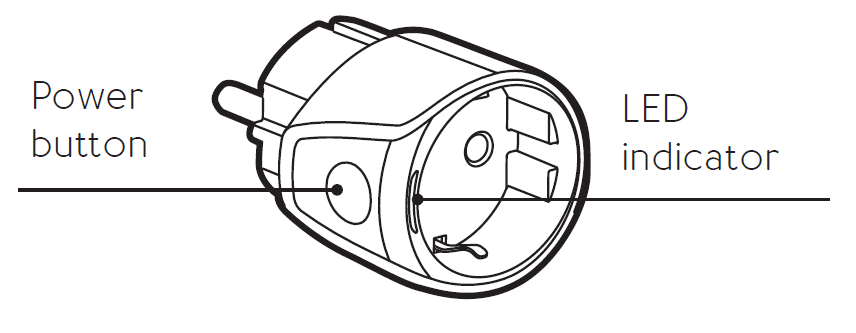

LED display
-
ON
Blue light is solid on, the device is connected to WiFi and server, and the relay is in an ON state. -
OFF
Blue light is solid off, the device is connected to WiFi and server, and the relay is in an OFF state. -
Slowly Blinking
The device is not connected and awaiting pair/setup -
Quickly Blinking
The device is attempting to connect to Wi-Fi and SmartThings server, or the device is updating firmware.
Factory reset your Aeotec Smart Outlet
Aeotec Smart Outlet can be factory reset at any time if you come across any issues, or if you need to reconnect Aeotec Smart Outlet.
- Press and hold the Action Button for 5 seconds to manually factory reset Aeotec Smart Outlet.
- After the reset, the Smart Outlet’s LED should blink blue slowly.
- Unplug the Smart Outlet and plug it in again.
- Try connecting Smart Outlet again. Consider a closer location to your Wi-Fi Router for connecting it, and then move it into its installation location.
Next to: Aeotec Smart Outlet technical specification
(https://aeotec.freshdesk.com/support/solutions/articles/6000274374-smart-
outlet-technical-specifications)
https://aeotec.freshdesk.com/support/solutions/articles/6000274373-smart- outlet-user-guide
