JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves User Manual
- June 17, 2024
- JOY
Table of Contents
USER MANUAL
Sit and Stand Desk Assembly Instruction
B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
Desk top Dimensions: 120x63cm
3 Height Position Memory
Vertical Range: 72-118cm
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- Icon](https://manuals.plus/wp-content/uploads/2024/02/JOY-B09C6B7NNM-Height- Adjustable-Electric-Standing-Desk-with-Storage-Shelves-Icon.png)
CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY.SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!
COMPONENT LIST
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- COMPONENT LIST](https://manuals.plus/wp-content/uploads/2024/02/JOY- B09C6B7NNM-Height-Adjustable-Electric-Standing-Desk-with-Storage-Shelves- COMPONENT-LIST.png)
HARDWARE LIST
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- COMPONENT LIST 1](https://manuals.plus/wp-content/uploads/2024/02/JOY- B09C6B7NNM-Height-Adjustable-Electric-Standing-Desk-with-Storage-Shelves- COMPONENT-LIST-1.png)

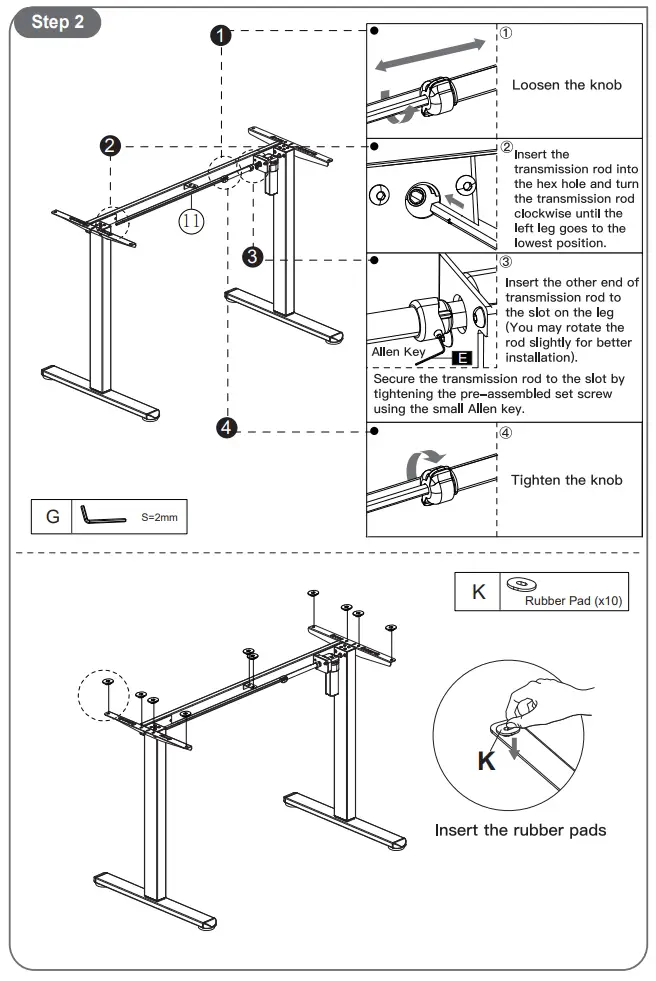

INSTALLATION
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- Fig](https://manuals.plus/wp-content/uploads/2024/02/JOY-B09C6B7NNM-Height- Adjustable-Electric-Standing-Desk-with-Storage-Shelves-Fig.png)
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- COMPONENT LIST 2](https://manuals.plus/wp-content/uploads/2024/02/JOY- B09C6B7NNM-Height-Adjustable-Electric-Standing-Desk-with-Storage-Shelves- COMPONENT-LIST-2.png)
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- COMPONENT LIST 4](https://manuals.plus/wp-content/uploads/2024/02/JOY- B09C6B7NNM-Height-Adjustable-Electric-Standing-Desk-with-Storage-Shelves- COMPONENT-LIST-4.png)
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- COMPONENT LIST 5](https://manuals.plus/wp-content/uploads/2024/02/JOY- B09C6B7NNM-Height-Adjustable-Electric-Standing-Desk-with-Storage-Shelves- COMPONENT-LIST-5.png)
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- COMPONENT LIST 6](https://manuals.plus/wp-content/uploads/2024/02/JOY- B09C6B7NNM-Height-Adjustable-Electric-Standing-Desk-with-Storage-Shelves- COMPONENT-LIST-6.png)
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- COMPONENT](https://manuals.plus/wp-content/uploads/2024/02/JOY-B09C6B7NNM- Height-Adjustable-Electric-Standing-Desk-with-Storage-Shelves-COMPONENT.png)
![JOY B09C6B7NNM Height Adjustable Electric Standing Desk with Storage Shelves
- COMPONENT 1](https://manuals.plus/wp-content/uploads/2024/02/JOY-B09C6B7NNM- Height-Adjustable-Electric-Standing-Desk-with-Storage-Shelves-COMPONENT-1.png)
Using the Controller
| Short-press the button, and the display will flash. Press the , ,or
button to save the current height setting to that button.
---|---
| Press the button, and the desk will move to the height that was previously
set for that button.
| Press the button, and the desk will move to the height that was previously
set for that button.
| Press the button, and the desk will move to the height that was previously
set for that button.
| Press the button to raise the desk continuously until it reaches the highest
position of 46.5″ (118cm) or the button is released.
| Press the button to lower the desk continuously until it reaches the lowest
position of 28.3” (72cm) or the button is released.
Settings
Change Display Height Units| Press and hold the button until a flashing ‘is
displayed. Press again, and Un is displayed. Press to select it, press or to
switch between’IN'(imperial) and SI’ (metric), and press to save your choice.
Change Collision Detection Sensitivity| Press and hold the button until a
flashing is displayed. Press again, and’ is displayed. Press or to switch to
‘and press to select it. Press or to switch between off, low, normal, and
high sensitivity. Press to save your choice.
Reset| Press and hold the button for 5 seconds, and the screen will show ‘RES.
Continue holding until the desk goes down to its lowest level and comes back
up slightly.
Protection Mode Error Codes
Hot| Overheating Protection: When the motor has been working continuously for
5 minutes, it will stop operating to prevent damage from overheating. Wait for
at least 15 minutes before making any further height adjustment.
---|---
E10| Sensor Malfunction Warning: Motor safety sensor can’t be detected. Power
off, check the connection between the motor and controller, and power back on
again.
E20
| Overloading Warning: Max load exceeded. If raising the desk, take the things
off the desk and try again. If lowering the desk, power off, take the things
off the desk, power back on, and try again.
E02| Operation Status Warning: The desk stops moving if vibration, impact, or
incline are detected. If this detection is incorrect, follow the reset
instructions before continuing use.
E32| Overvoltage Protection: Input voltage too high. If the correct AC adapter
is being used, power off the desk, check the connection between power and the
controller, and power on again.
E31| Undervoltage Protection: Input voltage too low. If the correct AC adapter
is being used, power off the desk, check the connection between power and the
controller, and power on again.
E60| Unequal Leg Height Warning: Power off the desk and check whether the left
and right legs are at the same height. Adjust if necessary by following the
instructions. Power on again.
–| Cable Disconnection Warning: Check motor and controller cable connections.
Normal operation should return once all connectors are properly connected.
