Llnseauto ‎A009-12V150P3L 150PSI Air Compressor Specifications and Datasheet

Llnseauto ‎A009-12V150P3L 150PSI Air Compressor

Introduction

This Air Compressor is crafted to be compatible with high-pressure Air Horns needing an integrated air system, as well as other applications necessitating an air pressure source. The pre-fitted tank with a pressure switch and gauge simplifies the installation process. It’s perfect for any 12-volt vehicle, including SUVs, Trucks, RVs, boats, and more.

Specifications

Accessories Included

• 1X Pre-Installed Air Compressor With Tank
• 1X 16 FT Transparent Air Hose
• 1X Mounting Hardware Kit
• 1Х Seal Tape
• 2Х Brass Hose Connectors
• 1X Fuse

Highlights

Key Components

1. Blade-Like Design:
   • The compressor is equipped with a blade-like design that serves to enhance heat dissipation. This innovative structure ensures the compressor remains cool during operation, thereby extending its lifespan and maintaining consistent performance.
2. Air Pressure Switch:
   • An integral component that detects the air tank’s pressure. When the pressure drops below a set point, the switch activates the compressor. Conversely, it deactivates the compressor once the pressure exceeds a certain threshold, ensuring safety and energy efficiency.
3. Pressure Gauge:
   • This feature provides real-time pressure readings, allowing users to monitor the system’s air pressure levels. It’s calibrated in various units like PSI, kPa, and kg/cm² for versatile readability.

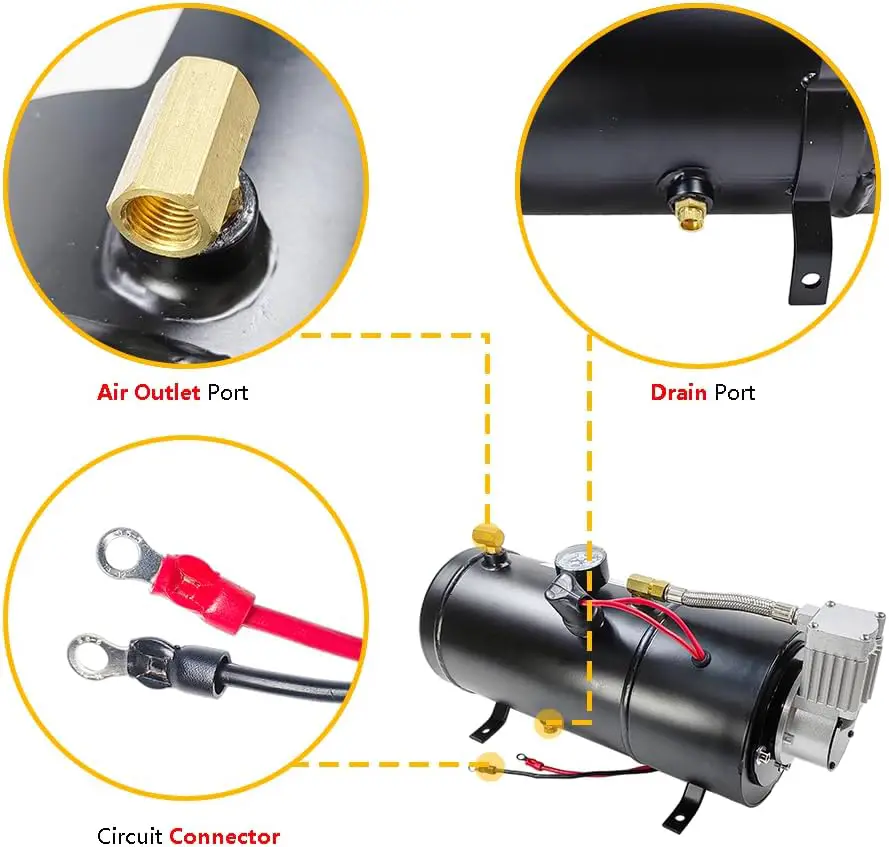

Connection Features

1. Air Outlet Port:
   • The designated port where compressed air is released. This can be connected to various tools or devices that require compressed air.
2. Drain Port:
   • Essential for maintenance, this port allows users to drain out any condensed moisture or residual air, ensuring the tank’s longevity and optimal performance.
3. Circuit Connector:
   • These connectors are vital for the electrical connection of the compressor. They ensure a secure and efficient power supply to the device.

Storage

1. Air Hose Spec:
   • The air hose, measuring 16 FT in length, has an inner diameter of 3/16″ and an outer diameter of 1/4″. It’s crucial for transmitting the compressed air to the desired application.
2. Tank Capacity:
   • The compressor tank can hold up to 3L (0.8 Gallon) of compressed air. This storage capacity determines the duration for which air tools can be operated before the tank needs to be refilled.
3. Dimensions:
   • The tank measures 15.00″ in length and has a diameter of 5.25″. This compact size ensures easy installation and mobility.

Overview

1. Top-left: Front view of the air compressor showcasing its cylindrical body, mounting brackets, and accompanying installation kit. The kit includes a hose, electrical connections, and various fittings.
2. Top-right: Close-up of the air compressor’s gauge, indicating the pressure level. It also displays the dimensions, max working pressure, and tank capacity details.
3. Bottom-left: Side view highlighting the metallic motor housing and the power connections. The ribbed design suggests efficient heat dissipation.
4. Bottom-right: Another close-up, this time focusing on the brass fitting and the pressure control switch. This section also has a pressure gauge that mirrors the one seen in the top-right quadrant.

Troubleshoot

1. Compressor Won’t Start:
   • Check if the power source is operational.
   • Inspect the fuse and replace it if it’s blown.
   • Ensure that the battery providing the power is sufficiently charged.
   • Check the wiring and connections for any visible damage or disconnections.
2. Insufficient Air Pressure or Low Output:
   • Check the air hose for any kinks, obstructions, or leaks.
   • Ensure the air filter isn’t clogged; clean or replace if necessary.
   • Check the compressor’s tank for any potential leaks.
   • Ensure the pressure setting is correctly adjusted to your desired PSI.
3. Compressor Runs Continuously:
   • The pressure switch might be malfunctioning. It might not be cutting off the motor once the desired pressure is reached.
   • The tank might have a leak, causing the compressor to run continuously to maintain pressure.
4. Excessive Noise or Vibration:
   • Ensure the compressor is on a stable and flat surface.
   • Check for any loose parts or components that might be causing the noise.
   • Excessive vibration might indicate a malfunctioning motor or internal component.
5. Overheating:
   • Make sure the compressor is in a well-ventilated area.
   • Clean any debris or obstructions from the air intake.
   • Avoid running the compressor continuously for extended periods.
6. Water in the Air Line:
   • Drain the compressor tank regularly to remove any accumulated moisture.
   • Consider using an air dryer or moisture filter if the problem persists.
7. Pressure Gauge Not Working:
   • The gauge might be damaged or malfunctioning. Consider replacing the gauge.
   • Ensure there’s no obstruction or debris affecting the gauge’s operation.
8. Oil Leaks (for oil-lubricated models):
9. Check the oil level and ensure it’s not overfilled.
10. Inspect the seals and gaskets for any damage and replace them if necessary.

FAQs

What is the Llnseauto ‎A009-12V150P3L 150PSI Air Compressor?

The Llnseauto ‎A009-12V150P3L is a 150 PSI air compressor designed for inflating car tires, sports equipment, and other inflatables, providing quick and convenient inflation.

What are the key features of this air compressor?

Key features include a 12V power source, a maximum pressure of 150 PSI, a digital display, multiple nozzle attachments, and portability for on-the-go use.

Is it suitable for inflating car tires?

Yes, it's specifically designed for inflating car tires, making it a valuable tool for roadside emergencies and regular tire maintenance.

What types of vehicles can it inflate?

It's suitable for inflating the tires of various vehicles, including cars, motorcycles, bicycles, and more.

Can it be used for inflating sports equipment?

Yes, it can be used to inflate sports balls, inflatable toys, and other sports equipment, thanks to its nozzle attachments.

Is it easy to operate for beginners?

Yes, it's designed to be user-friendly and is suitable for individuals of all skill levels, including beginners.

Is there an automatic shut-off feature for precise inflation?

Yes, it typically has an automatic shut-off feature that stops inflation when the set pressure is reached, preventing overinflation.

How is it powered?

It is typically powered by a 12V car battery or a 12V power outlet, making it easy to use on the go.

What is the maximum continuous run time of the compressor?

The maximum run time may vary, but it's designed for short-duration operation to prevent overheating.

Is there a warranty for the Llnseauto ‎A009-12V150P3L 150PSI Air Compressor?

Warranty coverage may vary, so it's best to check with the manufacturer or retailer for specific warranty details.

Is it portable and suitable for on-the-go use?

Yes, it's designed for portability, making it easy to carry in your vehicle for emergency use and travel.

What safety features are included with the air compressor?

Common safety features may include overheat protection, overcharge protection, and a built-in LED light for nighttime use and emergency situations.
