FORCE F-MR-FID-V2 FID Bench with Arm and Leg Developer Owner’s Manual

June 12, 2024
FORCE

FORCE logo FID BENCH
WITH ARM AND LEG DEVELOPERFORCE F MR FID V2 FID Bench with Arm and Leg
Developer OWNERS MANUAL | F-MR-FID-V2

PARTS LIST

KEY NUMBER DESCRIPTION OF PART QUANTITY
1 Back Bottom Beam Assembly 1
2 Main Beam Tube Assembly 1
3 Guide Rod Washer 2
4 Flat Washer φ12 2
5 Lock Nut M12 2
6 Hexagon Bolt M10*120 2
7 Gear Plate 2
8 Flat Washer φ10 19
9 Lock Nut M10 10
10 Hexagon Bolt M10*80 4
11 Seat Tube Assembly 1
12 Back Cushion Tube Assembly 1
13 Back Cushion Back Support Assembly 1
14 External Thread Shaft φ12M10118 1
15 Shaft φ12*129.5-M10 1
16 Seat Cushion 1
17 Back Cushion 1
18 Flat Washer φ8 13
19 Spring Washer φ8 13
20 Hexagon Bolt M8*60 5
21 Kick Internal Insert Tube Assembly 1
22 Kick Frame Assembly 1
23 Foam Inner Cap φ70φ2712 6
24 Foam Outer Cap φ70φ914 6
25 Foam φ25φ100175 6
26 Hexagon Socket Button Head Screw M8*25 6
27 Foam Tube 3
28 T Shape Pin φ10*85 1
29 Internal Thread Shaft φ20*57-M10 1
30 Spring Washer φ10 4
31 Hexagon Bolt M10*25 4
32 Olympic Lock Collar 1
33 Chest Cushion Tube 1
34 Barbell Support Tube 1
35 Chest Cushion 1
36 Big Flat Washer φ30φ103 2
37 Hexagon Bolt M10*70 2
38 Hexagon Bolt M8*20 8
39 Moving Roller 2
40 Tube Plug 50-60 1
41 Pull Pin M1822φ10 1
42 Pull Pin φ12M2075 1
43 Foot Cover F150 1
44 Tube Plug φ40802 2
45 Powder Powder Sleeve φ22φ18φ12.2*15 2
46 Back Support Rubber Pad 1
47 Tube Plug φ25*2 2
48 Hexagon Socket Countersunk Head Screw M6*16 4
49 Internal Thread Shaft φ16*95-M12 1
50 Reduction Sleeve φ32φ2625 8
51 Rubber Shock Pad φ505030 1
52 Powder Powder Sleeve φ32φ29φ20*18 2
53 Countersunk Hexagon Rivet Nut M10 1
54 Hexagon Socket Countersunk Head Screw M10*30 1
55 Sleeve 1
56 Two Layer Spring Nut φ23-M8 6
57 Roller Wheel Shaft φ14.9*45-M8 2

FORCE F MR FID V2 FID Bench with Arm and Leg Developer - Bolt Length
Gauge

ASSEMBLY

STEP 1FORCE F MR FID V2 FID Bench with Arm and Leg Developer - ASSEMBLY
1

KEY NUMBER DESCRIPTION OF PART QUANTITY
1 Back Bottom Beam Assembly 1
2 Main Beam Tube Assembly 1
3 Guide Rod Washer 2
4 Flat Washer φ12 2
5 Lock Nut M12 2
6 Hexagon Bolt M10*120 2
7 Gear Plate 2
8 Flat Washer φ10 8
9 Lock Nut M10 4
10 Hexagon Bolt M10*80 4

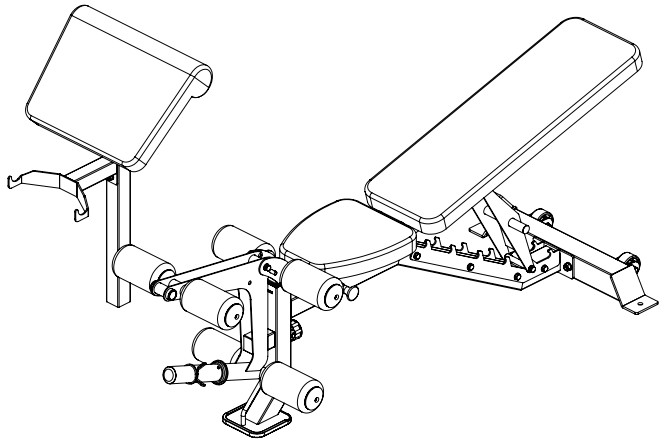

ASSEMBLY DRAWING![FORCE F MR FID V2 FID Bench with Arm and Leg Developer

KEY NUMBER DESCRIPTION OF PART QUANTITY
18 Flat Washer φ8 4
19 Spring Washer φ8 4
38 Hexagon Bolt M8*20 4
39 Moving Roller 2
57 Roller Wheel Shaft φ14.9*45-M8 2

ASSEMBLY DRAWING![FORCE F MR FID V2 FID Bench with Arm and Leg Developer

KEY NUMBER DESCRIPTION OF PART QUANTITY
40 Tube Plug 50-60 1
41 Pull Pin M1822φ10 1
42 Pull Pin φ12M2075 1
43 Foot Cover F150 1

ASSEMBLY DRAWING![FORCE F MR FID V2 FID Bench with Arm and Leg Developer

ASSEMBLY INSTRUCTIONS

  1. Connect back bottom beam assembly-1 and main beam tube assembly-2 use M10*120 hexagon bolt-6, φ12 flat washer-4, guide rod washer-3 and M12 lock nut-5.
  2. Connect gear plate-7 and main beam tube assembly-2 use M10*80 hexagon bolt-10, φ10 flat washer-8 and M8 lock nut-9.

STEP 2FORCE F MR FID V2 FID Bench with Arm and Leg Developer - ASSEMBLY
2

KEY NUMBER DESCRIPTION OF PART QUANTITY
8 Flat Washer φ10 4
9 Lock Nut M10 4
11 Seat Tube Assembly 1
12 Back Cushion Tube Assembly 1
13 Back Cushion Back Support Assembly 1
14 External Thread Shaft φ12M10118 1
15 Shaft φ12*129.5-M10 1

ASSEMBLY DRAWING![FORCE F MR FID V2 FID Bench with Arm and Leg Developer

KEY NUMBER DESCRIPTION OF PART QUANTITY
44 Tube Plug φ40802 1

FORCE F MR FID V2 FID Bench with Arm and Leg Developer - ASSEMBLY
4

KEY NUMBER DESCRIPTION OF PART QUANTITY
44 Tube Plug φ40802 1
45 Powder Powder Sleeve φ22φ18φ12.2*15 2

ASSEMBLY DRAWINFORCE F MR FID V2 FID Bench with Arm and Leg Developer -
ASSEMBLY 5

KEY NUMBER DESCRIPTION OF PART QUANTITY
8 Flat Washer φ10 2
30 Spring Washer φ10 2
31 Hexagon Bolt M10*25 2
46 Back Support Rubber Pad 1
47 Tube Plug φ25*2 2
48 Hexagon Socket Countersunk Head Screw M6*16 4
49 Internal Thread Shaft φ16*95-M12 1

ASSEMBLY DRAWING![FORCE F MR FID V2 FID Bench with Arm and Leg Developer

  • ASSEMBLY 6](https://manuals.plus/wp-content/uploads/2023/07/FORCE-F-MR- FID-V2-FID-Bench-with-Arm-and-Leg-Developer-ASSEMBLY-6.jpg) ASSEMBLY INSTRUCTIONS

    1. Fix seat tube assembly-11 and back cushion tube assembly-12 on main frame use φ 12M10118 external thread shaft-14, φ10 flat washer-8 and M8 lock nut-9.
    2. Connect back cushion tube assembly-12 and back cushion back support assembly-13 use φ 12*129.5-M10 shaft-15, φ10 flat washer-8 and M8 lock nut-9.

STEP 3FORCE F MR FID V2 FID Bench with Arm and Leg Developer - ASSEMBLY
7

KEY NUMBER DESCRIPTION OF PART QUANTITY
16 Seat Cushion 1
17 Back Cushion 1
18 Flat Washer φ8 5
19 Spring Washer φ8 5
20 Hexagon Bolt M8*60 5

ASSEMBLY DRAWING![FORCE F MR FID V2 FID Bench with Arm and Leg Developer

STEP 4FORCE F MR FID V2 FID Bench with Arm and Leg Developer - ASSEMBLY
9

KEY NUMBER DESCRIPTION OF PART QUANTITY
8 Flat Washer φ10 2
21 Kick Internal Insert Tube Assembly 1
22 Kick Frame Assembly 1
23 Foam Inner Cap φ70φ2712 6
24 Foam Outer Cap φ70φ914 6
25 Foam φ25φ100175 6
26 Hexagon Socket Button Head Screw M8*25 6
27 Foam Tube 3
28 T Shape Pin φ10*85 1
29 Internal Thread Shaft φ20*57-M10 1
30 Spring Washer φ10 2
31 Hexagon Bolt M10*25 2
32 Olympic Lock Collar 1

ASSEMBLY DRAWING![FORCE F MR FID V2 FID Bench with Arm and Leg Developer

KEY NUMBER DESCRIPTION OF PART QUANTITY
50 Reduction Sleeve φ32φ2625 2

FORCE F MR FID V2 FID Bench with Arm and Leg Developer - ASSEMBLY
11

KEY NUMBER DESCRIPTION OF PART QUANTITY
56 Two Layer Spring Nut φ23-M8 2

ASSEMBLY DRAWING

FORCE F MR FID V2 FID Bench with Arm and Leg Developer - ASSEMBLY
12

KEY NUMBER DESCRIPTION OF PART QUANTITY
8 Flat Washer φ10 1
50 Reduction Sleeve φ32φ2625 6
51 Rubber Shock Pad φ505030 1
52 Powder Powder Sleeve φ32φ29φ20*18 2
53 Countersunk Hexagon Rivet Nut M10 1
54 Hexagon Socket Countersunk Head Screw M10*30 1
55 Sleeve 1

ASSEMBLY DRAWING![FORCE F MR FID V2 FID Bench with Arm and Leg Developer

  • ASSEMBLY 13](https://manuals.plus/wp-content/uploads/2023/07/FORCE-F-MR- FID-V2-FID-Bench-with-Arm-and-Leg-Developer-ASSEMBLY-13.jpg) ASSEMBLY INSTRUCTIONS

    1. Connect kick internal insert tube assembly-21 and kick frame assembly-22 use M1025 hexagon bolt-31, φ10 spring washer-30, φ10 flat washer-8 and φ2057-M10 internal thread shaft-29.
    2. Fix foam-25 and foam tube-27 on kick internal insert tube assembly-21 and kick frame assembly-22 use M8*25 hexagon socket button head screw-26, foam inner cap-23 and foam outer cap-24.
    3. Install olympic lock collar-32 on kick frame assembly-22.

STEP 5FORCE F MR FID V2 FID Bench with Arm and Leg Developer - ASSEMBLY
14

KEY NUMBER DESCRIPTION OF PART QUANTITY
8 Flat Washer φ10 2
9 Lock Nut M10 2
18 Flat Washer φ8 4
19 Spring Washer φ8 4
33 Chest Cushion Tube 1
34 Barbell Support Tube 1
35 Chest Cushion 1
36 Big Flat Washer φ30φ103 2
37 Hexagon Bolt M10*70 2
38 Hexagon Bolt M8*20 4

ASSEMBLY DRAWING![FORCE F MR FID V2 FID Bench with Arm and Leg Developer

ASSEMBLY INSTRUCTIONS

  1. Connect chest cushion tube-33 and barbell support tube-34 use M10*70 hexagon bolt-37, big flat washer-36, φ10 flat washer-8 and M8 lock nut-9.
  2. Fix chest cushion-35 on chest cushion tube-33 use M8*20 hexagon bolt-38, φ8 spring washer-19 and φ8 flat washer-18.
