DEWALT 80 Gallon Two Stage Cast Iron Industrial Air Compressor
80 Gallon Two Stage – Cast Iron – Industrial Air Compressor with Air
Compressor Monitoring System
FEATURES & BENEFITS
- Includes Air Compressor Monitoring System
- To monitor the compressor runtime and provide the user interactive reminders when to perform required maintenance on their air compressor
- Maintenance reminders for pump oil change, draining the tank, belt tension check, air intake filter check
- Industrial performance delivers maximum CFM @ 175 PSI
- Patented Pump Design Provides for a Cooler Running Pump
- TOPS® motor (Thermal Overload Protection System)
- Protects the motor from voltage fluctuations
- Magnetic starter not required
- Integrated control panel for added control and convenience includes
- Tank and working pressure gauges
- Air flow regulator
- Two quick connect air outlets
- Pressure relief valve
- Large capacity, 80 gallon ASME* air receiver
- Shipped with full synthetic air compressor oil Dimensions: 35” x 32” x 79” • Weight: 503 lbs. • Pallet Qty: 1 • Truckload Qty: 54 (53’ trailer)
- ASME – American Society of Mechanical Engineers Product style and configuration may vary
MODEL SPECIFICATIONS
Tank Size: 80 Gallon ASME*
Maximum Pressure: 175 PSI
CFM @ 100 PSI: 17.9
CFM @ 175 PSI: 17.0
Voltage: 230 Volt
Phase: Single
Running HP: 5.0
Certifications: UL & CSA
Limited Warranty: 2 Year Pump
1 Year All Other Parts
Model: DXCMV5048055A
UPS: 8 46212 09172 2

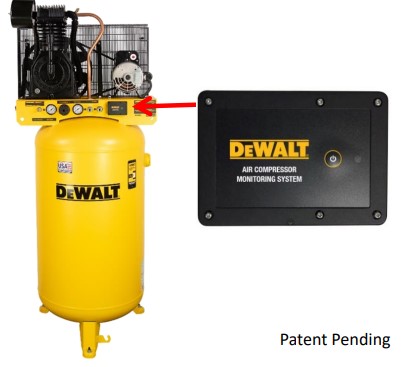

Air Compressor Monitoring System
FEATURES & BENEFITS
- Primary Function: To monitor the compressor runtime and provide the user interactive reminders when to erform required maintenance on their air compressor.
- Change pump oil
- Change air intake filter
- Check belt tension
- Drain tank
- Other Key Functions
- Operating Cost Analysis – The ongoing cost of running the compressor can be monitored via the app simply by entering the cost per kilowatt during initial setup.
- Dashboard graphs will show how often the unit isrunning during the day.
- Access to Frequently Asked Questions
- Preprogramed 800# for technical support assistance
- Link directly to DEWALT SERVICE NET for ordering parts
- Easy to Get Started
- Download app from Apple ® or Google ® App Store
- Link the compressor model and app
- Device records data and reminds owner of required maintenance
Key Benefit: Protect Your Compressor Investment with Maintenance
Reminders that Come Directly To Your Phone
MODEL SPECIFICATIONS
- Works with Android and Apple Systems
- Using Wireless Technology
- Intended target for 60 gallon and larger compressors
- FCC & IC Certifications
- 2 Year Limited Warranty
