tp-link Archer AX95 Tri-Band Wi-Fi 6 Router Installation Guide
- June 3, 2024
- tp-link
Table of Contents
Archer AX95 Tri-Band Wi-Fi 6 Router
Installation Guide
Set up with videos:
Scan QR code or visit https://www.tp-link.com/support/setup-video/#wi-fi-
routers
Connect the Hardware
- Unplug the power to turn off your modem, if any, and remove the backup battery if it has one.
- Refer to Q5 of Need Help to place the router for optimal Wi-Fi performance.
If your internet connection is through an Ethernet cable directly from the wall instead of through a DSL/Cable/Satellite modem, connect the Ethernet cable to the router’s 2.5 Gaps WAN/LAN port and follow step 3 and 4 to complete the hardware connection.
Set Up the Network
Method ONE: Via TP-Link Tether App
-
Download the Tether app.
-
Open the Tether app and log in with your TP-Link ID.
Note: If you don’t have an account, create one first. -
Tap the button in the Tether app and select Wireless Router > Standard
Routers. Follow the steps to complete the setup and connect to the internet.
Enjoy the internet!
To enjoy a more complete service from TP-Link, bind your TP-Link ID to the
router.
Method TWO: Via a Web Browser
-
Connect your device to the router wirelessly or with an Ethernet cable.
The default wireless network names (SSIDs) and password are printed on the label at the bottom of the router. -

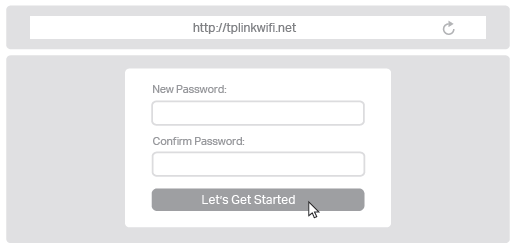

Launch a web browser, and enter http://tplinkwifi.net or http://192.168.0.1 in the address bar. Create a password to log in.
Note: If the login window does not appear, please refer to Q2 of Need Help in this guide. -
Follow the step-by-step instructions to set up the internet connection and register for the TP-Link Cloud service.
Enjoy the internet!
LED Explanation
| LED | Description |
|---|---|
| Solid Orange | The Wi-Fi is off. |
| Pulsing Orange | The system is starting up. |
| Solid Red | No internet connection. |
| Pulsing Red | The Wi-Fi is off and there is no internet connection. |
| Solid Blue | The router is working properly. |
| Pulsing Blue | The firmware is being upgraded, WPS connection is being |
established or the router is being reset.
Button Explanation
| Button | Description |
|---|---|
| WPS | Press the WPS button, and immediately press the WPS button on your client |
to start the WPS process.
Wi-Fi| Press and hold the Wi-Fi button for about 2 seconds to turn on or off
the wireless function of your router.
LED| Press the LED button to turn on or off the LED of your router.
For technical support, replacement services, user guides and more, please
visit https://www.tp-link.com/support
To communicate with TP-Link users or engineers, visit https://community.tp-
link.com to join TP-Link Community.
Email techwriter@tp-link.com.cn to give
suggestions.
http://www.tp-link.com/support
- Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
- Keep the device away from water, fire, humidity or hot environments.
- Do not use any other chargers than those recommended.
- Do not use damaged charger or USB cable to charge the device.
- Do not use the device where wireless devices are not allowed.
- Adapter shall be installed near the equipment and shall be easily accessible.
Need Help?
Q1. What should I do if I want to use 1 Gbps WAN/LAN port for internet service?
- Connect to the 1 Gbps WAN/LAN port with an Ethernet cable. During the quick network setup, select the 1 Gbps WAN/LAN port as the Internet port. Or after the network setup, you can go to Tools > Internet Connection > Internet Port (Tether app) or Internet > Internet Port (web management page) to change it.
Q2. What should I do if I can’t access the web management page?
- Reboot your router and try again.
- If the computer is set to a static IP, change its settings to obtain an IP address automatically.
- Verify that http://tplinkwifi.net is correctly entered in the web browser. Alternatively, enter http://192.168.0.1 or http://192.168.1.1 in the web browser.
- Use another web browser and try again.
- Disable and enable the network adapter in use.
Q3. What should I do if I can’t access the internet?
-
Log in to the web management page of the router, go to Internet > Internet Port, and check if you selected the port that you’ve already plugged your Ethernet cable into.
-
Power off your modem for about 5 minutes, then power it on and check the internet. If your modem has more than one Ethernet port, keep other ports unconnected.
-
Check if the internet is working normally by connecting a computer directly to the modem via an Ethernet cable. If it is not, contact your internet service provider.
-
Log in to the web management page, and go to the Network Map page to check whether the internet IP address is valid or not. If it’s valid, go to Advanced > Network > Internet, click
Advanced Settings, select Use the Following DNS Addresses, set the primary DNS to 8.8.8.8, and set the secondary DNS to 8.8.4.4. If it is not, check the hardware connection or contact your internet service provider. -
For cable modem users, log in to the web management page of the router and go to Advanced > Network > Internet > MAC Clone. Select Clone Current Device MAC and save the settings.
Then reboot both the modem and the router.
Q4. What should I do if I forget my wireless password?
- If you have not changed the default wireless password, it can be found on the label at the bottom of the router.
- Connect a computer directly to the router using an Ethernet cable. Log in to the router’s web management page at http://tplinkwifi.net, and go to the Wireless page to retrieve or reset your wireless password.
Q5. How should I position my router for optimal Wi-Fi performance?
- Don’t place your router in a corner or in a closet.
- Avoid obstacles and high-powered appliances.
- Keep your router in a central location at a certain height.
- Keep the antennas vertical when the router is placed on a desktop. Keep the antennas upright when the router is hanging on a wall.
