Asus CM16 Modem Router User Manual
Details
Modem Information
DOCSIS 3.0 Cable Modem
16×4 channel bonding
To achieve Gigablast or Ultimate Classic speeds, a DOCSIS 3.1 modem is required
| Highest Service LevelPreferred 150
---|---
|
---|---
Front View

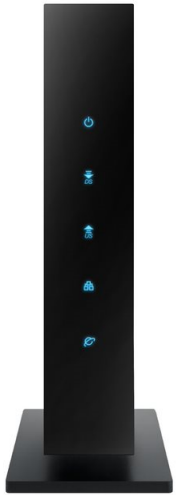

| | After the cable modem is successfully registered on the network, the
Power, Upstream, Downstream, and Online indicators illuminate continuously to
indicate that the cable modem is online and fully operational. For more
details, refer to the Modem Lights section.
| |
Back View

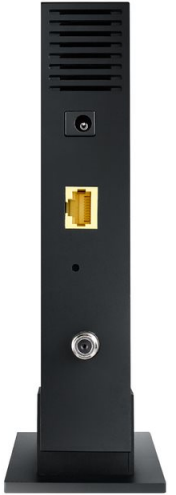

| | The Asus CM16 has the following ports available on the back of the modem.
- RESET – Use this button to reboot the modem or restore to factory defaults. It is recessed to prevent accidental resets.
- ETHERNET – Connects to the 10/100/1000 Ethernet ports on your computer.
- CABLE – Connects to the cable wall outlet.
- POWER – Connects the modem to the power cord.
| |
MAC Address
| | MAC addresses are written as 12 digits containing both letters and numbers (0-9, A-F). A MAC address is unique. The first six characters of the MAC address are unique to the manufacturer of the device.
Modem Lights
The modem lights indicate the current status of your cable modem. To troubleshoot any connection problems, use the table below.
| Modem Light | Status | Problem |
|---|
POWER
| Off| No power. Verify all cable connections and try resetting the modem.
Solid Green| None
RECEIVE
| Flashing| Scanning for downstream channel. Verify all cable connections and
try resetting the modem.
Solid Green| None. The downstream channel is connected in DOCSIS 3.0 mode.
Solid Blue| None. High speed Internet connection with downstream channels in
DOCSIS 3.1 mode.
SEND
| Off| Upstream channel inactive. Verify all cable connections and try
resetting the modem.
Flashing| Scanning for upstream channel. Verify all cable connections and try
resetting the modem.
Solid Green| None. The downstream channel is connected in DOCSIS 3.0 mode.
Solid Blue| None. High speed Internet connection with downstream channels in
DOCSIS 3.1 mode.
ONLINE
| Off| No connection. Verify all cable connections and try resetting the
modem.
Flashing| None. Scanning for configuration parameters.
Solid Green| None. Operational.
Manufacturer Resources
For more detailed technical information on the Asus CM16, use the resources below.
