Table of Contents

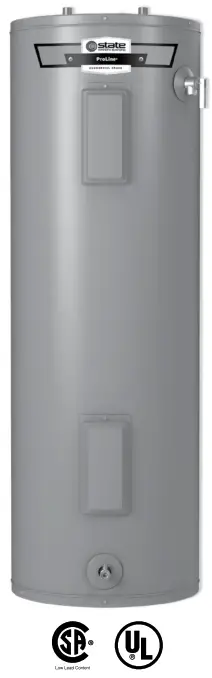

COMMERCIAL-GRADE
RESIDENTIAL ELECTRIC WATER HEATERS
PROLINE ®
ENHANCED HEATING ELEMENTS
-
Dual 4500 watt elements for faster recovery and reliable operation*
-
Incoloy stainless steel lower element lasts longer than a standard copper element
SELF-CLEANING DIP TUBE -
Helps reduce lime and sediment buildup maximizes hot water output. Made from long-lasting PEX cross-linked polymer (self-cleaning design is not used on lowboy models).
HIGHER EFFICIENCY -
Eco-friendly non-CFC foam insulation, heat traps, and other features combine to yield a higher Uniform Energy Factor that maximizes savings on operating costs
REGARD ™ ANODE ROD -
Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods
BLUE DIAMOND ® GLASS COATING -
Provides superior corrosion resistance compared to the industry-standard glass lining
ENHANCED-FLOW BRASS DRAIN VALVE -
Our residential water heaters have a solid brass, tamper-resistant, enhanced-flow, ball type, drain valve
-
Uses a standard female hose fitting that allows for fast and easy draining during maintenance
-
Designed for easy operation, this valve includes an integral screwdriver slot that features a ¼ turn (open/close) radius, which not only permits full straightthrough water flow ut also a quick and positive shut off.
CODE COMPLIANCE -
Meets UBC and ICC National Codes and listed with CEC
-
Complies with the Federal Energy Conservation Standards effective April 16, 2015, in accordance with the Energy Policy and Conservation Act (EPCA), as amended.
APPROVED FOR MANUFACTURED HOUSING -
All residential electric water heaters are compliant with HUD standards for mobile homes/manufactured housing
CERTIFIED TO UL 174 FOR HOUSEHOLD ELECTRIC WATER HEATERS
CSA CERTIFIED AND ASME RATED T &P RELIEF VALVE
DESIGN-LISTED BY UNDERWRITERS LABORATORIE S -
Certified at 300 psi test pressure and 150 psi working pressure
-
Listed according to UL 174 standards governing storage tank-type electric water heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY -
For complete information, consult written warranty or go to statewaterheaters.com
SOLID. STATE.
© April 2021 State Water Heaters. All rights reserved
www.statewaterheaters.com |
800-365-0024 Toll-Free USA | State
Water Heaters | 500 Tennessee Waltz Parkway | Ashland City, TN 37015
Model Number| Nominal
Capacity| Rated Storage
Volume| First Hour Rating (Gallons)| UAF| Recovery @ 90’F
Rise Gallon Per
Hour| Element Wattage 240V| Dimensions in Inches| Approx.
Shipping Weight
(Ibs)
---|---|---|---|---|---|---|---|---
Standard| Minimum| Maximum| A| B| C
Tall Models
TEN6 30 DORT| 30| 27| 48| 0.89| 21| 4500| 1000| 6000| 46-1/2| 39-1/2| 19| 95
TEN6 40 DORT| 40| 36| 53| 0.92| 21| 4500| 3500| 6000| 61-1/4| 53-1/4| 18| 118
tEN6 50 DORT| 50| 46| 62| 0.92| 21| 4500| 3000| 6000| 59| 51-1/4| 20-1/2| 125
.i.EN6 55 DORT| 55| 55| 72| 0.93| 21| 4500| 2500| 6000| 56-1/2| 48-1/2| 24|
145
Short Models
EN6 30 008S| 30| 27| 50| 0.90| 21| 4500| 1000| 6000| 39| 30-1/2| 20| 95
tEN6 30 DORS| 30| 27| 47| 0.89| 21| 4500| 1000| 6000| 39-3/4| 30-1/2| 22| 94
tEN6 40 DORS| 40| 37| 55| 0.92| 21| 4500| @ 4500| 6000| 49-3/4| 40-3/4|
20-1/2| 109
tEN6 40 DORSW| 40| 37| 41| 0.88| 18| –| 1000| 4000| 49-3/4| 40-3/4| 20-1/2|
109
tEN6 50 DORS| 50| 46| 57| 0.92| 21| 4500| 2500| 6000| 49-1/4| 40-3/8| 23| 161
Lowboy Top Connect Models
tEN6 30 DOLBS| 28| 26| 43| 0.89| 21| 4500| 1000| 6000| 30| 21-3/4| 20| 90
tEN6 30 DOLS| 28| 26| 44| 0.90| 21| 4500| 1000| 6000| 31 1/4| 21-3/4| | 115
tEN6 36 DOLS| 36| 33| 51| 0.92| 21| 4500| 44500| 6000| 32| 24| 24| 118
tEN6 40 DOLS| 38| 35| 50| 0.89| 21| 4500| 1000| 6000| 33 1/2| 24| 26| 118
tEN6 40 00IBS| 38| 35| 51| 0.92| 21| 4500| @ 4500| 6000| 32| 24| 23| 118
tEN6 40 00LBSW| 38| 35| 38| 0.90| 18| –| 1000| 4000| 32| 24| 23| 118
tEN6 50 DOLBS| 48| 44| 60| 0.93| 21| 4500| @ 4000| 6000| 34| 25| 26-1/2| 172
tEN6 50 0OLBSW| 48| 44| 40| 0.91| 16| | 1000| 3500| .| 25| 26-1/2| 172
tEN6 50 DOLS| 51| 48| 51| 0.92| 21| 4500| 4000| 6000| 36| 25| 26-1/2| 172
Male 3/4” water connections on 8” center.
*Models ship with a supplied insulation blanket.
†For 10-year tank and 10-year parts limited warranty, change “N6” to “SX” in
select models and “R” to “N” in the tall and short model number (example: ESX
40 DONT).
Models requiring a lower wattage than what is listed in the minimum wattage
column and showing the @ symbol will change to a “W” suffix model number.
“W” suffix models are available down to 1kW. (example: EN6-40-DORS using
4,000-watt elements or less will become “EN6-40-DORSW”).
Top T&P is not available on the 10-year lowboy models and the EN6 40 DOLS.
Dimensions and specifications are subject to change without notice in
accordance with our policy of continuous product improvement.
The minimum wattage for EN6-50-DORT is 3000 watts.
