BUSH DW12SAE Series Dishwasher User Manual

BUSH DW12SAE Series Dishwasher

REPLACEMENT PROCEDURE

Part name (Top Plate)

1.  Necessary Tools
   •  Pliers
   •  Flat head thin screwdriver
   • C. Cordless screwdriver or classic screwdriver with torx bits (T20)
2.  Disconnection. Remove the electric plug from the socket
3.   Remove two screws that fix the top plate at the back
4.  Push the top-plate back and pull it up

Part name ( Plastic Kick Plate)

1.  Remove two screws fixing plastic kick plate
2.  Remive the plastic kuck plate as it is shown in the picture

Part name Internal (Feeding Tubes and Spray Arms)

1.  Unscrew the feed chanel tabs with the help of a scredriver
2.  To assemble, manually narrow the feed channel replacement and insert it into the tabs
3.  Pull out the top spray channel by turning it clockwise
4.  Turn it counterclockwise to reinstall it
5.  To remove the lower spray arm, gently puul it up

Part name (Components inside the tub: course, micro and metal filters)

1. Open the door.
2. Remove lower basket
3. To remove microfilter group rotate them in the direction of counter clockwise and pull them up as it is shown in the picture4.To remove microfilter group (course filter and micro filter) pull them as itis shown in the picture
5.To remove the metal filter pull it up as it shown in the picture

Part name (Draining Hose)

1.  Remove the hose connection plastic.
2.  Remove lower cover
3.  Remove the clamp that fixes draining hose to the sump
4.  Remove draining hose

Part name (Baskets)

Lower Basket

1.  Open machine’s door
2.  Pull the basket to yourself

Upper Basket

1.  Open upper basket rail lock front
2.  Pull the basket to yourself and remove it

Part name (Water Inlet valve)

•  Remove lower cove.
•  Remove the wire that is connected to the water inlet valve.
•  Remove the clamp that connects water inlet valve and air-break as it is shown in the picture
• To remove water inlet valve pull t back as it is shown in the direction of picture then release water inlet valve from the pins that is connecte to and rotate it in the direction of counterclockwise.

Part name (Sump Group)

1. Remove 2 screws on top
2. Remove the drain pump
3. Remove the drain hose
4.  Remove the blue hose from the water softener to the pool group

Part name (Floater)

• a) Remove lower cover.
• b) Remove two screws that fix floater as it is shown in the picture.
• c) Remove the two floater hoses.
• d) Remove the wire that is connected to the floater.

Part name (Water Softener)

• a) To remove salt cup cover, rotate it in the direction of counterclockwise
• b) To remove salt cup nut, rotate it in the direction of counterclockwise.
• c)Remove left side panel.
• d) Derach the connections which are between water softener and air-break.
• e) Remove lower cover.
• f) Remove the hose that is between sump and salt camp.

Part name (Parasite Filter)

• a) To remove salt cup cover, rotate it in the direction of counterclockwise
• b) To remove salt cup nut, rotate it in the direction of counterclockwise.
• c)Remove left side panel.
• d) Derach the connections which are between water softener and air-break.
• e) Remove lower cover.
• f) Remove the hose that is between sump and salt camp.

Part name (Hose connection plastic)

• a) Remove left side panel.
• b) By using flat tip screwdriver remove hose connection plastic’s hinge from the basement as it shown in the picture
• c) Push the hose connection plastic.

Part name (Air – break)

• a) Remove the left side panel of the machine.
• b) Open machine’s door
• c)Rotate the counterclockwise air-break nut and remove it.
• d) Remove air-break’s connections with salt cap as it is shown in the picture. (be careful about plastic hinges)

Part name (Door Inside)

• a) Remove side panels.
• b) Remove Hinge Spring
• c) Pull the door inside up as It is shown in the picture.
• d) Remove two screws that fix hinge movement sheet iron to the door inside.

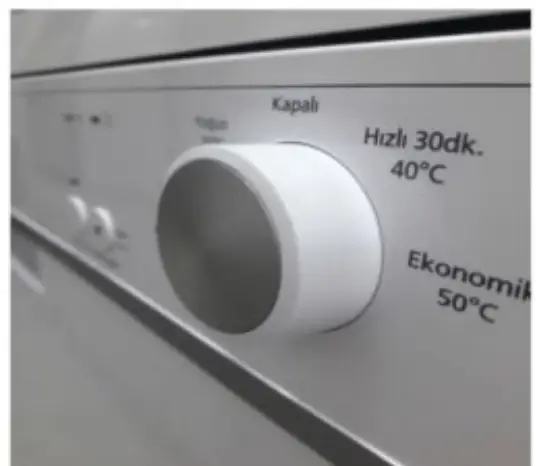

KNOB REMOVAL INSTRUCTIONS

1.  Remove control panel,
2. Remove the pcb box,
3. Remove the plastic tabs around the knob by flexing them.

Part name (Disperser Removal)

1. Remove front panel
2. Disconnect the dispenser cable harness
3. Remove the metal tabs on the top, bottom and sides to disengage the dispenser.
4. Then the dispenser will drop in
5. To assemble, tighten the metal tabs with a pliers
6.  After applying silicone oil or liquid soap to dispenser, press down and engage dispenser.

Part name (Door Lock)

• remove control  panel screws
•  Disconnect cable connections with door lock
•  Remove two door lock screws

Precautions:

• Always follow safety advice.
• Always switch off and unplug the appliance before attempting to remove any part.
• Always wear appropriate protective equipment when carrying out any work.
• Always use the correct tools for carrying out any work.
• Some repairs may not be suitable for unqualified users to carry out. If in doubt seek the advice of a profession repairer.

SAFETY  PRECAUTION

ADDITIONAL SUPPORT.

The following parts are available for the customer to undertake repairs at their own risk. Please carefully follow the guidance given in this manual including all safety measures.

•  Door Hinge & Seals
•  Other Seals
•  Spray Arms
•  Drain Filters
•  Interior Racks
•  Plastic Peripherals such as Baskets & Lids

Parts can be obtained by calling the support service listed in this section. All repairs in this manual can be achieved using commonly available tools. If you are in any doubt of your ability to carry out a repair, please use a professional repairer, also available through the support service. Damage sustained to the appliance or future faults arising from poorly carried out repairs will not be covered under warranty.

Help and assistance

If you require any technical guidance or find that your dishwasher is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.bush- support.com If you still require further assistance, call one of our experts on 0345 257 7271. To help us give you a fast and efficient service please have the following information ready Lines open 8 am-7 pm Monday to Saturday and 10 am-4 pm Sunday.
Calls to Bush enquiry lines may attract a charge and set up fee residential lines depending on your call plan/tariff. Mobile and other providers costs may vary, see www.bt.com/pricing for details For security and training purposes, telephone calls to and from customer service centres may be recorded and monitored. Calls from the Republic of Ireland will attract international call charges

Notes On Disposal

The symbol on the product or its packaging indicates that this product may not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local council office, your household waste disposal service or the shop where the product was purchased.
