RELIABILT LS-SW-B12R Gray Painted Door Base Ready Instructions
- June 17, 2024
- RELIABILT
Table of Contents
ITEM# 5212658 5212659
5212660 5212661 5212662 5212715
5212716 5212717 5212718 5212719
QUICK REFERENCE GUIDE
LS-SW-B12R Gray Painted Door Base Ready
BASE CABINET
MODEL#
LS-SW-B12R B15R B18R B21R B24R
RELIABILT and logo design are trademarks or registered trademarks of LF, LLC.
All rights reserved.
Thank you for purchasing this RELIABILT product. We’ve created these easy-to-
follow instructions to ensure you spend your time enjoying the product instead
of putting it together.
But, if you need more information than what is provided here, please visit
Lowes.com, search the item number and refer to the Guides
& Documents tab on the product’s page.
If the item is no longer for sale, or if you have any questions or problems,
please call our customer service department at
866-386-7941, 8 a.m. – 8 p.m., EST,
Monday – Sunday. You could also contact us at
ascs@lowes.com.
**** SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble,
operate or install the product.
WARNING
- Electric, plumbing, gas lines and other utilities, are frequently installed or embedded behind walls where cabinets are being installed. Before drilling any holes or driving any screws, be sure you will not be contacting any of these utilities. Failure to follow these instructions may result in property damage and serious or fatal injury. If you do not feel confident in your ability to ensure that you will not contact utilities behind a wall during installation, please contact a licensed contractor to install the cabinets.
- This product can expose you to chemicals including wood dust, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
CAUTION
- Avoid using cleaners that contain bleach, ammonia, citrus based products or any type of abrasives (see cleaner label). These cleaners can cause damag to the cabinet finish.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare
parts with package contents list and hardware contents list. If any part is
missing or damaged, do not attempt to assemble the product.
Please visit Lowes.com for additional assembly resources.
Estimated Assembly Time: 30 – 40 minutes
2-person assembly recommended
TOOLS REQUIRED (NOT INCLUDED)
FEELING CONFIDENT? START YOUR NEXT PROJECT
- Visit lowes.com for more information.
Printed in Vietnam
CARE AND MAINTENANCE
- A damp cloth is sufficient for normal spills. Dry the surface immediately.
- Most general-purpose household cleaners can be used to clean doors.
- Caustic agents and/or abrasive scrubbers, or oven cleaners, should not be used.
- Liquid on the surface should not be left for long periods of time.
WARRANTY
- Contact the customer service team at 866-386-7941

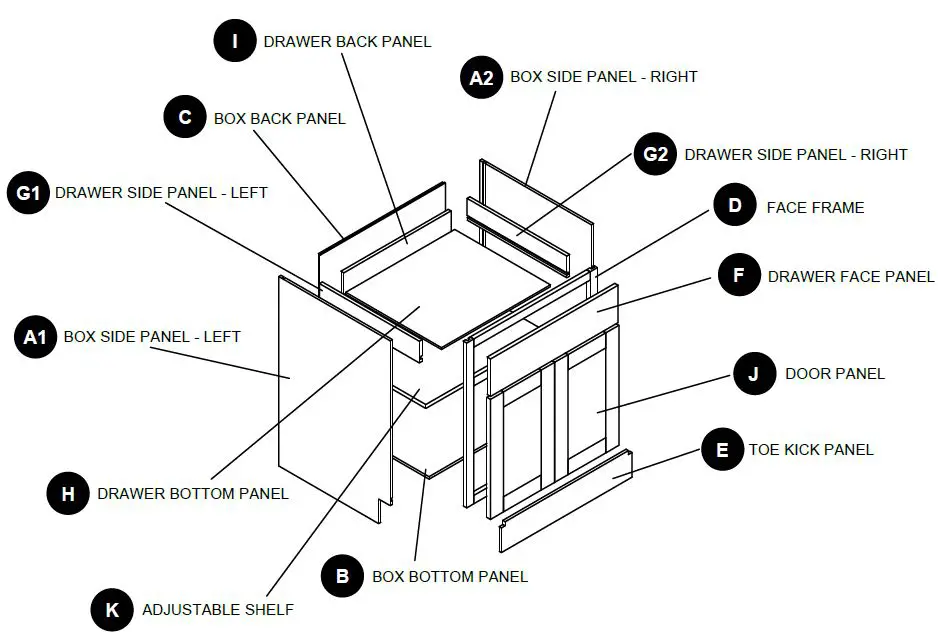

PACKAGE CONTENTS
| PART | DESCRIPTION | QUANTITY |
|---|---|---|
| A1 | Box side panel – left | 1 |
| A2 | Box side panel – right | 1 |
| B | Box bottom panel | 1 |
| C | Box back panel | 1 |
| D | Face frame | 1 |
| E | Toe kick panel | 1 |
| F | Drawer face panel | 1 |
| G1 | Drawer side panel – left | 1 |
| G2 | Drawer side panel – right | 1 |
| H | Drawer bottom panel | 1 |
| I | Drawer back panel | 1 |
| J | Door panel | 1 |
| K | Adjustable shelf | 1 |
HARDWARE CONTENTS
AA Glide and runner profile x 2
aa Included:
5/8” Flat Head Phillips Screw x 10 *Two additional pieces are included as an
extra
BB Adjustable drawer clips x 2
bb1 Included:
5/8” Flat Head Phillips Screw x 4 bb2
3/8” Flat Head Phillips Screw x 4 CC
Soft-close hinge x 2
cc1
Included
5/8” Flat Head Phillips Screw x 4 cc2
3/4” Round Head Phillips Screw x 2 DD
Plastic counter corner block x 4
dd Included:
1/2” Round Head Phillips Screw x 8 EE
Corner brace x 10 ee Included
1/2” Round Head Phillips Screw x 40 FF
Adjustable shelf clip x 4 GG
1” Flat head Phillips screw x 2
HH
Rubber bumper x 6
INSTALLATION OVERVIEW
Use 1/2” round head phillips screw (ee) x
10
Use 1/2” round head phillips screw (ee)
x 10
Insert the box back panel (C) into
right box side panel (A2) groove.
Use 1/2” round head
phillips screw (ee) x 4
Insert the left box side
panel (A1) into box back panel (C) groove.
Use 1/2”
round head phillips screw (ee) x 4
Insert the
box bottom panel (B) into the grooves.
Attach the
face frame (D) to the cabinet box.
Secure four
corner braces (EE) using 1/2” round head phillips screw (ee) x 8.
Attach the toe kick panel (E) to the cabinet box and align
with the pre-drilled holes.Secure the toe kick panel
(E) with corner braces (EE) using 1/2” round head phillips screw (ee) x
4.
Insert the base of glide and runner
profile (AA) into the pre-drilled holes on the box back panel (C). Secure two
bases using 5/8” flat head phillips screws (aa) x 4.
Use 5/8” flat head phillips screw (aa) x 4
Attach the right drawer side panel (G2) to the drawer face
panel (F).
Attach the left drawer side panel (G1)
to the drawer face panel (F).
Tilt the
drawer side panels slightly and insert the drawer bottom panel (H) and the
drawer back panel (I)
Firmly connect the drawer
side panels with the drawer back panel (I).
Rotate
drawer to bottom side facing up, attach the adjustable drawer clips (BB) to
the drawer bottom panel (H).
Secure the adjustable drawer clips with the inside of drawer face panel (F) using 5/8” flat head phillips screw (bb1) x 4
Secure adjustable drawer clips (BB) to drawer bottom panel (H)
using 3/8” flat head phillips screw (bb2) x 4
Insert the drawer.
Insert the
drawer on the extended runner. To secure the drawer clips with the runner,
push the drawer in. Upon successful locking, a click can be heard.
Ensure that the hook on each runner profile fits into the
corresponding holes on the drawer back panel.
To level the drawer, use the green spur gears 1 to adjust
drawer left and right, the green spur gears 2 to adjust drawer up and down,
and the green spur gears 3 to adjust drawer inside and outside.
To take the drawer out, push the green clips at the same time
to unlock drawer clips.
Use 5/8” flat head phillips
screw (cc1) x 4
Use 3/4” flat head phillips screw
(cc2) x 2
If the door is not level when it is
installed, the customer will need to turn the screw clockwise to extend the
hinge or counterclockwise to shorten the hinge.
To reverse the door, unscrew the 3/4″ round head phillips
screws from each hinge and remove the door panel. Then, reverse the door panel
and drill the 3/4” round head phillips screws to each hinge through the pre-
drilled holes to tighten the hinges with cabinet face frame.
Place plastic counter corner blocks (DD) x 4 on each corner of
the cabinet.
Secure the plastic counter corner
blocks (DD) using 1/2” round head phillips screw (dd) x 8 (2 screws for 1
corner block).
Insert the adjustable shelf clip (FF)
into the cabinet where shelves are desired.
Insert the
adjustable shelf (K).
Attach the rubber bumper
(HH) to the top and bottom corner of the door panel (J).
Fasten box back panel (C) using 1″ flat head phillips screws
(GG) x 2.
MORE INFORMATION
To see a video of the assembly process and to get information on the suggested installation process scan here.
SCAN HERE FOR VIDEO ASSEMBLY AND INSTALLATION INSTRUCTIONS.
