893003 Mastercharge
Instructions

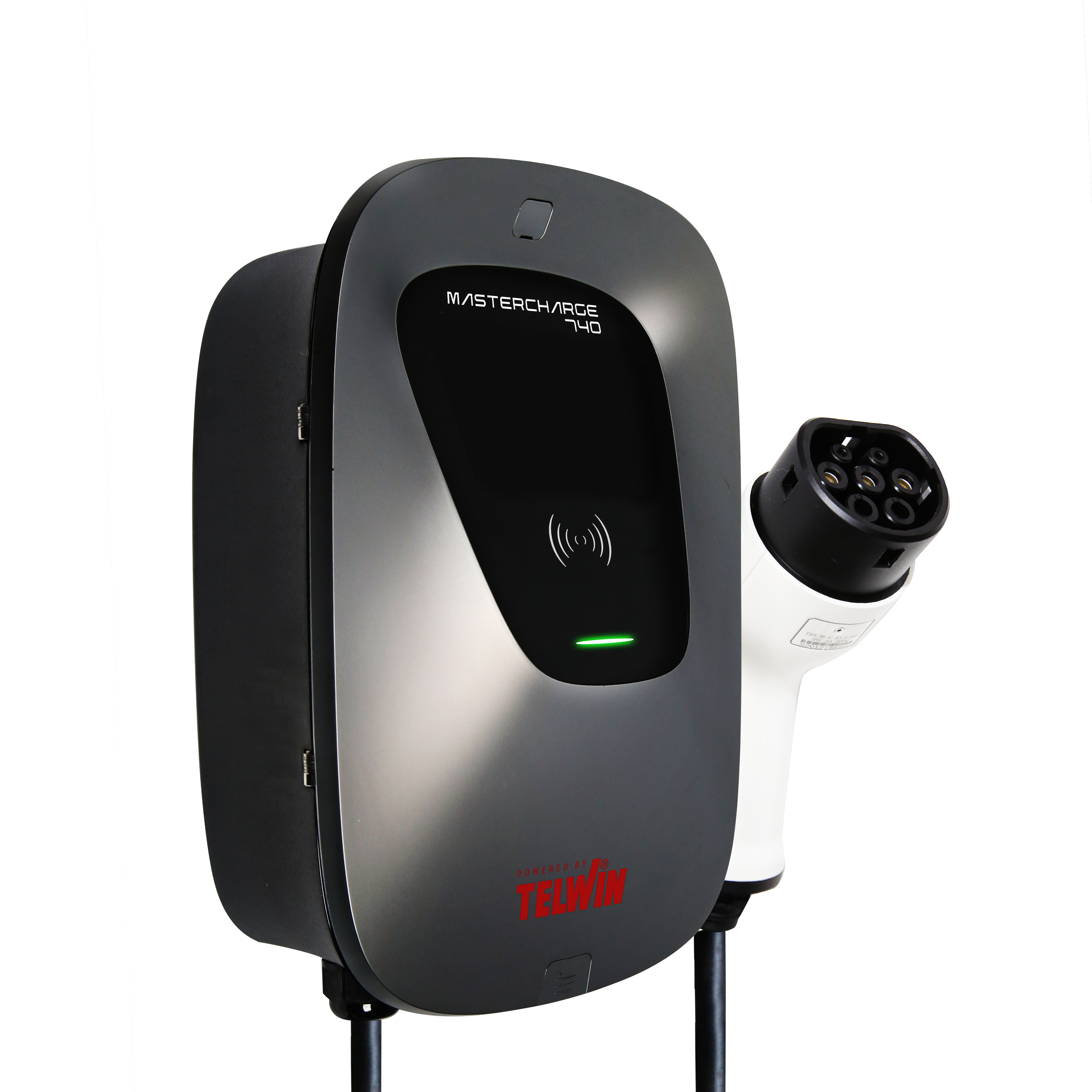

MASTERCHARGE 740
- 7.4 kW (32 A, 230 V, single phase) charging station for electric vehicles using AC alternating current (mode 3).
- Use after authentication with RFID badges reserved for authorized users. Can be installed both indoors and outdoors in sheltered locations (IP54, operating temperature from -20° C to +50°C).
- Supplied with direct charging cable (5m) with type 2 connector, wall bracket and 2 activation badges.
DESCRIPTION
Charging station for electric vehicles using AC alternating current (Mode 3).
Mastercharge is equipped with an integrated 5 meter long charging cable with
Type 2 connector and is suitable for both indoor and outdoor installations in
sheltered areas (IP54, operating temperature -20° C; +50° VS).
Use of Mastercharge is only possible by identification with an RFID badge
reserved for authorized users.
Easy to install, Mastercharge is a plug-and-charge solution that is safe and
intuitive.
Features
- Power 7.4 kW (32A 230V single phase);
- Mode 3 connection, Type 2 connector;
- Cable length 5 meters;
- Activation with RFID badge (2 cards provided);
- Degree IP54.
Complies with LVD (EN 61851-1, EN 61851-22) and EMC (EN 61000-6-2, EN 61000-6-3) standards.
TECHNICAL DATA
| CODED 893003
---|---
MAX POWER 7.4kW
EV CONNECTOR TYPE Type 2
DEGREE OF PROTECTION IP54
| TENSION RESEAU MONOPHASE
230 V
---|---
COURANT MAX
32 A
Mode 3
III
| FREQUENCE DU RESEAU
50 Hz
---|---
POTENZA STAND BY
3
Case C
DIMENSIONS (LxLxH)
13,2 x 27,0 x 36,2 cm
POIDS 4,85 kg
DOWNLOAD
| CATALOG
---|---
| INSTRUCTION
MANUAL
| BROCHURE
|
CERTIFICATE
Telwin SPA – Via della Tecnica, 3 36030 Villaverla (VI) – ITALY
www.telwin.com
MASTERCHARGE 740 – PAG. 3/3
