POWRE LITE CP16W-CC LED Circular Panel Installation Guide

Certainty at The Speed of Light Installation Manual
LED CIRCULAR
PANEL
CP16W-CC
CP20W-CC

Important Safety Instructions

Basic safety precautions should always be followed when installing, including the following:

1. Read all instructions.
2. Licensed electrician for installation only.
3. Always ensure the power is OFF and the fitting has cooled down before performing any maintenance, cleaning, changing the globe or adjustment to the fitting.
4. Do not install any luminaire near the heat source.
5. Do not exceed the nominal supply voltage or amperage ratings.
6. To avoid injury or damage to the fitting, please ensure that power leads and screws are secure before connecting the power.

Installation Instructions

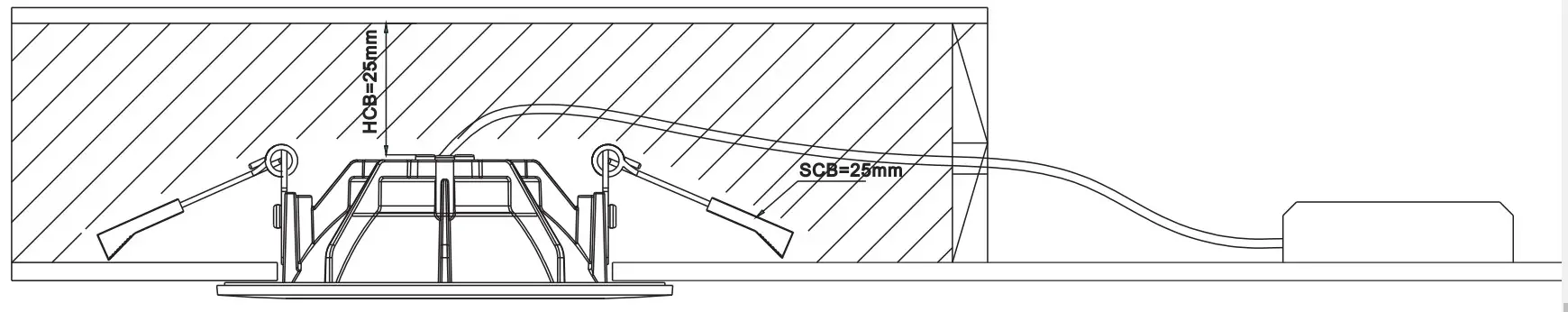

Fig 1: Installation Spacing
RISK OF FIRE-Required clearance from structural members and building elements
SCB=25mm HCB=25mm MIC=Omm SCI=Omm
HCB: Height clearance to building element
MIC: Minimum insulation clearnce
SCI: Side cleamce to insulation
SCB: Side clearance to building element
Tab 1: Ceiling cutout reference table.

circular panel light
dia (inch)| 2| 2.5| 3| 3.5| 4| 5| 6| 8| 10
---|---|---|---|---|---|---|---|---|---
Ceiling Cutout (mm)| 60-65| 68-75| 90-95| 100-110| 120-130| 140-150| 160-170| 200-210| 230-260

NOTE: Before installation, please check the IP label on the luminaire to choose the right place to install.

areas such as porches.
IP65| Suitable for outdoor areas, not suitable for water immersion.

NOTE: Before installation, please check the information of driver as below.

 Installation Procedure

WARNING

1. Switch off before installation.
2. Switch on only after complete installation and examination of the circuit.
3. Professional electrician for installation and maintenance only.

Turn Off power supply before starting any installation. Read instructions & check you have all the tools & accessories to complete the installation correctly.

Circular Panel with external driver

1. Open a hole according to the cutout size of led circular panel light
2. Use screw-driver to open the driver terminal cover, feed the main AC wire L. N. in terminal block respectively, then fix the cover back.

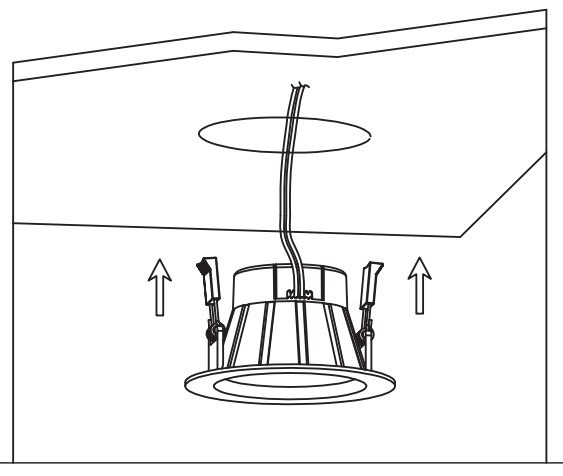

3. Connect the panel light with driver, hold back the spring clip then push the circular panel light into the hole.
4. Make sure the light fixed tightly in ceiling, turn on the power (Fig 1).

 Circular Panel with internal driver

1. Open a hole according to the cutout size of led circular panel light.
2. Use screw-driver to open the driver terminal cover on the back of circular panel light, feed the main AC wire L. N. in terminal block respectively, then fix the cover back.
3. Hold back the spring clip then push the circular panel light into the hole.
4. Make sure the light fixed tightly in ceiling, turn on the power (Fig 1).

RISK  OF FIRE – Required clearance from structural members and building elements
SCB=25mm HCB=25mm MIC=0mm SCI=0mm
HCB: Height clearance to building element
MIC: Minimum insulation clearance
SCI : Side clearance to insulation
SCB: Side clearance to building element

Warning:
Caution, risk of electric shock.
Product modification and improper installation are not valid for warranty!
WARNING-RISK OF OVERHEATING OR FIRE IF THE CLEARANCE DISTANCES ARE COMPROMISED
For non-user replaceable light sources:
“The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.”
For type Y attachments:
if the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
