SUN JOE SPX2004-RM 13A Electric Pressure Washer

IMPORTANT! Safety Instructions

All Operators Must Read These Instructions Before Use
WARNING! This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
CAUTION! This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
DANGER! This indicates a hazardous situation, which, if not followed, will result in death or serious injury.

General Safety

WARNING! This appliance is not intended for use by children or by unassisted, unsupervised persons whose physical, sensory, or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.
Before starting up your machine, please check it carefully for any defects. If you find any, do not start up your machine. Contact your authorized Snow Joe®

Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).
WARNING! When using the pressure washer, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These include:
- Know your product – Know how to stop the machine and bleed pressure quickly. Thoroughly familiarize yourself with the controls.
- Keep bystanders away – All visitors and pets should be kept a safe distance away from the work area.
- Use the right product – Do not use this machine for any job except that for which it is intended.
- Dress properly – Do not wear loose clothing or jewelry. They can get caught in moving parts. Protective rubber gloves and non-slip footwear are recommended when working outdoors.
- CAUTION! â€“ Exercise caution to avoid slipping or falling. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces.
- Stay alert â€“ Watch what you are doing. Use common sense. Do not operate the pressure washer when you are tired, or under the influence of alcohol or drugs.
- Do not overreach â€“ Keep proper footing and balance at all times.
- Avoid unintentional starting â€“ Do not carry a plugged-in machine with your finger on the trigger.
- Make sure the switch is off before plugging in the machine.
- Do not abuse the cord â€“ Never carry the machine by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.
- Use safety glasses – Also use safety footwear, snug-fitting clothing, protective gloves, and hearing and head protection.
- Check the water temperature – This pressure washer is not meant to pump hot water. NEVER connect it to a hot water supply as it will significantly reduce the life of the pump.
- Store indoors – NEVER store the pressure washer outdoors or where it could freeze. The pump could be seriously damaged.
- Ground Fault Circuit Interrupter (GFCI) – This product is provided with a Ground Fault Circuit Interrupter build into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.
- Inspect electrical cables – The insulation of the power cord should be perfectly intact. If the power cord is damaged or shows any signs of wear or tear, do not use the pressure washer. Contact your authorized Snow Joe® + Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).
- WARNING! Do not use this appliance without reading this instruction manual.
- WARNING! Do not use the appliance within range of other people unless they are wearing protective clothing.
- WARNING! Risk of injection or injury – Do not direct discharge stream at persons.
- WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.
- Do not direct the jet at yourself or others in order to clean clothes or footwear.
- Risk of explosion – Do not spray flammable liquids.
- Disconnect the tool – Disconnect from the electrical power supply before performing any maintenance task.
- Keep children away – This high-pressure electric power washer must not be used by children or untrained personnel.
- To ensure appliance safety, use only original replacement parts from the manufacturer or those approved by the manufacturer.
- WARNING! Water that has flowed through backflow preventers is considered to be non-potable.
- WARNING! During cleaning, maintenance, or when replacing parts, disconnect the machine from its power source by removing the plug from the socket outlet.
- WARNING! High-pressure hoses, fittings, and couplings are important for the safe operation of the appliance. Use only hoses, fittings, and couplings recommended by the manufacturer.
- Check for damaged parts – Do not use the appliance if the supply cord or other important parts of the appliance are damaged (e.g. safety devices, high-pressure hoses, trigger gun).
- WARNING! If an extension cord is used, the plug and socket must be of watertight construction.
- NOTE: It is not recommended to use an extension cord with this pressure washer.
- WARNING! Inadequate extension cords can be dangerous.
- This high-pressure electric power washer must not be used at temperatures below 32ºF (0°C).
- WARNING! Power cords on drums should always be completely unwound to prevent the cord from overheating.
- Power cord connections should be kept dry and off the ground.
- If the power cord is damaged, do not use the appliance. Contact your authorized Snow Joe® + Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer service center at 1- 866-SNOWJOE (1-866-766-9563).
- Keep the machine on a stable, flat surface during operation, handling, transportation, and storage. Sudden overturn of the machine can cause bodily injury.
- In the event of an accident or breakdown, switch off the machine immediately (If contact with detergent occurs, rinse with an abundance of clean water.)

Electrical Safety

ATTENTION: If there are problems with the electrical MAINS, short voltage drops may appear when starting the equipment. This can, in turn, influence other equipment
(e.g. cause a lamp to blink). If the MAINS-IMPEDANCE Zmax < 0.335 OHM, such disturbances are not expected
(If you require assistance, contact your local supply authority for further information).
WARNING! Electrical Shock Hazard – Before starting up your machine, please check it carefully for any defects.
If you find any, do not start up your machine. Contact your authorized Snow Joe® + Sun Joe® dealer or call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).
The following should be observed when connecting the high-pressure electric power washer to the electric supply:

The electric supply connection should be performed by a qualified person.
The electric supply to this appliance should include either a residual current device that will interrupt the supply if the leakage current to the earth exceeds 30 mA for 30 ms or a device that will interrupt the earth circuit (GFCI).

IMPORTANT: Only use water without any impurities. If there is a risk of running sand into the inlet water (i.e. from your own well), an additional filter should be installed.

Safety devices

The unloader valve can reduce pressure if it exceeds preset values. The spray gun features a locking device. When the lock is activated, the spray gun cannot be operated.

Thermal sensor – A thermal sensor protects the motor against overloading. The machine will restart after a few minutes when the thermal sensor has cooled.
Double insulation – In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe® + Sun Joe® dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words “Double Insulation” or “Double Insulated.” The symbol (square within a square) may also be marked on the appliance.
Ground fault circuit interrupter (GFCI) protection –This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.
It is not recommended to use an extension cord with this pressure washer. The unit comes standard with a 35 ft GFCI power cable. Using an extension cord may cause a drop in line voltage resulting in loss of power and overheating.
If an extension cord is going to be used, use only extension cords that are intended for outdoor use. These extension cords are identified by marking “Acceptable for use with outdoor appliance; store indoors while not in use”. Use only extension cord having an electrical rating not less than the rating of the product. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect extension cord from the receptacle before disconnecting the product from the extension cord.
To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). The appliance plug will fit into a polarized outlet only one way.
If the appliance plug does not fit fully into the outlet, reverse the plug. If the plug still does not fit, make sure that you are using the correct polarized wall outlet. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, power cord receptacle, or power cord plug in any way.
WARNING Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:
- Do not allow any part of the electric pressure washer to make contact with water while it is in operation.
- If the appliance becomes wet while turned off, wipe dry before starting.
- Do not use an extension cord over 25 ft. The pressure washer comes equipped with a 35 ft power cable. Combined cord length must not exceed 60 ft. Any extension cord must be 14-gauge (or heavier) to safely power the pressure washer.
- Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.
  WARNING! To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch plug with wet hand.
To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.
Do not abuse the cord. Never pull the pressure washer by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

Risk of electrocution

Inspect cord before using.
Do not use if cord is damaged.
Keep all connections dry and off the ground.
Do not touch plug with wet hands.
Keep cord away from heat and sharp edges.
Do not spray electrical apparatus and wiring.

Risk of explosion

Do not spray flammable liquids.
Do not use acids, bases, solvents, or any flammable material in this product. These substances can cause physical injuries to the operator and irreversible damage to the machine.

Additional safety instructions

High-pressure: keep clear of nozzle.
Injection hazard: equipment can cause serious injury if the spray penetrates the skin.
Do not point the gun at anyone or at any part of the body.
In case of skin penetration, seek medical aid immediately. Before servicing, cleaning, or removing any parts, shut off the power and relieve pressure.
This machine is not suitable for connection to the potable water mains.

Product Description

Purpose

This high-pressure electric power washer is intended for residential use only. It is designed for light-to-medium duty cleaning jobs on boats, motorcycles, RVs, ATVs, trailers, decks, barbecues, siding, patio furniture, and more.

Areas of application

Never use the machine in potentially explosive areas under any circumstances!
The operating temperature must be between 32ºF (0ºC) and 104ºF (40ºC).
The machine consists of an assembly with a pump, which is encased in a shock-absorbing housing. To provide the operator with an optimal working position, the machine is equipped with a spray wand and a non-slip handle grip, whose shape and configuration comply with applicable regulations.
Do not cover or modify the spray wand or the spray nozzle in any way.
The high-pressure electric power washer is designed to be used with cold or lukewarm water; higher temperatures can damage the pump.
Do not use water that is dirty, gritty, or contains any chemical products, as such impurities could impair operation and shorten the life of the machine.

Safety Symbols
The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

READ THE OPERATOR’S MANUAL(S) – Read, understand, and follow all instructions in the user manual(s) before attempting to assemble and operate.
SAFETY ALERT – Indicates a precaution, a warning, or a danger.
WEAR EYE AND HEARING PROTECTION – For protection against injury, wear ear defenders and safety goggles.
Wear safety gloves during use to protect hands.
Store indoors. Never store the pressure washer outdoors. If the pump freezes, permanent damage may result.
Always keep the power cable away from heat sources, oils, or sharp edges. Immediately remove plug from the mains if the cable is damaged, frayed, or entangled.
Double Insulation â€“ When servicing, use only identical replacement parts.
WARNING! Electrical shock hazard.
WARNING! Do not expose the unit to rain or wet conditions. Keep dry.
To reduce the risk of injury, user must keep all bystanders at least 49 ft (15 m) away.
Wear non-slip footwear that will protect your feet and improve your footing on slippery surfaces.
Machine not suitable for connection to the potable water mains.
WARNING! Turn the machine OFF and disconnect it from the power supply before inspecting, cleaning, changing accessories, or conducting any other maintenance task.

Know Your Electric Pressure Washer

Read the ownerâ€™s manual and safety rules carefully before operating the pressure washer. Compare the illustration below to the pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

ON/OFF switch
Water inlet (garden hose connection)
Transport handle
Cord holder
Power cord with GFCI
Wheels (2)
Safety lock
High pressure hose holder
High-pressure hose
Rear compartment
Foam cannon (SPX-FC26)
Water outlet (high-pressure hose connection)
Trigger gun
Trigger
High pressure hose connection
Trigger gun holder
Quick-Connect spray wand
Spray wand lock button

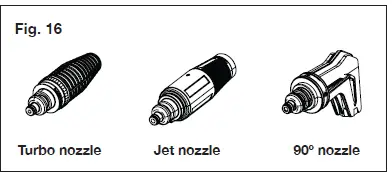

Quick-Connect 90º nozzle
Quick-Connect turbo nozzle
Quick-Connect jet nozzle
Needle clean-out tool

Technical Data

Rated Voltage………………………………………………..120 V ~ 60 Hz
Motor…………………………………………………………………….13-amp
Max Water Inlet Temperature………………………………104ºF/40ºC
Max Water Inlet Pressure………………………………………..0.7 MPa
Hose Length………………………………………………………..20 ft (6 m)
Power Cord Length………………………………………….35 ft (10.7 m)
Net Weight…………………………………………………….13 lbs (5.9 kg)
Turbo Nozzle…………………………………………………………….Rotary
Adjustable Jet Nozzle……………………………………………..0º to 45º
Foam Canon Capacity………………………………25.4 fl oz. (750 ml)
Max Pressure at initial discharge …………………………… 2100 PSI per CSA internal pressure testing
Rated Pressure under typical load ………………………….1600 PSI
Max Flow with nozzle open ……………………………………1.8 GPM at minimum pressure
Rated Flow under typical load ………………………………..1.1 GPM

Unpacking

Carton Contents

Electric pressure washer
Transport handle
Trigger gun
Quick-Connect spray wand
Three (3) Quick-Connect nozzles (Jet, turbo and 90º)
Foam cannon (SPX-FC26)
Two (2) large Phillips head screws (for handle)
Trigger gun holder
High-pressure hose/cord holder
Rear compartment
Two (2) small Phillips head screws (for Rear compartment)
Needle clean-out tool (included with manual packet)
High-pressure hose
Two (2) wheels
Garden hose adapter (female coupler)
Manual with registration card
Carefully remove the pressure washer and check to see that all of the above items are supplied.
Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new electric pressure washer. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!
WARNING! Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.

Assembly

Tools required: Phillips head screwdriver

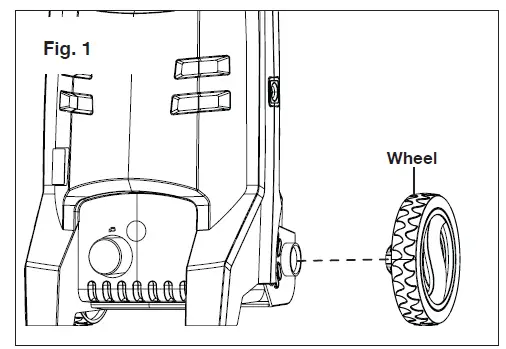

Lay unit on its side. Firmly press the wheel onto the unit body until it locks into place. Repeat on the opposite side (Fig. 1).
Following the alignment grooves at the top of the machine body, slide the handle into position from the front to the back, so that the solid side of the handle faces the front of the washer. Secure the handle using a Phillips head screwdriver and the two (2) supplied large Phillips head screws (Fig. 2).
Slide the hose/cord holder into position (Fig. 3).
Slide the trigger gun holder into position (Fig. 4).
Fit the 4 small tabs on the rear compartment into the holes in the back of the machine. Push inside until the rear compartment clicks in. Fix the assembly with the two small Phillips head screws (Figs. 5 – 6).
Fit the Quick-Connect spray wand into the trigger gun and twist the rotatable end-piece of the wand until the two parts are completely locked (Fig. 7).
Screw the end of the high-pressure hose clockwise into the trigger gun and tighten securely (Fig. 8). To release the high-pressure hose from the trigger gun, unscrew the end of the hose counterclockwise.
Connect the other end of the high-pressure hose to the water outlet on the pressure washer (Fig. 9).

First, push the high-pressure hose end completely onto the high-pressure water outlet, then screw it on clockwise. Tighten securely.
WARNING! Keep hose away from sharp objects. Bursting hoses may cause injury. Examine hoses regularly and replace if damaged. Do not attempt to mend a damaged hose.
Connect the garden hose adapter (female coupler) to the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose adapter (Fig. 10). The garden hose must have an internal diameter of at least 13 mm (1/2 in.) and must be reinforced. The water supply must be at least equal to the washer delivery capacity.
NOTE: The machine is not suitable for connection to the potable water main.
Attach garden hose to water supply (Fig. 11).
WARNING! The intake water temperature must not exceed 104ºF/40ºC. The water supply must not exceed 0.7 MPa.
CAUTION! The washer must only be used with clean water; use of unfiltered water containing corrosive chemicals will damage the washer.
Make sure the motor switch is pushed to the OFF (0)position before plugging the unit into the power outlet (Fig. 12).
Check that the electrical supply voltage and frequency(Volt/Hz) correspond to those specified on the pressure washer rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (Fig. 13).

NOTE: The GFCI may need to be reset when first plugged into the electric outlet. Press the “Reset” button until the power light indicator on the GFCI illuminates.

CAUTION! To prevent damage to the appliance, do not allow it to operate dry. Before starting the appliance, make sure that it has proper and stable supply of water.

Operation

IMPORTANT! This pressure washer is equipped with a micro-switch sensitive to water flow. This Total Stop System (TSS) senses water flow in the pump. When the trigger is released, water stops flowing through the pump. The TSS then automatically turns the motor off to protect the pump from overheating, thus saving energy and prolonging pump life.

Position the washer as CLOSE as possible to the water supply.
The washer must be used on a secure and stable surface in a standing, upright position (Fig. 14).
Turn the water supply tap on completely.
Unlock the safety lock, then press the trigger for a few seconds until the water flow is steady. Operating the pressure washer in this manner will allow air to escape and discharge residual pressure in the hose (Fig. 15).
Keeping the trigger pressed, turn the switch to the ON (I) position to start the pressure washer.
When re-starting the motor, always keep the trigger pressed.
NOTE: The motor only runs when the trigger is depressed and shuts off when the trigger is released.

Connecting Nozzles

Before beginning any cleaning task, determine the best nozzle for the job. Each of the nozzles has a different spray pattern (Fig. 16):

Turbo nozzle: Creates a powerful jet of oscillating water and cleans faster than standard nozzles, perfect for cleaning brick, concrete and vinyl.
Jet nozzle: Nozzle can be adjusted from 0Âº to 45Âº. Great for washing windows, patio furniture, fences, cars, grills and more.
90Âº nozzle: Angled nozzle perfect to cleaning hard to reach areas, such as under the car or roof of SUV, house roof, gutters and air conditioning + condenser units.

CAUTION! NEVER change nozzles without locking the safety lock on the trigger handle.
WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.
This electric pressure washer is equipped with three (3) Quick-Connect nozzles that easily snap onto the Quick-Connect collar of the spray wand. To connect a nozzle to the spray wand:

Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure.
Engage the safety lock on the trigger handle.
Align notches, press the spray wand lock button and insert the desired nozzle into the collar. Release the lock button and the nozzle will click into place. (Fig. 17).

To disconnect a nozzle from the spray wand once the cleaning job is complete:

Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure.
Engage the safety lock on the trigger handle.
Press the spray wand lock button to remove the nozzle.

WARNING! Do not make changes to the nozzle while the trigger is engaged. Doing so could result in damage to the pressure washer or injury to the user.

Using the Adjustable Jet Nozzle

WARNING! High-pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, pets, live electrical equipment, or the appliance itself.
The nozzle tip can be adjusted from jet spray (wide open tip) to fan spray (narrow tip) by turning the nozzle tip adjustment knob (Fig. 18).

WARNING! Do not adjust the nozzle while the trigger is squeezed. Failure to do so could result in damage.

Using the Turbo Nozzle

Use turbo nozzle for high impact cleaning (Fig. 19). The powerful oscillating pinpoint jet of water cleans faster than standard nozzles to destroy dirt, grease and grime on contact.

Using the 90º Angled Nozzle

90 degree angled nozzle directs the water into hard to reach areas (Fig. 20). This nozzle is the ideal for removing dirt from car wheel wells and cleaning and clearing blocked gutters.

Working with Detergents

When cleaning with the pressure washer, some cleaning tasks can be solved with water alone, but for most tasks cleaning with detergent allows for more effective dirt removal.
WARNING! Use only detergents specifically designed
for use with pressure washers, such as Sun Joe® HOUSE + DECK WASH (SPX-HDC1G), Sun Joe® SNOW FOAM AUTO WASH (SPX-FCS1G), or Sun Joe® HEAVY DUTY CLEANER (SPX- APC1G). DO NOT USE household detergents, acids, alkaline solutions, bleaches, solvents, flammable material, or industrial grade solutions. These could damage the pressure washer. Many detergents may require mixing prior to use. Prepare the cleaning solution as instructed on the solution bottle.

Gently pull the foam cannon bottle out of its storage position (Fig. 21).
Remove the cap. Fill the bottle or mix as recommended by detergent instructions (Fig. 22), and secure the cap back into place. Replace it back on the unit.
Disconnect the Quick-Connect spray wand from the trigger gun by twisting clockwise until the 2 locking tabs of the spray wand can be removed from the slot (Fig. 23).
To connect the foam cannon with the trigger gun, press the locking tabs of the foam cannon into the slot of the trigger gun, then twist counterclockwise until the 2 parts are completely locked (Fig. 24).
Turn on the pressure washer. Pull the trigger to operate the unit. The liquid detergent will automatically mix with water and be discharged through the nozzle.
NOTE: The angle of the spray can be rotated 360º by rotating the foam cannon nozzle. The foam volume can be adjusted by rotating the adjustable cap, as indicated below (Fig. 25).

WARNING! Do not adjust the Foam cannon while the trigger is squeezed. Failure to do so could result in damage.
CAUTION! Always test the detergent in an inconspicuous area before use.
Apply detergent from the bottom to the top of the dry surface to be cleaned.
NOTE: Wetting the surface first is not recommended as it dilutes the detergent and reduces its cleaning ability.
Allow the detergent to remain on the surface for a short time before rinsing. Do not allow the detergent to dry on the surface.
CAUTION! Damage may occur to painted surfaces if the detergent is allowed to dry on the surface. Wash and rinse a small section at a time. Avoid working on hot surfaces or in direct sunlight.
When finished using the pressure washer, you must first drain and rinse the foam cannon bottle. Run the pressure washer until all of the soap is drained from the foam cannon bottle.

CAUTION! Failure to follow these cleaning instructions will cause the injection system to become clogged and inoperable.
IMPORTANT! NEVER USE:

Bleach, chlorine products, and other corrosive chemicals
Liquids containing solvents (e.g. paint thinners, gasoline, oils)
Tri-sodium phosphate products
Ammonia products
Acid-based products

These chemicals will harm the unit and will damage the cleaning surface.

Shutting down

Turn the switch to the OFF (0) position and unplug the power cord from the outlet.
Turn off the water source.
Hold the trigger to release water pressure.
Disconnect the garden hose from the water inlet on the unit.
Disconnect the high-pressure hose connection on the trigger gun handle.
Release the trigger and engage the gun safety lock.

WARNING! Turn off the water supply and squeeze the trigger to depressurize the unit. Failure to do so could result in personal injury due to discharge of high-pressure water.

Taking a break

If you are taking a break of five minutes or more between cleaning tasks:

Engage the gun safety lock (Fig. 15).
Turn the switch to the OFF (0) position.
Unplug the power cord from the outlet.

Storage

CAUTION! Always store your pressure washer in a location where the temperature will not fall below 32ºF (0ºC). The pump in this machine is susceptible to permanent damage if it freezes. FREEZE DAMAGE IS NOT COVERED BY THE WARRANTY.

Store the pressure washer indoors in a dry, covered area where it is not subject to adverse weather conditions.
It is important to store this product in a frost-free area.
Always empty water from all hoses, the pump, and the detergent bottle (if using) before storing.

CAUTION! The use of a pump protector is recommended to prevent cold weather damage during storage over the winter months.

Winterizing + long-term storage

If you must store your pressure washer in a location where the temperature falls below 32ºF (0ºC), you can minimize the chance of damage to your machine by utilizing the following procedure:

Disconnect all water connections.
Turn on the machine for a few seconds until the remaining water in the pump exits. Turn off immediately.
Do not allow the high-pressure hose to become kinked. Store the machine and accessories in a room that does not reach freezing temperatures.
Do not store near a furnace or other sources of heat that may dry out the pump seals.
Operate the pressure washer with non-corrosive/non-toxic anti-freeze, a pump saver, or a pump protector before storing for the winter.

WARNING! Before reusing, completely flush the unit out with clear water. Anti-freeze products can damage paintwork, so you must ensure there is no anti-freeze left in the system before using it again.

Maintenance

CAUTION! Before working on the pressure washer, disconnect the plug from the power supply socket.

To ensure good performance, check and clean the water filter (Fig. 26). Remove the pre-filter and water inlet and rinse with warm water to prevent any foreign matter from clogging the pump (Figs. 27 – 28).
Clean the nozzle with the needle clean-out tool provided (Fig. 29). Remove the spray wand from the gun; remove any dirt from the nozzle hole and rinse.

Disposal

Recycling the washer

Do not dispose of electrical appliances as unsorted municipal waste. Use separate collection facilities.
Contact your local government agency for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least free of charge.

Service + Support

If your Sun Joe® SPX2004-RM electric pressure washer requires service or maintenance, please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE
(1-866-766-9563).

Model + Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Troubleshooting

Problems	Possible Cause	Possible Solution
Machine refuses to start	• Power failure/machine not plugged into a

working receptacle.

• Defective socket.

• Fuse has blown.

• Defective extension cord.

| • Check to make sure machine is plugged into a working outlet.

• Check the power cord and reset the GFCI. Try a different outlet.

• Replace fuse. Switch off any other machines that are using the same circuit.

• Try the unit without an extension cord.

Fluctuating pressure| • Pump sucking air.

• Valves dirty, worn out, or stuck.

• Pump seals worn out.

| • Check the hoses and connections are airtight.

• Clean or replace valves/seals.

• Please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.

Machine stops| • Fuse has blown.

• Incorrect mains voltage.

• Thermal sensor activated.

• Nozzle partially blocked.

| • Replace fuse. Switch off other machines using the same circuit.

• Check that the mains voltage corresponds to specification on the model tag.

• Leave the washer for 5 minutes to cool down.

• Clean the nozzle.

Fuse blows| • Fuse too small.| • Install a fuse with a higher amp rating than the amp consumption of the machine. Try the unit without an extension cord.
Machine pulsating| • Air in inlet hose.

• Inadequate supply of mains water.

• Nozzle partially blocked.

• Water filter blocked.

• Hose kinked.

| • Allow machine to run by holding the trigger until regular working pressure resumes.

• Check that the water supply corresponds to the specifications required.

• WARNING! Avoid using long, thin hoses (minimum 1/2 in. diameter).

• Clean the nozzle.

• Clean the water inlet filter.

• Straighten out the hose to remove any kinks/blockages.

Machine often starts and stops by itself| • Pump/spray gun is leaking.

• Trigger mechanism is broken.

| • Please call the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.
Machine starts, but no water comes out| • Pump/hoses or accessories frozen.

• No water supply.

• Water inlet filter blocked.

• Nozzle blocked.

| • Wait for pump/hoses or accessories to thaw.

• Connect inlet water.

• Clean the water inlet filter.

• Clean the nozzle.

Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that its parts are in proper working order.
To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues.

Optional Accessories

Accessories

|

Item

|

Model

---|---|---
| Sun Joe® House + Deck All-Purpose Pressure Washer Rated Concentrated Cleaner

Sun Joe® Premium Snow Foam Pressure Washer Rated Car Wash Soap + Cleaner
Sun Joe® All-Purpose Heavy Duty Pressure Washer Rated Cleaner + Degreaser

|

SPX-HDC1G

SPX-FCS1G

SPX-APC1G

WARNING! ALWAYS use only authorized Snow Joe® + Sun Joe® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this electric pressure washer. Contact Snow Joe® + Sun Joe® if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. Sun Joe’s complete line of premium pressure washer accessories and attachments make it easy to get your dirty work done, and also help you get the most out of your model! SHOP ONLINE now at sunjoe.com
NOTE: Accessories are subject to change without any obligation on the part of Snow Joe® + Sun Joe® to provide notice of such changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

SNOW JOEÂ® + SUN JOEÂ® REFURBISHED GOODS WARRANTY

GENERAL CONDITIONS:
Snow Joe® + Sun Joe® operating under Snow Joe®, LLC warrants this refurbished product to the original purchaser for 90 days against defects in material or workmanship when used for normal residential purposes. If a replacement part or product is needed, it will be sent free of charge to the original purchaser except as noted below.
The duration of this warranty applies only if the product is put to personal use around the household. It is the owner’s responsibility to correctly perform all maintenance and minor adjustments explained in the owner’s manual.

HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:
To obtain a replacement part or product, please visit snowjoe.com/help or email us at help@snowjoe.com for instructions. Please be sure to register your unit beforehand to speed up this process. Certain products may require a serial number, typically found on the decal affixed to the housing or guard of your product. All products require a valid proof of purchase.

EXCLUSIONS:

Wearing parts like belts, augers, chains and tines are not covered under this warranty. Wearing parts can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).
Batteries are covered in full for 90-days from the date of purchase.

Snow Joe® + Sun Joe® may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating Snow Joe®

Sun Joe® to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective.
This warranty is intended to cover product defects only. Snow Joe®, LLC is not liable for indirect, incidental or consequential damages in connection with the use or misuse of the Snow Joe® + Sun Joe® products covered by this warranty. This warranty does not cover any cost or expense incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this product while waiting for a replacement part or unit under this warranty. Some states do not allow exclusions of incidental or consequential damages so the above exclusions may not apply in all states. This warranty may give you specific legal rights in your state.

HOW TO REACH US:
We’re here to help Monday through Friday from 9AM to 7PM EST and Saturday and Sunday 9AM to 4PM. You can reach us at 1-866-SNOWJOE (1 866-766-9563), online at snowjoe.com, via email at help@snowjoe.com or tweet us @snowjoe.

EXPORTS:
Customers who have purchased Snow Joe® + Sun Joe® products exported from the United States and Canada should contact their Snow Joe® + Sun Joe® distributor (dealer) to obtain information applicable to your country, province or state. If for any reason, you are not satisfied with the distributor’s service, or if you have difficulty obtaining warranty information, contact your Snow Joe® + Sun Joe® seller. If in the event your efforts are unsatisfactory, please reach out to us directly.

sunjoe.com
