AC EV CHARGER
USR MANUAL

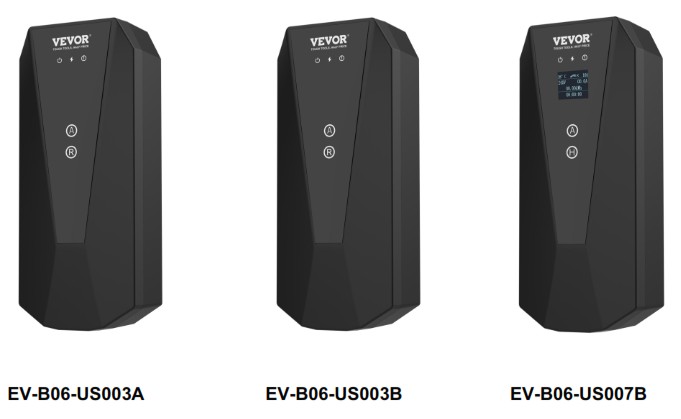

MODEL:EV-B06-US003A/EV-B06-US003B/EV-B06-US007B
We continue to be committed to provide you tools with competitive price.
“Save Half”, “Half Price” or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and doses not necessarily mean to
cover all categories of tools offered by us. You are kindly reminded to verify
carefully when you are placing an order with us if you are actually saving
half in comparison with the top major brands.
MODEL:EV-B06-US003A/EV-B06-US003B/EV-B06-US007B
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us:
CustomerService@vevor.com
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our user
manual. The appearance of the product shall be subject to the product you
received. Please forgive us that we won’t inform you again if there are any
technology or software updates on our product.
Before the operation, please read the operation manual carefully to know the
equipment and the correct method of use. Please keep it for future reference.
SAFETY PRECAUTIONS
- Before installation, please check the grid for single-phase 230 v ±10% (50 Hz)”. Otherwise unable to use it.
- Detection of the charging device has the function of user network circuit load capacity; When the electric grid circuit of the user cannot bear the charging power of the charging device, the device will automatically reduce the charging power and then charge the electric vehicle. This function can solve the problem of frequent tripping caused by the user’s grid voltage instability, circuit aging and other problems; At the same time, it can reduce the safety problems caused by the user’s circuit problems. If the charging power is reduced in use, it is a normal phenomenon.
- This equipment has over-voltage, under-voltage protection; It also has overload protection function. After the device automatically adjusts the charging power, the device will automatically shut down the charging and stop using if the user’s grid voltage is still abnormal.
- Install the equipment, the total input of the front-end must be installed circuit breakers.
- Do not use flammable,explosive, or combustible materials, chemicals, combustible gas and other dangerous goods near the charging pile.
- Keep dry and clean on the charging point. If there is any dirt, please use a clean, dry cloth to wipe it. It is forbidden to touch the point pin.
- Hybrid car, please recharge again after flame out. In the process of charging, vehicle driving is prohibited.
- Children do not get close to the process of charging so as not to cause harm.
- In case of rain, thunder, or weather, be a cautious charge, please.
- It is strictly prohibited that the charging cable breaks, wear and tear, charging cable nudity, charging pile has obviously been knocked down, damaged, etc. If the charging post is used, please stay away from the charging post immediately and contact the staff.
- If there is a fire in the process of charging electric shock and other abnormal situation occurs, immediately press the stop button to ensure personal safety.
- Please do not try to remove, maintain, or modify the charging pile.Improper use may cause damage, leakage, and so on and so forth.
PRODUCT INTRODUCTION
EV-B06-US series portable charger is designed for the pain points in the
portable charging industry. It is characterized by convenient installation,
use, and debugging, simple operation and maintenance, accurate measurement,
and complete protection functions. It has good compatibility, and meets the
charging requirements of national standard.
EV-B06-US series portable charger has a protection level of IP66, and has good
dustproof and waterproof functions, enabling safe indoor and outdoor
operation.
1. Product Parameters
| Type no. | EV-B06-US003A | EV-B06-US003B | EV-1306-US007B |
|---|---|---|---|
| In put voltage | AC 120V or AC 240V | AC 240V | AC 240V |
| Ou tput voltage | AC 120V or AC 240V | AC 240V | AC 240V |
| Power output | 3.8KW | 7.7kw | |
| Maximum output current | 16A | 32A | |
| Class of protection | IP66 | ||
| Protection Function | Fire protection, over current, over voltage, under |
voltage, ground protection, over temperature protection, self monitoring and
recovery,
Indicator light| Standby – Green on; Charging – Yellow blinking; Alarm – red
on
Liquid crystal screen| 3’LED light indicator| 3’LED light indicator| 3’LED
light indicator 1.5-inch LCD
Mode of charging| P ug and Play/APP charging
Charging interface| SAE J1772
Input plug| NEME 6-20P| NEME 10-30P| NEME 14-50P
Material of case| PC+ABS
Operating temperature| -30-45°C
Relative humidity| 5% to 95% no condensation
Overall dimensions| 245’105.63mm(WW*D)
Standard of reference| CCS1 (combo/Type 1) AC Level 1 and 2 charging| CCS1
(combo/Type 1)AC Level 2 charging
QUIPMENT INSTRUCTIONS
2. After the device is powered on, it enters the standby state. The device standby interface is shown below: 2.1 After inserting the charging gun head into the vehicle charging port, the charging interface is shown below:
2.2 Adjust the charging current: click the button to adjust the charging gear
:16A-13A-10A-8A-16A Cycle the current in this order.After switching the usage
current, plug in the gun head to charge.
2.3 Appointment charging: Click t o increase the reservation time.You can
choose between 0 and 12H.After the appointment time, it will automatically
enter the charging state.All models included in this manualcan be charged by
APP Appointment charging.
OBILE PHONE APP CHARGING OPERATION INSTRUCTIONS
3. APP download and binding use
a. To download the smart APP, enter the following address in the mobile
browser: https://developer.tuya.com/cn/docs/iot/tuya-smart-app-smart-life-
app-advantages?id=K989rqa49rluq
Click the website and follow the prompts to install.
b. Qr code download：
https://smartapp.tuya.com/smartlife
Open the mobile browser or other social software, scan the QR code, and follow
the APP according to the prompts.
3.1 Binding and Using Devices
Open the installed APP, click Agree privacy Statement, you can register with
your mobile phone number, social software binding registration, and log in to
the APP after a successful registration.
Long press A on the charging panel, and APP START appears on the display
screen to enter the APP mode;
Press and hold on the charging panel again, and the display screen will display Plug and Charge to enter the Plug and Play charging mode. Open the Location, Bluetooth, and Wifi of the mobile phone. If the charging device is in standby state, the APP will automatically search for the charging device and the device name will be displayed.
c. Click Add to add the device, enter the WIFI pairing interface,
automatically identify the WIFI name of the phone.Click Next, and the device
will be automatically bound. After the binding is successful, a message will
be displayed indicating that the device has been successfully added. Finally,
click the icon of “Finish” and wait about 5 seconds for the device to be
bound.
d. You can also click “+” in the upper right corner of the APP to manually add
the device, select the category of “Energy saving” in the left column, pull up
the device type, find the device “Car charging pile (Bluetooth + WIFI)”, click
to enter, and then click “Confirm indicator flashing” and “Fast flashing” as
prompted. Enter the WIFI password (WIFI password connected to the mobile
phone) and click Next to match the password, and always set the bound device
as prompted. After binding the device, charge it according to the APP
interface.
e. Device WIFI is reset：
EV-B06-US 003A and EV-B06-US 003B| Press both and buttons on the lower panel
simultaneously for 3 seconds device display panel for 3 seconds ，After waiting
for the display screen to display WIFI Reset, the device’s WiFi will be
reset.| Under the WiFi reset interface, simultaneously press the and buttons
on the device panel for 2 seconds to return to the device status interface.
---|---|---
EV-B06-EU 007B| Press both and buttons on the lower panel simultaneously for 3
seconds device display panel for 3 seconds ，After waiting for the display
screen to display WIFI Reset, the device’s WiFi will be reset.| Under the WiFi
reset interface, simultaneously press the and buttons on the device panel for
2 seconds to return to the device status interface.
Note: The APP can set charging current, reserve charging time and other functions; You can also query the real-time charging status. APP controls the charging function, which is not limited by the charging mode ofthe device.
CHARGING FAULT DESCRIPTION
4. Charging indicator LED indicator status table.
Device Status| Three-color indicator status (green light: standby, yellow
light:
charging, red light: failure)
---|---
Standby mode| Green light steady on
The gun has been fired| Steady yellow light
The gun is charging| Yellow light flashing
Switch current gear status:EV-B06-US003A
EV-B06-US003B
EV-B06-US007B| Press the current button and the yellow light will flash once
(8A );
Press the current button and the yellow light will flash twice (10A);
Press the current button and the yellow light will flash 3 times (13A);
Press the current button and the yellow light will flash 4 times (16A);
CP fault| The red light is on
Overpressure and underpressure| The red light flashes once per second
The PE cable is not connected| The red light flashes once in two seconds
Over-Current| The red light flashes every four seconds
Electrical leakage of equipment| The green and red lights flash once every
second
Equipment overtemperature| The green and red lights flash every two seconds
4.1 Fault display description(EV-B06-US007B)
4.2 Ground Fault: The ground wire is not connected or the ground wire is poor.
4.3 CP Fault:The device detects that the CP voltage exceeds 6V ± 0.8 or 9V ±
0.8, reports a CP fault, recovers the voltage to within range, and recovers
the fault.
4.4 Overcurrent Fault: If the charging
current of the device exceeds the threshold and continues to exceed 5s, the
device will disconnect charging and report a fault, which cannot be
automatically restored.
4.5 Undervoltage Fault: The rated input voltage is 240V, and a fault is reported if the voltage value is lower than 192V±5V.
4.6 Overvoltage Fault: The rated input voltage is 240V, and a fault is
reported if the voltage value is higher than 288V±5V.
INSTALLATION INSTRUCTIONS
5. List of Parts
General purpose accessories
Product specification| Ac pile instruction manual| 1 copy
Storage bag| Portable hard case travel bag| 1 PCS
Adapter plug cable (equipped with EV-B06-US003A)| Adapter line from 6-20
socket to
5-15 plug| 1PCS
Wall mount installation
Wall mount| Wall mounted fasteners| 1 PCS
Expansion screw| M8*60 expansion
screw| 4 PCS
Charging cable hook| Iron hook| 1 PCS
5.1 The installation method is wall hanging
a.Take out the provided wall mounting fasteners and carefully check the
installation dimensions of the screw holes.
b.Select the installation location of the device. The lowest position of the
equipment is a wall mounted fastener 1200 mm above the ground.
c.Drill 2 holes with a diameter of 8mm according to the location of the fixed
screw holes of Wall mounted fasteners, and tap in the expansion rubber plugs.
Fix the mounting plate with nuts to fix the chassis.
Dimension unit is mm.
Made In China
