WIRELESS BLUETOOTH® KEYBOARD 8095944

Instruction Manual

This keyboard has 78 function keys and supports [Fn] key combination functions. In order to enjoy your keyboard to its full potential, we recommend that you read this manual carefully prior to installation.

WHAT’S INCLUDED

• Wireless keyboard
• Two AAA batteries
• Instruction manual

FEATURES

1. Bluetooth® 5.0 compatible
2.  PC and Mac compatible
3.  78-key scissor low-profile design
4. Built-in intelligent power management software for power conservation

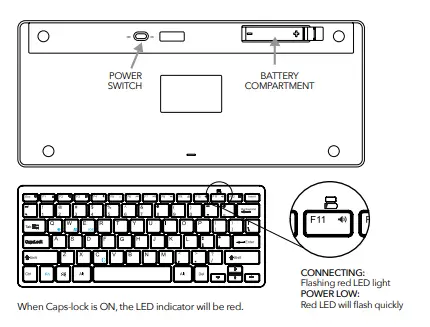

INSTALLING THE BATTERIES

1. Open the battery compartment on the rear of the keyboard.
2.  Insert two AAA batteries (included) following the polarity (+/-) marked.
3.  Close the battery compartment.
4. Switch the power to the ON position and connect to the computer

POWER SAVING MODE

If the keyboard is not used for 10 minutes, the device will go into sleep ode automatically.

LOW POWER INDICATOR

The LED indicator will flash RED quickly when the battery power is low.
Replace both batteries at the earliest opportunity to prevent power interruption.

PAIRING

1. Turn the keyboard
2. Press and hold the FN + C for 3 second, the red LED will
3. Go to the Bluetooth®settings on your device, select “8095944”, then click NEXT.
4. Click 8095944 to connect.
5. Click NEXT on your device if
6. The keyboard will now pair automatically provided the Bluetooth®is ON and within range (10m)

When Caps-lock is ON, the LED indicator will be red.

KEYBOARD FN FUNCTION LIST

Before using the [Fn] function, please select the type of Bluetooth® device that is paired with this keyboard.

Fn + Q  =   Android™ OS,
Fn + W  =   Windows OS
Fn + E  =   Apple iOS
Fn + arrow up  =  Page up Fn + arrow down     =    Page down
Fn + arrow left (home) =Back to the front page Fn + arrow right (end)  = Go to the last page
NOTE: Function [Fn] keys are not compatible with Mac OS X.

FOR WINDOWS

Fn + ESC =     Web home Fn + F1   =           Cut
Fn + F2   =     Copy Fn + F3   =    Paste
Fn + F4   =     Auto language switch Fn + F5   =            Search
Fn + F6   =     Previous track Fn + F7   =        Play/Pause Fn + F8   = Next track
Fn + F9   =     Mute
Fn + F10 =     Volume down Fn + F11 =        Volume up
Fn + F12 =     Turn OFF/sleep Mode

FOR ANDROID™ AND FOR iOS

Fn + ESC =     Main page Fn + F1   =             Cut
Fn + F2   =     Copy Fn + F3   =    Paste
Fn + F4   =     Auto language switch Fn + F5   =            Search
Fn + F6   =     Previous track Fn + F7   =        Play/pause Fn + F8   = Next track
Fn + F9   =     Mute
Fn + F10 =     Volume down Fn + F11 =        Volume up Fn + F12 = Screen lock

NOTE: You must press and hold the [Fn] key to activate the desired key function.

TROUBLESHOOTING

If you are experiencing connection issues please follow the steps below:

1. Before you install the Bluetooth®keyboard, enure Bluetooth® is turned
2. Press and hold the FN + C for 3 seconds then The red LED will flash.
3. Ensure that the computer/Bluetooth® device is connected to the If they have been paired before, the keyboard may be in sleep mode, press any key to wake the keyboard.
4. Ensure that the keyboard is within the Bluetooth®range of 10
5. Ensure that there is no change in the Bluetooth® If anything has changed, please repeat the pairing process.
6. If your Bluetooth®keyboard is connected to other Bluetooth® devices, please confirm that the speed of the Bluetooth® environment is fast enough.
7. Check the If they are low on power, replace them with new ones.

SPECIFICATIONS

Bluetooth® Version 5.0
Bluetooth® Range     Up to 10m (33ft.)
Compatibility               Windows 7/8/10/11; Mac OS X 10.10; Android™ 4.4; iOS 9.0 and above; Bluetooth® 4.2 and above
Battery                          Two AAA batteries (included)

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by The Source (Bell) Electronics Inc. is under license. Other trademarks and trade names are those of their respective owners.

INDUSTRY CANADA NOTICE RSS247

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

• this device may not cause interference, and
• this device must accept any interference, including interference that may cause undesired operation of the

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of Industry Canada.
IC Number: 255A-8095944
