MA-01 Master R RGB Tube Light
User Guide
Model: MA-O1
Thank you for purchasing iwata Master R photography light!
Please read this Quick Start Guide carefully before using the product and keep
it for reference.
Package Contents
Specifications
- CCT Range: 2000K-10000K ( ± 200K)
- CCT Color Rendering Index: CRI=96, TLCl>98
- Maximum Power. 16W
- LED Beam Angle. 120°
- Adjustment Range of Beam Angle Limitator: 0° – 170°
- llluminance (0.5 meter apart) 1200Ix@8000K, 10001x@2600K
- Operating Mode: CCT /HS/Scene Effect
- Internal Lithium Battery Capacity, 14.8V/2200mAh 32.5Wh
- Battery Life: about 2 hours at 100% power, about 64 hours at 1 % power
- Input Voltage and Current, 5V/1 A, 5V/2.1 A 9V/2.5A, 12V/2A ( quick charge/work with a power source)
- Display Screen, OLEO screen
- Dimensions: 425mmx 38mm
- Weight: 680g
- Bottom Screw Hole, 1/4″
- Allowable Temperature Range:
In use between -5-30ºC
During charging between- 0-30ºC
Storage between-20-60ºC
Layout of MA-01
Description of Adjusting Rings
Brightness adjusting ring. Rotate the adjusting ring to switch the
corresponding parameter in the setting interface.
Color adjusting ring. Rotate the adjusting ring to switch among color
temperature, hue, saturation,Scene effect or preset adjustment. In the setting
interface, it’ s used for the columns in the list.
Description of Power Switch
Slide the power switch to the “green”/red” to turn on/off the power.
Buttons
- Preset Button, tap to load, press and hold to save.
- Moe Button, press and hold to switch between CCT,HSI and Scene effect modes; tap to switch among parameters in current mode.
- Light Button/Funtion, press and hold to enter setting menu, tap to turn on/off the light.
Beam Angle Adjustment
Rotate the adjusting ring of beam angel I imitator to narrow or enlarge the
beam angle.
The adjusting angle range: 0º-170º
Screen Icons
CCT Mode
Rotate the adjusting rings to adjust brightness and color temperature.
Brightness range: 1%-100%, Color temperature range: 2000k-10000k.

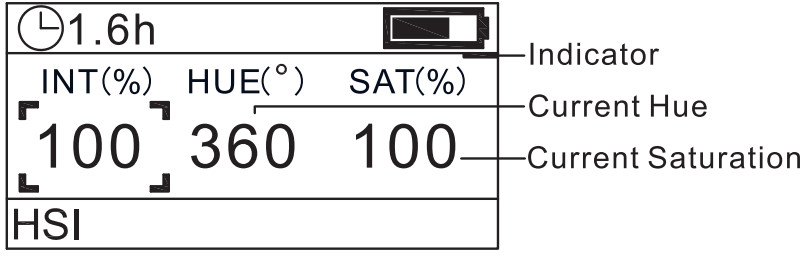

HSI Mode
Tap button to select between Hue (HUEI° ) and Saturation (SATI%) Adjustment,
rotate the color adjusting ring to change current parameters.
Hue range: 0° -360°,
Saturation range: 0%-100%.
Scene Effect
Tap M button to select between effect ( EFFECT ) and preset ( PRESET )
adjustment,rotate the color adjusting ring to change current parameters.
Effect Range: A-G.
Scene Effect Description
A.Fire
B.Lightning
C.Firework
D.Warning Light
E.Color Chase
F.Party
G.Photoflash| A1:Candle
B1 :Intermittent Lightning
C1 :Short Fireworks
D1:Police Car
E1:Slow
F1 :Birthday Party
G1:Product Launch| A2:Fireplace
B2:Frequent Lightning
C2:Continuous Fireworks
D2:Fire Truck
E2:Medium
F2:Home Party
G2:Press Conference| A3:Bonfire
B3:Continuous Lightning
C3:Fireworks Show
D3:Ambulance
E3:Fast
F3:Club
G3:Paparazzi
---|---|---|---
Power Icon Description
- Remaining Battery Time: “m” for minute and “h” for hour.
- X icon comes out, When Master R works with insufficient power supply, for example, connected to a 5V /1A charger or a charging cable of low quality. It is recommended to use a quick charger and the original charging cable.
- Remaining Battery Capacity is shown in the display screen.
- This icon is displayed when an external power supply is connected.
- Remaining Charging Time: It shows the estimated remaining time for full charge, “m” for minute and “h” for hour.
Temperature Icon Description
The low temperature warning icon appears when ambient temperature is below the
lowest allowable temperature. Master R may not work properly under this
circumstance.
The high temperature warning icon appears when ambient temperature is above
the highest allowable temperature. If the temperature keeps rise, Master R
will be automatically switched off.
The high temperature warning icon will disappear when the temperature of the
product returns to normal.
Setting Interface Description
Press and hold F button to enter setting menu.
Rotate color adjusting ring to select setting option.
Rotate brightness adjusting ring to switch current parameters.
Adj. Rings Lock On-current parameters of the Adjusting rings are locked down.
Screen Lock On-current screen orientation is fixed.
Standby Time When the light is off and not operated,system will be
automatically standby.
Art-in On/Off
Group For group setting in Art–in system.”-” means ungrouped.
Factory Reset Select ‘Yes’ and tapMbutton to reset default settings.
Quick operation for locking adjusting rings
Press and hold F button, then tap M button to lock; do the same step to
unlock.
Battery Use and Maintenance
- When the battery of Master R is fully charged, please detach Master R from the USB cable.
- Please do not charge the battery, when the ambient temperature is beyond the allowable range, otherwise Master R can be damaged or battery life can be shortened.
- The battery may gradually run down and not be switched on properly, if the product is long-term unused. Please recharge the battery in this circumstance and recharge the battery at least once three months.
- If the battery capacity indicator has an error in displaying the actual capacity, please fully discharge and recharge the battery to correct it.
- The Rechargeable battery has a limited lifespan and should only be replaced by the manufacture. When the performance of battery is obviously decreased after years, please contact the local distributor.
Note
- Do not disassemble or modify this product.
- Not immerse this product in water or put it into the fire.
- Do not hit or hammer this product with hard objects.
- Master R’ s temperature may increase, when it works. Please make room for heat dissipation.
- Do not expose this product to the environments with drastic changes in temperature and humidity.
Disposal Information
( Waste electrical appliances and equipment)
The left symbol indicates that your product and/or its battery must be treated
separately from household waste, in accordance with local laws and
regulations.
When the service life of this product is at an end, please send it to the
collection point designated by the local management. When handling your
products and/or their batteries, separate collection and recycling will help
conserve natural resources and ensure recycling in a way that protects human
health and the environment.
