levoit Ultrasonic Top-Fill Cool Mist 2-In-1 Humidifier Diffuser User Manual
- June 7, 2024
- Levoit
Table of Contents
- Package Contents
- Specifications
- SAFETY INFORMATION
- GETTING TO KNOW YOUR 2 IN 1 HUMIDIFIER & DIFFUSER
- GETTING STARTED
- USING YOUR 2 IN 1 HUMIDIFIER & Diffuser
- CARE & MAINTENANCE
- TROUBLESHOOTING
- WARRANTY INFORMATION
- CUSTOMER SUPPORT
- References
- Read User Manual Online (PDF format)
- Download This Manual (PDF format)

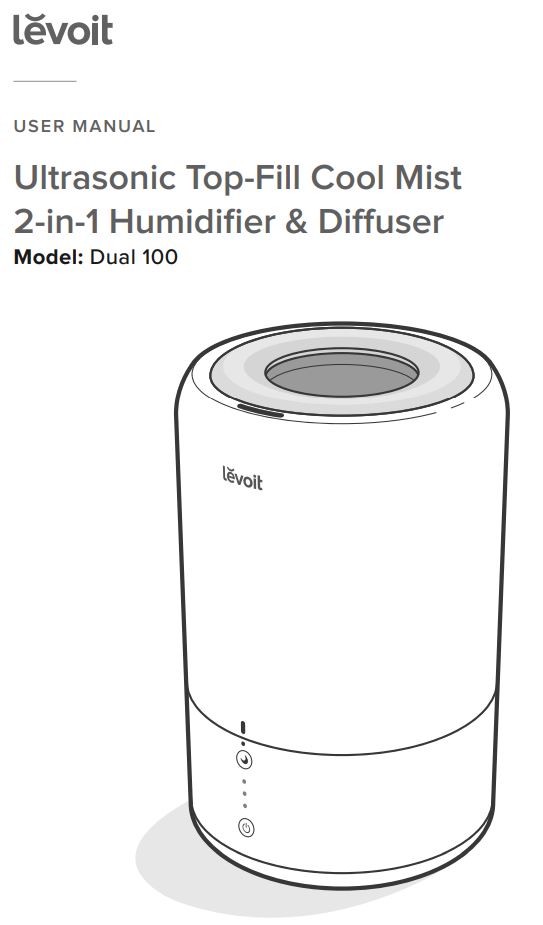

levoit Ultrasonic Top-Fill Cool Mist 2-In-1
**Humidifier Diffuser User Manual**
Questions or Concerns?
Please contact us MonFri, 9:00 am5:00 pm PST/PDT
at support@levoit.com or at
888-726-8520.
Package Contents
1 x 2-in-1 Humidifier & Diffuser
1 x User Manual
1 x Quick Start Guide
Specifications
Power Supply — AC 100120V, 60Hz
Rated Power — 24W
Water Tank Capacity — 0.48 gal / 1.8 L
Run Time — 820 hours
Note: The humidifier will be able to run for a longer or shorter time
depending on the environmental temperature and humidity.
Noise Level — ≤28dB
Effective Range — 107260 ft² / 1024 m²
Dimensions — 7 x 7 x 10.6 in / 7.6 x 17.6 x 27.1 cm
SAFETY INFORMATION
To reduce the risk of fire, electric shock, or another injury, follow all instructions and safety guidelines.
General Safety
- Only use the humidifier as described in this manual.
- Place the humidifier and cord so that they will not be knocked over. Do not place near large pieces of furniture or in higher c areas.
- When not in use, turn the humidifier off and disconnect from power by removing the plug from the outlet.
- Do not use the humidifier in wet environments.
- Keep the humidifier out of reach from children.
- To avoid the risk of electric shock, always unplug the humidifier from the power outlet before cleaning it or detaching the water tank from the base.
- Always make sure the humidifier is placed on a flat, level surface before operation.
- Do not place the humidifier near sources of heat, such as stovetops, ovens, or radiators.
- Do not place the humidifier directly on floors, carpets, or rugs. The only place on water-resistant surfaces.
- Do not place foreign objects into the humidifier’s base or water tank.
- Do not use attachments that are not recommended by Levoit for the humidifier.
- Do not cover the mist outlet while the humidifier is on. Doing so may damage the humidifier.
- Do not allow water or other liquids inside the air vent.
- Remove the water tank from the base before moving the humidifier.
- Do not immerse the humidifier base, power cord, or plug in water.
- Always allow the humidifier to completely cool before cleaning.
- Do not use detergents to clean the humidifier. Only use distilled white vinegar.
- If the humidifier is damaged or is not functioning properly, stop using it and contact Customer Support immediately (see 14).
- Not for commercial use. Household use only.
Plug and Cord
- Do not handle the power cord or plug with wet hands. Keep the plug and power cord away from liquids.
- Ensure that the plug fits properly into a polarized socket.
- The humidifier has a polarized plug (one prong is wider than the other), which fits into a polarized outlet only one way. This is a safety feature to reduce the risk of electric shock. If the plug does not fit, reverse the plug. If it still does not fit, do not use the plugin that outlet. Do not bypass this safety feature.
READ AND SAVE THESE INSTRUCTIONS
GETTING TO KNOW YOUR 2 IN 1 HUMIDIFIER & DIFFUSER
- A. Mist Tube
- B. Water Outlet
- C. Water Outlet Valve Assembly
- D. Sleep Mode Button
- E. Mist Level Indicators
- F. Control Button
- G. Mist Outlet
- H. Transducer
- I. Base
- J. Top Cover
- K. Water Tank
- L. Sealing Ring
- M. Float
- N. Insulation Ring
- O. Air Outlet
- P. Air Inlet
- Q. Power Cord
- R. Base Chamber
GETTING STARTED
- Remove all packaging. Choose a hard, flat location for the humidifier at least 6 in / 15 cm away from any walls, furniture, bedding, and appliances. The surface must be water-resistant. [Figure 1.1] Note: Do not place the humidifier on towels, carpets, rugs, floors, or any surfaces with fibers. This will block the air inlet at the bottom of the humidifier and cause overheating. [Figure 1.2]
- Take the water tank off of the base and remove all tape. [Figure 1.3]
Filling & Refilling
1. Remove the top cover from the water tank. Fill the tank with room
temperature water. Do not fill with warm or hot water. [Figure 1.4]
Note:
- We recommend using purified water.
- Avoid using tap water, because the mineral content is too high and will create white dust around the humidifier.
CAUTION
- Do not add water directly into the base chamber.
- Do not add water through the mist tube.
2. Optionally, add 1015 drops of essential oil into the base chamber. [Figure 1.5] Note: For best results, we recommend using pure essential oil.
3. Place the top cover back onto the water tank. Make sure the tank is properly placed on the base by aligning the indicator marks. [Figure 1.6] 4. Plug in the humidifier.
USING YOUR 2 IN 1 HUMIDIFIER & Diffuser
Note:
- If there is no water in the tank, the humidifier will not turn on and will blink. Fill the water tank (see Getting Started, 5).
- Keep the humidifier stable while using, or water may spill.
- Do not block the mist outlet. This will damage the humidifier. [Figure 2.1]
Mist Level
- Press once. The humidifier will start on the low mist level. [Figure 2.2]
- Press repeatedly to cycle through mist levels (low, medium, high) and to turn the humidifier off.
Intelligent Sleep Mode
Intelligent Sleep Mode turns off all display lights and uses a humidity sensor
to automatically adjust the mist level to maintain a 60% relative humidity
(RH) while you sleep.
-
Press to turn on the humidifier.
Note: The humidifier must be on to start Sleep Mode. -
Press to start Sleep Mode. After 5 seconds, all display lights will turn off.
-
Press a second time (or press ) to cancel Sleep Mode. The humidifier will go back to the previously set mist level.
Note:
- Excessive humidity can cause health issues and mold growth. If the relative humidity in your room is over 60%, use the low mist setting or turn o the humidifier.
Important Tips
- Never pour water directly into the base chamber. Only add water to the water tank. [Figure 2.3] The humidifier will automatically release the correct amount of water into the base chamber.
- Avoid moving or shaking the humidifier. [Figure 2.4] This may cause the water tank to release too much water into the base chamber.
- Before moving the humidifier, turn it off, unplug it, and remove the water tank.
- If your humidifier doesn’t produce mist correctly, check the max water line to see if there is too much water in the base chamber. [Figure 2.5] Pour out any extra water if water is over the max line.
Note: The max water line is only for this purpose. Do not pour water into the base.
CARE & MAINTENANCE
Note:
- All maintenance should be done on a water-resistant surface, such as a kitchen counter.
- Change the water daily to avoid bacteria growth.
- Use a tissue or cloth to clean the mist outlet regularly.
- If not using the humidifier for 1 week or longer, do not leave water inside. Dry and store instead.
Cleaning
Clean your humidifier every week, and when you’re ready to store it.
Note:
- Never immerse the base in water or liquid. Do not place the base in a dishwasher.
- Do not use detergents to clean the humidifier.
- Unplug the humidifier. [Figure 3.1]
- Remove and wash the top cover. [Figure 3.2]
- Remove the water tank from the base. Pour out all water from the tank and base. [Figure 3.3] Note: Do not let water inside the air outlet or near the control panel. [Figure 3.4]
- Rinse the tank and base chamber with room temperature water. [Figure 3.5]
- To remove any scale buildup inside the water tank or base chamber, soak with distilled white vinegar and wipe with a cloth and cotton swab.
- If you used essential oils in the humidifier, fill the water tank and the base chamber with distilled white vinegar and allow to soak.
- To remove the mist tube for cleaning, flip the tank over. Push in the tab on the mist tube and pull out the mist tube. [Figure 3.6 – Figure 3.7] To replace, see Installing the Mist Tube.
- Rinse all parts and pour out the remaining water.
- Dry all parts with a cloth. Make sure all parts are completely dry.
Installing the Mist Tube
Make sure the mist tube is in place. If it is not, the humidifier will not
create mist.
- Put the mist tube into place inside the water tank, then aligns the top of the mist tube with the mist outlet. [Figure 3.8]
- Press the mist tube down until the tab snaps into place. [Figure 3.9 Figure 3.10] Snaps into place
Storing
Follow the cleaning instructions (see 9) and allow all parts to dry completely
before storing. Store in a cool, dry location.
TROUBLESHOOTING
WARRANTY INFORMATION
Terms & Policy
Arovast Corporation (“Arovast”) warrants this product to the original
purchaser to be free from defects in material and workmanship, under normal
use and conditions, for a period of one year from the date of original
purchase.
Arovast agrees, at our option during the warranty period, to repair any defect
in material or workmanship or furnish an equal product in exchange without
charge, subject to verification of the defect or malfunction and proof of the
date of purchase.
There is no other express warranty. This warranty does not apply:
- If the product has been modified from its original condition;
- If the product has not been used in accordance with directions and instructions in the user manual;
- To damages or defects caused by accident, abuse, misuse, or improper or inadequate maintenance;
- To damages or defects caused by service or repair of the product performed by an unauthorized service provider or by anyone other than Arovast;
- To damages or defects occurring during commercial use, rental use, or any use for which the product is not intended;
- To damages or defects exceeding the cost of the product.
Arovast will not be liable for indirect, incidental, or consequential damages
in connection with the use of the product covered by this warranty.
This warranty extends only to the original consumer purchaser of the product
and is not transferable to any subsequent owner of the product regardless of
whether the product is transferred during the specified term of the warranty.
This warranty does not extend to products purchased from unauthorized sellers. Arovast’s warranty extends only to products purchased from authorized sellers that are subject to Arovast’s quality controls and have agreed to follow its quality controls.
All implied warranties are limited to the period of this limited warranty.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
If you discover that your product is defective within the specified warranty period, please contact Customer Support via support@levoit.com. DO NOT dispose of your product before contacting us. Once our Customer Support Team has approved your request, please return the product with a copy of the invoice and order ID.
Extend Your Warranty by 1 Year
Register your product within 14 days of purchase at
www.levoit.com/warranty to extend your
1-year warranty by an additional year.
This warranty is made by:
Arovast Corporation
1202 N. Miller St. Suite A
Anaheim, CA 93806
CUSTOMER SUPPORT
If you have any questions or concerns about your new product, please contact our helpful Customer Support Team.
Customer Support
Arovast Corporation
1202 N. Miller St., Suite A
Anaheim, CA 92806
Email: support@levoit.com
Toll-Free: 888-726-8520
Support Hours
MonFri, 9:00 am5:00 pm PST/PDT
*Please have your order invoice and order ID ready before contacting Customer Support.
