EL-WiFi-21CFR-ULT+
High Accuracy, 21CFR Ultra Low
Temperature Cryogenic Vaccine
WiFi Data Logger

Can be installed as part of a 21CFR compliant system with additional controls including permission-based use, authority level sign-off, and full system audit
Measurement range -100 to +100°C (-148 to +212°F)
High accuracy T-type probe on 2m cable
Wirelessly stream and view data on the EasyLog 21CFR Cloud
Configurable high and low alarms with indicator
Easy sensor set-up using free 21CFR WiFi Sensor Software

The EL-WiFi-21CFR-ULT+ is designed to monitor vaccines in cryogenic dry ice storage, in accordance with 21CFR part 11 data security standards.
Data is streamed wirelessly over any compatible WiFi network to be viewed on the 21CFR Cloud. During configuration, the sensor will search for an existing wireless network whilst physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the 21CFR Cloud (max 30 days at 10-second sample interval).
The sensor is IEEE 802.11bgn* (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption, and enterprise networks (PEAP, TTLS, FAST).
The EL-WiFi-21CFR-ULT+ has a protection rating of IP40 and the probe tip IP67. The unit is freestanding, but it can be attached to a wall or surface using the bracket provided. The unit can be clipped in and out of the bracket as required.

| Minimum| Typical| Maximum| Unit
---|---|---|---|---
Battery life| | >6| | Months
Temperature measurement range| -100 (-148)| | +100 (+212)| °C (°F)
USB supply voltage (@51:10mA)| 4.5| 5.0| 5.5| Vdc
Operating temperature range (logger)| -20 (-4)| | +60 (+140)| °C (°F)
Logging period (user configurable)| 10 sec| 10 min| 12 hrs|
Transmission period (user configurable)| 1 min| 1 hr| 24 hrs|
Temperature measurement resolution| | 0.1 (0.2)| | °C (°F)
Temperature display resolution| | 0.1| |
Accuracy| | ±1.8 (±3.2)| | °C (°F)
IP Rating| IP40
(Bung fully inserted, not permanently powered, thermocouple connector fitted and fully inserted, device mounted vertically.)
Dimensions| 82 x 70 x 23mm (3.22 x 2.75 x 0.91″)**
Probe dimensions| 300 x Ø 1.5mm, 2m cable
(11.8 x Ø 0.05, 39.3″ cable)

MAC Address starting 98:8B: AD:2……. only

ACCESSORIES

PSU-5VDC-USB-USA| USB Mains Power
Adapter for USA
---|---
PSU USB-UK| USB Mains Power
Adapter for UK
PSU USB-EU| USB Mains Power
Adapter for EU
EL-P-TC-T-ULT+| Replacement T-type
Thermocouple probe

INCLUDED IN THE BOX

EL-WIFI WALL BRACKET	Wall mounting bracket for EL-WiFi sensors
EL-P-TC-T-ULT+	Thermocouple probe
CABLE USB A-MICRO B	USB Type-A to Micro B

21CFR COMPLIANCE

Permission-based use and access	√
Authority based action sign-off	√
Data records cannot be edited or deleted	√
Complete system audit trail	√

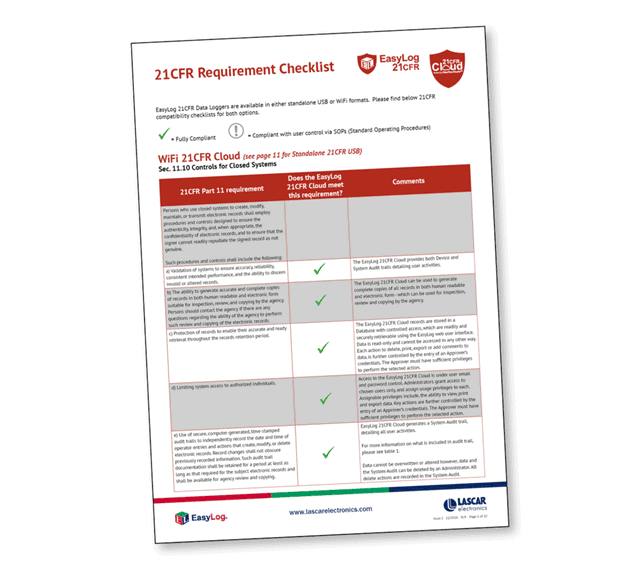

For a detailed compliance checklist, please visit www.lascarelectronics.com/markets/21cfr/

CALIBRATION CERTIFICATES ARE NOW AVAILABLE
Lascar now offers a Traceable Calibration Certificate Service on Temperature Data Loggers. Using reference equipment which has been calibrated by a UKAS/NIST accredited laboratory and using apparatus traceable to national or international standards. For more information, please visit www.lascarelectronics.com/calibration.

21CFR WIFI SENSOR SOFTWARE
EasyLog 21CFR WiFi software* is available as a free download from download.filesthrutheair.com. Easy to install and use, EasyLog 21CFR WiFi Sensor Software allows easy sensor set-up and connection of sensors to a WiFi network and the 21CFR Cloud.
LASCAR electronics EL WiF 21CFR ULT High Accuracy 21CFR Ultra Low
Temperature Data Logger - 21CFR WIFI SENSOR SOFTWARE 21CFR CLOUD
21CFR Cloud subscription delivers all of the flexibility of a remote monitoring system: Interact with sensors via any internet-enabled device; manage and monitor sensors; access event logs and set up email alerts; assign authorization levels to user accounts and view comprehensive audit trail records. Unlike the standard EasyLog Cloud service, 21CFR Cloud includes other controls such as permission-based use, authority sign-off, and full system audit to ensure data monitored and collected is regulated to 21CFR Part 11 standard.
For full pricing information and to create an account, please visit https://21cfr.wifisensorcloud.com/. Any queries or questions, please do not hesitate to contact our team.

LASCAR electronics EL WiF 21CFR ULT High Accuracy 21CFR Ultra Low
Temperature Data Logger - 21CFR CLOUD

A Cloud account subscription is created during the WiFi sensor set-up process using EasyLog 21CFR WiFi Sensor Software. 21CFR WiFi Sensors are only compatible with the 21CFR Cloud 21cfr.wifisensorcloud.com.
When setting up your logger, make sure you select the T-Type probe.
Download the latest version of the software free of charge from download.filesthrutheair.com
Battery Life and Power Supply
The battery can be recharged (unit must be between 0 – 40°C) via a PC, a USB +5V wall adapter, or a portable USB battery pack using the USB lead provided. It can also be permanently powered by a USB wall adapter or USB battery pack. Readings may be affected while the internal battery is being charged. However, once charged, the continued connection of the charger will have no effect.
Battery life is dependent on: transmission period, WiFi encryption method, WiFi encryption key rotation frequency (determined by the router/access point), signal strength between router/access point and WiFi device, the present volume, and type of WiFi traffic from other devices, sample rate, and operating temperature.
Specifications liable to change without prior warning
*Requires Windows 7, 8.1, 10

www.lascarelectronics.com/data-loggers

Issue 1 12/2020
