EYOYO EY-016Z QA 2D Bluetooth Ring Barcode Scanner Instructions
- June 14, 2024
- Eyoyo
Table of Contents
EYOYO EY-016Z QA 2D Bluetooth Ring Barcode Scanner
USING INSTURCTION
- Charging:
- Ensure the device is fully charged before use. Connect it to a power source using the provided USB cable.
- Pairing:
- Enable Bluetooth on the scanner and the device you want to connect it to (e.g., smartphone, tablet, computer).
- Put the scanner in pairing mode. This is usually done by holding down a specific button or following a sequence of button presses.
- On your device, search for available Bluetooth devices and select the scanner from the list.
- Scanning:
- Once paired, the scanner is ready to use.
- Aim the scanner at the barcode and press the trigger button (if available) to capture the barcode.
- Alternatively, some scanners automatically scan when the beam is aligned with a barcode.
- Configuring Settings:
- Depending on the model, you might be able to configure settings such as scanning mode, data format, and language. Refer to the user manual for specific instructions.
- Data Transfer:
- After scanning a barcode, the data can be transferred to the connected device. This can be done automatically or by pressing a specific button.
- Troubleshooting:
- If you encounter issues, consult the troubleshooting section of the user manual or contact the manufacturer’s support.
INSTALLATION
- Power On the Scanner:
- Turn on the barcode scanner using the designated power button.
- Enable Bluetooth:
- Activate Bluetooth on the scanner. This is usually done through a menu or button on the device.
- Pairing with a Device:
- Put the scanner in pairing mode. This might involve holding down a specific button or following a particular sequence.
- On the device you want to connect (e.g., smartphone, tablet, computer), enable Bluetooth and search for available devices.
- Select the barcode scanner from the list of available devices to establish a Bluetooth connection.
Warm Tips: If this document does not help you, please contact our after- sale email support@eyoyousa.com. and we will be sure to help you as soon as possible. Eyoyo promises to provide a one-year warranty and lifetime technical support.
FAQ
cannot scan Interleaved 2/5 barcodes. Is there a way to enable them?
How do i pair this with scoutiq or any apps?
You don’t have to pair it. As long as it’s paired with your phone just open up the app and go. A scan on your scanner acts like input on your phone. Wherever your cursor is it’ll put the scanned numbers.
My scanner is not holding charge anymore, where can I get a replacement battery?

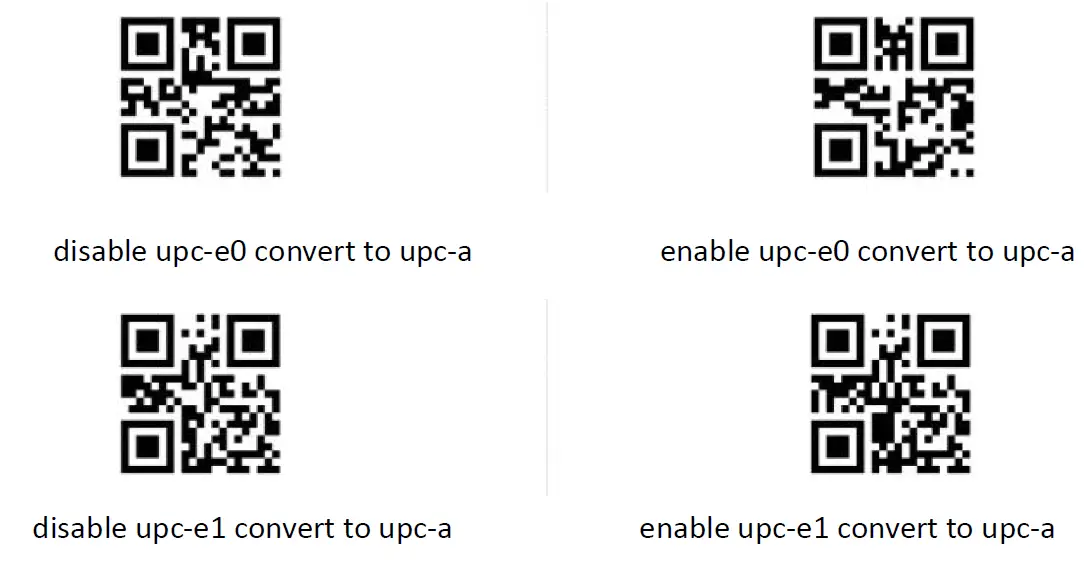

Can it convert upc-e to upc-a?
Please scan 2 setup codes below to enable it.
Will it work with Chromebooks?
Not,it can't work with Chromebooks.
Can you set tabs so you can enter quantities?
Please scan this setup code to enable it.
Are there any ways we can turn off the light when scanning?
Scanning lights is not supported to be switched off. It is a treasure that assists the scanner to quickly identify barcodes.
Does the blue light stay on or can it be disabled in this Eyoyo model?
When the scanner is in Bluetooth mode, the blue light will remain on and cannot be disabled.The blue light indicates that the Bluetooth is working properly.
Does it work with an iPhone?
Yes,it can work with your phone(iPhone, Samsung or any other brand).
Can you configure the options for upc-e such as transmitting check digits ?
Please scan the setup code below as you need.If it is not clear whether your barcode is UPC-E or UPC-E1, the set-up codes for both can be scanned.
Can you configure the options for upc-e such as transmitting or not the leading zeroes?
Please scan the setup code below as you need.If it is not clear whether your barcode is UPC-E or UPC-E1, the set-up codes for both can be scanned.
Can you configure the options for upc-a such as transmitting check digits ?
Please scan the setup code below as you need.
Can you configure the options for upc-a such as transmitting or not the leading zeroes?
Please scan the setup code below as you need.
Does it have a aiming guide?
Yes,it has.
May i connect it to ipad via bluetooth and a pc via your usb adapter. in other words, have two devices connected at the same time?
No,you can only operate your computer or IPhone individually.
How can i turn off sound?
Please scan the setup code below to turn on/off sound. You can also adjust the sound level according to the setting code below.
Does it work with Amazon seller/Scoutly/ebay app in Iphone?
Yes, it can support work with Amazon seller/Scoutly/ebay app.
Can you use Bluetooth mode only without the receiver, for an android cellphone?
Yes,please press and hold the scan button for 8~10 seconds to turn on Bluetooth.
The USB charging cable is type-c?
The scanner uses a Type C interface data cable for charging.
How do you switch from scan mode to keyboard mode on this model?
If you want to pull up the IOS keyboard on your phone, you can double click The scan button.(Android devices do not support this function)
Will Bluetooth connect to an android tablet on Bluetooth option without going through settings? Want to setup 100s of tablets using scanner.
Not supported. It can only be set by long pressing the scan button for 8-10 seconds or by scanning the code below.
Is this a laser scanner? Can it scan 1D, 2D or on-screen codes?
It is a 2D barcode scanner. It can scan 1D & 2D codes on the paper and the screen.
Does this scan work with mobile directly without the adapter piece ? Is the adapter piece can be connected to Android or iPhone.
The adapter is used for computer connection, if you want to connect to Android, iPhone or tablet, you can connect by Bluetooth.
Does this scanner work in SPP mode?
it supports Bluetooth HID, SPP and BLE protocols.
dididi does not work after three sounds
No power, please to charge immediately
When I connect the scanner to my phone or computer, I scan the code, but I don't see any change, where is my barcode?
Please open an Excel sheet, word, TXT document or other program with a cursor and text input box on your phone or computer and place the cursor in the input box before scanning the code.
How to turn the scanner off？
Please scan this setup code.
If your scanner is not working or not scanning anymore, but you don't know what is causing it yet, please scan these setting codes below to restore the factory settings first.
Is it possible to connect without Bluetooth? I just want to connect the scanner to my computer using a 2.4G wireless receiver.
PC terminals ,like desktop computer, which is not equipped with Bluetooth, please pair it with Dongle, Dongle Pairing Steps: A.Scan Dongle Setup Barcode B.Scan“Match the receiver” so that enter into pairing state.The blue light on the left flickers quickly. C. Plug the receiver, If pair successfully, you will hear a beep. The blue light on the right will always be bright.
Is this product water proof of IP rated for outdoor use?
This product is not waterproof.Please protect it well when using it in humid environments.
My scanner is not scanning and the red beam only flashes, it does not stay on.
Can this scanner send multiple character prefix/suffix?
Can you set this to parse out characters so i only wanted a certain number of characters from the middle of gs1 datamatrix string?
Can i stop scanner from activating music on my iphone? every time i ’ m scanning it triggers the music to come on in my phone
