Rug Doctor MGH-1 Motorized Grout Cleaning Tool User Manual

June 6, 2024
Rug Doctor

Rug Doctor - LOGO

Motorized Grout Cleaning Tool
FOR HOUSEHOLD USE ONLY
USER MANUAL
Model Number
MGH-1

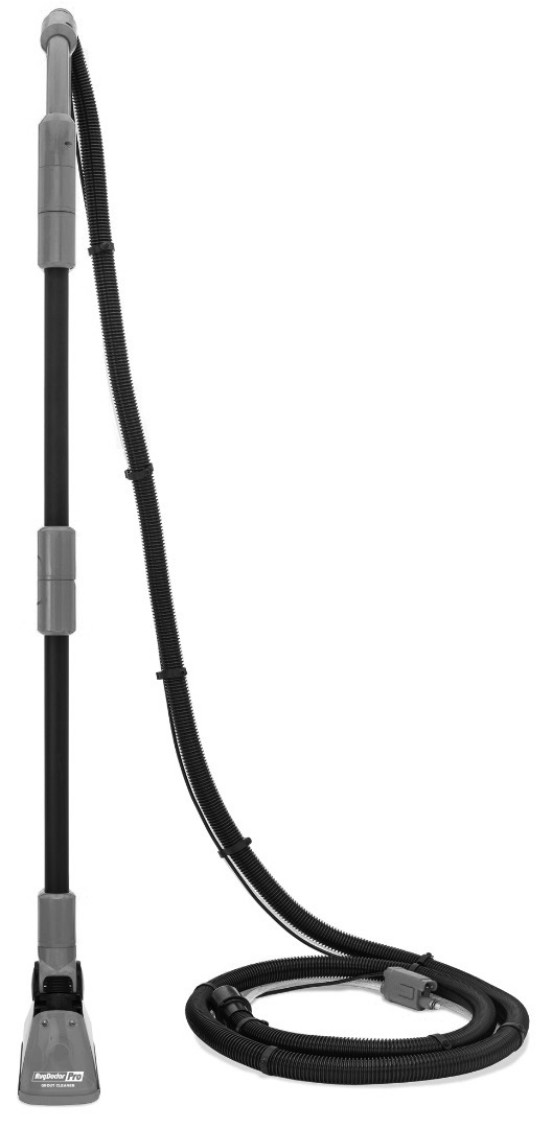

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig
27

Quick “How To” Videos
Visit rugdoctor.com for helpful
instructional videos
rugdoctor.com | 1-800-784-3628
12715 © 2018 Rug Doctor, LLC

THANK YOU FOR BUYING A RUG DOCTOR PRO®MOTORIZED GROUT CLEANING TOOL
We are excited to share one of our innovative products with you. Your Rug Doctor Pro®Motorized Grout Cleaning Tool has been designed to add versatility to your Rug DoctorPro® Deep Cleaner, allowing you to clean all floor types in your home! The product needs to be assembled before you can put it to work.
Happy Cleaning!

WHAT’S IN THE BOX

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig
31

IMPORTANT SAFETY INSTRUCTIONS

USERS MUST READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS TOOL AND MACHINE. WHEN USING  TOOLS AND MACHINES, BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS OR PROPERTY DAMAGE:

› Use the machine only as described in this manual. Use only Rug Doctor’s recommended attachments and cleaning solutions.
› For indoor use only.
› Do not leave the machine unattended when plugged in or while powered on. Turn off all controls before unplugging. Unplug the machine when not in use and before cleaning or servicing. Do not unplug by pulling on the cord. Unplug by pulling on the plug.
› Use only Rug Doctor® cleaning products intended for use with this machine.
› Do not immerse. Only use machines on surfaces moistened by the cleaning process.
› Use caution when using hot tap water. Do not boil or microwave water to be used in this machine.
› Do not allow the machine to run dry. When the Clean Water Tank runs out, stop using it and follow directions to refill.
› Do not allow this machine to be used as a toy. Close attention and adult supervision are necessary when used by or near children. This machine is not intended to be used by children aged 12 and under. Do not allow children to place their body parts in or near openings or moving parts.
› Do not use with damaged cord or plug. If this machine is not working as it should, has been damaged by dropping, or has been left outdoors; stop using it and take it to a service center.
› Do not pull by a cord, carry by cord, use cord as a handle, close a door on cord, nor pull cord around sharp edges or corners.
› Do not run the machine over the cord. Keep cord away from heated surfaces.
› Do not clean over-floor electrical outlets.
› Do not handle plug or use this machine with wet or sweaty hands.
› Do not put any objects into the opening. Do not use the machine if any opening is blocked. Keep openings free of dust, lint, hair, and anything that could reduce airflow. Use extra care when cleaning on stairs.
› Keep hair, loose clothing, fingers, and all body parts away from openings and moving parts.
› Turn off all controls before unplugging.
› Do not use pick-up flammable or combustible materials such as gasoline; or paints. Do not use in areas where there may be present.
› Do not use to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
› Do not place in or pick up anything with this machine that is a caustic or toxic material, such as bleach, ammonia, toilet bowl cleaners or drain cleaners.
› The use of an extension cord is not recommended. Failure to follow this instruction may expose the user to the possibility of electric shock, personal loss or injury, and/or death.
› Do not operate without tanks or in any manner inconsistent with the above warnings or the operating instructions included in this manual.
› Always turn off this machine before connecting or disconnecting hoses, wands, or motorized nozzle.
› The attachments hose contains electric wires. Do not use or repair a damaged hose. Do not use it when the hose is cut or punctured. Avoid picking up sharp objects.
› Examine the attachment hose periodically for visible deterioration, such as abrasions, cracks, splits, and the like.
› The attachment hose is to be used only for indoor household cleaning applications.
› Do not use this machine like a vacuum.
› Always ensure float is properly installed before any wet pick-up operation.
› Product contains chemicals known to the state of California to cause cancer, birth defects, and other reproductive harm.
› Connect to a properly grounded outlet only. See “Grounding Instructions”

WARNING
Improper connection of equipment-grounding conductors can result in the risk of electric shock. Check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the machine. If the plug will not fit the outlet, have a  proper outlet installed by a qualified electrician. This machine is for use on a nominal 120-volt circuit and has a plug that looks like the plugin Figure  A. Make sure the machine is connected to an outlet having the same configuration as the plug. No adapter should be used with this machine.

GROUNDING INSTRUCTIONS
Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Figure
A This machine must be grounded. If the machine should malfunction or break down, grounding provides a path of least resistance for electric current, to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug.  The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with the local codes and ordinances.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

How to use:
PREPARING TO CLEAN

IMPORTANT CLEANING TIP: Vacuum/clean area with a dry vacuum or microfiber mop thoroughly before deep cleaning. Always test in inconspicuous areas with a small amount of cleaner before using.

Raise the Main HandleRug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig
2

Raise the Handle of the Pro Deep Cleaning into the upright position until the handle locks securely.

Check the Power Button

Make sure the Power Button is in the “off” position.

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig 3

Add Cleaning Solution

Add Rug Doctor Cleaning Solution and warm water to the Clean Water Tank as per the cleaning solution instructions.

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig 4

CONNECT THE HOSES

Open the Vacuum Hose Port

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig 5

Pull the black rubber flap upward to open the Vacuum Hose Port.

Connect the Vacuum HoseRug Doctor MGH-1 Motorized Grout Cleaning Tool -
Fig 6

Insert the Vacuum Hose Cuff into the Vacuum Hose Port (marked “A”).

Connect the Solution Hose![Rug Doctor MGH-1 Motorized Grout Cleaning Tool

Insert the Solution Hose into the Solution Hose Port (marked “B”).

ASSEMBLE THE WAND

Connect and Assemble the Wand

Align components and connect 2 bars together to make one wand.

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig 8

Connect the Grout Tool

Align components and attach the Grout Cleaning Tool head to the lower end of the wand.

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig 9

Connect the Wand to the Handle/Hose

Align components and attach the Wand to the open end of the Handle/Hose.

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig
10

How to use:
CLEANING YOUR GROUT

Plug in the Machine
Insert the plug into a properly grounded outlet.Rug Doctor MGH-1 Motorized
Grout Cleaning Tool - Fig 11

CAUTION
Before plugging the machine in check the Power Button to make sure it is in the “off” position.

Turn On the Machine

Press the Power Button located on the Main Handle to “Tool” mode. The Tool Brush will spin as whenever the machine is in “Tool” mode.Rug Doctor MGH-1
Motorized Grout Cleaning Tool - Fig 12

Position the Grout Tool

Position the Grout Tool in front of the area that you want to deep clean. Use the grout guides marked on the back of the Grout Tool Head to ensure that the tool is lined up with the grout line.Rug Doctor MGH-1 Motorized Grout
Cleaning Tool - Fig 13

Cleaning Your Grout

Press the Trigger on the Handle/Hose to apply the solution while making2 slow wet passes (1 forward and 1 back) over each area. Release the Trigger Make 2 slow dry passes (1 forward and 1 back) to suck up the dirty solution (do not hold down the Trigger for this step) Repeat as necessary.Rug Doctor MGH-1
Motorized Grout Cleaning Tool - Fig 14

Keep Power On for 15 Seconds

Keep the machine in “Tool” mode 15 seconds after cleaning, to allow for all of the dirty solutions to be collected into the Dirty Water Tank.

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig
15

Turn Off the Machine

Press the Power Button located on the Main Handle to the “Off” position.

How to use:
CLEANING AND STORING YOUR GROUT TOOL

Turn Machine Off

Make sure the Power Button is in the “off” position. Unplug the Machine power cord from the power outlet.

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig
16

Disconnect Vacuum Hose Port

Disconnect the Upholstery Hose from the Hose Port.Rug Doctor MGH-1 Motorized
Grout Cleaning Tool - Fig 18

Disconnect Solution Hose Port

Squeeze tabs on sides of Solution Hose connector and pull to remove from Solution Hose Port.

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig
19

Store Tool

Drain excess solution from Handle/Hose into a drain by pressing Trigger. Clean and store Handle/Hose, Wand, and Upholstery ToolHead until next use. Allow Tool to dry thoroughly before storing.Rug Doctor MGH-1 Motorized Grout
Cleaning Tool - Fig 20

PLEASE NOTE : You can disconnect the Grout Cleaning Tool Head and break down the Wand for easy storage.

How to:
CHANGE YOUR BRUSH ROLL
Ensure that Power Button is in an off position and the Power Cord is unplugged before cleaning or replacing Brush Roll.

Disconnect Grout Cleaning Tool Head from the Wand.Rug Doctor MGH-1 Motorized
Grout Cleaning Tool - Fig 21

Turn Tool Head upside down. (Brush Roll Facing ceiling).

Remove one screw and Brush Roll Cover.

Remove the old Brush Roll and replace it with a new Brush Roll.

Replace Brush Roll Cover and screw to lock Brush Roll back into place.

Reconnect Hard Surface Cleaning Tool Head to the wand.Rug Doctor MGH-1
Motorized Grout Cleaning Tool - Fig 26

ADDITIONAL TOOLS
Available for purchase on rugdoctor.com

HARD FLOOR TOOLRug Doctor MGH-1 Motorized Grout Cleaning
Tool

UPHOLSTERY TOOL

Rug Doctor MGH-1 Motorized Grout Cleaning Tool - Fig
28

WARNING
To reduce the risk of fire and electric shock due to internal component damage, use only Rug Doctor cleaning products intended for use with the appliance.

TROUBLESHOOTING
The following Troubleshooting Guide is provided to help you resolve issues that may arise with the common usage of the machine.

PROBLEM

| POSSIBLE REASON|

HOW TO FIX

---|---|---
NO POWER| › Power Cord not plugged in.
› Power Button is not turned on.
› Solution Hose Tool Connection is not installed properly.| › Plug Power Cord into a wall outlet.
› Press Power Button to “TOOL” position.
› Disconnect plastic Solution Hose Tool Connection at end of small tubing and wire by pinching on top and bottom. Reconnect Solution Hose Tool Connection, making sure it
clicks into place. Check additional connections to ensure they are installed properly.

NO / LOW SPRAY

| › Not pressing Trigger on Handle/Hose.

› Clean Water Tank is empty or low.

› Clean Water Tank is not locked or installed correctly.
› Valve of Clean Water Tank is clogged.
› Solution Hose Tool Connection is not installed properly.

| › Press and hold Cleaning Solution Trigger.
› Fill Clean Water Tank with water and solution.
› Lift up Clean Water Tank and place back into position. The tank should click into place when positioned properly.
› Remove valve from the bottom of Clean Water Tank. Clean with warm soapy water.
›  Disconnect plastic Solution Hose connector at end of small tubing and wire by pinching on sides. Reconnect Solution Hose connector, making sure it clicks into place. Check additional connections to ensure they are connected properly.
NO / LOW SUCTION| › Dirty Water Tank Is full.
› Dirty Water Tank is not locked or installed correctly.
› Vacuum Hose Tool Connection is not installed properly.
› Kink or obstruction in Vacuum Hose.| › Empty Dirty Water Tank and replace the empty tank when finished.
› Lift up Dirty Water Tank and place back into position. The tank should click into place when positioned properly.
› Disconnect Vacuum Hose. Reconnect Vacuum Hose, making sure it is fully inserted into the Vacuum Hose Port.
› Unkink or remove obstruction in Vacuum Hose.
ROTATING BRUSH DOESN’T ROTATE| › If something is lodged in the Brush Roll, the brush will stop rotating. Refer to “How To Change your Brush Roll” if further cleaning is needed. Power needs “reset”.| › Turn the machine off and unplug Power Cord from the outlet. Check that there is nothing stopping the brush roll from rotating. Clean and check that the Brush Roll spins freely. When the Brush Roll is freed, plug in the Machine and turn the Machine on.
› There may be times when you will need to “reset” the power if not working. To do so, turn the power button on the Pro Deep Machine to “CARPET” for 30 seconds. Then turn it back to the “OFF” position. Wait 30 seconds, then turn the power button back to “TOOL”.

If you are not able to resolve or have other questions, call the customer service hotline at 1-800-784-3628.

Warranty Information

Two (2) Year Limited Consumer Warranty
Rug Doctor gives the original purchaser, who retains proof of purchase, from Rug Doctor or an authorized Rug Doctor Dealer, this limited warranty (“Warranty”) for your Rug Doctor Pro Motorized Grout Tool acquired for normal household use (commercial or rental use is excluded).  You are responsible to notify Rug Doctor within thirty (30) days of the original purchase if any parts or components are missing, or if you experience any issue, with your Rug Doctor Pro Motorized Grout Tool.
What Does This Warranty Cover / How Long Does The Warranty Last
Rug Doctor will, for the original purchaser, with proof of purchase, repair, or replace (with new or remanufactured components or products),  including labor, any part that is defective in material or workmanship within two (2) years of purchase. This warranty applies to Tools used for normal household purposes only.
What The Warranty DOES NOT Cover
The following exclusions apply to the tool and part(s) failures due to 1) normal wear and tear; 2) tool alterations and 3) abuse or misuse of the tool, including use not in accordance with this “User Manual”. This warranty does not provide a refund of the purchase price. For best operating efficiency and cleaning, the use of only Rug Doctor products is recommended. Use of the tool for rental voids the warranty and is not permitted under  Federal Law (see “Unauthorized Use” statement below). Commercial use is excluded under this warranty except as set forth in the “ONE YEAR  LIMITED COMMERCIAL WARRANTY” below. Rug Doctor is not liable for any consequential or incidental damages of any nature involving the purchase/use of your carpet cleaning machine. In no event shall Rug Doctor’s liability exceed the purchase price of the machine. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
Expenses
If a Tool is returned to a repair center for repair within thirty (30) days of original purchase, Rug Doctor will pay the freight charges both to a repair center and back to you. After that, you will be required to ship the Tool to a Rug Doctor repair center should additional repairs be required after the initial thirty (30) day warranty period. You will be responsible to pay any freight charges for shipment to the repair center for repairs occurring after the initial thirty (30) days. Rug Doctor will pay the freight charges back to you.
How State Laws Apply
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
How Do I Get Service Under This Warranty?
TO OBTAIN WARRANTY ASSISTANCE , please call 1-800 RUG DOCTOR (1-800-784-3268) (8 am to ure of the problem. Rug Doctor will review all the facts involved and advise you as to recommended procedure. We recommend you keep the origina5 pm Mon – Fri CST) or e-mail  consumer.support@rugdoctor.com. Rug Doctor will need the following information to assist you: your name, address and telephone number,  product model and serial number, proof of purchase showing date and place of purchase. Please explain the natl carton and packing materials.

Unauthorized Use
Use of this carpet cleaning Tool with Rug Doctor Trademarks for rental purposes is UNAUTHORIZED and is in violation of U.S.C Section 1114(I) and 15 U.S.C. Section 1125 (a).
One (1) Year Limited Commercial Warranty
All of the warranty terms as expressed above shall apply in all respects, for the original United States purchaser of a Rug Doctor Pro® Motorized  Grout Tool, who purchases the machine commercially (not in household use), except that the limited warranty period for the defects in the material or workmanship, as well as housing parts for commercial use machines, shall be one (1) year. You can register your Rug Doctor Pro ® Deep Motorized Grout Tool at www.rugdoctor.com

Note: You must keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim.

RUG DOCTOR CONSUMER SERVICE CONTACT INFORMATION:
WEBSITE: www.rugdoctor.com/customer-support
EMAIL: consumer.support@rugdoctor.com
PHONE: 1-800-784-3628

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
For any questions or concerns, please contact Rug Doctor
customer service representative at 1-800-784-3628
