TOPDON PulseQ AC Portable Charger User Manual

TOPDON PulseQ AC Portable Charger

Product Information

Specifications

• Product Name: AC Portable EV Charger
• Brand: TOPDON
• Model: PulseQ

Product Overview
The TOPDON PulseQ AC Portable EV Charger is a high-quality charger designed for electric vehicles. It comes with a control box, LCD, current adjust button, charging schedule button, charging status indicator, and a charging connector. The charger allows you to charge your electric vehicle efficiently and safely.

Physical Features
The physical features of the AC Portable EV Charger include:

1. Control Box: This is the main control unit of the charger.
2. LCD Display: It displays real-time charging data, providing you with important information.
3. Current Adjust Button: Allows you to select from four current options (16/13/10/8A) based on your charging needs.
4. Charging Schedule Button: This enables you to set the delay time for charging, giving you flexibility in managing your charging sessions.
5. Charging Status Indicator: Indicates the current charging status of the charger.
6. Charging Connector: Connects the charger to the inlet socket of your electric vehicle, ensuring a secure and reliable connection.

Product Usage Instructions

Safety Information
Before using the AC Portable EV Charger, it is important to follow these safety guidelines:

• Do not submerge the control box in water.
• Avoid stepping on, pulling, folding, or knotting the cable to prevent damage.
• Do not place heavy objects on the control box.
• Avoid placing the cable near high-temperature objects or under direct sunlight during charging.
• Operate the device within its designated operating temperature range.
• Use the dust cover when the product is not in use.
• Ensure proper ventilation when using the charger.
• Do not attempt to repair or maintain the product on your own as it does not have user-serviceable parts.

WARNING:
To avoid serious injury or damage, follow these additional safety instructions:

• Use the product only when there is a residual current device (RCD) breaker in the power supply section.
• Do not use the charger if the cable is damaged.
• The charger should only be used for EV charging purposes.
• The product must be grounded and should not be used with an extension cord.
• If the product does not operate as described in the user manual, refrain from using it and contact your dealer for repair or replacement.

Charging Process
To charge your electric vehicle using the AC Portable EV Charger, please follow these steps:

1. Ensure that your electric vehicle is parked in a safe and well-ventilated area.
2. Connect the charging connector of the AC Portable EV Charger to the inlet socket of your electric vehicle.
3. Adjust the charging current by pressing the current adjust button and selecting the desired current option (16/13/10/8A) based on your requirements.
4. If you wish to set a delay time for charging, press the charging schedule button and follow the instructions on the LCD.
5. The charging status indicator will provide visual cues about the charging process:
   • Solid green: Standby
   • Solid blue: Charging connector inserted, ready to charge / Charging complete (connector still inserted)
   • Flashing blue: Charging in progress
   • Solid/flashing yellow: Fault (refer to Section 6 for more details)
6. Monitor the charging progress on the LCD and ensure that the charging process is completed successfully.
7. Once the charging is complete, disconnect the charging connector from your electric vehicle.

FAQ

• Q: Can I use the AC Portable EV Charger with any electric vehicle?
• A: Yes, the AC Portable EV Charger can be used with any electric vehicle that has a compatible inlet socket.
• Q: What should I do if the charging status indicator shows a fault?
• A: If the charging status indicator shows a fault, please refer to Section 6 of the user manual for troubleshooting steps. If the issue persists, contact your dealer for further assistance.
• Q: Can I adjust the charging current during the charging process?
• A: It is recommended to adjust the charging current before starting the charging process. However, if necessary, you can stop the charging process, adjust the current, and then resume charging.

Important Safety Information

• Thank you for purchasing TOPDON’s PulseQ AC Portable electric vehicle (EV) charger. To properly use this product, please read this user manual carefully before operating.

Safety Signs

CAUTION
This sign indicates that not following proper operations may cause minor to moderate injury to the operator or damage to the product or vehicle. Be sure to adhere to the following instructions.

• Do not submerge the control box in water.
• Do not step on, pull, fold, or knot the cable.
• Do not drop or place any heavy objects on the control box.
• Do not place the cable near high-temperature objects or under direct sunlight when charging.
• Do not operate the device in temperatures outside of its designated operating range.
• Put on the dust cover when the product is not in use.
• Use this product in a well-ventilated area.
• The product is not equipped with any user-serviceable parts. Do not try to repair or maintain the product on your own.

WARNING
This sign indicates that not following proper operations may cause serious injury to the operator or damage to the device or vehicle. Be sure to adhere to the following instructions.

• This product can only be used when there is a residual current device (RCD) breaker in the power supply section.
• Do not use this product if the cable is damaged.
• This product is only to be used for EV charging.
• The product must be grounded.
• Do not use this product with an extension cord.
• If the product does not operate as described in the user manual, refrain from using it and contact your dealer for repair or replacement.

Safety Precautions

• Ensure that the cable, power input plug, charging connector, and control box are free of any abnormalities, such as scratches, rust, cracks, or any other damage that may affect its proper functioning.
• Electric vehicles can only be charged when the engine (motor) is off and the vehicle is stationary. Do not charge in rainy and/or thunderous weather.
• Do not charge if your power outlet is damaged, rusted, cracked, or loosely connected.
• Wipe with a clean and dry cloth if the power input plug gets dirty or wet.
• Ensure that the power input plug and your power outlet are compatible with each other before charging.

What’s in the Box

• Thank you for purchasing TOPDON’s PulseQ AC Portable electric vehicle (EV) charger. To properly use this product, please read this user manual carefully before operating.

Product Overview

physical Features

1. Control Box

2. LCD Display
   Displays real-time charging data.

3. Current Adjust Button
   Allows you to select from the four current options (16/13/10/8A).

4. Charging Schedule Button
   Allows you to set the delay time for charging.

5. Charging Status Indicator**
   Charging Status Indicator| Connotation**
   ---|---
   Solid green| Standby
   Solid blue charging| g connector inserted, ready to charge / Charging complete (connector still inserted)
   Flashing blue| Charging in progress
   Solid / flashing yellow| Fault (refer to Section 6 for more details)

6. Charging Connector

7. Power / Charging Input Plug
   Connects your PulseQ AC Portable to a power outlet

LCD Display

1. Real-Time Charging Voltage
2. Control Box Temperature
3. Charging Status Icon
4. Selected Charging Current
5. Real-Time Charging Current
6. Energy Delivered
7. Scheduled Charging Countdown / Charging Time

Technical Specifications

Model Name| PulseQ AC Portable3.7K C5_EU| PulseQ AC Portable3.7K C5_UK| PulseQ AC Portable3.7K C5_AU
---|---|---|---
Safety Standard| EN 62752
Charging Mode & Connection| Mode 2, Case C
Charging Connector Type| IEC 62196-2, Type 2
Power / Charging Input Plug Type| EU Plug| UK Plug| AU Plug
Rated Current| 16A| 13A| 16A
Rated Voltage| Single-phase 230V AC, 50 / 60Hz
Total Length| 5 m (16.4 ft.)
Protection Grade (Control Box)| IP 65
Operating Temperature| -25°C to 45°C
Storage Temperature| -40°C to 70°C
Operating Humidity| 5%~95% RH (non-condensing)
Operating Altitude| < 2000 m (6,561.7 ft.)
Dimensions (Control Box) (L x W x H)| 240 x 104 x 63 mm
Net Weight (Whole Product)| 3.21 kg

How to Charge an EV

The PulseQ AC Portable EV charger offers two charging modes: “Plug and Play” and “Scheduled Charging” modes.

Note:
For both charging modes, the charging connector will be locked during the charging process which prevents you from removing it while charging. If you want to stop charging midway, please stop the charging process via the vehicle end.

Plug & Play

1. Insert the power/charging input plug of the PulseQ AC Portable into the power outlet.

2. Tap the Current Adjust button to select the appropriate current. Note:
   The current can only be selected prior to inserting the charging connector.
   Please ensure that the selected current is within the carrying capacity of your electrical circuit.

3. Insert the charging connector into the inlet socket of your electric vehicle. Then charging will start automatically.

4. Remove the charging connector from the vehicle inlet socket when charging is finished, then disconnect the power/charging input plug from the power outlet.

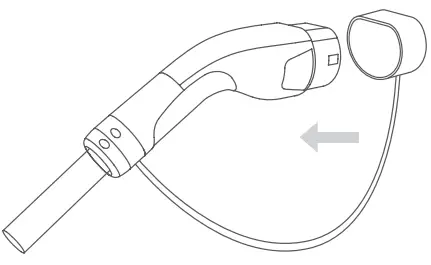

5. Place the dust cover onto the charging connector after use.

Scheduled Charging

1. Insert the power / charging input plug of the PulseQ AC Portable into the power outlet.

2. Tap the Current Adjust button to select an appropriate current. Note:


3. The current can only be selected before inserting the charging connector.

4. Please ensure that the selected current is within the carrying capacity of your electrical circuit.

5. Tap the Charging Schedule button to set the desired delay time for charging, up to a maximum of 10 hours. power/chargingThe LCD screen will show a countdown for the scheduled charging after you have set the delay time. Note: The charging schedule can only be configured prior to inserting the charging connector.

6. Promptly insert the charging connector when the countdown begins. If you fail to do so before the countdown ends, the charging appointment will not be executed.

7. Charging will start when the countdown concludes.

8. Remove the charging connector from the vehicle inlet socket when charging is finished, then disconnect the power / charging input plug from the power outlet.

9.  Place the dust cover onto the charging connector after use.

Fault Handling

unplugging the power input plug and plugging it in again to see whether the fault resolves.
1 yellow blink every second| Overvoltage or under voltage| Check for any over/under voltage in the input voltage. Try moving the EV charger to a location with stable voltage.
1 yellow blink every 2 seconds| o ground wire| Check whether the ground wire is firmly connected. Try unplugging the power input plug and plugging it in again to see whether the fault resolves.
1 yellow blink every 4 seconds| Overcurrent| Check whether the selected charging current is appropriate. Try unplugging the power input plug and plugging it in again to see whether the fault resolves.
Alternating blue and yellow blinks with a 1s interval between each blink| Electrical leakage| Check for any electrical leaks in the electric vehicle. Try unplugging the power input plug and plugging it in again to see whether the fault resolves.
Alternating blue and yellow blinks with a 2s interval between each blink| Overtemperature| Relocate the EV charger to a cooler environment.

Warranty

TOPDON One-Year Limited Warranty
TOPDON warrants to its original purchaser that the company’s products will be free from defects in material and workmanship for 12 months from the date of purchase (Warranty Period). For the defects reported during the Warranty Period, TOPDON will either repair or replace the defective part or product according to its technical support analysis and confirmation. TOPDON shall not be liable for any incidental or consequential damages arising from the device’s use, misuse, or mounting. If there is any conflict between the TOPDON warranty policy and local laws, the local laws shall prevail.

This limited warranty is void under the following conditions:

• Misused, disassembled, altered, or repaired by unauthorized stores or technicians.
• Careless handling and/or improper operation.

Notice
All information in this manual is based on the latest information available at the time of publication and no warranty can be made for its accuracy or completeness. TOPDON reserves the right to make changes at any time without notice.
