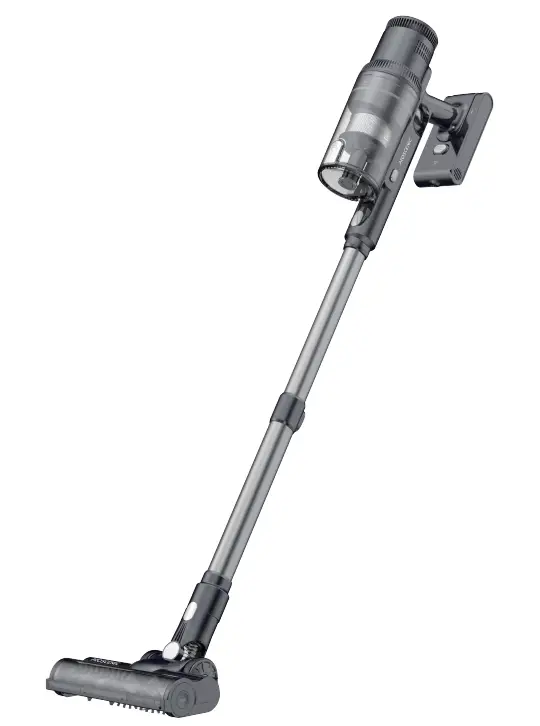

PROSCENIC P11 Mopping Cordless Vacuum Cleaner Owner’s Manual
- June 15, 2024
- Proscenic
Table of Contents
P11 Mopping Cordless Vacuum Cleaner
Owner’s Manual
P11 Mopping Cordless Vacuum Cleaner
Proscenic Technology Co., Ltd.
To ensure you get better after-sale guarantee
www.proscenic.com
We are always here to protect your rights
support@proscenic.com
- The appliance is only to be used with the power supply unit provided with the appliance.
- The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
- When cleaning the Vacuum Cleaner, use a dry cloth to wipe it. Do not use gasoline, banana water and other cleaners that are easy to crack or fade the shell.
- Please do not use or store the Vacuum Cleaner in high temperature, low temperature and other adverse conditions, and do not use them outdoors or on wet surfaces. It is recommended to use them indoors at an ambient temperature of 0-30°C. Please store it in a cool and dry place, and do not expose it to sunlight for a long time.
- Do not allow children to use or play with the Vacuum Cleaner.
- When the Vacuum Cleaner can not work, it must be tested and repaired at the designated service center. Do not disassemble the machine by yourself. Waste battery packs should be safely recycled and disposed of, please do not dispose of them at will.
- If the power cord is damaged, in order to avoid danger, you must go to the manufacturer’s local maintenance department or similar department to have it replaced by a professional.
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device,pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encour aged to try to correct
the interference by one or more of the following measures: (1) Reorient or
relocate the receiving antenna. (2) Increase the separation between the
equipment and receiver. (3) Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected. (4) Consult the dealer
or an experienced radio/ TV technician for help.
Overview
Product Assembly
Notes
- The power supply of the vacuum cleaner needs to be shut off before installing and replacing accessories.
- This product cannot keep itself upright without a fixed support. Please place the machine and accessories firmly!
-
Battery installation and removal
Installation: align the battery with the back-end position of the host and slide it in till it is clamped in place. Removal: press the battery release button and pull it out for removal. -
Installation and disassembly of the whole machine
Installation: insert the electric floor brush joint at the dust pipe, and the other end of the dust pipe at the host head when the installation is complete.
Removal: Press the corresponding release button and pull it out to remove the electric floor brush and the host. -
Waterman installation
Do not mop on the carpet to avoid wetting the carpet
1. Wet the mopping cloth with water, attach the mopping cloth to the Velcro, fill the water inlet with water, and close the rubber lid tightly. 2 Keep the tank perpendicular to the floor brush, and install as the direction of the arrow.
Operation
In the process of use, when the display light flashes, it indicates that the
power is insufficient, and it needs to be recharged in time so as not to
affect the use.
Note: please charge with the original power adapter.
Charging:
-
As shown in the picture, the charging plug on the power adapter is inserted into the charging port of the battery and it will be charged. When the charge is displayed as 100%, it is already full.
-
As shown in the picture, after the battery is removed, insert the charging plug into the charging port on the battery, the indicator light is flashing blue, indicating that it is charging; the indicator light is solid, indicating full charge.
-
Press the switch button and the machine starts working; press the switch button again and the machine shuts down.
-
The machine has three suction gears, short press ” “, different suction gears can be switched.
Display screen indications![PROSCENIC P11 Mopping Cordless Vacuum Cleaner
- display](https://manuals.plus/wp-content/uploads/2023/12/PROSCENIC-P11
-Mopping-Cordless-Vacuum-Cleaner-display.png) Full dust indicator: the
indicator light is red, indicating that the dustbin is full and it needs to be
dumped.
Note: if the anomaly is not released after the dust is dumped, it may be a dust blockage and the blockages in HEPA, suction, dust pipes and other positions need to be cleaned.
Floor brush blockage indicator: the indicator light is red, indicating that the brush is entangled by hair or blocked, and it can be used normally after cleaning.
Maintenance
Dustbin installation and removal
Removal:
Press the button and take out the dustbin from the above. Installation:
Put the dustbin on the device from the correct direction, and then press down
to hear a “click” sound to indicate that the installation is complete.
Cleaning of filter components
Note: after rinsing HEPA and filter with water, please air-dry them
before use (do not expose them in the sun).
Note: to maintain the best cleaning performance, it is recommended to
clean them once a week. Filters assembly:
Note: Make sure the filters assembled rightly, otherwise, the fine dust
will come into the motor and destroy it.
- Align the position and put the filter assembly into the dustbin.
Cleaning of electric floor
brush
Note: when pulled out, some of the dusts will fall.
- As shown in the picture, clean up the wound hair or debris on the roller brush. If it is washed with water, it must be dried after rinsing before it can be put back to use.
Removal: Press and rotate the roller brush release button, the roller
brush will automatically pop out a certain distance, and then pull it out.
Installation : Insert the roller brush directly into the floor brush from
the side. Install the wall hanger
Insert the expansion tube into the pre-mounting holes on the wall, thread two
fixing screws through the two mounting holes on the wall, align the who fixing
screws with the expansion tube holes, insert the fixing screws into the
expansion tube holes, and tighten the screws clockwise. Use the wall
hanger
After the wall hanger is fixed, the vacuum cleaner body is placed on the wall
hanger as shown in the figure, and the accessories of the vacuum cleaner are
inserted into the accessory fixing hole on the side of the wall hanger for
fixation, as shown in the figure. To charge the battery, insert the charging
connector of the vacuum cleaner charger into the charging port of the wall
hanger.
Troubleshooting
Fault | Possible Issues | Solution |
---|---|---|
The machine cannot be started. | The battery is not installed correctly | Please |
install the battery correctly
The battery is dead| Charge the battery
Vacuum cleaner has no suction/- suction becomes smaller.| The dustbin is full|
Please empty the rubbish in the dustbin
The suction of the dust pipe or floor brush is blocked by a foreign body|
Clean up the suction of the dust pipe or floor brush
Dustbin or HEPA is not installed correctly| Reinstall the dustbin and HEPA
Filter HEPA blockage| Clean and filter HEPA, dry it and put it back
Dust is leaking from the air outlet.| HEPA is not installed correctly| Install
HEPA correctly
The roller brush stops turning, and the floor brush blockage indicator lights
up in red.| The roller brush is entangled or stuck, resulting in protection|
Clear the winding or blockage and turn it back on
The full dust indicator lights up in red.| The dustbin is full| The dustbin
needs to be dumped
Note:
- This vacuum cleaner must be used with the original battery and power adapter.
- Do not use the battery for any purpose other than this vacuum cleaner.
Specifications
Vacuum Cleaner Specifications
Working Voltage | 25.9V |
---|---|
Adapter Rated Input | 100-240V-50/60Hz |
Adapter Rated Output | 31V |
