TOPPING DX7 High End Quality Desktop DAC and Headphone User Guide

June 14, 2024
TOPPING

BIG STEP FORWARD

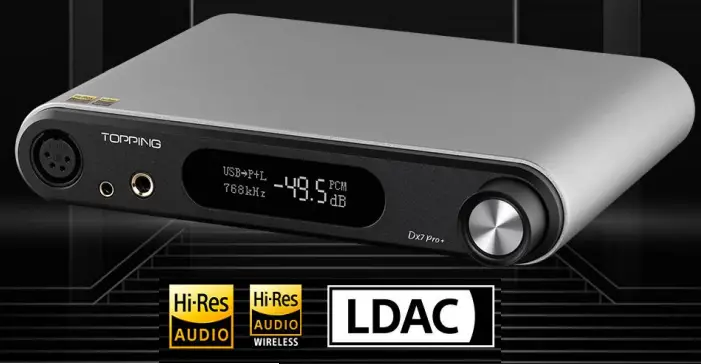

DX7 pro+
DAC & Headphone amp

TOPPING DX7 High End Quality Desktop DAC and Headphone

TOPPING DX7 High End Quality Desktop DAC and HeadphoneTOPPING DX7 High End Quality Desktop DAC and Headphone - icon
1

What are the differences

| DX7 pro+| DX7Pro
---|---|---
Bluetooth| QCC5125
Newer model| CSR8675
THD+N (DAC)| <0.00006%
57 % Lower| <0.00014%
THD+N (HPA| <0.00009%@1kHZ
70 % Lower| <0.00049% @1kHZ
Noise (HPA) @A-wt| <1.4uVrms @G=L
2.5uVrms @G=H| <3.0uVrms @G
<5.0uVrms @G
Output power(SE
THD+N<19%| 1900mWx2 @320
20mWx2 @3000| 840mWx2 @320
115mW2 @3000
Output impedance| <0.10
<0.10| <4 70
Crosstalk| 120dB @lkHz
-120dB @1kHz C186| -80dB 1kHZ

This time we did it better

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
1

DX? Pro+ uses ESS SABRE ES9038PRO, with 32bit Hyper-stream architecture, achieves ultra-high performance in the audio field. Each channel of the DX? Pro+ will be arranged in parallel by 4 conventional balanced channels. This makes the performance of DX? Pro+ even better.

Brand new IN conversion

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
2

A brand new IN conversion circuit is designed for better quality audio reproduction. The unique circuit design provided lower distortion. lower A brand new IN conversion circuit is designed for better quality audio reproduction. The  unique circuit design provided lower distortion, lower noise while occupying less space. The new circuit is pushed close to the limit of physics so that we are able to squeeze out the last bit of performance of the DAC chip.

Close to physical limits

The ability of DX? Pro+ to restore music has reached to THD+N<0.00006%.
That means more and clearer details you can hear.

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
3

Brand new design

The new family-style design that has won IF, reddot, and Goldenpin awards on DX5, combined with aluminum precision CNC technology, makes DX? Pro+ a better part of your desktop.![TOPPING DX7 High End Quality Desktop DAC and Headphone

Built-in NFCA Headphone amp
The new DX? Pro+ has the NFCA circuit optimized for this unit, giving the ultra low noise and distortion. It pairs with high sensitivity IEMs and power hungry high impedance headphones nicely.

1900mW x 2 320mW x 2 127dB
320, THD+N<1% 3000, THD+N<1% SNR

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
5

4.PIN.XLR 4.4mm and 6.35mm
DX7 Pro+ has 3 output headphone jacks of 4-PIN-XLR, 4.4mm and 6.35mm to meet different usages. Besides, with the help of 2 gain setting, DX7 Pro+ could reach even wider adaption of different headphones. TOPPING DX7 High End
Quality Desktop DAC and Headphone - Figure 6

Step volume control

The encoder makes the step volume control  more accurate and convenient.
Even if the volume is adjusted to a small volume there will not be any channel balance problem.

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
7

Multiple output Model

By double-clicking the volume knob, you can choose from four output modes: “Headphone Amp”, “Headphone Amp + Line Out”,  “DAC”, and “Pre-amplifier” to adapt to more application scenarios.
TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
8

Output channel Display AMP output RCA output XLR output Volume control
AMP PO, Vol X X i
AMP+LineOut P+L, Vol 1 ../ i 1

Line
Out| DAC| RCA, DAC| X| 0.| X| X
XLR, DAC| X| X| i| X
X+R, DAC| X| I| i| X
Pre| RCA, Vol| X| ✓| X| i
XLR, Vol| X| X| ✓| I
X+R, Vol| X| i| ./| J

Selectable OutPut

DX? Pro+ has balanced XLR output and single ended RCA output. You can choose “XLR only”, “RCA only” or “XLR+RCA” output for different applications.

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
9

IIS input supports up to DSD512 native

When there is a better interface, you can use the HDMI cable to directly send the IIS signal into the DX7 Pro-E’s ESS9038PRO for better decode. IIS input can support up to PCM32bit768kHz & DSD512native. The IIS input provides phase settings, DSD channel settings, and DSD indicator pin selection settings, which are compatible with most digital interfaces on the market that use the HDMI interface to output IIS signals. TOPPING DX7 High End Quality Desktop
DAC and Headphone - Figure 10

This function uses only HDMI interface to transmit IIS signal instead of the standard HDMI signals. Thus it cannot be used for HDMI interface of the PC, TV, and set-top box.

Plug and play turn your PC into a HIFI source

DX7 Pro+ has a wide range of compatibility: Windows 10 and above, MAC, Linux, 10S, Android can be plug and play. DX7 Pro+ uses 2nd generation 8 core XMOS XU208, USB supports up to PCM32bit768kHz and DSD512 native.

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
11

LDAC 24bite  Bluetooth transmission
DX7 Pro+ has the certification of Hi-Res Audio Wireless and LDAC. It uses newest QCC5125 chipset to support LDAC/AAC/SBC/aptX/aptX LL/aptX HD/aptX Adaptive protocol.
To get even better sound quality from Bluetooth, we abandon the built-in DAC of QCC5125 and connect it’s digital signal to ES9038PRO to decode.

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
12

Sound Simulation

According to the unique harmonic performance of tubes and transistors, we added the sound simulation function of tubes and transistors to the DX7 Pro+, so that you can hear 3 different performance.
TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
13

12 V Trigger Interface

The DX? Pro+ is equipped with a 12V Trigger interface, which can be set to active control (Trigger out) or passive control (Trigger in). With only one easy-to-obtain 3.5mm to 3.5mm cable, the DX? Pro+ can be  turned on and off synchronously with other devices equipped with a 12V Trigger interface.

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
14TOPPING DX7 High End Quality Desktop DAC and
Headphone - Figure 16TOPPING DX7 High End Quality Desktop DAC and Headphone -
Figure 17TOPPING DX7 High End
Quality Desktop DAC and Headphone - Figure 18TOPPING DX7 High End Quality Desktop DAC and
Headphone - Figure 19

Contents list

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
20

  1. DX7 Pro+

  2. Remote control

  3. USB cable

  4. 6.35mm to
    3.5mm adaptor

  5. Bluetooth antenna

  6. AC cable

  7. User manual

  8. Warranty card

TOPPING DX7 High End Quality Desktop DAC and Headphone - Figure
21TOPPING DX7 High End Quality
Desktop DAC and Headphone - Figure 22TOPPING DX7 High End Quality Desktop DAC and
Headphone - Figure 23TOPPING DX7 High End Quality Desktop DAC and Headphone -
Figure 24TOPPING DX7 High End
Quality Desktop DAC and Headphone - Figure 25
