Like all other global technology vendors, Cisco is required to comply with all
local health and government regulations in the locations in which we operate.
This includes meeting radio frequency (RF) exposure limits for our products.
Our equipment is tested in accordance with regulatory requirements as a
condition to our ability to market and sell in any given jurisdiction. As an
equipment manufacturer, Cisco defers to expert national and international
health organizations responsible for guidance on the safety of RF signals,
specifically the US Food and Drug Administration (FDA), Health Canada, the
World Health Organization (WHO), and other national and global health
agencies.
In May 2019, the FDA stated that there is “no link between adverse health
effects and exposure at or under the current RF energy exposure limit”, and
that the current FCC RF exposure limits are sufficient to ensure the safety of
users.
If any Cisco hardware unit breaks down or malfunctions, emits smoke or an
unusual smell, if water or other foreign matter enters the unit enclosure, or
if the unit is dropped onto a hard surface or damaged in any way, power off
the unit immediately and contact an authorized Cisco Networks dealer for
assistance.
If you are adjusting and/or controlling a Cisco device using control software
such as the RACER™ interface or the device’s local Configurator interface, do
not make configuration changes unless you know with certainty that your
changes will not negatively impact people or animals in the vicinity of the
device and its antennas. Required End Product Labeling (FCC)
Any device incorporating this module must include an external, visible,
permanent marking or label which states: “Contains FCC ID: R5SX500E”.
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the
end product which integrates this module. The end user manual shall include
all required regulatory information/warnings as shown in the User manual.
In the end product, the antenna(s) used with this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons
and must not be co-located or operated in conjunction with any other antenna
or transmitter except in accordance with FCC multi transmitter product
procedures. User and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance. 1.1. Water ingress hazard
CAUTION
FM4500 Embedded is not suitable for ‘as-in’ installation; it must be equipped
with an appropriate enclosure and integrated only by expert personnel.
Make sure to protect the FM4500 Embedded by using an auxiliary enclosure
specifically designed to assure the long-term durability and reliability of
the radio transceivers that
have been installed.
If you need further information regarding installation specifications, please
refer to the FM4500 Embedded Installation manual. 1.2. Radio-frequency transmission hazard WARNING
The system shown in this manual is designed to be installed and operated in a
way that avoids contact with the antennas by human beings. The legislation
quoted in this section is designed to reduce overall exposure of human beings
to RF radiation. This section gives minimum separation distances between
antennas and humans. It is strongly recommended that the system be installed
in a location where these minimum separation distances can be maintained at
all times.
United States: This system has been evaluated for RF exposure for humans, in
accordance with FCC regulation CFR 47 Part 2.1091. To maintain compliance, the
minimumseparation distance from the antenna to general bystanders is
20cm/7.9in. (all FM Ponte kit and x200 radio transceivers), or 21cm/8.3 in.
(all FM1300 Otto and x500 radio transceivers).
Canada: This system has been evaluated for RF exposure for humans, in
accordance with ISED regulation RSS-102. To maintain compliance, the minimum
separation distance from the antenna to general bystanders is 20cm/7.9in. for
all Cisco radio transceivers.
Europe / Australia / New Zealand: This system has been evaluated for RF
exposure for humans, in accordance with standard EN 62232. To maintain
compliance, the minimum separation distance from the antenna to general
bystanders is 20cm/7.9in. for all Cisco radio transceivers.
Before activating any device capable of transmitting RF signals, make sure
that all persons and animals are protected from possible RF exposure.
Make sure that all RF feeds are securely connected to an appropriate antenna.
Never activate any RF-capable device that is not connected to an antenna. 1.3. Installation Disclaimer Electrostatic Protection
All personnel who contact components and products are required to wear anti-static clothes, anti-static wrist straps, anti-static gloves, and anti-static shoes.
The anti-static system must be well grounded. The anti-static ground wire must not be connected to the neutral wire of the power supply or shared with the lightning protection ground wire.
All components need to be treated as electrostatic-sensitive devices.
During installation, use an anti-static workbench and use the anti-static container for parts and semi-finished products.
Warehouse management personnel should wear anti-static gloves when issuing materials and IQC testing, instruments and equipment are weill grounded, and the workbench is covered with anti-static rubber pads.
Regularly check the above-mentioned anti-static tools, settings, and materials to make sure they meet the requirements.
Reporting mistakes and recommending improvements
You can help improve this manual.
If you find any mistakes, or if you know of a way to improve the procedures
that are given, please let us know by E-mailing your suggestions to
documentation@cisco.com.
Getting Started
3.1. Introduction 3.1.1. Cisco FM4500 Embedded

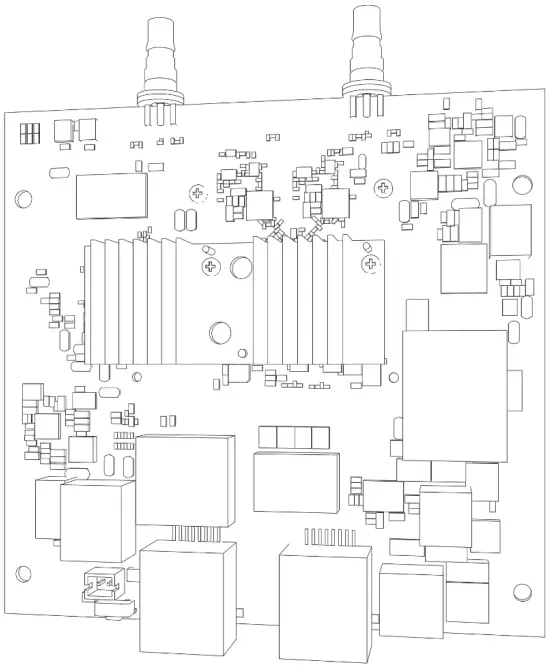

The Cisco FM4500 Embedded radio transceiver
Introduction
The Cisco FM4500 Embedded is a high-performance embedded radio transceiver,
operating in the sub-6GHz range, designed to deliver fast, stable connectivity
from any slow- or fast-moving asset, robot or vehicle to a wayside network,
particularly in mission-critical application in industrial environments.
Built directly into specific hardware or IT solutions, the FM4500 Embedded
radio provides stable, reliable, and fast connections to robotic systems, AGVs
and any industrial assets without compromising aesthetics or requiring
cumbersome mounting solutions.
It provides reliable service in mobility applications and must be connected to
one or more external antennas.
The Cisco FM4500 Embedded is configured as a multiple input/multiple outputs
(MIMO) 2×2 radio transceiver. In a 2×2 scenario, two separate spatial streams
are transmitted by one transceiver unit and are available to be recombined by
the radio chipset of a second transceiver unit. Unit function and throughput speed
The unit is designed to handle mission-critical video, voice, and data with
extremely high reliability. It can be used to create point-to-point or mesh
network links, with real throughput of up to 500 Mbps to vehicles traveling at
up to 225 mph (360 Km/h), under optimal wireless link conditions. Data throttling
The unit’s FluidThrottle functionality allows you to specify the maximum
amount of data throughput the unit will be required to handle at any time.
The unit’s throughput capacity can be upgraded to different levels using
software plug-ins. MPLS protocol
Two different Multi-Protocol Label Switching (MPLS)-based protocol versions
can be chosen. If a newer network is being built or upgraded, the advanced
Prodigy 2.0 protocol can be selected to boost performance. If an older network
incorporating Cisco components is being upgraded,the Prodigy 1.0 protocol with
limited functionality can be selected to guarantee compatibility. Prodigy uses
a traffic optimization algorithm that allows every Cisco radio to assign a
specific priority level to every forwarded data packet. Unit configuration
The unit is compatible with Cisco RACER™. This is a centralized, web-based
interface that allows you to configure, monitor, and troubleshoot the unit
(and in certain cases, the entire wireless network) in real-time, without the
need for any offline software. In cases where an initial connection cannot be
made to the internet, the unit can be configured using a built-in offline
Configurator interface.
Product specifications
For detailed product specifications, refer to the product data sheet for the
Cisco FM4500 Embedded. Transceiver and gateway unit power consumption
In service, Cisco transceiver units and gateway units consume electrical power
at the rates given in the table below. IMPORTANT
In service, transceiver and gateway units will consume power at various levels
between the quoted lower limit and upper limit, depending on data traffic
load, signal strength, environmental conditions such as line-of-sight and
atmospheric moisture, and other factors.
Note that the power consumption of transceiver units tends to be affected in
inverse proportion to the unit temperature (in other words, power consumption
tends to rise when the temperature of the unit falls, and the other way
around). Table 1. Power consumption figures (transceiver units)
Unit series| Minimum power consumption| Nominal power consumption
(typical conditions)| Maximum power consumption (realistic system- design
assumption)
---|---|---|--- FM Ponte kit (Model FM1200V- HW)| 4 Watts| 6 to 7 Watts| 10 Watts FM1200 Volo (Model FM1200V- HW)| 4 Watts| 6 to 7 Watts| 10 Watts FM1300 Otto| 8 Watts| 10 to 12 Watts| 15 Watts FM3200-series (Model FM3200)| 4 Watts| 6 to 7 Watts| 10 Watts FM4200-series (Models FM4200F and FM4200)| 4 Watts| 6 to 7 Watts| 10
Watts FM3500 Endo (Model FM3500)| 8 Watts| 10 to 12 Watts| 15 Watts FM4500-series (Models FM4500F and FM4500)| 8 Watts| 10 to 12 Watts| 20
Watts FM 4800 Fiber| 13 Watts| 15 to 17 Watts| 20 Watts FM 4500 EMB| 8 Watts| 10 o 12 Watts| 15 Watts
Table 2. Power consumption figures (gateway units)
Unit| Maximum power consumption (realistic system- design
assumption)
---|--- FM1000 Gateway| 60 Watts FM10000 Gateway (Gen. 1)| 275 Watts (redundant AC power supply)
250 Watts (non-redundant AC power supply) FM10000 Gateway (Gen. 2)| 300 Watts (redundant AC power supply)
3.2. Cisco architecture 3.2.1. Overview
Wireless network architectures
Depending on the network design and the type of components used, the Cisco
FM4500 Embedded can be used to create wireless network architectures,
including:
Point-to-point (P2P) links.
Mesh networks.
Mobility networks.
Mixed networks are capable of using any combination of types listed above.
3.2.2. Cisco technologies Prodigy
Prodigy is Cisco’s proprietary implementation of the Multi-Protocol Label-
Switching (MPLS) standard. IMPORTANT
A Cisco device only features Prodigy selection if the installed Prodigy engine
includes the selection feature.
Cisco devices that are designed to operate exclusively in Bridge Mode (in
other words, point-to-point configuration) do not feature Prodigy.
Prodigy 2.0 offers greatly improved performance compared to Prodigy 1.0. New features include:
Fluidity (through software plug-ins)
Traffic engineering
Advanced Quality of Service (QoS)
Note that Prodigy 2.0 is only compatible with device firmware versions
6.5 and higher. IMPORTANT
Prodigy 1.0 and Prodigy 2.0 are not compatible with each other. Do not
implement the two protocol versions within the same network.
If you are expanding an existing network using new Cisco hardware components,
make sure that all components are compatible with each other by:
Upgrading all network components within the same network to firmware version 6.5 or higher, and:
Configuring all network components within the same network to operate using either Prodigy 1.0 or Prodigy 2.0.
Use of Prodigy 1.0 is only recommended if the network contains older Cisco
devices that are not compatible with Prodigy 2.0.
Select the Prodigy version you need by using the General Mode page of the
Configurator interface. Fluidity
Fluidity is the proprietary track-side and vehicle-to-ground data transfer
protocol developed by Cisco.
Fluidity supports video, voice, and data communication, ensuring usable
throughput of up to 500 Mbps for high-speed railway trains and other vehicles
capable of traveling at up to 225 mph or 360 Km/h (under optimal wireless link
conditions).
For detailed information on the operational concepts, and instructions on how
to configure Fluidity, refer to the Cisco Networks Fluidity Configuration Manual. FM Racer
RACER™ is Cisco’s web-based configuration portal. It is the primary interface
with which to configure Cisco radio devices.
You can operate FM Racer using any internet-connected computer with a web
browser. IMPORTANT
For a detailed description of the differences between FM Racer and the local
Configurator interface, refer to “Device configuration using the configurator
interface” (page 45). 3.2.3. Point-to-point wireless bridge
A point-to-point wireless bridge allows two local networks to communicate with
each other. A simplified example is shown in Figure 1 (page 17).
In the context of the overall network architecture, the two local networks are
called network segments.
All network activity that takes place on wireless bridges is ‘transparent’ to
the network hosts. In other words, a wireless bridge forwards packets from one
network segment to another according to a ‘Forwarding table’. The forwarding
table is built by learning the network topology from the analysis of incoming
traffic.
In this configuration, no explicit interaction takes place between the
wireless bridge and the network hosts. The network segments on either side of
the wireless bridge share the same IP subnet. Therefore, each network host
must use a unique IP address within the subnet. 3.2.4. Mesh network architecture
Cisco Networks offers wireless networking solutions that are based on the mesh
networking architecture but can also fill more traditional networking roles if
needed. This allows substantial reliability and flexibility advantages when
compared to traditional wireless solutions.
A simplified example of a wireless mesh network is shown in Figure 2 (page
18). In such a network, every Cisco hardware component transmits the data
packets that come from the components directly linked to it.
In a reliable mesh network with an acceptable amount of redundancy, every
stream of data packets may reach the base station through of a variety of
paths. The Cisco FM4500 Embedded is designed to act as an ‘intelligent router’
that is able to forward packets coming from other
Cisco components in real-time, based on an optimal, software-determined path.
In addition, the absence of any single point of failure greatly increases
reliability when compared to any other wireless or wired data-transmission
technology. 3.3. Cisco Network Addressing 3.3.1. Bridge IP addressing
If needed, the Cisco FM4500 Embedded can be operated in Bridge mode. This
creates a single point-to-point connection between two network segments. A
simplified example of a Bridge mode connection is shown in Figure 3 (page 19).
As shipped from the factory, the wired ethernet ports of all Cisco hardware
components are assigned the same default IP address of 192.168.0.10/24.
No default IP address is associated with the wireless interface.
3.3.2. Unit identification and addressing
Mesh- and bridge-capable radio transceiver identification CAUTION
This section contains theoretical explanations of the underlying concepts
behind mesh network addressing and is intended for use by qualified network
engineers only.
For specific instructions on Cisco hardware installation, see “Hardware
installation” (page 27).
For specific instructions on how to configure a Cisco radio transceiver unit
using the configurator interface, see “Device configuration using the
configurator interface” (page 45).
Regardless of its configuration and operating mode, every Cisco radio
transceiver is shipped from the factory with a unique unit identification (ID)
number. This number always takes the following form: 5. a.b.c
The triplet a.b.c uniquely identifies the individual physical hardware unit,
and cannot be changed.
The unit ID number is used to identify the physical hardware units within the
configurator interface that is used for the configuration of the unit.
A simplified diagram demonstrating the relationship between a wired LAN, and a
linked mesh radio network containing a mesh end unit and mesh point units, is
shown in Figure 4 (page 20).
Operating the unit in Mesh Point mode or Mesh End mode
If the Cisco FM4500 Embedded radio transceiver unit is installed as part of a
mesh network architecture, it can be set to operate in either of two operating
modes:
Mesh Point Mode: This is the default operating mode. Each radio transceiver unit that is part of the network, but is not connected to the wired LAN backbone, must be set in Mesh Point mode.
Mesh End Mode: Each radio transceiver unit that is part of the network and is connected to the wired LAN backbone must be set in Mesh End Mode. A Mesh End transceiver unit is always the junction point between the wireless network and any IP-based wired network.
Network addressing
Cisco radio transceivers
Cisco data link layer (layer 2) addressing allows you to configure each Cisco
FM4500 Embedded transceiver unit, and each IP device connected to the unit,
according to the IP address class used in the private LAN to which the Mesh
End unit is connected. Each Cisco radio transceiver unit has a factory-set IP
address of 192.168.0.10, and a Netmask of 255.255.255.0. NOTE
Each individual Cisco radio transceiver unit has a factory-set 5. a.b.c Mesh
identification number. Each unit is shipped from the factory with the same IP
address, but with a unique Mesh identification number.
When a Cisco wireless network is connected to a wired LAN, the LAN is usually
the private control room LAN. Therefore, Cisco radio transceivers, and all
other edge devices that connect the wireless network to the wired LAN, must be
assigned individual LAN IP addresses that are part of the same subnet. The
edge devices will be accessed using those IP addresses.
A typical network configuration (Cisco Network Addressing) is shown as
“Operating the unit in Mesh Point mode or Mesh End mode” (page 20).In this
configuration, the private LAN IP address class is 192.168.150.0, with netmask
255.255.255.0. Note that each device has an IP address belonging to this
subnet. IMPORTANT
IP addresses must not be duplicated within a network. If addresses are
duplicated, IP address conflicts will occur.
Multiple Cisco radio transceiver units can be connected through a network
switch, forming radio clusters. The proprietary routing protocol will run
automatically on the wired part of the network. To activate the cluster
feature, transceiver units that are capable of being set in Mesh Point mode
must be set in that mode. Connecting and configuring an Ethernet edge device
Ethernet edge devices such as IP cameras and Wi-Fi access points can be
connected to the Ethernet ports of the Cisco FM4500 Embedded. Such edge
devices must be configured using the IP subnet scheme defined for the
broadcast domain.
The default IP subnet mask for all Cisco devices is 192.168.0.0
/255.255.255.0.
The default IP address for all Cisco devices is 192.168.0.10 / 255.255.255.0.
You can configure any Ethernet device manually or automatically, using a DHCP
server that resides on the LAN network. The Cisco network is totally
transparent to DHCP, therefore, DHCP requests and responses can be forwarded
transparently across the network. IMPORTANT
If an Ethernet-based system using multiple peripheral components is connected
to the wireless network, assign each peripheral component a fixed IP address.
If dynamic IP addressing is used, the components may not be accessible to
third-party software that relies on the components for data input.
A typical example is a video surveillance system equipped with multiple CCTV
cameras. Each camera must be assigned a fixed IP address to be accessible to
the video-recording
software. Cisco radio transceivers
A wide variety of Ethernet edge devices, such as IP cameras and Wi-Fi access
points, can be connected to the Ethernet ports of the Cisco FM4500 Embedded.
You can configure any Ethernet device manually or automatically by using a
DHCP server that resides on the LAN network.
The Cisco network is totally transparent to DHCP. Therefore, DHCP requests and
responses can be forwarded transparently across the network. IMPORTANT
If a video surveillance system is connected to the wireless network, assign
each camera a fixed IP address. If dynamic IP addressing is used, the cameras
may not be accessible to the video-recording software.
Hardware installation
5.1. Cisco Hardware Installation 5.1.1. Installing the Cisco FM4500 Embedded Hardware Installation The Cisco FM4500 Embedded (model number FM4500 EMB) is a wireless radio
transceiver unit.
FM4500 Embedded is not suitable for ‘as-in’ installation; it must be equipped
with an appropriate enclosure and integrated only by expert personnel.
Make sure to protect the FM4500 Embedded by using an auxiliary enclosure
specifically designed to assure the long-term durability and reliability of
the radio transceivers that have been installed. Requirements:
When picking and placing PCBA, it is required to handle with care to avoid impact, causing damage to the electronic parts and function failed
Installers are required to wear electrostatic gloves to avoid PCBA oxidation caused by fingerprints
If PCBA is dirty during installation, wipe it with a dust-free cloth moistened with alcohol (organic solvents are not allowed)
Correct PCBA positioning is required during installation to avoid stress damage to PCBA
Measure the torque of the electric screwdriver before assembly to avoid PCBA damage The proper torque of the electric screwdriver is 6Kgf-cm (0.59N.m)
Insert the cable plug into the connector on the PCBA properly to avoid connector damage on the PCBA.
5.1.2. Cisco FM4500 Embedded Status and link LEDs Unit and link quality status
The upside of the Cisco FM4500 Embedded (as seen below) contains seven LEDs.
The panel is used to check the unit status and wireless link quality
status.
Figure 5. Status and link/boot LEDs
During normal conditions: the operation, the seven LEDs indicate the following
Power: The Cisco FM4500 Embedded is receiving power.
LAN1: Network activity on Ethernet port 1.
LAN2: Network activity on Ethernet port 2.
SIGNAL STRENGTH (red): Signal strength is very poor.
SIGNAL STRENGTH (yellow): Signal strength is inadequate.
SIGNAL STRENGTH (green): Signal strength acceptable.
SIGNAL STRENGTH (green): Signal strength is excellent.
TIP
During normal operation, the readings from the four SIGNAL STRENGTH LEDs can
be used to do radio antenna alignment (see “Antenna-alignment tools and
physical statistics” (page 71) for more information). Boot sequence
During the unit’s boot sequence, the four SIGNAL STRENGTH LEDs light up in
sequence. During the boot sequence, the LEDs indicate the following
conditions:
Red: Core system boot in progress.
Yellow: Wireless system boot in progress.
First green: Routing engine boot in progress.
Second green: Unit configuration boot in progress.
If the boot sequence above stops at any LED, an error has been detected during
that stage of the boot sequence. 5.1.3. Supplying power to the Cisco FM4500 Embedded
CAUTION When connecting the Cisco FM4500 Embedded to a power supply, be sure to
follow the instructions in this section at all times.
Failure to follow these instructions may result in irreparable damage to the
unit and/or other connected hardware and will also invalidate the product
warranty. IMPORTANT
The radio transceiver package does not include a DC IN power source (devices
capable of accepting DC IN power only), a PoE injector, or a powered Ethernet
switch. A suitable power source must be ordered separately.
For technical data on which power sources are compatible with the Cisco FM4500
Embedded, refer to “Electrical power requirements” (page 155).
The Cisco FM4500 Embedded can be provided with power using the following
methods:
compatible 48 Vdc passive PoE injector conforming to IEEE 802.3at.
CAUTION
Do not connect any PoE injector conforming to IEEE 802.3af to the unit.
Such injectors have a higher voltage variance than the design specification of
the unit allows for, and may result in unreliable performance.
A 48 Vdc power source equipped with a 2-pin 3.5mm CCFL connector.
When providing the power source for the Cisco FM4500 Embedded, remember the
following important points:
Install the power source as close to the unit as possible to minimize voltage drop. The maximum suggested distance is 165ft (50m).
Connecting power to the Cisco FM4500 Embedded NOTE
For detailed comparative information on which Cisco hardware devices are
capable of accepting power through IEEE 802.3at or IEEE 802.3af power sources,
or through a DC IN power source, refer to “Electrical power requirements”
(page 155). DC IN, LAN1/POE and LAN2 ports
The Cisco FM4500 Embedded radio transceiver unit has three connector ports
(Figure 6 ):
The DC IN connection is a 2-pin 3.5mm CCFL Connector port, exclusively designed to accept passive 48 Vdc power.
The LAN2 connection is an RJ45 port, exclusively designed to connect the unit to a local area network (LAN) switch.
The LAN1/POE connection is an RJ45 port, designed to connect the unit to a local area network (LAN) switch and/or to an IEEE 802.3 48 Vdc power source.
IMPORTANT
The Cisco FM4500 Embedded can accept power from a power source conforming to
IEEE 802.3at ONLY. 5.1.4. Rebooting the firmware and resetting the unit to factory defaults
The Cisco FM4500 Embedded hardware can be rebooted and reset to the factory
default condition using the procedures in this section. IMPORTANT
The following procedure shows how to do a ‘hard’ (device firmware) reboot. To
do a ‘soft’ (device software) reboot, refer to “Resetting the unit to factory
defaults” (page 137).
To do a ‘hard’ (device firmware) reboot under emergency conditions (for
example, if the unit malfunctions), do the steps in the following sub-section. Device firmware reboot
Press the RESET button on the left side of the unit (Figure 7) for one second, then release the button immediately. Figure 7. Cisco FM4500 Embedded (Hardware RESET button)
The unit will reboot.
Resetting the unit to factory settings
CAUTION
Do not do a factory reset unless the unit needs to be reconfigured using its
factory configuration as a starting point.
A factory reset will reset the unit’s IP address and administrator password
and will disconnect the unit from the network.
The following methods are available to do a factory reset:
To do the reset using the offline Configurator interface, refer to “Resetting the unit to factory defaults” (page 137).
To do the reset using FM Racer, refer to the Cisco Networks FM Racer User Manual.
To do the reset by physically accessing the unit, follow the procedure below.
To reset the radio to its factory default settings, take the steps that
follow:
Power ON the unit.
Wait approximately 40 seconds for the unit to boot up.
When the unit has completed its boot sequence, press the
RESET button for 7 seconds.
The LEDs will blink.
The unit will be restored to factory default settings (including its default IP address of 192.168.0.10 and subnet mask of 255.255.255.0).
The unit will reboot.
The administrator user name and password will both be reset to admin.
5.2. Connecting the Cisco FM4500 Embedded to a network and antennas 5.2.1. Terminal assignments for power and data connectors IMPORTANT
Always use outdoor-rated, RF-shielded Ethernet cables when connecting the
Power and LAN ports of a Cisco hardware device to external hardware. NOTE
The radio transceiver does not make use of a dual-redundant power supply.
Therefore, terminals 2 and 4 are not used. 5.2.2. Connecting a DC IN power source to the unit NOTE
If the unit must be powered using an IEEE 802.3at-compliant network switch or
PoE injector, disregard this section and proceed to “Connecting LAN cables to
the unit” (page 36).
When the Cisco FM4500 Embedded is mounted in its final location, connect the
unit to a 48V DC IN power supply by doing the following steps:
Only use a power cable that terminates in a 2-pin 3.5mm CCFL connector to
connect the power source to the unit.![cisco FM4500EMB Ultra Reliable Wireless
5.2.3. Connecting LAN cables to the unit LAN cables IMPORTANT
If a local area network (LAN) connection must be made to the unit and the unit
must be powered using a compatible network switch or PoE injector, follow the
instructions in this section.
If non-powered local area network (LAN) connections must be made to the unit
through both LAN ports, follow the instructions for connecting the LAN cables
as shown in this section. Then, connect a 48V DC IN power supply to the unit
as shown in “Connecting a DC IN power source to the unit” (page 35). When the
Cisco FM4500 Embedded is mounted in its final location, connect the unit to
LAN connection(s) and/or a PoE power supply by doing the following steps:
Use a shielded CAT5/6 cable that terminates in an RJ45 connector to connect
any LAN cable to the unit.
Next, proceed to the steps in the following table:
|
---|---
Connecting a Gigabit LAN/power-over-Ethernet to the port LAN1/POE.| Connecting
a service LAN to the port LAN2
5.2.4. Connecting the antennas to the Cisco FM4500 Embedded
Radio antennas are connected to the Cisco FM4500 Embedded using quick-
disconnect sub-miniature version A (QMA) connectors.
WARNING
Before activating the unit, make sure that all RF feeds are securely connected
to an appropriate antenna. Never activate any transceiver unit that is not
connected to an antenna.
Cisco uses copper-tin-zinc-plated female QMA connectors. These connectors are
capable of corrosion resistance that exceeds the demands imposed by ASTM B117
salt spray testing. The connectors are virtually immune to corrosion, provided
that they do not remain in contact with standing salt water for long periods
of time.
In the opinion of Cisco engineers, certain brands of QMA plugs have shown
outstanding performance. We can confidently recommend the following brands:
Amphenol
Huber+Suhner
Rosenberger
Radiall
CAUTION
Do not remove the protective rubber sleeves from a female QMA plug (below) if
an antenna will not be connected to the plug. Unprotected QMA plug contacts
that are exposed to water will oxidize, causing degraded performance.
Type of connector and cable:
The number and types of antennas to be connected to the unit will have been
decided at the network design stage.
Verify which antenna will be connected to each QMA plug.
Using the Cisco Partner Portal
The Cisco Partner Portal is the main web-based portal through which the
following activities are done:
Participating in Cisco E-learning
Using and sharing plug-in license codes for Cisco devices
Using the RACER™ radio configuration interface
Viewing the technical documentation for your Cisco devices
6.1. Accessing the Partner Portal
Access to the Partners Portal is granted only to Cisco’s official partners and
customers and requires registration.
To access the Cisco Partner Portal, do the following steps:
Make sure a current web browser is installed on your computer. For detailed information on which browsers are supported, refer to Table 3 (page 41) below. If needed, upgrade your browser version.
Click this link.
• The Cisco Partner Portal Sign-In dialog will be shown.
Register as a portal user by clicking the Create Account link and following the software prompts.
Table 3. Supported web browsers
| Version| Computer operating systems| Compatibility|
Reason
---|---|---|---|---
Mozilla Firefox| 32 to 38| Linux, Windows 7, 8, and 10, OS X Mavericks|
Partial| Icons and fonts do not display correctly in position modality
39| Linux, Windows 7, 8, and 10, OS X Mavericks| Full| –
40 onward| Linux, Windows 7, 8, and 10, OS X Mavericks| Full| –
Google Chrome| 36 onward| Linux, Windows 7, 8, and 10, OS X Mavericks|
Partial| Vertical scrolling in unit/template detail does not work correctly
| 56 onward| Linux, Windows 7, 8, and 10, OS X Mavericks| Full| –
Microsoft Internet Explorer| 11 onward| Windows 7, 8 and 10| Full| –
---|---|---|---|---
Microsoft Edge| 13 onward| Windows 7, 8 and 10| Full| –
Apple Safari| 8 onward| OS X Yosemite or later| Full| –
6.2. Enabling Two-Factor Authentication for security
To enhance cyber-security on the Partner Portal, Cisco uses two-factor
authentication (2FA).
2FA works by providing an extra security layer that works independently of
your Partner Portal login password. With 2FA activated, you will be asked to
provide a secure one-time password (OTP) for each login. To set up two-factor authentication, do the following steps:
Install an app capable of generating authentication codes on your mobile phone. Apps recommended for specific platforms are:
• Google Authenticator or Authy (iPhone, Android)
• Microsoft Authenticator (Windows Mobile)
Log in to the Cisco Partner Portal using your normal access password.
Hover the mouse cursor over the Profile icon in the upper right-hand corner of the web page (Figure 9 (page 42)). Click the Account option. Figure 9. Partner Portal (Profile icon)
• Your portal account page will be shown.
Click the Two Factor Auth. link on the left-hand side of the web page (Figure 10 (page 42)).
Figure 10. Partner Portal (Two Factor Auth. icon)
• The Two Factor Authentication page will be shown.
• The current two-factor authentication status of your portal account will be
shown near the top of the page.
Click the Set Up Two Factor Authentication button.
• A two-factor authentication dialog will ask to confirm your identity. If the
name and E-mail address shown in the dialog are yours, enter your current
portal password and click the Validate identity button.
An E-mail will be sent to your E-mail address with a verification code in the body of the mail. Enter the verification code in the Verification code field of the Two Factor Authentication web page.
• The Two Factor Authentication web page will show a QR code.
Use the authentication app on your mobile phone to scan the QR code on the web page. Figure 11 (page 43) is a typical example of the QR code you will be shown.
Figure 11. Two Factor Authentication (typical QR code)
The authenticator app will generate an authentication code. Enter this code in the Authentication code field of the Two Factor Authentication web page, and click the Enable Two Factor Authentication button.
A list of ten recovery codes will be shown on the Two Factor Authentication web page. It is recommended that you save these codes in case you lose your mobile phone. Download the recovery codes as a *.TXT file by clicking the Download button, or print a hard copy of the codes by clicking the Print button.
6.3. Administering plug-in license codes
The Partner Portal Plug-ins page can be used to do the following tasks:
• Convert plug-in License codes to Activation codes
• Deactivate active plug-in License codes
• Reactivate deactivated plug-in License codes
• Export multiple Activation codes
• Share License codes with other Cisco device users. Accept shared License
codes from other Cisco device users
To do the tasks above, refer to “Plug-In management” (page 129). 6.4. Using the RACER™ radio configuration interface
RACER™ is Cisco’s web-based configuration portal. It is the primary interface
with which to configure Cisco radio devices.
You can operate FM Racer using any internet-connected computer with a web
browser.
To access the FM Racer portal, do the following steps:
1. Log in to the Cisco Partners Portal using your login credentials.
2. Click this link.
For detailed instructions on how to use the FM Racer interface, refer to the
Cisco Networks RACER™ User Manual. IMPORTANT
For a detailed description of the differences between FM Racer and the local
Configurator interface, refer to “Device configuration using the configurator
interface” (page 45). 6.5. Viewing the technical documentation for your Cisco device
All documentation relating to your Cisco device (such as product brochures,
technical data sheets, installation instructions, and user manuals) can be
found in the documentation section of the Partner Portal.
To find documentation relating to your Cisco device, do the following steps:
Log in to the Cisco Partners Portal using your login credentials.
Click this link.
All documents are arranged by category. Browse the folders for the documentation you need.
Device configuration using the configurator interface
Cisco radio devices that are capable of operating as part of a mesh network,
including the Cisco FM4500 Embedded, are shipped from the factory in Mesh
Point mode.
All Cisco radio transceiver devices are shipped with IP address 192.168.0.10,
and Netmask 255.255.255.0.
The Cisco FM4500 Embedded can be configured by using:
The RACER™ Radio Configuration interface, or
The onboard Configurator interface.
The difference between these interfaces is as follows:
FM Racer is a centralized, internet-based configuration software platform that
is accessed from the Cisco Partner Portal.
An internet connection must be made between the Cisco device and the FM Racer Cloud Server (an internet-based radio management service).
Devices can be configured on an Online basis only: configuration settings are applied to one or more devices without the need for a configuration (*.CONF) file, and manual configuration is disabled.
If devices must be configured on an Offline basis (in other words, if the device is not connected to the internet, and therefore cannot access its configuration settings from the FM Racer Cloud Server), a separate configuration file can be uploaded to the device using the Configurator (described below).
The Configurator is a localized configuration software platform that resides
on the Cisco device.
Local configuration is done by connecting a computer to the device through a direct hardware connection, or through the internet.
Using the Configurator, devices can be configured on an Offline basis only. A configuration (*.CONF) file can be manually applied to set the device parameters, or each device parameter can be manually set by the device user.
Offline configuration settings for more than one Cisco device type can be integrated into a single configuration file. When the configuration file is uploaded to each device, the device automatically loads the correct configuration settings for its device type.
To configure the unit using FM Racer, refer to the Cisco Networks FM Racer
User Manual.
To configure the unit using the Configurator, refer to the following sub-
sections.
IMPORTANT
The FM Racer Radio Configuration interface and command-line interface (CLI)
contain device configuration parameters that are not available in the on-board
Configurator interface.
Note that some configuration features may not be applicable to your specific
Cisco device.
Configuration parameters and control tabs that are exclusive to FM Racer and
the CLI include:
Project name (The device has been assigned to the Project listed in this field.)
Position (Shows the current physical location of the unit.)
Invoice No. (Shows the Cisco sales invoice number for the unit.)
Shared With (If responsibility for the unit is shared with other users, the details of the responsible users are shown in this field.)
Enable RTS Protection (FM3500 Endo and FM4500- series transceivers only – shows the unit’s current IEEE 802.11 request-to-send (RTS) setting.)
Promise (‘Promiscuous’ Mode: Shows the unit’s current setting for backward compatibility with legacy Cisco units that are no longer in production.)
Noise floor Calibration (Shows the unit’s current noise floor calibration setting.)
MAX Transmission MCS (Used to choose the modulation and coding scheme by which the unit automatically chooses its maximum data transmission rate.)
TX Power (Controls the effective isotropic radiated power output of the unit.)
Automatic link distance (Let the system choose the maximum effective distance between the relevant wireless links.)
Ethernet speed (Selects the correct data exchange speed for each Ethernet port.)
CISCO WI-FI tab (Allows you to set up a second, segregated Wi-Fi interface that allows technicians access to the unit for configuration and maintenance purposes.)
FLUIDITY ADVANCED tab (Allows you to adjust the load-balancing, handoff and network optimization characteristics of a transceiver unit.)
FLUIDITY POLE BAN tab (Allows you to greatly reduce sudden degradations in bandwidth that happen when a mobile unit approaches, then leaves behind, a static unit.)
FLUIDITY FREQUENCY SCAN tab (Used where mobile Fluidity units are configured with different frequencies.)
SPANNING TREE tab (Allows you to build a logical topology for Ethernet networks, including backup links to provide fault tolerance if an active link fails.)
QOS tab (Contains controls for Quality of Service and Class of Service settings.)
MPLS tab (Contains controls for adjustment of the unit’s multiprotocol label switching settings.)
FAST FAILOVER (TITAN) tab (Contains controls to enable fast fail-over capability on networks where backup units are installed.)
ARP tab (Contains controls for Address Resolution Protocol settings used for discovering MAC addresses that are associated with IP addresses.)
INTRA-CAR tab (Contains controls to create and maintain a wireless backbone network throughout physically large, compartmentalized vehicles.)
For a detailed description of the configuration options featured in the FM
Racer interface, refer to the Available configuration parameters section of
the Cisco Networks FM Racer User Manual. 7.1. Software and hardware prerequisites
To access the Configurator graphical user interface (GUI) and use the
Configurator to program the Cisco FM4500 Embedded, you need the following:
A desktop, laptop or tablet computer equipped with:
Any current web browser. For a list of compatible web browsers, refer to the Supported web browsers table in “Using the Cisco Partner Portal” (page 41).
Any Microsoft Windows, Mac OS or Linux operating system.
An integrated Ethernet port.
A CAT5/6 Ethernet cable with RJ45 connectors
7.2. Accessing the Cisco FM4500 Embedded for device configuration
Before the unit can be made part of a wireless network, it must be configured.
The on-board Configurator can be used to configure a Cisco device in either of
two ways:
By connecting a control device directly to the Cisco device using an Ethernet cable (Local access)
By connecting a control device to the Cisco device through an internet connection (Internet access)
7.2.1. Local access and login for initial configuration NOTE
If your computer has a wireless WiFi card, you may have to disable the card to
avoid routing issues between the computers wired and wireless network
interfaces.
To use the Configurator interface to access the Cisco FM4500 Embedded
directly, do the steps that follow:
Power ON the unit.
Wait approximately complete. one minute for the boot sequence to complete.
Connect one end of a CAT5/6 Ethernet cable to the computer that will be used to configure the Cisco FM4500 Embedded
Connect the other end of the Ethernet cable to the Console LAN port on the Cisco FM4500 Embedded
Manually set the computer’s IP address and Netmask to be recognizable by the Cisco FM4500 Embedded. The correct settings are as follows:
• IP address: 192.168.0.10 (or any other IP address belonging to subnet
192.168.0.0/255.255.255.0)
• Netmask: 255.255.255.0
Launch the computer’s web browser.
Enter the IP address of the Cisco FM4500 Embedded in the browser’s URL entry field.
• If the Configurator interface is shown immediately, proceed to Step 9 below.
• Alternatively, you may see the following window:
Device configuration using the configurator interface.
b. Click Proceed to [the URL] (unsafe).
• The device login window will be shown:
8. The factory-set login details are as follows:
• Username: admin
• Password: admin
9. Enter the correct username and password. Press ‘Enter’.
If your browser shows a time-out or similar message, the computer may be
trying to access the Cisco device through a proxy server. To resolve the
issue, do the following steps:
1. Go to Control Panel > Internet Options > Connections> LAN Settings.
2. Disable proxy connections by un-checking the check boxes for the following
options:
• Automatically detect settings
• Use automatic configuration script
• Use a proxy server for your LAN
3. Click the OK button.
4. Enter your username and password in the device login window, and press
‘Enter’.
10. To ensure system security, change the default password when the
installation is completed. If the Sign in the window does not appear, refer to
“Changing the Administrator username and password” (page 125). 7.2.2. Initial configuration with the unit in Provisioning Mode
The Cisco FM4500 Embedded cannot be operated without entering some basic
configuration settings. These settings allow the unit to connect to a local
network and communicate with the network hardware.
If a new unit is being configured for use for the first time or has been reset
to the factory default configuration for any reason, the unit will enter
Provisioning Mode. This mode allows you to program the unit’s initial
configuration settings.
If the unit is in Provisioning Mode, it will try to connect to the internet
using Dynamic Host Configuration Protocol (DHCP):
If the unit successfully connects to the internet, you can do a centralized
configuration of the unit using the FM Racer interface, or do a local
configuration using the Configurator interface.
• If the unit fails to connect to the internet, you must do a local
configuration using the Configurator interface. NOTE
By default, the local IP address of the unit is set as 192.168.0.10, and the
subnet mask is set as 255.255.255.0 (as shown in the Current IP Configuration
section).
In Provisioning Mode, the unit connects to the cloud server through a
WebSocket connection with 4 096-bit asymmetric encryption and verified
security certificates, protecting the communication from cyber-security
threats.
• Check that the unit is in Provisioning Mode by looking at the colored icon
to the right of the RACER™ tag in the upper left-hand corner of the screen
(Figure 15 (page 52)).
If the icon reads Provisioning, the unit is in Provisioning Mode. Configure the unit by doing the steps shown in this section.
If the icon reads Online or Offline, the unit has been configured before. In this case, you must choose between two further options:
If you want to do a new configuration by reverting the unit to Provisioning Mode, reset the unit as shown in “Resetting the unit to factory defaults” (page 137).
If you want to change the connection settings, but keep the current configuration, change the settings as shown in “General settings” (page 61). If the Cisco FM4500 Embedded is in Provisioning Mode:
The RACER™ dialog will be shown (Figure 16 (page 53)).
The unit’s Local IP address will be set to 169.254.a.b, where a and b are the last two parts of the unit’s unique unit identification (ID) number. For example, if the unit ID number is 5.12.34.56, the unit’s IP address will be set as 169.254.34.56.
The unit can also be reached using the DHCP fallback IP address (192.168.0.10/24).
The unit’s Status and link/boot LEDs will blink continuously from left to right (green-green-orange-red), then from right to left (red- orange green-green). The LEDs will repeat this cycle until the unit either enters a Fallback condition or enters Online or Offline mode.
The unit will attempt to connect to the internet using DHCP.
NOTE
DHCP is disabled when the unit leaves Provisioning Mode. Make sure that the
Cisco FM4500 Embedded is connected to a local network that supports DHCP. If
the unit connects successfully to the internet and to the Partners Portal, the
RACER™ Cloud connection info Status will be shown as Connected (Figure 17
(page 54)).
Configure the unit using either of the following methods:
To do a centralized (online) configuration of the unit using the FM Racer interface, refer to the Cisco Networks FM Racer User Manual.
To do a local (offline) configuration using the Configurator interface, refer to “Device configuration using the configurator interface” (page 45).
If the unit is not able to connect to the internet:
The unit will revert to a Fallback state.
The unit’s Status and link/boot LEDs will blink continuously from the outer red and green to the inner green and orange. The LEDs will repeat this cycle until the unit exits the Fallback state, or is set as either Online or Offline.
The unit’s IP address will automatically be set to 192.168.0.10/24.
If the unit connects to the internet in Provisioning Mode, but cannot connect
to the Partners Portal, the unit’s IP address will automatically be set to
192.168.0.10/24. If the unit cannot connect to the Partners Portal, verify
that the Partners Portal can be reached by doing the following steps:
Check that the Ethernet cable leading to the unit is properly connected.
Check that the local DNS server can resolve this address.
Check that the local DNS server can resolve the IP address of the FM Racer Cloud server and that the address can be reached.
Check the network firewall settings. Port 443 must be enabled.
Click this link.
• The Cisco Partners Portal page should open in your browser.
If the Partners Portal cannot be accessed, contact the Cisco support desk by sending an E-mail to support@cisco.com.
If the Partners Portal does not come back online, do a local (offline) configuration using the Configurator interface. For further information, refer to “Device configuration using the configurator interface” (page 45).
If the unit cannot connect to the internet in Provisioning Mode, try to
connect to the internet by doing the following steps:
Enter alternative Local IP, Local Netmask, Default Gateway, Local Dns 1 and Local Dns 2 values as needed, using the RACER™ dialog.
Click the Save fallback IP button (Figure 16 (page 53)).
• The web browser will show the unit reboot dialog (Figure 18 (page 55)).
Click the OK button to proceed, or click the Reset button to go back to the RACER™ dialog and adjust the settings.
• If you click the OK button, the unit will reboot but will remain in
Provisioning Mode.
• The unit will attempt to connect to the internet using the new connection
values.
If the unit cannot connect to the internet using the DHCP fall-back
configuration settings, the RACER™ Cloud connection info Status will be shown
as Disconnected (Figure 19 (page 55)).
Configure the unit by doing the following steps:
Click the Reset to Provisioning button at the bottom of the DHCP fall-back configuration section.
Do a local (offline) configuration using the Configurator interface.
For further information, refer to “Device configuration using the configurator
interface” (page 45).
For a quick overview of the initial configuration process, refer to the
flowchart below.
NOTE
Each individual Cisco radio transceiver unit has a factory-set mesh
identification number that takes the form 5.w.x.y.
If the unit’s IP address is set to 169.254.x.y/24 as in Case 2 below, the
values x and y represent parts x and y of the unit’s mesh identification
number. Unit in Provisioning Mode (DHCP enabled)
7.3. Switching between offline and online modes
The Configurator interface may not be in the needed mode when you log in. To
switch between Offline and Online modes, do the steps that follow:
Log in to the Configurator interface as shown in “Accessing the Cisco FM4500 Embedded for device configuration” (page 47).
• The Configurator landing page will be shown (Figure 20 (page 58)).
The lower section of the RACER™ Configuration Mode box has two radio buttons that show whether the unit is in Online (Cloud- Managed) mode, or Offline mode.
If the unit is not in the correct mode, click the Online (Cloud-Managed) or Offline radio button as needed.
• A confirmation dialog will be shown, asking if you want to switch the unit
to the chosen mode.
To switch the radio to the chosen mode, click the Confirm button.
• A ten-second countdown will be shown.
• The Configurator interface web page will reload.
• The unit will be switched to the chosen configuration mode.
Uploading a device configuration file from FM Racer
An FM Racer device configuration template contains a set of pre-configured
parameters that can be customized and applied to a single Cisco device, or to
a group of devices.
*FM Racer configuration files use the .FMCONF file extension.**
If the unit is not connected to the Internet, you can still use the FM Racer
configuration interface to define a configuration file, then upload it to the
unit. This can be done in either of two different ways:
• A range of ready-made configuration templates are available from the FM
Racer interface. Each template caters to a particular configuration scenario
and can be copied and modified to your needs.
• Alternatively, you can create a new, custom configuration template. For
instructions on how to copy, modify or create a configuration template using
the FM Racer interface, refer to the Cisco Networks FM RacerUser Manual.
A configuration file that has been created using the FM Racer interface must
be uploaded to the unit. To upload an FM Racer configuration file, do the
following steps:
Switch the unit to Offline mode as shown in “Switching between offline and online modes” (page 57).
Click the -RACER™ link in the left-hand settings menu.
• The Configurator landing page will be shown.
Click the Choose File button in the Upload Configuration File section (Figure 21 (page 59)). •
Find and choose the correct configuration file by following the software
prompts.
Click the Upload Configuration button.
• The configuration file will be uploaded and applied to the unit.
7.4. Viewing and accessing the FM Monitor settings
FM Monitor is Cisco’s diagnostic and analysis interface. FM Monitor is used to:
Monitor the real-time condition of Cisco-based networks.
Generate statistics from network history.
Verify that device configuration settings are optimal for current network conditions.
Detect network-related events for diagnostic and repair purposes, and generate alerts if network-related faults arise.
Analyse network data with the goal of increasing system uptime and maintaining optimal network performance.
Generate and back up network statistics databases for future reference.
IMPORTANT
FM Monitor cannot be used to configure Cisco gateway and radio transceiver
devices. Cisco devices can be configured using any of the following methods:
You can apply a pre-created Cloud-based configuration, or do a manual
configuration of a device, using the FM Racer interface. For instructions on
how to use the FM Racer interface, refer to the Cisco FM Racer Configuration
Manual.
You can manually configure a device by using the device’s built-in
Configurator interface. For instructions on how to use the Configurator
interface, refer to the relevant section of this manual.
You can do the command-line-based manual configuration of a device by using
the device’s built-in CLI interface.
For instructions on how to use the CLI interface, refer to the Cisco Command-
line interface user manual.
To view and access the FM Monitor settings, do the steps that follow:
Log in to the Configurator interface as shown in “Accessing the Cisco FM4500 Embedded for device configuration” (page 47).
Click the MONITOR™ link in the left-hand settings menu.
• The MONITOR™ landing page will be shown (below).
A colored icon will be shown to the right of the red MONITOR™ link. The icon shows a summary of the current mode and status parameters:
• If the icon is red and reads Disabled, the FM Monitor application has been
disabled.
• If the icon is gray and reads On-Premises, the FM Monitor application is
enabled, but the device is not currently connected to the FM Monitor server. A
possibility is that the FM Monitor server cannot be reached.
• If the icon is green and reads On-Premises, the FM Monitor application is
enabled and the device is connected to the FM Monitor server.
For more information on how to use the controls and configure FM Monitor, refer to the Cisco Radio Monitoring Dashboard Configuration Manual.
7.5. General settings 7.5.1. The General Mode window
The General Mode window contains controls to monitor and/or change the
following settings:
The unit’s operational mode.
The version of Prodigy is currently being used by the unit.
The unit’s LAN parameters.
If the local unit is in Bridge Mode, the Bridge ID of the remote unit to which the local unit must be linked.
To change the General Mode settings, do the following steps:
Click the -general mode link under GENERAL SETTINGS in the left-hand settings menu (below).
• The GENERAL MODE dialog will be shown (Figure 22 (page 62)). Changing the operational mode Changing the operational mode on a mesh network-capable unit
The General Mode box (below) contains the operational mode controls.
Cisco radio transceiver units that are capable of operating within a mesh
radio network are shipped from the factory in Mesh End mode. IMPORTANT
When designing the required network layout, remember that the wireless network
must always connect to the wired LAN through a unit configured to be a Mesh
End unit.
This is necessary for correct wireless mesh network operation, even if the
network consists only of two wireless units.
If needed, change the unit’s operational mode by clicking one of the following
Mode: radio buttons:
bridge (This mode creates a layer 2 connection between the local unit and another Bridge unit.)
mesh point (This mode allows you to use the unit as a relay point in the mesh network and/or attach an IP edge device, such as a CCTV camera or video encoder, to the unit.)
mesh end (This mode allows you to install the unit as the junction point between the wireless network and a wired LAN.)
NOTE
If the bridge option is chosen, the Cisco device ID number of the unit that
forms the opposite side of the wireless bridge will be shown in the
Configurator window heading block (Figure 23 (page 63)). If
the unit has been set to Bridge Mode, you must set the Bridge ID of the remote
unit to which the local unit must be linked. Set the Bridge ID by doing the
following steps:
Click one of the following options:
• AUTO: The local unit will automatically establish a wireless bridge
connection with the closest available Cisco unit that is set to Bridge Mode.
• Alternatively, choose the correct unit from the list of available units.
Save the operational mode settings by clicking the Save button. Alternatively, clear the settings by clicking the Reset button.
Changing the Prodigy version IMPORTANT
Prodigy version selection is only available if the Cisco FM4500 Embedded is
set to Mesh Point mode or Mesh End mode. If the unit is set to Bridge mode,
the Prodigy Version selector will not be available.
The Prodigy Version box (below) contains the Prodigy version selector.
Remember that all Cisco devices within a network must use the same Prodigy
version. IMPORTANT
Prodigy 2.0 is not compatible with Prodigy 1.0. Do not implement the two
protocol versions within the same network.
If you are expanding an existing network using new Ciscohardware components,
make sure that all components are compatible with each other by:
Upgrading all network components within the same network to firmware version 6.5 or higher.
Configuring all network components within the same network to operate using either Prodigy 1.0 or Prodigy 2.0.
Option 2 is recommended if the network does not contain older
Cisco devices that are not compatible with Prodigy 2.0.
If needed, change the unit’s Prodigy version by clicking the Prodigy 1.0 radio
button or Prodigy 2.0 radio button.
Save the Prodigy version settings by clicking the Save button.
Alternatively, clear the settings by clicking the Reset button. Changing the LAN parameters
The LAN Parameters box (below) contains the entry controls for local address
setting.
NOTE
When the General Mode window is opened for the first time, the Local IP and
Local Netmask LAN parameters will be factory-set default values.
The information needed is self-explanatory. To enter a parameter, click the
field and type the parameter.
If needed, enter the local primary DNS address in the DNS 1 field, and enter
the local secondary DNS address in the Dns 2 field.
Save the LAN settings by clicking the Save button. Alternatively, clear the
settings by clicking the Reset button. 7.5.2. Wireless settings Modifying the wireless settings IMPORTANT
If the Cisco FM4500 Embedded was purchased in the USA or Canada, the Country
selection is set to the country of purchase, and the Country: drop-down will
be disabled. The WIRELESS RADIO window contains controls to change the
following settings:
The shared network passphrase.
The national territory in which the wireless network is installed.
The operational radio frequency and bandwidth settings.
To change the Wireless Settings, do the following steps:
Click the -wireless radio link under GENERAL SETTINGS in the left-hand settings menu.
• The WIRELESS RADIO dialog will be shown (Figure 25 (page 66)).
Enter a defined network passphrase in the Shared Passphrase field. IMPORTANT
If a shared passphrase is defined, the same passphrase must be used for all
Cisco units in the same network.
The shared passphrase can be composed of any
ASCII characters except the following: ‘`”\$=
Specify the country in which the unit is installed by selecting the correct option from the Country drop-down menu. CAUTION
Different countries frequently have differing telecommunications regulations.
If the Country listing is not set correctly, the unit may violate national
telecommunications legislation.
Specify the unit’s operating frequency by clicking the correct option in the Frequency (MHz) drop-down. CAUTION
Make sure that the chosen country listing matches the country in which the
unit is installed before changing the Frequency (MHz) value.
• You can change the frequency of each radio link in order to minimize
interference with other wireless networks operating in the same area. The
frequencies shown on the
Frequency (MHz) selectors are the carrier frequencies.
• Operation in the 4.9 GHz band must be enabled using a Cisco software plug-
in. Refer to “Plug-In management” (page 129) for details. Note that the 4.9
GHz band is not available in Brazil and Canada.
If Advanced configuration mode was selected, choose the required channel bandwidth from the Channel Width (MHz) dropdown. Note that the radio units on both sides of a wireless link must be set to the same channel width value. A channel width mismatch will result in degraded communication between the units. CAUTION
Before finalizing the settings on the WIRELESS RADIO window, refer to
“Important considerations for wireless settings” (page 68) below. This section
contains important information that may influence your choice of wireless
settings.
Important considerations for wireless settings
The following sub-sections contain important technical and regulatory
information that influences the settings on the WIRELESS RADIO window.
• For information on how to avoid network co-location interference, refer to
“Co-location considerations” (page 68).
• For information on the effects of channel width on data rate and throughput,
refer to “Channel width considerations” (page 68).
• For information on using dynamic frequency selection to avoid interference
with terminal doppler weather radar, refer to “Dynamic frequency selection
considerations” (page 69). Co-location considerations To avoid radio interference caused by unit co-location, set the frequencies
of co-located transceivers as far apart as practically possible.
Before a network is deployed, frequency allocations for every unit-to-unit
link must be planned in advance. A safe method is to use the narrowest channel
width that can realistically support the needed amount of data throughput
whilst separating the individual channels as much as possible.
Even if two radios are not transmitting on the same channel, their side lobes
may still cause them to interfere with each other. It is good practice to
space the radios as far apart as practically possible in the vertical plane,
with a minimum of 3ft/1m and an ideal distance of 5ft/1.5m between them.
Mounting radio transceiver units back-to-back or side by side may cause co-
location interference that will degrade performance across your network. Channel width considerations Whenever practically possible, setting the unit to operate at a narrower
channel width can help reduce overall network interference by increasing the
number of available channels. WARNING
Before changing the channel width value, make sure that the overall frequency
range you will be using is legal for your territory. Changing the operating
channel width may violate the local telecommunication authority’s regulations,
lead to illegal wireless operations, and have other harmful consequences.
The following table correlates different channel widths with their theoretical
maximum data rates and achievable throughput, assuming that the unit is being
used as part of a point-to-point configuration. IMPORTANT
The following table shows theoretical values under ideal conditions. Actual
throughput may vary depending on environmental and other conditions. Table 4. Available Radio Channel Widths
Channel width
Max. modulation speed
Max. throughput
20 MHz
150 Mb/s
90 Mb/s
40 MHz
300 Mb/s
150 Mb/s
80 MHz
866 Mb/s
500 Mb/s
Dynamic frequency selection considerations To ensure that commercial and military flight operations proceed without
interference to terminal doppler weather radar (TDWR), operation of the unit
in the 5.250 GHz-to-5.350 GHz band (known as U-NII Mid or U- NII- 2A) and the
5.470 GHz-to-5.725 GHz band (known as U-NII Worldwide or U-NII-2C / U-NII-2E)
is discouraged.
Operation of the unit within these frequency ranges is disabled by default. WARNING
If the unit is operated in the U-NII Mid or U-NII Worldwide frequency ranges,
dynamic frequency selection (DFS) may be a legal requirement in your national
territory. For information on whether legislation requires that you use DFS,
click here. IMPORTANT
The dynamic frequency selection feature must be enabled using a software plug-
in ( Cisco part number FM-UNII2). Contact your Cisco Networks representative
for details.
If it is essential that the unit is operated in the U-NII Mid or U-NII For
worldwide frequency ranges, do the following steps:
Make sure that local legislation permits the operation of the unit in the U-NII Mid and/or U-NII Worldwide frequency ranges. Use of these frequency ranges may be prohibited in some territories.
Make a note of the exact physical locations of the unit antennas.
Consult your local Cisco Networks representative. He or she will be able to determine whether the unit can be safely used in its current location.
If the unit can be safely operated in the U-NII Mid or U-NII Worldwide frequency ranges in its current location, your Cisco Networks representative will forward you the
Cisco UNII2 plug-in (part number FM-UNII2) free of charge. This plug-in
unlocks access to these frequency bands.
Every Cisco unit uses a proprietary distributed-channel switching algorithm.
If the UNII2 plug-in is installed, and a TDWR radar transmission is detected:
The algorithm will attempt to switch communicating Cisco units to the next radar-free channel, allowing uninterrupted communications with no radar interference.
The number of detected radars is reported in the command-line interface (CLI).
The number of TDWR transmissions detected by the unit is shown in the command-
line interface (CLI), and in “The device status view” (page 133). To enable
the use of U-NII-2A, U-NII-2C, and U-NII-2E frequency bands on the unit, do
the following steps:
Contact your Cisco Networks representative to obtain the theDFS plug-in (part number FM-UNII2) free of charge.
Install the UNII2 plug-in as shown in “Plug-in management procedures” (page 144).
When you activate the UNII2 plug-in through the Cisco Partner Portal, you will be prompted to point out the exact location where the unit will be installed.
• The Partner Portal will verify that there are no TDWR radar installations
within 40 miles (64 Km) of the Cisco unit. If no TDWR radar installations are
found, the plug-in will grant permission for the unit to be set to frequencies
within the 5.250 GHz-to-5.350 GHz band, and the 5.470 GHz- to5.725 GHz band.
• If the unit is already set to an operating frequency that is within the
above frequency bands, a banner will appear in the Configurator UI,
recommending that you contact Cisco Support to request the FM-UNII2 plug-in,
and verify the location of the unit.
IMPORTANT
Cisco Systems Inc. will not, under any circumstances, be held liable for any
incidental, consequential, or special damages, whether based on tort,
contract, or otherwise, arising out of or in connection with improper use or
operation of the channel width functionality and/or UNII2 functionality. 7.5.3. Antenna-alignment tools and physical statistics The ANTENNA ALIGNMENT AND STATS window contains controls to monitor the
current and average radio link status during the operation of the unit,
allowing you to easily adjust the alignment of the unit’s antennas. he window
shows a list of wireless links to other Cisco units that have been detected by
the local unit and the relative strength of each wireless link in decibel-
milliwatts (dBm).
To do an accurate alignment of a local antenna for a specific wireless link,
do the following steps:
Click the -antenna alignment and stats link under GENERAL SETTINGS in the left-hand settings menu.
• The ANTENNA ALIGNMENT AND STATS window will be shown (Figure 26 (page 71)).
More than one two-way wireless link may be shown in the Detected Links table. Find the two-way link for which the local antenna must be adjusted.
Click the Align button.
• The ANTENNA ALIGNMENT AND STATS tool will be shown (Figure 27 (page 72)). IMPORTANT
The Cisco Transmission Power Control (TPC) algorithm will be disabled during
the antenna alignment process. This eliminates the possibility of false radio-
transmission power readings.
The tool consists of:
• A graph that reports average signal strength over the last 30 strength-
sampling periods.
• A bar that reports the quality of the signal currently being detected at the
local unit receiver.
Do the physical antenna alignment by manually adjusting the location and direction of the relevant antenna. During the alignment, use the graph and bar readings to monitor variations in signal strength.
To increase the readability of the average signal strength graph, click and drag the Zoom x slider.
When the antenna alignment is complete, click the Close button.
• The antenna alignment and stats tool will be closed.
7.6. Network control 7.6.1. Ping soft dog
The PING SOFT DOG window contains controls to set up a constant series of
pings to one or more IP addresses.
If connectivity is lost between the unit and any of the saved IP addresses, an
option can also be set to automatically reboot the Cisco FM4500 Embedded. TIP
As well as being a fail-safe mechanism to monitor network connectivity, the
constant ping can also be used as a ‘keepalive’ message to devices that need
uninterrupted connectivity, such as VoIP telephones.
To use the constant ping and automatic reboot functions, do the following
steps:
Click the -ping soft dog link under NETWORK CONTROL in the left-hand settings menu.
• The PING SOFT DOG dialog will be shown (Figure 28 (page 73)).
To set up a constant ping to one or more IP addresses, do the following steps:
1. Enter the IP address in the field to the left of the Add IP button.
2. Click the Add IP button.
• The IP Address will be added to the IP list.
• There is no limit on the number of IP addresses that can be entered.
3. To delete an IP address from the IP list, click the red cross to the right
of the IP address listing.
To automatically reboot the unit if connectivity is lost between the unit and any IP address, do the following steps:
1. Check the Reboot: checkbox.
2. Click the Save button.
7.6.2. FM-QUADRO FM-QUADRO for mesh network-capable devices IMPORTANT
The FM-QUADRO tool is only available if the Cisco FM4500 Embedded is set to
Mesh End mode or Bridge mode. If the unit is set to Mesh Point mode, the
-FMQuadro™ menu option will not be available.
FM-QUADRO does not feature an integrated full-network view. It is designed to
monitor network clusters only from the level of the connected Mesh-end device.
If a Fluidity Layer-3 network is being monitored, you must use the FM-QUADRO
view of the local Global Gateway to see the network topology between the
Global Gateway and the Mesh ends to which the Gateway is connected. You must
use the FM-QUADRO view of each Mesh End if you want to see the topology and
device handoffs within a network cluster governed by the Mesh end.
If you need a fully integrated view of the entire network, you must use FM
Monitor as the primary network monitoring tool.
The FMQuadro window contains controls to do the following functions:
Plot all stationary wireless devices within a network, or plot all stationary wireless devices in a Fluidity network in relation to the mobile wireless-equipped vehicles from which they receive relayed traffic.
Plot all wireless links within a network.
Show important information about each static device, mobile device and wireless link.
Diagnose problems with wireless links.
Show user-configured physical positions of all Cisco Ultra-Reliable Wireless Backhaul components in a wireless network, against the background of an aerial map.
IMPORTANT
For detailed information on the operational concepts that govern Fluidity,
refer to the Cisco Ultra-Reliable Wireless Backhaul Fluidity Specifications
document. Plotting and interpreting the wireless links
NOTE
The statistical information refresh period is: One second for Fluidity
(mobile) networks. Six seconds for stationary networks.
To plot and interpret all wireless links in the current network, click the FM-
QUADRO™ link in the upper left part of the settings menu (below). IMPORTANT
If you are working within a Fluidity Layer-3 network cluster, and the network
cluster has more than one Mesh-end radio, access FM-QUADRO through the
Configurator interface of the cluster’s Primary Mesh-end.
Find the Primary Mesh-end by comparing the Mesh ID values of the Mesh-end
radios. The Primary Mesh-end will have a numerically lower Mesh ID value than
the Secondary Mesh-end.
If you access the FM-QUADRO interface belonging to the cluster’s Secondary
Mesh-end, the network topology view will be shown, but some statistics and
configuration information may not be available to view.
• A graphical view of the current network topology will be shown. A typical
example is shown below.
Stationary (wayside, or infrastructure) Cisco radio transceivers are shown as colored icons (below).
Stationary radio transceiver icons are colored according to the performance of their data links relative to preset KPI thresholds:
If an icon is white, KPI checking is not currently enabled for the FM Quadro view.
If an icon is red, the performance of at least one link is below the standard (red link line).
If an icon is orange, the performance of at least one link is acceptable, but not optimal (orange link line).
If an icon is green, the performance of all links is optimal (green link lines).
A tooltip is shown below each stationary transceiver icon (below).
In clockwise order, the tooltip shows the following information:
The device type icon. Depending on the device type, any of three icons may be seen:
The icon below will be shown if the device is a stationary non-Fluidity radio device:
The icon below will be shown if the device is a stationary radio device that is part of a Fluidity network:
The dynamic Wi-Fi reception-style icon below will be shown if the radio device is a mobile device that is part of a Fluidity network. This icon shows whether the radio’s current RSSI is weak, acceptable, or strong.
The icon below will be shown if the device is an Ultrareliable Wireless Backhaul Gateway device.
The device label, corresponds to the device’s name configuration parameter (Alexa in the image above).
If the device is a mobile radio transceiver, the device’s Primary/Subordinate setting will be shown. A Primary device is marked M, and a Subordinate device is marked S.
The device’s IP address.
If the device is a stationary mesh end, it will be marked ME. If it is a stationary mesh point, it will be marked MP. If it is a mobile radio, the RSSI (in dBm) between the radio and the stationary radio to which it is connected will be shown.
If the device does not currently have a configured IP address or device label, the device’s Cisco Mesh ID number willbe shown.
If the network is a Fluidity network, mobile Cisco radio transceivers that are part of the network are shown as tooltips with colored borders. The tooltip representing a mobile Cisco radio is always shown below the tooltip of the stationary transceiver to which it is currently connected (below).
Mobile-radio tooltip borders are colored according to the radio’s performance relative to its currently configured KPI thresholds:
If LER is less than or equal to 15%, PER is 0%, and RSSI is greater than or equal to -81 dBm, radio performance is optimal, and the tooltip border will be green.
If LER is between 15% and 30% or RSSI is between -86 dBm and -81 dBm, radio performance is acceptable, and the tooltip border will be orange.
If LER is greater than 30%, PER is greater than 0%, or RSSI is less than -86 dBm, radio performance is below standard, and the tooltip border will be red.
IMPORTANT
The KPI thresholds that govern the tooltip border color cannot be changed.
If you need to adjust KPI thresholds to custom values, you must use FM Monitor
as the primary network monitoring tool.
If a mobile radio connected to a stationary radio hands off to another
stationary radio, the tooltip representing the mobile radio will move to a
position underneath the tooltip of the connected stationary radio. If a
stationary or mobile radio is disconnected from the network or cannot be
reached, it will not be shown in the FM-QUADRO view.
Network connectivity links between stationary radio transceivers are shown as
lines:
A wired LAN link is shown as a solid black line (below).
A Wireless LAN link is shown as a colored line (a typical example is shown below).
Wireless LAN link lines are colored according to the link’s performance
relative to its currently configured KPI thresholds: *
f LER is less than or equal to 15%, PER is 0%, and RSSI is greater than or equal to -81 dBm, link performance is optimal, and the link line will be green.
If LER is between 15% and 30% or RSSI is between -86 dBm and -81 dBm, link performance is acceptable, and the link line will be orange.
If LER is greater than 30%, PER is greater than 0%, or RSSI is less than -86 dBm, link performance is below standard and the link line will be red.
If a wireless link is currently in use as a wireless route, but KPI checking is not enabled, the link will be shown as a solid light blue line.
IMPORTANT
The KPI thresholds that govern wireless link line color cannot be changed.
If you need to adjust KPI thresholds to custom values, you must use FM Monitor
as the primary network monitoring tool.
Viewing live data for a radio or wireless link
The device elements shown in the main view are interactive. To get additional
real-time information on any Ultra-Reliable Wireless Backhaul device or
wireless link, click its icon or tooltip.
For stationary radio transceivers, an information sidebar will be shown on the right side of the view (a typical sidebar is shown below).
When an information sidebar is shown for a stationary radio, the sidebar shows the following information:
The device name label.
The device’s IP address and netmask (a typical example might be 10.11.8.0/16).
The device’s Mesh ID number.
A Web page link. Clicking this link will open the device’s offline Configurator interface in a new window.
The device model name.
The device’s current firmware version.
The device’s operating frequency.
The device’s operating channel width.
A list of the software plug-ins currently installed on the device.
If the device is a stationary radio, a list of IP addresses belonging to all non-Cisco edge devices currently connected to the device will be shown.
NOTE
Only one device information sidebar can be shown at any time.
For mobile radio transceivers, the same information sidebar will be shown on the right side of the view. An information widget will also be shown on the lower left part of the view.
For wireless links, only the information widget will be shown. A typical information widget is shown below:
NOTE
A maximum of two radio information widgets can be shown at any time.
When an information widget is shown for a mobile radio or a wireless link, the
widget shows the following information:
The widget header shows the aggregate throughput, operating frequency, and channel-access mode of the link between the mobile transceiver and the stationary transceiver to which it is connected.
The two radios connected by the wireless link are shown as name labels with IP addresses, connected by a double-pointed line.
The main body of the widget contains live readings on uplink and downlink throughput, LER, PER, RSSI, MCS, and modulation rates.
A channel-utilization bar shows uplink and downlink utilization for the
selected pair of devices, as well as link utilization by other links.
Viewing live RSSI data for a wireless link
To see an RSSI information chart for any wireless link between a stationary
radio and mobile radio, click the Click to expand link on the mobile radio’s
information widget (below).
A typical RSSI information chart is shown below:
When an RSSI information chart is shown for a wireless link, the chart shows
the following information:
The bold dashed line on the upper part of the graph is the RSSI envelope for the wireless link between the relevant mobile radio and the stationary radio to which it is currently connected.
The solid lines on the upper part of the graph are RSSI readings for other stationery and mobile radios that are part of the network.
The table on the lower part of the information chart contains device identification and real-time RSSI readings for other stationary and mobile radios that are part of the network.
Manipulating the FM-QUADRO view FM-QUADRO can be manipulated and edited to make any network easy to view.
To change the overall position of the network view, click any blank part of
the view, and drag the view to any position on the screen.
To very quickly zoom into or out of the network view, click any blank part of
the view, and scroll back and forth with the mouse wheel.
The view will snap between four pre-determined zoom settings.
To apply fine zoom adjustment to the network view, do the steps that follow:
Click the Zoom icon on the upper right part of the FM-QUADRO view (upper icon, below). The Zoom slider and buttons will be shown (above).
Click the + button to zoom into the view, or click the – button to zoom out of the view. Alternatively, click and drag the zoom slider to adjust the zoom level.
Changing the relative position of device icons
All Ultra-Reliable Wireless Backhaul devices represented by icons or tooltips
can be placed in any position on the FM-QUADRO view. To move any icon or
tooltip, do the steps that follow:
Click the Edit Mode icon on the upper right part of the FMQUADRO view (below). Alternatively, enter Edit mode by clicking the Settings icon on the upper right part of the FM-QUADRO view, and clicking the Edit Mode switch in the Appearance / Background dialog from Off to On.
• The Edit mode dialog will be shown.
Click the Continue to Edit Mode button to enable Edit Mode.
• An Edit Mode: ON notification will appear in the view.
To move any icon and its tooltip to a different position, do the steps that
follow:
Click the Devices portion of the Devices | Background button (below).
2. Click and drag any of the stationary device icons or tooltips to any
needed position in the Topology view. Note that tooltips representing mobile
radios do not appear in Edit mode. Alternatively, you can reset the Topology
view to a strictly hierarchical structure by clicking the Apply hierarchical
view link in the lower right part of the view.
If needed, you can add an aerial image to the Topology view. This allows you
to superimpose the network view over a map of the terrain on which the network
has been installed. For instructions on how to add an aerial image as a
background to the Topology view, refer to “Adding an aerial map to the FM-
QUADRO view” (page 86). To move an uploaded background image to a different
position, do the steps that follow:
Click the Background portion of the Devices | Background button (below).
Click and drag the background image to any needed position in the Topology view.
Adjust the scale of the background image by clicking and dragging the Adjust background scale slider.
Adjust the relative transparency of the background image by clicking and dragging the Adjust background transparency slider.
When you have finished editing, click the Save changes button to save your
changes. Alternatively, click the Discard changes button to revert to your
previous configuration.
• The Topology view will revert to View mode.
Showing KPI values for wireless links
To show an information ribbon containing key performance indicators next to
all wireless link lines, do the steps that follow:
Click the Settings icon on the upper right part of the FM QUADRO view (below).
• The Appearance / Background dialog will be shown.
If the Background settings are shown, click the Appearance heading.
Click the KPI values on routes switch from Off to On.
Click the checkboxes for each KPI you want to see for all wireless links. Available options are:
• L.E.R. (Current link error rate, shown as a percentage)
• P.E.R. (Current packet error rate, shown as a percentage)
• RSSI (Current received signal strength, shown in dBm)
• Link Utilization (shown as a percentage)
To save your changes, click the Save changes button.
Alternatively, click the Discard button to leave the dialog without saving any
changes.
• An information ribbon containing the chosen key performance indicators will
be shown next to all wireless link lines (a typical example is shown below).
Showing real-time color codes for radio transceiver key performance
indicators
To show performance status indications (in the form of colored device icons)
for radio transceivers in real-time, do the steps that follow:
Click the Settings icon on the upper right part of the FM- QUADRO view (below). • The Appearance / Background dialog will be shown.
If the Background settings are shown, click the Appearance heading.
Click the Default Thresholds switch from Off to On.
In the Thresholds per KPI section, click the checkboxes for each KPI you want to influence the device icon status coloring. Available options are:
• L.E.R. (Current link error rate)
• P.E.R. (Current packet error rate)
• RSSI (Current received signal strength) NOTE
The KPI thresholds that determine device icon colors cannot be adjusted. The
preset KPI thresholds are as follows:
Optimal radio performance (green icon): LER ≤15%, PER = 0%, RSSI ≥-81 dBm
Acceptable radio performance (orange icon): LER 15 to 30%, PER = 0%, RSSI -86
to -81 dBm
Sub-standard radio performance (red icon): LER ≥30%, PER >0%, RSSI <-86 dBm
To save your changes, click the Save changes button.
Alternatively, click the Discard button to leave the dialog without saving any
changes.
• All device icons representing radio transceivers will be shown in the FM
Quadro view as appropriately colored icons.
Adding an aerial map to the FM-QUADRO view
You can add an aerial image to the FM-QUADRO view. This allows you to
superimpose the network map over a map of the actual terrain on which the
network has been installed, making it easier to visualize component placement,
line-of-sight between antennas, and other factors.
To add an aerial terrain map to the FM-QUADRO view, do the following steps:
Get an aerial image of the area in which the wireless network and LAN are installed. The image must conform to the following requirements:
• Image formats: .PNG, .JPG, .JPEG or .SVG only.
• File size: Less than or equal to 500 Kilobytes (FM1000 and FM10000 Gateways
only), or less than or equal to 150 Kilobytes (all radio transceivers).
TIP
Suitable aerial images can be created and downloaded using Google Earth. Basic
instructions on how to use Google Earth are available here.
• Images can be uploaded to FM-QUADRO using Google Chrome, Firefox, Safari or
Microsoft Internet Explorer. Cisco recommends using the latest version of
Google Chrome or Firefox.
Click the Settings icon on the upper right part of the FM- QUADRO view (below).
• The Appearance / Background dialog will be shown.
If the Appearance settings are shown, click the Background heading.
Click the Image radio button.
• Upload your file and Preview sections will be shown.
Use the Upload your file section to upload the aerial image.
To save your changes, click the Save changes button.
Alternatively, click the Discard button to leave the dialog without saving any
changes.
• Your chosen aerial image will be shown as a visual layer underneath the
current network view.
If needed, move the device icons and/or tooltips to suit the aerial image as shown in “Changing the relative position of device icons” (page 83).
Adjusting the transparency of the aerial map view
You can adjust the transparency level of the aerial map view. This is a useful
way to increase the visual definition of device icons, tooltips and link lines
against strong background colors.
To adjust the transparency of the current aerial map view, do the steps that
follow:
Click the Edit Mode icon on the upper right part of the FM QUADRO view (below).
Alternatively, enter Edit mode by clicking the Settings icon on the upper
right part of the FM-QUADRO view, and clicking the Edit Mode switch in the
Appearance / Background dialog from Off to On.
• The Edit mode dialog will be shown.
Click the Continue to Edit Mode button to enable Edit Mode.
• An Edit Mode: ON notification will appear in the view.
• The Devices | Background switch control will appear in the view.
Click the switch to Background.
Click and drag the Adjust background transparency slider to the position that gives a comfortable level of visual contrast between the network representation and the uploaded map view.
When the visual contrast is correct, click the Save changes button.
• The Save new layout dialog will be shown.
To save your changes, click the Save changes button.
Alternatively, click the Keep editing button to return to Edit Mode, or click
the Discard button to leave Edit Mode without saving any changes.
Exporting a network representation file
You can export a representation file of the current network layout. This
allows Cisco Technical Support to visualize the network for troubleshooting
purposes.
To export a representation file for the current network, do the steps that
follow:
Click the Export as JSON icon on the upper right part of the FM QUADRO view (below).
• The Export as JSON dialog will be shown. IMPORTANT
The dialog contains important information regarding confidentiality and FM-
QUADRO functionality. Read and understand the dialog before you click the
Export button.
Click the Export button to export the network representation as a .JSON file. Alternatively, click the Cancel button to leave the dialog without exporting.
• If you clicked the Export button, the .JSON file will be downloaded as a
.ZIP package. Open the .ZIP package to access the *.JSON file.
Forward the *.JSON file, and the diagnostic file exported from the device status page, to Cisco Technical Support.
7.6.3. Advanced tools
The Advanced Tools window contains tools to diagnose the condition of the
wireless network.
The Ping test tool sends pings to a user-specified IP address.
• The Bandwidth test tool tests the bandwidth capacity of the wireless link
between the Cisco unit and a user-specified IP address.
• The Path MTU tool tests the size of the maximum transmission unit.
To open the Advanced Tools dialog, click the -advanced tools link under
NETWORK CONTROL in the left-hand settings menu.
Using the Ping test tool
The Ping test can be run while the network is under load (to test operational
performance), or with the network unloaded (to test installed capacity). To
use the Ping test tool, do the following steps:
Determine which wireless link is to be tested between the Cisco unit and another unit in the wireless network. Get theIP address of the other unit.
Enter the IP address of the other unit in the Ping (10 packets only) field (Figure 29 (page 90)).Figure 29. Advanced Tools window (Ping test tool)
Click the Run button to the right of the IP address field.
• The ping test result will be shown below the test controls.
Using the Bandwidth Test tool
The Bandwidth test can be run with the network under load (to test operational
performance), or with the network unloaded (to test installed capacity). The
test tool generates a stream of packets at a rate of 4 Mbits/sec to test
available network path throughput. IMPORTANT
Bandwidth rate computation is CPU-intensive and must be regarded as indicative
only. Note that bandwidth testing tends to underestimate the actual link
throughput.
To use the Bandwidth test tool, do the following steps:
Determine what wireless link is to be tested between the Cisco unit and another unit in the wireless network. Get the address of the other unit.
Enter the IP address of the other unit in the Bandwith test (4Mbit/s UDP): field (Figure 30 (page 91)). Figure 30. Advanced Tools window (Bandwidth test tool)
Click the Run button to the right of the IP address field.
• The bandwidth test result will be shown below the test controls.
Using the Path MTU discovery tool
The Path MTU discovery tool tests the size of the maximum transmission unit
(in other words, the largest protocol data unit that can be communicated in a
single network layer transaction).
To use the Path MTU discovery tool, do the following steps:
Determine what wireless link is to be tested between the Cisco unit and another unit in the wireless network. Get the address of the other unit.
Enter the IP address of the second unit in the Path MTU discovery field (Figure 31 (page 92)). Figure 31. Advanced Tools window (Path MTU test tool)
Click the Run button to the right of the IP address field.
• The Path MTU test result will be shown below the test controls.
7.7. Advanced settings 7.7.1. Advanced radio settings
The advanced radio settings menu item is used to configure the following
wireless parameters:
The device’s FluidMAX operating mode
The maximum radio transmission power level
The AES data encryption setting
The maximum distance over which the unit is capable of transmitting
To open the Advanced Radio Settings dialog, click the -advanced radio settings
link under ADVANCED SETTINGS in the left-hand settings menu (below).
Figure 32. Configurator (Advanced Radio Settings menu) Using the FluidMAX Management Setting
The FluidMAX™ Management controls are used to set the unit’s FluidMAX™
operating mode.
Note that the FluidMAX™ Management controls are only available under the
following conditions:
If the unit’s firmware is equipped with the FluidMAX engine.
If the unit is currently being operated as part of a point-to-multipoint network topology.
To use the FluidMAX Management menu, do the following steps:
Click the Radio Mode drop-down menu.
Choose the correct FluidMAX operating mode from the following list of options:
• AUTO: The FluidMAX engine is enabled, and the unit role is set
automatically. Depending on various factors, the unit will automatically
choose whether to transmit using the time-division multiple access (TDMA)
protocol or the carrier-sense multiple access (CSMA) protocol.
• Primary: The unit will be set as the center unit within a mesh cluster
featuring a ‘star’ topology. If the unit is set as a primary, it will dictate
the operating frequency of the mesh cluster of which it is a primary unit.
• Subordinate: The unit will be set as a subordinate unit within a mesh
cluster featuring a ‘star’ topology. If the unit is set as a Subordinate, and
its Autoscan feature is enabled, the unit will scan the spectrum of available
frequencies for a primary unit that shares its Cluster ID, and its frequency
selection feature will be disabled.
• OFF: The FluidMAX engine will be disabled.
If the operating mode is set to Primary or Subordinate, enter a unique cluster ID tag in the FluidMAX Cluster ID field.
If the operating mode is set to Subordinate, check the FluidMAX Autoscan check-box to allow the primary unit of the local mesh cluster to dictate the frequency on which the unit will transmit and receive.
If the FluidMAX Autoscan checkbox is checked, the Include 510 MHz Channels in the Autoscan check-box will become available. Check this check-box to increase the scan resolution from the default of 20, 40, or 80 MHz to 5-10 MHz. NOTE Under normal circumstances, leave the Include 5-10 MHz Channels in
Autoscan check-box unchecked.
Click the Save button to save your settings. Alternatively, clear the settings by clicking the Cancel button.
Using the Max TX Power setting
The radio automatically computes the maximum transmission power it can legally
use at any moment. It does by subtracting the fixed antenna gain value from
the maximum power level prescribed by the FCC EIRP regulation governing each
U-NII band.
Due to this operating characteristic, you can only adjust the Select TX Max
Power setting to values lower than the maximum available transmission power
value. Using the Max TX Power setting
This setting controls the effective isotropic radiated power (EIRP) output of
the unit. By default, EIRP is automatically regulated using Cisco’s
Transmission Power Control (TPC) algorithm. The algorithm tries to obtain an
optimal link signal strength of approximately -55 dBm on both sides of the
radio link while not exceeding the user-defined maximum transmission power
threshold. NOTE if Max TX Power is set to AUTO, the maximum transmission power may
vary at any moment depending on the operating frequency of the unit,
atmospheric conditions, and other factors.
If the unit’s country selection is set to any country within Europe, TPC is
automatically enabled. To use the Max TX Power setting, do the following steps:
Click the Select TX Max Power: drop-down menu.
Choose the correct transmission power level from the following list of options:
• Transmission power can be manually adjusted from -3 dBm to 24 dBm.
• If you select the AUTO option, the unit will automatically choose the most
efficient transmission power level according to prevailing conditions.
However, the unit will not exceed the last manually selected Max TX Power
parameter.
Click the Save button to save your settings. Alternatively, clear the settings by clicking the Cancel button.
Using the Select Antenna Gain setting
This setting controls the maximum antenna gain in dBm. By default, antenna
gain is not pre-set at the factory. To use the Select Antenna Gain setting, do the following steps:
Click the Select Antenna Gain: drop-down menu.
Choose the correct antenna gain level. Gain can be manually adjusted from 0 dBm to 36 dBm.
Click the Save button to save your settings. Alternatively, clear the settings by clicking the Cancel button.
Using the Data Packet Encryption setting
This setting controls whether Advanced Encryption Standard (AES) encryption is
applied to outgoing data packets. IMPORTANT
The Data Packet Encryption setting must be the same on all Cisco units that
are part of the same network.
In Cisco devices, AES is applied using a proprietary encoding algorithm,
enabling industry-grade network security. IMPORTANT
The AES feature must be enabled using a software plug-in (FM-AES). Contact
your Cisco Networks representativefor details.
To use the Data Packet Encryption setting, do the following steps:
Click the Data Packet Encryption drop-down menu.
Choose the correct encryption activation setting from the list of drop-down options. NOTE
If Cisco plug-in FM-AES is not installed, the ENABLED drop-down option will
not be available.
Click the Save button to save your settings. Alternatively, clear the settings by clicking the Cancel button.
Using the Maximum link length setting
This setting is used to set the maximum distance between the relevant wireless
links. It is also used to set media access control (MAC) layer timeouts for
transmitted packets.
To choose the Maximum link length setting manually, do the following steps:
Choose the unit of distance measurement (Kilometres or Miles) by clicking the correct radio button.
Enter a distance setting in the Distance field. IMPORTANT
If too short a distance value is entered, unnecessary packet re-transmissions
may occur, degrading overall link performance.
Click the Save button to save your settings. Alternatively, clear the settings by clicking the Cancel button.
To let the system choose the optimal Maximum link length setting and MAC layer
timeouts automatically, check the Automatic checkbox.
7.7.2. Static routes
The Static routes window is used to set static routing rules (in other words,
manually-configured routing entries, as opposed to routing instructions from a
dynamic routing table) for a Cisco unit.
Static routes are typically used if there is a need to do any of the following
in context of the network:
Access a remote subnet that does not belong to a local network
Access other Cisco radio units or client devices across the local network
Reach gateways (such as Internet gateways)
Create networks that include ‘fixed’ devices (such as CCTV cameras)
To change the Static Routes settings, click the -static routes link under
ADVANCED SETTINGS in the left-hand settings menu.
The Static Routes dialog will be shown (Figure 33 (page 97)).
Figure 33. Configurator GUI (Static Routes window)
To enter a new static route, do the following steps:
Enter the Subnet, Netmask, and Gateway designators in the correct fields of the Add new static route section.
Click the add button.
• If the new static route is valid, it will be added to the Active static
routes list.
7.7.3. Pass lists and Block lists IMPORTANT
The Pass list or Block list feature is only available if the Cisco FM4500
Embedded is set to Mesh Point mode or Mesh End mode. If the unit is set to
Bridge mode, the –pass list/block list menu option will not be available.
The Pass list or Block list function is a security feature that prevents fake
IP addresses from intercepting or intruding on the network.
A Pass list is a group of Cisco transceivers, described as a list of linked
pairs. Within the list, each transceiver unit is considered a valid hop in the
routing table. If a Pass list is created, all transceiver units that are not
on the Pass list are excluded from packet routing. Conversely, a Block list is
a group of Cisco transceivers that are excluded by the routing table
computation, and to which data packets must not be routed. If a Block list is
created, all transceiver units that are on the Block list are excluded from
packet routing. IMPORTANT
The same Pass list or Block list must be applied to all transceiver units that
are part of a defined network. Failure to use the same Pass list or Block list
may cause units to incorrectly receive, or be incorrectly excluded from,
network traffic.
If a Pass list or Block list is applied to a network, the list must be created
as a *.CSV file before being uploaded to each unit in the network. This
procedure is described below. To create a Pass list or Block list, do the following steps:
Create a *.CSV file. Open the file for editing.
Enter the Pass list or Block list into the *.CSV file. Use the following syntax rules to create the list:
• A Pass list and a Block list are mutually exclusive. Pass lists and Block
lists are always separate lists, and are never combined.
• A Pass list is always expressed in the form of
,,, where is the unique unit
ID number of the sending unit, is the unique unit ID number of
the receiving unit, and is a natural number with a minimum
value of 0 and a maximum value of 3.
• The smaller the routing priority value, the greater the unit routing
priority.
**IMPORTANT
** Source and destination values are always ID numbers. Do not enter a unit’s
IP address as a source or destination value.
The unit ID number is printed on the identification label of each unit. This
number always takes the following form: 5. a.b.c
• Block list syntax is the same as shown above, except for one additional
rule: Block lists do not include routing priority numbers.
• Unit ID numbers and routing priority values are always separated with commas
(,) and never with spaces.
• To make sure that the packet flow is allowed or blocked in both directions,
the unit ID numbers for each link in a Pass list or Block list must be listed
in forward order and in reverse order.
• If a wireless link is not specified in a Pass list, it will be assigned the
lowest routing priority, but will not be completely excluded from routing.
Example 1: If you want to create a simple Pass list that includes the link between unit ID numbers 5.2.22.136 and 5.29.252.213 (Figure 34 (page 99)), and give the link routing priority 0 (the highest possible priority):
• Cell A1 of the .CSV file would contain the parameter
5.2.22.136,5.29.252.213,0
• Cell A2 of the .CSV file would contain the parameter 5.29.252.213,
5.2.22.136,0 Figure 34. Sample Pass list (Example 1)
Example 2: If you want to create a Pass list that includes the links between unit ID numbers 5.2.22.136 and 5.29.252.213 (with routing priority 0), and between unit ID numbers 5.29.252.213 and 5.155.105.128 (with routing priority 1) (Figure 35 (page 100)):
• Cell A1 of the .CSV file would contain the parameter
5.2.22.136,5.29.252.213,0
• Cell A2 of the .CSV file would contain the parameter 5.29.252.213,
5.2.22.136,0
• Cell A3 of the .CSV file would contain the parameter
5.29.252.213,5.155.105.128,1
• Cell A4 of the .CSV file would contain the parameter
5.155.105.128,5.29.252.213,1 Figure 35. Sample Pass list (Example 2)
Example 3: If you want to create a simple Block list that includes the links between unit ID numbers 5.2.22.136 and 5.29.252.213 (Figure 36 (page 100)):
• Cell A1 of the .CSV file would contain the parameter
5.2.22.136,5.29.252.213
• Cell A2 of the .CSV file would contain the parameter 5.29.252.213,
5.2.22.136 Figure 36. Sample Block list (Example 3)
Save and close the *.CSV file.
To upload a Pass list or Block list using the Configurator interface, do the
following steps:
Click the –pass list / Block list link under ADVANCED SETTINGS in the left-hand settings menu. Figure 37. Configurator (Pass list / Block list dialog)
• The Pass list / Block list dialog will be shown (Figure 37 (page 100)).
Choose the type of list to be uploaded by clicking the correct List Type: radio button.
Click the Choose File button. Upload the saved .CSV file using the upload dialog.
• The contents of the uploaded .CSV file will be shown in the Pass list /
Block list Status section.
To apply the list settings contained in the .CSV file, click the Apply
Settings button.
To clear the Pass list or Block list settings without deleting the .CSV file,
click the Clear Pass list or Block list button.
To delete the Pass list or Block list *.CSV file, click the Reset button. 7.7.4. Multicast
Multicast management for mesh network-capable devices
Multicast is a group-communication method in which data transmissions are
addressed simultaneously to more than one destination computer. Multicast
transmissions can be point-to-multipoint, or multipoint-to- multipoint. By
default, if CCTV cameras and devices that operate in a similar fashion are
linked to a Cisco transceiver unit operating in Mesh Point mode,the unit
forwards all multicast traffic generated by the cameras to the closest Mesh
End unit in the wireless network.
However, depending on network configuration, it may be convenient to forward
multicast traffic from one Mesh Point unit to another Mesh Point unit, to
allow such tasks as the remote recording of the video data flow.
By default, units operating in Mesh End mode do not forward multicast traffic
to a wireless network. The only exceptions to this rule are universal plug and
play (UPnP) and Internet Group Management Protocol (IGMP) traffic.
To redirect traffic flow to a Mesh Point unit, all multicast flow redirection
information must be specified using the Multicast settings on a Mesh End unit. NOTE
To change the unit’s Multicast settings, make sure that the unit is in Mesh
End mode as shown in “Changing the operational mode” (page 62). Multicast
controls are not available if the unit is set to Mesh Point mode.
To set multicast rules on a Mesh End unit, do the following steps:
Find the Mesh End unit in the wireless network that is most suitable for forwarding multicast traffic.
NOTE
Multicast flow redirection information can only be specified from a Mesh End
unit. The Mesh End unit will distribute the multicast data to all other Cisco
devices in the wireless network.
Connect to the Mesh End unit as shown in “Accessing the Cisco FM4500 Embedded for device configuration” (page 47).
Click the -multicast link under ADVANCED SETTINGS in the left-hand settings menu.
• The MULTICAST dialog will be shown (Figure 38 (page 102)). Figure 38. Multicast dialog (Mesh End mode)
Compile the needed multicast rule. Use the following syntax rules to create the rule:
• A multicast rule consists of two parts: a multicast group designator and a
destination address.
• Define the multicast group designator. For example, the designator
224.1.1.0/24 indicates all multicast groups in the range 224.1.1.1 through
224.1.1.254.
• The destination address consists of one or more Cisco unit ID numbers, in
form 5. a.b.c. These ID numbers belong to the physical Cisco device or devices
to which the multicast traffic must be forwarded.
• Destination-address wildcards can also be used. For example, the destination
address 5.255.255.255 represents all Cisco units in the wireless network.
Enter the multicast group designator in the Multicast Group field.
Enter the destination address in the Destination Address field.
Click the add button.
• The new multicast route will be shown in the Multicast routes section.
To enable or disable multicast forwarding on a Bridge unit, do the following
steps:
Connect to the Bridge unit as shown in “Accessing the Cisco FM4500 Embedded for device configuration” (page 47).
Click the -multicast link under ADVANCED SETTINGS in the left-hand settings menu (Figure 39 (page 103)).
• The Multicast dialog will be shown. Figure 39. Multicast dialog (Bridge mode)
• The unit ID number of the local unit is shown as the LOCAL BRIDGE ID (Figure
40 (page 103)).
• The unit ID number of the Bridge unit to which the local unit is linked is
shown to the right of ‘ASSOCIATED WITH REMOTE BRIDGE ID’.Figure 40. Configurator interface (Unit ID information)
Choose the Enabled or Disabled option from the Multicast Forwarding: drop-down menu.
Save the multicast settings by clicking the Save button. Alternatively, clear the settings by clicking the Reset button.
Configuring Multicast within a Layer-3 network
Within a typical Layer-3 network, consider a scenario in which Multicast
traffic must be routed in both directions between Fluidity-enabled, vehicle-
mounted radio transceivers, and the global gateway unit that governs data
traffic through the core network.
In the case above, since different multicast groups must be used for upstream
and downstream traffic, consider that the group designator 224.5.5.5 is being
used to route traffic from the vehicle radios to the global gateway and that
group designator 224.5.5.6 is being used to route traffic from the global
gateway to the vehicle radios.
Apply the needed multicast rules by doing the steps that follow:
Identify all Mesh End units belonging to each subnet cluster in the Layer-3 network.
Enable upstream (vehicle to infrastructure) Multicast traffic by adding multicast route 224.5.5.5 / 5.a.b.c to the Mesh End unit in each subnet cluster, where 5.a.b.c is the actual Mesh ID number of the global gateway unit.
IMPORTANT
If TITAN is enabled at the core network level and dual redundant global
gateway units are installed, do not enter the global gateway’s actual Mesh ID
number as the Destination Address. Instead, use Destination Address 5.0.0.0
3. Enable downstream (infrastructure to vehicle) Multicast traffic by adding
multicast route 224.5.5.6 / 5.255.255.255 to the global gateway unit, and to
the Mesh End unit in each subnet cluster. NOTE
5.255.255.255 is the wildcard address for all Mesh ID destinations within the
network. 7.7.5. SNMP configuration
The SNMP window can be used to configure an SNMP v2c or SNMP v3 service to run
on the Cisco FM4500 Embedded.
Walk-throughs (no agent-to-manager notifications) and traps (agent-to-manager
notifications enabled) are both supported. If SNMP traps are enabled, you can
specify the server address to which monitoring information must be sent. IMPORTANT
The same SNMP configuration must be set for all Discounts in the wireless
network.
For detailed information on Cisco unit SNMP configuration, refer to the Cisco
SNMP FM-MIB OID Table and MIB configuration files. These can be downloaded
from
the Cisco Partner Portal (Documentation section > User Manuals > Advanced
Manuals.)
To change the SNMP settings, do the following steps:
Click the -SNMP mode link under ADVANCED SETTINGS in the left-hand settings menu.
The default SNMP dialog will be shown (Figure 41 (page 105)).
Figure 41. SNMP dialog (SNMP disabled) NOTE
By default, Cisco units are shipped from the factory with SNMP disabled. Using SNMP v2c
To change the unit’s SNMP mode to v2c and configure the unit accordingly, do
the following steps:
Click the SNMP mode drop-down, and click the v2c option.
• The SNMP v2c settings dialog will be shown (Figure 42 (page 105)). Figure 42. SNMP dialog (v2c selected)
Enter a community identity value in the Community ID: field. IMPORTANT
The same community identity value must be set for all Cisco units in the
wireless network.
SNMP traps can be enabled for significant system-related events.
If needed, enable SNMP event traps by checking the Enable SNMP event trap:
check-box, and enter the name of the network management station (NMS) host in
the NMS hostname: field. IMPORTANT
The NMS host to which traps are sent must have an SNMP agent that is
configured to collect SNMP v2c traps.
You can also configure the unit to send SNMP traps at defined periodic intervals. If needed, enable periodic SNMP traps by checking the Enable SNMP periodic trap: check-box, and enter the name of the network management station (NMS) host in the NMS hostname: field.
Save the SNMP settings by clicking the Save button. Alternatively, clear the settings by clicking the Reset button.
Using SNMP v3
To change the unit’s SNMP mode to v3 and configure the unit accordingly, do
the following steps:
Click the SNMP mode drop-down, and click the v3 option.
• The SNMP v3 settings dialog will be shown (Figure 43 (page 107)). Figure 43. SNMP dialog (v3 selected)
Enter an SNMP v3 user name in the SNMP v3 username: field. IMPORTANT
The same SNMP v3 user name must be set for all Cisco units in the wireless
network.
To change the current SNMP v3 password, enter a new password in the SNMP v3 password: field. The default password is cisco. To show the password as it is being typed, checkthe Show SNMP v3 password: check-box.
Choose the correct authentication protocol from the SNMP v3 authentication proto: drop-down. The available options are MD5 and SHA. IMPORTANT
The same SNMP authentication protocol must be set for all Cisco units in the
wireless network.
If needed, choose the correct encryption protocol from the SNMP v3 encryption: drop-down. The available options are No Encryption, DES (Data Encryption Standard) and AES (Advanced Encryption Standard). IMPORTANT
The same encryption protocol must be set for all Cisco units in the wireless
network.
To change the current encryption passphrase, enter a new passphrase in the SNMP v3 encryption passphrase: field. The default encryption passphrase is cisco. To show the
passphrase as it is being typed, check the Show SNMP v3 encryption passphrase:
check-box.
SNMP traps can be enabled for significant system-related events.
If needed, enable SNMP event traps by checking the Enable SNMP event trap:
check-box, and enter the name of the networkmanagement station (NMS) host in
the NMS hostname: field. IMPORTANT
The NMS host to which traps are sent must have an SNMP agent configured to
collect v2c traps.
You can also configure the unit to send SNMP traps at defined periodic intervals. If needed, enable periodic SNMP traps by checking the Enable SNMP periodic trap: check-box, and enter the name of the network management station (NMS) host in the NMS hostname: field.
Save the SNMP settings by clicking the Save button. Alternatively, clear the settings by clicking the Reset button.
7.7.6. RADIUS configuration
The RADIUS window contains the controls to provide centralized authentication,
authorization, and accounting management using the remote authentication dial-
in user service (RADIUS) networking protocol. IMPORTANT
The RADIUS feature is only available if the Cisco FM4500 Embedded is set to
Mesh Point mode or Mesh End mode. If the unit is set to Bridge mode, the
-radius menu option will not be available.
The RADIUS functionality will fail to operate if the network time protocol
(NTP) feature is not enabled and configured. IMPORTANT
Use of this window requires extensive familiarity with the RADIUS networking
protocol. Do not change these settings unless there is a specific need to do
so.
To change the RADIUS settings for the Cisco unit, do the following steps:
Enable and configure network time protocol (NTP) as shown in “NTP Configuration” (page 111).
Click the -radius link under ADVANCED SETTINGS in the lefthand settings menu.
• The RADIUS dialog will be shown (Figure 44 (page 109)). Figure 44. Configurator GUI (RADIUS dialog)
Choose the RADIUS mode for the device by clicking the RADIUS Mode drop-down and selecting one of the following options:
• Disabled: RADIUS functionality will be disabled.
• Enabled: RADIUS functionality will be enabled, and the configuration options
will be shown.
• Passthrough: If the device is a trackside-mounted Fluidity device, this
parameter can be used to simultaneously activate RADIUS device authentication,
and enable RADIUS passthrough (communication between RADIUS authenticated
vehicle-mounted devices and nonauthenticated trackside-mounted devices).
Enter the IP address or host name of the RADIUS server in the IP address / hostname field.
By default, the RADIUS port number is 1812. Do not change the port number unless there is a specific need to do so.
Enter the RADIUS access password in the Secret field. To read the password as it is typed, check the show check-box.
By default, the RADIUS inactivity Expiration (s) period is 28 800 seconds (8 hours). Do not change the expiration period unless there is a specific need to do so.
Choose the data authentication method by clicking the Authentication Method drop-down and clicking the correct option. Available options are:
• MSCHAPV2
(Microsoft Challenge-Handshake Authentication Protocol V2)
• MD5 (Hash function producing a 128-bit hash value)
• GTC (Generic Token Card)
• TTLS (Tunneled Transport Layer Security)
• PEAP (Protected Extensible Authentication Protocol)
Enter the personal username for access to the RADIUS server in the Username field.
Enter the personal password for access to the RADIUS server in the Password field. To read the password as it is typed, check the show check-box.
Available Inner Authentication Methods depend on which Authentication Method has been chosen. If applicable, choose an inner authentication method by clicking the Inner Authentication Method drop-down and clicking the correct option. Available options are shown in the following table: Table 5. Available inner authentication methods (per authentication
methods)
****| Available Inner Authentication Methods
---|---
MSCHAPV2| None
MD5| None
GTC| None
TTLS| • PAP (Password Authentication Protocol)
• CHAP (Challenge-Handshake
Authentication Protocol)
• MSCHAP (Microsoft Challenge-Handshake Authentication Protocol)
• MSCHAPV2
• MD5
• GTC
PEAP| • MSCHAPV2
• MD5
• GTC
Save the RADIUS settings by clicking the Save button. Alternatively, clear the settings by clicking the Reset button.
7.7.7. NTP Configuration All Cisco radio transceiver units have a built-in clock.
No manual time-setting controls are provided. Instead, the unit has network
time protocol (NTP) functionality that allows it to synchronize its time
settings with a chosen internet time server. If the unit cannot synchronize
with its primary time server, and the host name of a backup time server is
entered, the unit defaults to synchronizing with the backup server. CAUTION
The same NTP configuration must be set for all Cisco units in the wireless
network.
If the same NTP settings are not applied to all units, the network may
encounter timestamp conflicts and/or equipment malfunctions. To change the NTP settings, do the following steps:
Click the -ntp link under ADVANCED SETTINGS in the left-hand settings menu.
• The NTP dialog will be shown (Figure 45 (page 112)). Figure 45. Configurator GUI (NTP dialog)
Enable NTP synchronization by checking the Enable NTP check- box.
Enter the host name of a chosen primary NTP server in the NTP server hostname: field. IMPORTANT
The NTP server host names shown in Figure 45 (page 112) are for reference
purposes only. Your company policy may dictate that you use one or more
specific time servers.
If needed, enter the host name of a chosen secondary NTP server in the Secondary NTP server (optional): field.
Select the time zone in which the unit is installed by clicking the Select Timezone: drop-down menu and clicking the correct time zone option.
Save the NTP settings by clicking the Save button. Alternatively, clear the settings by clicking the Reset button.
7.7.8. L2TP configuration IMPORTANT
The L2TP configuration option is only available if the Cisco FM4500 Embedded
is set to Mesh Point mode or Mesh End mode. If the unit is set to Bridge mode,
the -l2tp configuration menu option will not be available.
The L2TP feature must be enabled using a software plug-in (Cisco part number
FM-L2TP). Contact your Cisco Networks representative for details.
Layer 2 Tunneling Protocol (L2TP) functionality allows Cisco radio
transceivers to support integration with virtual private networks (VPNs).
Cisco hardware devices are shipped from the factory with L2TP functionality
disabled. To change the unit’s L2TP settings, do the following steps:
Click the -l2tp configuration link under ADVANCED SETTINGS in the left-hand settings menu. Figure 46. Configurator GUI (L2TP Configuration dialog)
• The L2TP Configuration dialog will be shown (Figure 46 (page 113)).
To enable L2TP functionality for the unit, check the L2TP checkbox.
• The L2TP configuration settings window will be shown.
When the L2TP configuration has been set, save the settings by clicking the Save button. Alternatively, clear the settings by clicking the Reset button.
IMPORTANT
A detailed description of L2TP configuration methods is beyond the scope of
this manual. For detailed instructions on how to set the L2TP configuration,
refer to the Cisco
Networks L2TPv3 Configuration Manual. 7.7.9. VLAN settings VLAN configuration
The VLAN SETTINGS window contains controls to connect the Cisco FM4500
Embedded to one or more virtual local area networks (VLANs) that are part of
the local wireless network. IMPORTANT
The VLAN feature must be enabled using a software plug-in (Cisco part number
FM-VLAN). Contact your Cisco Networks representative for details.
The Cisco FM4500 Embedded features smart self-management of integration with
connected VLANs, with minimal configuration time and avoidance of potential
configuration errors. This is done by A) relying on the data- processing
configuration of a connected network switch, and B) obeying predefined rules
for management of incoming and outgoing data packets. IMPORTANT
For detailed information on the predefined rules for smart VLAN packet
management, refer to the “Rules for packet management” (page 115) table at the
bottom of this section.
To connect the unit to a VLAN that is part of the local wireless network, do
the following steps:
Click the -vlan settings link under ADVANCED SETTINGS in the left-hand settings menu.
• The VLAN SETTINGS dialog will be shown (Figure 47 (page 114)).Figure 47. Configurator GUI (VLAN SETTINGS dialog)
Connect the unit to a VLAN that is part of the local wireless network by checking the Enable VLANs check-box.
Check the Enable VLANs check-box.
Enter the management identification number of the VLAN (used to communicate with the device’s operating system) in the Management VLAN ID: field. NOTE
The same Management VLAN ID must be used on all Cisco devices that are part of
the same mesh network.
Enter the native identification number (the VLAN ID implicitly assigned to untagged packets received on trunk ports) in the Native VLAN ID: field.
Save the VLAN settings by clicking the Save button. Alternatively, clear the settings by clicking the Reset button.
Rules for packet management
Parameter
I Default value
Default VLAN configuration
The factory-set VLAN parameters for the unit are as follows:
Management VLAN ID (MVID)| 1
Native VLAN ID (NVID)| 1
Native VLAN processing| Enabled
Port mode (all Ethernet ports)| Smart
Traffic classes
The system classifies incoming data packets according to the following
definitions:
Signaling| Ethernet protocol type $8847 or $09xx
User| All other traffic
Packet tagged with MVID| Packet passed
Access port rules for incoming packets (Case and Action)
Untagged packet from Cisco device| Packet passed
Untagged packet, VID not configured| Packet passed
Untagged packet, VID configured| Packet tagged with specified VID
Tagged packet with valid VID| Packet dropped
Tagged packet with null (0) VID| Packet dropped
Access port rules for outgoing packets (Case and Action)
Tagged packet with configured and allowed VID| Packet passed
Packet from Cisco device| Packet passed
Tagged packet, port VID not configured| Packet passed
Tagged packet with valid but disallowed VID| Packet dropped
Tagged packet with null (0) VID| Packet dropped
Access port rules for incoming packets with unit in Smart Mode (Case and
Action)
Untagged packet| If native VLAN = ON: Packet passed (tagged with NVID)
If native VLAN = OFF: Packet dropped
Tagged packet (any VID, no checks)| Packet passed with original tag
Access port rules for outgoing packets with unit in Smart Mode (Case and
Action)
Packets originating from Cisco devices (for example: FM Racer interface)|
Packet implicitly tagged with MVID, next rules apply
Signalling traffic| Packet implicitly tagged with MVID, next rules apply
Parameter| Default value
---|---
Tagged with valid VID (1 – 4095), not NVID| Packet passed (tagged)
Tagged with null VID (0) or NVID| Packet passed (untagged)
Access port rules for incoming packets with unit in Bridge Mode (Case and
Action)
The Native VLAN enable setting is used to control whether the Management VLAN
should be tagged or not.
Untagged packet, to remote devices| Pass packet to remote peer
Tagged packet (any VID), to remote devices| Pass packet to remote peer with
original tag
Untagged packet, to local unit kernel| If native VLAN = ON: Packet passed to
kernel, tagged with NVID
If native VLAN = OFF: Packet not passed to kernel
Tagged packet (any VID), to local unit kernel| If native VLAN = ON: Packet not
passed to kernel
If native VLAN = OFF: Packet passed to kernel if VID = NVID
Access port rules for outgoing packets with unit in Bridge Mode (Case and
Action)
Tagged packet with valid VID from remote peer| Packet passed (tagged)
Tagged packet with null (0) VID from remote peer| Packet passed (untagged)
Packet from local unit kernel| If native VLAN not equal to MVID:
Packet passed, tagged with MVID
If native VLAN = MVID: Packet passed, untagged
7.7.10. Fluidity settings IMPORTANT
The Fluidity tool is only available if the Cisco FM4500 Embedded is set to
Mesh Point mode or Mesh End mode. If the unit is set to Bridge mode, the
-Fluidity™ menu option will not be available.
Fluidity™ is Cisco’s proprietary track side and vehicle-to-ground data
transfer protocol for video, voice and data communication.
The FLUIDITY window contains controls to change the unit’s Fluidity settings.
To change the settings, do the following steps:
Click the -Fluidity™ link under ADVANCED SETTINGS in the left-hand settings menu.
• The FLUIDITY dialog will be shown (Figure 48 (page 117)). Figure 48. Configurator GUI (FLUIDITY dialog for transceiver
devices)
Cisco radio transceivers are shipped from the factory with Fluidity functionality disabled. Enable Fluidity functionality by checking the Fluidity check-box.
Select the correct role for the unit by clicking the Unit Role: drop-down and clicking the correct option from the list below:
• Infrastructure: Choose this setting if the unit is connected to a wired LAN
and/or a network that includes other Infrastructure nodes, and the unit acts
as the network infrastructure entry point for mobile vehicles.
• Infrastructure (wireless relay): Only choose this setting if the unit is
used as a wireless relay agent to other infrastructure units. IMPORTANT
If a unit is set to Infrastructure (wireless relay) mode, do not connect the
unit to the wired LAN.
• Vehicle: Choose this setting if the unit is installed on or in a moving
vehicle.
4. If the Unit Role has been set as Vehicle, assign the unit a vehicle
identity using either of the methods below:
• Allow the unit to automatically generate a unique vehicle identity by
checking the Enable check-box to the right of the Automatic Vehicle ID:
heading.
• Assign a vehicle identity manually by un-checking the Enable check-box to
the right of the Automatic Vehicle ID: heading, and manually entering an
identification string in the Vehicle ID: field. IMPORTANT
If vehicle identities have been manually assigned, the Vehicle ID string must
be unique for every individual Cisco unit operating on the same network, even
if more than one Cisco unit is installed on the same vehicle.
The network type must be set in accordance with the general network architecture. Select the correct network type designation for the unit by clicking the Network Type: drop-down and clicking the correct option from the list below:
• Flat: Choose this setting if the wireless mesh network and the
infrastructure network both belong to a single layer-2 broadcast domain.
• Multiple Subnets: Choose this setting if the wireless mesh network and the
infrastructure network are organized as separate layer-3 routing domains.
Save the Fluidity settings by clicking the Save button.
Alternatively, clear the settings by clicking the Reset button.
Handoff logic and rate adaptation settings
CAUTION
The following settings are intended for use by qualified network engineers. Do
not change these settings unless there is a specific need to do so.
For detailed information on how to set Handoff logic and Rate adaptation,
refer to the Cisco Networks Fluidity
Configuration Manual.
The Handoff Logic setting controls the unit’s choice of infrastructure point
with which to connect. Select the correct handoff logic setting for the unit
by clicking the Handoff Logic: drop-down and clicking the correct option from
the list below:
Standard: The unit connects to the transceiver providing the strongest signal.
Load Balancing: The unit connects to the transceiver that provides the most suitable balance between signal strength and the amount of traffic presently being carried.
Allow V2V: in cases where a vehicle-mounted unit is not able to communicate directly with an infrastructure point, this setting allows data traffic to be routed from the source vehicle through a second vehicle to an infrastructure point.
IMPORTANT
If the Allow V2V setting is chosen, note the following points:
Ad hoc communication (in other words, communication between vehicle radio
units that bypasses infrastructure radio units) is not supported.
A maximum of two hops are allowed (for example, vehicle-to-vehicle-to-
infrastructure).
The Rate Adaptation setting controls the unit’s choice of modulation coding
and speed of packet transmission. Select the correct rate adaptation setting
for the unit by clicking the Rate Adaptation: drop-down and clicking the
correct option from the list below:
Standard: This option applies a standard reactive rate selection as used by WiFi access points.
Advanced: This option applies Cisco’s proprietary predictive rate selection algorithm.
Save the Fluidity settings by clicking the Save button. Alternatively, clear
the settings by clicking the Reset button. 7.7.11. Miscellaneous settings IMPORTANT
Support for FIPS, CANBUS, PROFINET and QNET are only available if the
corresponding plug-ins are installed. If the corresponding plug-in is not
installed, the check-box for the relevant option will not be available.
The following plug-ins are needed to activate these features:
FIPS: FM-FIPS
CANBUS: FM-CANBUS
PROFINET: FM-PROFINET
QNET: FM-QNET
Note that FIPS support is not available for the FM1000 Gateway and FM10000
Gateway.
Contact your Cisco Networks representative for details.
The MISC SETTINGS window contains controls to change the following settings:
The device name, as used to identify the Cisco FM4500 Embedded within the FMQuadro network map and to other Cisco utilities.
The operation of the physical Reset button on the unit.
Device firmware upgrades by trivial file transfer protocol (TFTP).
The unit’s federal information processing standards (FIPS) 140-2 compliance settings (if applicable).
The unit’s controller area network (CANBUS) support settings (if applicable).
The unit’s process field net (PROFINET) support settings (if applicable).
The unit’s Neutrino Qnet (QNET) support settings (if applicable).
To change any of the miscellaneous settings, do the following steps:
Click the -misc settings link under ADVANCED SETTINGS in the left-hand settings menu.
• The MISC SETTINGS dialog will be shown (Figure 49 (page 121)). Figure 49. Configurator GUI (MISC SETTINGS dialog)
Set the device name by typing it in the Name: field. NOTE
It is not essential to specify the device name, but it is strongly
recommended. Failure to specify the device name may make the unit difficult to
recognize in situations where more than one unit is being dealt with at the
same time (for example, when using utilities such as the FMQuadro network
map).
Set the functionality of the unit’s hardware Reset button by clicking the Reset Button function: drop-down and clicking the needed option as described below:
• Disabled: The hardware Reset button will be disabled. NOTE
If the Disabled option is chosen, you can still reboot or do a hard reset of
the unit using the Configurator GUI. See “Resetting the unit to factory
defaults” (page 137) for more information.
Enabled: The hardware Reset button will be enabled.
Factory: The hardware Reset button functionality will be set to its factory
default configuration (enabled).
To enforce FIPS 140-2 compliance for data transmitted by the unit, make sure the FM-FIPS plug-in is installed, then check the Enable FIPS: check-box.
To enable CANBUS support for the unit, make sure the FM- CANBUS plug-in is installed, then check the Enable CANBUS: check-box.
To enable PROFINET support for the unit, make sure the FM- PROFINET plug-in is installed, then check the Enable PROFINET: check-box.
To enable QNET support for the unit, make sure the FM-QNET plug-in is installed, then check the Enable QNET: check-box.
To enable automatic device firmware updates using TFTP, do the steps that follow:
a. Check the Enable Automatic Upgrade check-box.
b. Enter the IP address of the authorized TFTP server containing the firmware-
update source files in the TFTP Server field.
c. Enter the periodic interval at which the device checks for a newer firmware
upgrade package in the Check Period (hours) field.
d. To do an immediate check for a newer firmware upgrade package, click the
Check Now button.
• If a newer firmware package than the existing package is found, the newer
package will be installed immediately.
Save the miscellaneous settings by clicking the Save button. Alternatively, clear the settings by clicking the Reset button.
7.8. Management settings 7.8.1. View Mode settings
The View Mode window allows the system administrator to grant and prohibit
access to device configuration settings by category. IMPORTANT
Changing the default password to a strong password is an extremely important
step in preventing security breaches.
If you have logged into the configurator interface using default login
credentials, you will see a notification banner at the bottom of the screen
(Figure 50 (page 123)). Figure 50. Default credentials notification banner
Click the banner to change the view mode credentials. You will be taken to the
VIEW MODE SETTINGS section.
To gain editing privileges for the View Mode settings window requires the
correct administrator user name and password. To change the administrator user
name and password for the current user, do the following steps:
Click the -view mode settings link under MANAGEMENT SETTINGS in the left-hand settings menu. VIEW MODE SETTINGS
• The Viewmode Credentials section will be shown (Figure 51 (page 123)). Figure 51. VIEW MODE SETTINGS dialog (Viewmode Credentials section)
Enter the new user name in the View Mode Username: field.
The default password is viewmode. Enter the new password in the View Mode User Password: field. NOTE
The new password must be a minimum of eight characters, and include at least
one capital letter and one number.
shTow the password as it is being typed, check the Show Password check-box.
Save the Viewmode Credentials settings by clicking the Change button. Alternatively, clear the settings by clicking the Reset button.
To change the View Mode settings, do the following steps:
Log in to the unit’s Configurator GUI with Administrator credentials.
See “Accessing the Cisco FM4500 Embedded for device configuration” (page 47)
for more information.
Click the -view mode settings link under MANAGEMENT SETTINGS in the left-hand settings menu (Figure 52 (page 124)). Figure 52. Configurator GUI (VIEW MODE SETTINGS dialog)
• The VIEW MODE SETTINGS dialog will be shown.
To allow or prohibit access to any device-configuration settings, click the relevant drop-down, and click the Disabled or Enabled setting:
• If the Disabled option is selected for a device-configuration setting, the
setting for that category will be visible but not accessible to ordinary
users.
• If the Enabled option is selected for a device-configuration setting, the
setting can be modified by ordinary users. IMPORTANT
If you are logged in to the Configurator interface with Administrator
credentials, you can enable or disable any device-configuration setting.
If you are logged in to the Configurator interface as an ordinary user, you
will be able to view the device- configuration settings, but cannot change the
settings.
Save the view mode settings by clicking the Save button in the Allow View Mode Settings section. Alternatively, clear the settings by clicking the Reset button.
7.8.2. Changing the Administrator username and password
The CHANGE USERNAME AND PASSWORD section contains controls to change the
Administrator’s user name and password for the Cisco unit. IMPORTANT
Changing the default password to a strong password is an extremely important
step in preventing security breaches.
If you have logged into the configurator interface using default
administrator’s credentials, you will see a notification banner at the bottom
of the screen (Figure 53 (page 125)). Figure 53. Default admin credentials notification banner
Click the banner to change the admin credentials. You will be taken to the
CHANGE USERNAME AND PASSWORD section.
To change the Administrator’s user name and password for the unit, do the
following steps:
Click the -remote access link under MANAGEMENT SETTINGS in the left-hand settings menu.
• The CHANGE USERNAME AND PASSWORD dialog will be shown (Figure 54 (page
126)). Figure 54. Management Settings dialog (Change Username and Password)
Enter the new administrator user name in the Username: field.
Enter the current password in the Old password: field.
Enter the new password in the New password: field.
Confirm that the new password is correctly spelled by checking the Show Password: check-box to show the text of the password, then re-entering the password in the Confirm New password: field.
Save the changed password settings by clicking the Change button. Alternatively, revert to the old password settings by clicking the Reset button.
IMPORTANT
Keep the Administrator name and password in a safe place. If the Administrator
name and password are lost, the only way to log in to the unit is to do a hard
reset.
If you need to do a hard reset, refer to “Resetting the unit to factory
defaults” (page 137) for more information. Enabling remote access to the unit by Telnet
The TELNET ACCESS section contains controls to enable remote access to the
unit using Telnet. IMPORTANT
The Telnet protocol suffers from serious security weaknesses that limit its
usefulness in environments where the network cannot be fully trusted.
Telnet is used at your own risk.
To enable Telnet access to the unit, do the following steps:
Click the -remote access link under MANAGEMENT SETTINGS in the left-hand settings menu.
• The TELNET ACCESS dialog will be shown (see Figure 54 (page 126) in the
previous section).
Enable Telnet access by checking the Enable telnet access: check-box.
Save the changed Telnet settings by clicking the Change button. Alternatively, revert to the old password settings by clicking the Reset button.
7.8.3. Overwriting and upgrading the unit firmware
The FIRMWARE UPGRADE window contains controls to overwrite the device firmware
of the Cisco FM4500 Embedded or upgrade the firmware to the latest available
version. CAUTION
Overwriting the firmware of any electronic device must be done with great
care, and always contains an element of risk.
It is not advisable to overwrite the firmware on a functioning Cisco unit
unless a specific firmware-related issue needsto be resolved. IMPORTANT
To access firmware image files, you need an approved Cisco extranet account.
To create an extranet account, register for free at the Cisco Partner Portal.
To download the needed firmware image file to your computer, do the following
steps:
Navigate to the Documentation section of the Cisco Partner Portal.
Find and open the device sub-folder for your specific Cisco device in the FIRMWARE AND TOOLS folder.
Download the firmware image (*.BIN) file to your computer
CAUTION
Make sure that you download the specific *.BIN file for your device type.
Uploading incorrect firmware for the device type will cause the firmware
overwrite to fail, and may damage the unit.
The following procedure describes how to overwrite the existing firmware on a
Cisco device. This procedure assumes that the wireless networkis currently
active.
To overwrite the existing firmware on the Cisco device, do the following
steps:
Power OFF all Cisco devices connected to the wireless network.
Disconnect all Ethernet cables from the Cisco device.
With the Ciscoi device disconnected from the wireless network, power ON the device. CAUTION
Do not restart or power OFF the device while firmware overwriting is in
progress.
Restarting or powering OFF the unit before overwriting is complete will
permanently damage the unit.
Connect the computer containing the firmware image file directly to the Cisco unit, using an Ethernet cable. For detailed information on direct connection, refer to “Accessing the Cisco FM4500 Embedded for device configuration” (page 47).
As a precaution, save the unit’s existing device configuration file to the computer. For detailed information on how to save the existing configuration file, refer to “Saving and restoring the unit settings” (page 135).
Click the -firmware upgrade link under MANAGEMENT SETTINGS in the left-hand settings menu.
• The FIRMWARE UPGRADE dialog will be shown (Figure 55 (page 129)). Figure 55. Configurator UPGRADE dialog) GUI (typical FIRMWARE
Upload the firmware image file to the unit by clicking the Choose File button and following the software prompts.
• The Upgrade button will become available.
Click the Upgrade button. Follow the software prompts until the firmware overwrite is complete.
• When the overwrite is complete, the unit will automatically reboot.
If the previous firmware was overwritten with a newer version of firmware,
check that the firmware upgraded correctly by doing the following steps:
When the overwrite is complete, make sure that the upgraded firmware has a greater version number than the firmware that was previously installed.
If the firmware version has not changed, the firmware upgrade has failed. Repeat the overwrite from step Step 1 above.
7.8.4. Plug-In management IMPORTANT
For a complete list of software plug-ins that are currently available for the
Cisco FM4500 Embedded, refer to “Available plug- ins” (page 140).
The MANAGE PLUG-INS page shows which software plug-ins are currently active on
the unit, and contains controls that allow you to do the following functions:
Upload activation codes that allow the unit’s accessory software plugins to function.
Activate uploaded software plug-ins for use with the unit.
Deactivate uploaded software plug-ins so they can be used on other Cisco units.
Activate a non-repeatable Demo mode that allows full 4.9 GHz, AES and unlimited plug-in functionality for an 8-hour trial period. IMPORTANT The 4.9 GHz band is not available in Brazil or Canada.
Show and erase the log files for plug-in installation.
To open the MANAGE PLUG-INS dialog, do the following steps:
Click the -manage plug-ins link under MANAGEMENT SETTINGS in the left-hand settings menu.
The MANAGE PLUG-INS dialog will be shown (Figure 56 (page 131)).
To activate Plug-in Demo mode, do the following steps:
Click the Demo Mode button at the bottom of the MANAGE PLUG-INS dialog.
• The Demo Mode activation dialog will be shown (Figure 57 (page 132)). A
countdown timer shows how much Demo time remains. Figure 57. MANAGE PLUG-INS dialog (Demo Mode activated)
To leave Demo mode before expiry of the 8-hour trial period, click the Exit Demo Mode button.
• Demo mode will be deactivated, and the unit will reboot.
If the 8-hour Demo mode limit is reached, the unit will reboot and Demo mode will not be accessible again.
To upload one or more plug-in activation codes, refer to “Plug-in management
procedures” (page 144).
To assign a software plug-in on the Partner Portal to the unit, do the
following steps:
Enter the activation code for the plug-in in the Plug-in Activation Code: field.
Click the Add button.
The plug-in will be activated, and the plug-in functionality can be used.
A REMOVE link will be shown in red to the right of the relevant plug-in description in the Plug-in List.
To deactivate an uploaded software plug-in for use with another Cisco unit,
refer to “Plug-in management procedures” (page 144).
To show and erase the plug-in installation log files, do the following steps:
Click the Show Logs button in the Plug-in Installation Logs: section.
• The log files for plug-in installation will be shown in the Plug-in
Installation Logs: section.
If needed, erase the log files for plug-in installation by clicking the Clear Logs button in the Plug-in Installation Logs: section.
7.8.5. The device status view The device status window
The device status window contains information on basic Cisco device settings
(including the unit’s MAC address), and controls that allow you to download
diagnostic data files and view device-event logs.
To use the status window, do the following steps:
Click the -status link under MANAGEMENT SETTINGS in the left-hand settings menu.
The status dialog will be shown (below).
Figure 58. Configurator GUI (typical Status dialog)
Figure 59. Typical Status dialog (second-generation FM1000 gateway
gateway)
• Status information on the unit’s basic characteristics, device settings and
wireless settings is shown in the upper part of the window.
To download and forward the current diagnostic file for the unit, do the
following steps:
Click the Download Diagnostics button.
Follow the software prompts to download the *.FM diagnostic file to your computer.
Log a support call with the Cisco Help desk. Ask for a reference number.
Attach the *.FM diagnostic file to an E-mail, and enter the support call reference number in the subject line of the E-mail. Send the mail to support@cisco.com.
IMPORTANT
Do not forward diagnostic files unless the Cisco Help desk requests them. If
diagnostic files arrive when they have not been requested, they cannot be
traced to specific problems.
To show the current device log for the unit, click the Show Logs button.
• The current device log will be shown in the Device Logs window above the
Show Logs button.
• The status messages shown in the log relate to possible Ethernet port
flapping, and will also alert you if duplicate IP addresses are present in the
LAN. Refer to the text below for a description of the log messages. NOTE
Ethernet port flapping is an issue in which the Ethernet port goes offline and
comes back online at an excessively high rate within a given time period. Some
possible causes of this problem may be auto-negotiation issues, chipset
incompatibility, or faulty CAT5/6 cabling.
Some status messages that may be shown in the log have the following meanings:
• ethX phy:X is up/down: Ethernet port X is currently online/offline.
• chatter: VBR: duplicate IP A? MACX –> MAXY at <timestamp>:
Possible duplicate IP address ‘A’ has migrated from MAC address ‘X’ to MAC
address ‘Y’, at the time shown. 7.8.6. Saving and restoring the unit settings IMPORTANT
Device software configuration (.CONF) files are not interchangeable with
(.FMCONF) files. FM Racer configuration setup
The LOAD OR RESTORE SETTINGS window contains controls that allow you to:
Save the unit’s existing software configuration as a configuration (*.CONF) file.
Upload and apply a saved configuration file to the current unit.
TIP
Saved configuration files can be copied and distributed for use on more than
one Cisco unit of the same type, simplifying the configuration of other
deployed units.
Saved configuration files can also be used for configuration backup. This can
greatly speed up re- deployment if a damaged unit must be replaced with a unit
of the same type.
To download the unit’s existing configuration settings to your computer, do
the following steps:
Click the -configuration settings link under MANAGEMENT SETTINGS in the left-hand settings menu.
The LOAD OR RESTORE SETTINGS dialog will be shown (Figure 60 (page 136)).
Figure 60. Configurator GUI (LOAD OR RESTORE SETTINGS dialog)
Download the unit’s configuration (*.CONF) file to your computer by clicking the Save button and following the software prompts.
To upload a saved configuration file to the Cisco unit, do the following
steps:
Find the configuration (*.CONF) file that must be uploaded to the unit by clicking the Browse… button and following the software prompts.
• The name of the configuration file to be uploaded will be shown to the right
of the Browse… button.
Apply the configuration settings to the unit by clicking the Restore button.
• The configuration will be applied, and the unit will reboot.
7.8.7. Resetting the unit to factory defaults
The reset factory default window contains controls that allow you to restore
the Cisco FM4500 Embedded to its default factory settings (in other words, to
do a ‘hard reset’). IMPORTANT
Doing a hard reset will revert all unit configuration settings, including the
unit’s IP address and administrator password, to factory defaults.
If you want to reboot the unit instead, refer to “Rebooting the unit” (page
137) below.
To reset the unit to its factory defaults, do the following steps:
Click the -reset factory defaults link under MANAGEMENT SETTINGS in the left-hand settings menu.
• The unit reset dialog will be shown (Figure 61 (page 137)). CAUTION Do not do a hard reset unless the unit needs to be reconfigured using its
factory configuration as a starting point.
A hard reset will reset the unit’s IP address and administrator password, and
will disconnect the unit from the network. Figure 61. Configurator GUI (unit reset dialog)
Reset the unit to its factory defaults by clicking the YES link. Alternatively, abort the factory reset by clicking the NO link.
• If the YES link was clicked, the unit will do a factory reset, and will
reboot.
If you have previously saved a device configuration file for the unit, you can restore the saved configuration settings to the unit as shown in “Saving and restoring the unit settings” (page 135).
Rebooting the unit
The reboot window contains controls that allow you to reboot the Cisco FM4500
Embedded (in other words, to re-start the unit’s operating system).
To reboot the unit, do the following steps:
Click the -reboot link under MANAGEMENT SETTINGS in the left-hand settings menu.
• The unit reboot dialog will be shown (Figure 62 (page 138)). Figure 62. Configurator GUI (unit reboot dialog)
Reboot the unit by clicking the YES link. Alternatively, abort the reboot by clicking the NO link.
• If the YES link was clicked, the unit will reboot.
7.8.8. Logging out
If clicked, the logout option logs the current user off the unit, and out of
the Configurator interface.
To log out, click the -logout link under MANAGEMENT SETTINGS in the left-hand settings menu.
You will be logged off the unit and out of the Configurator interface with no further prompting.
The web browser will show the Authentication Required dialog (Figure 63 (page 138)). If needed, use the dialog to log in again. Figure 63. Web browser (Authentication Required dialog)
7.8.9. Viewing the end-user license agreement
The License Agreement window contains the Cisco end-user license agreement for
the Cisco FM4500 Embedded, its firmware and control software.
To view the terms and conditions of the license agreement, click the License
Agreement link under MANAGEMENT SETTINGS in the left- hand settings menu.
The license agreement dialog will be shown (Figure 64 (page 139)).
Figure 64. Configurator GUI (End-user license agreement)
To read the end-user license agreement as an *.HTML web page in your browser,
left-click the Download the License Agreement link.
The end-user license agreement will be shown under a new tab in your web browser.
To download the end-user license agreement as a standard text (*.TXT) file, do
the following steps:
Right-click the Download the License Agreement link.
Click the Save Link as… option and follow the software prompts to download the agreement as a text file.
Software Plug-Ins
8.1. Available plug-ins
Like other Cisco radio transceivers, the Cisco FM4500 Embedded is able to take
advantage of plug-in software upgrades that add features and enhance the
performance of the unit.
The following table lists all available software plug-ins for all Cisco
hardware devices, their specific functions, and their plug-in part numbers.
The tables that follow this table describe which plug-ins are compatible with
specified Cisco devices.
Table 6. Available Cisco software plug-ins
Plug-in| Is the plug- in package removable and re-installable?|
Function| Part number
---|---|---|---
Bandwidth| Yes| A range of plug-ins are available to enable increased
traffic forwarding bandwidth, up to and including the amount of bandwidth
specified in the part number (including unlimited bandwidth).| FM[model
number]- [bandwidth limit]
Bandwidth upgrade| Yes| If an existing bandwidth plug- in is installed,
this plug-in allows bandwidth to be upgraded to a higher, specified value. __ Note that if a bandwidth upgrade plug-in is removed, the unit’s
bandwidth capability is not restored to the level of the previous upgrade (if
any). Rather, the bandwidth capability is restored to the factory default
level.| FM[model number]-UPG- [existing bandwidth limit/new bandwidth limit] Plug-in| Is the plug- in package removable and re- installable?|
Function| Part number
---|---|---|---
Fluidity- Bandwidth (Mobile)| Yes| Enables Fluidity capability for
mobile Cisco devices. __ Allows traffic forwarding up to and including the amount of bandwidth
specified in the part number.| FM[model number]-MOB- MOB-[bandwidth limit]
(FMx200 models) __ FM[model number]-FLU- MOB-[bandwidth limit] (FMx500
models)
Fluidity- Bandwidth (Trackside)| Yes| Enables Fluidity capability for
static-mount Cisco devices. __ Allows traffic forwarding up to and including the amount of bandwidth
specified in the part number.| FM[model number]-MOB- TRK-[bandwidth limit]
(FMx200 models) __ FM[model number]-FLU- TRK-[bandwidth limit] (FMx500
models)
4.9 GHz band| Yes| Enables operation in the 4.9 GHz emergency band.
__ Note that the 4.9 GHz band is not available in Brazil and Canada.
| FM-49
Licensed Frequencies| Yes| Enables the use of any operating frequency,
regardless of country selection.| FM-LF
World Frequencies| No| Unlocks the country drop- down selector on units sold
in territories where the selector is locked.| FM-WORLD
AES| Yes| Enables data exchange according to the regular Advanced
Encryption Standard.| FM-AES
Cisco Access Points| Yes| Enables WiFi access-point capability.| FM-AP
VLAN| Yes| Enables virtual LAN capability.| FM-VLAN
Virtual Gigabit| Yes| Enables Cisco Virtual Gigabit capability.| FM-VGBE
L2TP| Yes| Enables layer 2 transfer protocol capability.| FM-L2TP Plug-in| Is the plug- in package removable and re-installable?|
Function| Part number
---|---|---|---
PROFINET| Yes| Enables process field net capability.| FM-PROFINET
QNET| Yes| Enables Neutrino Qnet capability.| FM-QNET
FIPS| Yes| Enables Federal Information Processing Standards capability.| FM-
FIPS
TITAN| Yes| Enables fast fail-over capability on networks where redundant
(backup) units are installed.| FM-TITAN
UNII2| No| Enables use of frequencies in the Unlicensed National Information
Infrastructure (U- NII) bands. __ Supported bands are U- NII-2A (5.250 to 5.350 GHz) and U-NII-2C / U
-NII-2E (5.470 to 5.725 GHz).| FM-UNII2
The following tables describe which plug-ins are compatible with specified
Cisco devices. Table 7. Device plug-in compatibility (FM1000 Gateway to FM FM1300 Otto)
Plugin| FM1000 Gateway Gateway FM10000 Gateway Gateway| FM Ponte kit| FM FM1200 Volo| FM FM1300 Otto
---|---|---|---|---
Bandwidth| Available| Not available| Available| Available
Bandwidth upgrade| Available| Not available| Available|
Available
Fluidity- Bandwidth (Mobile)| Not available| Not available| Not available| Not
available
Fluidity- Bandwidth (Trackside)| Not available| Not available| Not available|
Not available
Fluidity| Firmware embedded| Not available| Not available| Not available
4.9 GHz band| Not available| Not available| Available| Not available Plugin| FM1000Gateway GatewayFM10000 GatewayGateway| FM Ponte kit| FM FM1200 Volo| FM FM1300 Otto
---|---|---|---|---
Licensed frequencies| Not available| Not available| Available| Not
available
World frequencies| Not available| Not available| Available| Not
available
AES| Not available| Not available| Available| Available
Cisco Access Points| Not available| Not available| Available| Not
available
VLAN| Firmware embedded| Available| Available| Not
available
Virtual Gigabit| Not available| Not available| Available| Not available
L2TP| Firmware embedded| Not available| Available| Not
available
PROFINET| Firmware embedded| Not available| Available| Not
available
QNET| Firmware embedded| Not available| Available| Not
available
FIPS| Not available| Not available| Available| Not available
TITAN| Available| Not available| Available| Not available
UNII2| Not available| Not available| Available| Not available
Table 8. Device plug-in compatibility (FM Cisco 3200-series to FM 4800)
Plugin| FM FM3200 Base| FM Cisco FM3500 Endo| FM FM4200 Fiber| FM FM4500 Fiber| FM 4800
---|---|---|---|---|---
| FM FM3200 Endo| | FM FM4200 Mobi| FM FM4500 Mobi|
Bandwidth| Available| Available| Available| Available|
Available
Bandwidth upgrade| Available| Available| Available|
Available| Available
Fluidity- Bandwidth (Mobile)| Available| Available| Available|
Available| Available
Fluidity- Bandwidth (Trackside)| Available| Available|
Available| Available| Available
Fluidity| Available| Available| Available| Available|
Available
4.9 GHz band| Available| Available| Available| Available|
Not available Plugin| FM FM3200 Base __**FM FM3200 Endo| FM Cisco FM3500**
Endo
| FM FM4200 Fiber __**FM FM4200Mobi| FM FM4500 Fiber __**FM FM4500 Mobi| FM 4800
---|---|---|---|---|---
Licensed frequencies| Available| Available| Available|
Available| Available
World frequencies| Available| Available| Available|
Available| Available
AES| Available| Available| Available| Available|
Available
Cisco Access Points| Available| Not available| Available| Not
available| Not available
VLAN| Available| Available| Available| Available|
Available
Virtual Gigabit| Not available| Not available| Not available| Not available|
Not available
L2TP| Available| Available| Available| Available|
Available
PROFINET| Available| Available| Available| Available|
Available
QNET| Available| Available| Available| Available|
Available
FIPS| Available| Available| Available| Available|
Available
TITAN| Available| Available| Available| Available|
Available
UNII2| Available| Available| Available| Available|
Available
To purchase any of the software plug-ins, please contact your Cisco Networks
representative.
8.2. Plug-in management procedures 8.2.1. Plug-in activation
The Plug-in management procedure has been standardized and is the same for all
Cisco hardware devices.
To obtain a plug-in activation code for a Cisco device, do the following
steps:
Contact your Cisco Networks representative to purchase a generic 16-digit License code for plug-in activation.
Quote the unique mesh unit identification number (5. a.b.c) of the Cisco hardware device.
Using the Cisco Partner Portal, associate the License code with the quoted Cisco device to get an Activation code.
Enter the Activation code on the MANAGE PLUG-INS window for the unit.
You can also deactivate a plug-in Activation code that is currently in use so
it can be used with a different Cisco unit. To deactivate an active plug-in,
refer to The PLUGINS sub-tab.
To convert a License code into an Activation code for a Cisco device,do the
following steps:
Log on to the Cisco Partner Portal.
Click the Plug-ins link.
• When you purchase a generic 16-digit License code, the License code and
corresponding plug-in will be listed on the Plug-ins page (Figure 65 (page
145)). Figure 65. Partner Portal Plug-ins page (License code plug-in)
• When the generic License code was purchased, you will have received an
E-mail from plugins@cisco.com
containing the License code. If the License code and the corresponding plug-
ins are not listed on the Plug-ins page, click the Add button in the upper
left-hand corner of the Plug-ins web page, and enter the License code using
the dialog.
Enter the unit identification number (5.a.b.c) or the unit serial number of the Cisco unit in the Mesh ID – Serial Number field.
If needed, enter the name of the relevant technical project in the Project Name field. TIP
If you cannot see the Project Name field, reduce the magnification on the
Plug-ins web page until all the headings are visible.
Click the Activate button on the Plug-ins web page.
• The Plug-in Activation dialog will be shown. Check that the given E-mail
address is correct, and click the Activate button.
• You will receive an E-mail from
plugins@cisco.com containing the Activation code.
• The Activation Code and Activation Date will be shown in the relevant fields
on the Plug-ins web page.
• The plug-in Status will change from available to active.
Use the Activation code to activate the plug-in. Refer to “Plug-In management” (page 129) for details.
• The plug-in will be activated, and the relevant functions can be used.
8.2.2. Deactivating an active plug-in
A plug-in Activation code that is currently in use can be deactivated. This
allows the corresponding License code to be used in a different Cisco unit, or
transferred to another Cisco user.
To deactivate an activated License code for use with another Cisco unit, do
the following steps:
On the Configurator interface, click the PLUGINS sub-tab under the SERVICES tab (FM FM1300 Otto only) or click the -manage plug-ins link under MANAGEMENT SETTINGS in the left-hand settings menu (all other devices).
• The Manage Plugins dialog will be shown (see below). Figure 66. Configurator interface (MANAGE PLUG-INSdialog)
Click the red REMOVE link to the right of the correct plug-in listing.
• The web browser will inform you that deactivating the plug- in will reboot
the unit, and ask for confirmation that you want to deactivate it.
Confirm the deactivation.
• The unit will reboot.
• The Deactivation code for the plug-in will be shown to the right of the
plug-in listing, in the Plug-in Deactivation Codes section (see below). Figure 67. MANAGE PLUG-INSDeactivation DIALOG (Plug-in Codes
section)
Make a note of the Deactivation code.
Log on to the Cisco Partner Portal.
Click the Plug-ins link.
• The Plug-ins web page will be shown (Figure 68 (page 148)). Figure 68. Partner Portal Plug-ins page (License code deactivation)
Check the selection checkbox to the left of the relevant plug-in listing.
• The plug-in control buttons will be shown at the bottom of the web page.
Enter the Deactivation code for the plug-in in the Deactivation Code field (Figure 69 (page 148)). Figure 69. Partner Portal Plug-ins page (deactivation codeentry)
Click the Deactivate button at the bottom of the web page.
• The PLUG-IN DEACTIVATION dialog will be shown.
To do a normal deactivation, click the Deactivate button. If for any reason it is not possible to retrieve the deactivation code, click the Force Deactivation button.
IMPORTANT
Only click the Force Deactivation button if you have no way to retrieve the
deactivation code (for example, if the unit’s boot sequence cannot be
completed, or if the unit is damaged and cannot be powered ON).
The plug-in will be deactivated.
The Deactivation code will be shown in the Deactivation Code column of the plug-in listing.
The Deactivation code will remain on the Partner Portal and can be used to generate a new Activation code if needed.
8.2.3. Reactivating a deactivated plug-in
To use a Deactivation code to generate a new Activation code, do the following
steps:
Log on to the Cisco Partner Portal.
Click the Plug-ins link.
• The Plug-ins web page will be shown (Figure 70 (page 149)).Figure 70. Partner Portal (Plug-ins web page)
Check the selection checkbox to the left of the relevant plug-in listing.
• The plug-in control buttons will be shown at the bottom of the web page.
Enter the unit identification number (5. a.b.c) or the unit serial number of the Cisco unit in the Mesh ID – Serial Number field.
Complete the plug-in activation process as shown in “Plug-in activation” (page 144).
8.2.4. Exporting and uploading multiple Activation codes If more than one plug-in Activation code must be uploaded to a Cisco radio
transceiver unit at the same time, the need to upload codes one by one can be
avoided by exporting multiple codes, or all codes, from the Partner Portal as
a .CSV file.
To export a collection of Activation codes from the Partner Portal as a .CSV
file, do the following steps:
Log on to the Cisco Partner Portal.
Click the Plug-ins link.
• The Plug-ins web page will be shown.
Convert all needed License codes and/or Deactivation codes to Activation codes as shown in “Plug-in activation” (page 144)
To export only selected Activation codes, check the selection checkboxes to the left of each plug-in that must be included in the *.CSV file, then click the Export selected button. Alternatively, export all Activation codes by clicking the Export All button (Figure 71 (page 150)). IMPORTANT If all Activation codes are exported, only the Activation codes that are
linked to the unit identification number (5. a.b.c), or the unit serial number
of the target unit, will be assigned to the unit. All codes that are not
relevant to the unit will remain unused. Figure 71. Plug-ins web page (code
export controls)
Follow the software prompts to download the exported *.CSV file to your computer. Save the file in a safe place.
On the configurator interface, click the -manage plug-ins link under MANAGEMENT SETTINGS in the left-hand settings menu.
• The MANAGE PLUG-INS dialog will be shown.
Upload the .CSV file to the unit by clicking the Choose File button in the Upload Plug-ins CSV section (Figure 72 (page 151)) and following the software prompts. Figure 72. MANAGE PLUG-INS DIALOG (Upload Plug-ins CSV section) • The chosen .CSV file will be listed to the right of the
Choose the File button.
Click the Upload button.
• The plug-ins will be uploaded to the unit and activated, and the relevant
functions can be used.
8.2.5. Sharing License codes and accepting shared License codes
If needed, you can share license codes with other Cisco device users, and also
have other Cisco device users share their license codes with you. To share one
or more license codes with another Cisco device user,do the steps that
follow:
Log on to the Cisco Partner Portal.
Click the Plug-ins link.
• The Plug-ins web page will be shown.
Check the selection checkboxes to the left of the plug-ins that must be shared.
Click the Share button in the upper left-hand corner of the Plugins web page (Figure 73 (page 151)). Figure 73. Plug-ins web page (Share button)
• The Share License Codes dialog will be shown.
Enter one or more E-mail addresses to which the License codes must be sent. Click the Share button.
• An E-mail containing the selected License codes will be sent to the
specified E-mail addresses.
• The License codes contained in the E-mail can be converted to plug-in
Activation codes in the normal way.
If needed, you can also ask another device user to share one or more license
codes with you. If a License code is shared with you, it will be listed on
your Partner Portal Plug-ins web page.
Troubleshooting
The troubleshooting section will allow you to solve the most common problems
encountered when configuring and installing Cisco products. 9.1. I cannot get the Log-in screen
If you have directly connected a Windows computer to your Cisco device for
device configuration, but you cannot access the log-in form on your web
browser, check the following points: Are you trying to access the unit using a valid IP address?
You must manually set the computer’s IP address and Netmask to be recognizable
by the Cisco device. The correct settings are as follows:
IP address: 192.168.0.10 (or any other IP address belonging to subnet 192.168.0.0/255.255.255.0)
Netmask: 255.255.255.0
Have you disabled the ‘Access the Internet using a proxy server function?
If your browser shows a time-out or similar message, the computer may be
trying to access the Cisco device through a proxy server. To stop the computer
from trying to access the unit through a proxy connection, refer to “Accessing
the Cisco FM4500 Embedded for device configuration” (page 47). 9.2. I cannot log in to the FM Racer interface
IMPORTANT
For a detailed description of the differences between the FM Racer
configuration interface and the local Configurator interface, refer to “Device
configuration using the configurator interface” (page 45).
If you are not able to log in to the FM Racer web-based configuration
interface, check that you have entered the correct username and password.
The factory-set user name for the FM Racer configuration interface is admin.
The factory-set password is the admin
To change the factory-set user name and the Cisco password, refer to the
Networks FM Racer User Manual.
9.3. I forgot the Administrator password
If you have forgotten the Administrator username and/or password for the
Configurator interface, and you must access the unit to configure it using the
Configurator interface, do the following steps:
Physically access the unit.
Use the hardware Reset button to reset the unit to its factory default settings. Refer to “Resetting the unit to factory defaults” (page 137) for more information.
9.4. The wireless link is poor or non-existent in Bridge mode If the unit is set to Bridge mode and is showing any or all of the
following symptoms:
There is no wireless link
The link LED on the device enclosure shows constant red
The wireless link is constantly below 60% signal strength
Check the following points to improve the wireless link strength:
Antenna alignment: The antennas belonging to both units forming part of the affected link must face each other as directly as possible.
Line-of-sight: The antennas belonging to both units forming part of the affected link must have a clear line-of-sight (in other words, there must be no physical obstructions between the two antennas).
Power: Verify that both units forming part of the affected link are receiving enough power from their Ethernet connections or PoE injectors.
Frequency value and channel width: Both units form part of the affected link and must be set to the same frequency value, and to the same channel width.
Electrical power requirements
The following table describes:
The electrical power requirements for each Cisco hardware device type.
Which Cisco hardware devices are capable of receiving power through an IEEE 802.3 Ethernet port (whether from a power- supplying device like a compatible network switch, from a power-over-Ethernet (PoE) injector), or through a DC IN power supply port, or both?
The specific voltage-variation tolerances of each Cisco radio transceiver unit type.
Table 9. Individual power requirements (FM1000 Gateway and FM10000
Gateway)
| Required input power| FM1000Gateway| FM10000Gateway
---|---|---|---
DC IN| 12 Vdc (from mains AC power adapter producing a minimum of 60W
(12V/5A)).| X|
First-generation FM10000 Gateway: unit may be equipped with a single 250W non-
redundant AC power supply unit (input power: 100 Vac to 240 Vac at 50 Hz to 60
Hz.| | X|
Table 10. Individual power requirements (FM Ponte kit to FM4200 Mobi)
| | FM Ponte kit (modelFM1200V- HW)| FM1200Volo(model
FM1200-HW)| FM1300Otto| FM3200Base (modelF M3200)|
FM3200Endo (modelF M3200)| FM4200Mobi (modelF M4200)
---|---|---|---|---|---|---|---
PoE| 24V passive PoE| X| X| | | |
| 48V passive PoE| | | | X| X| X
| IEEE 802.3af PoE (voltage range at PD: 37V to 57V)| | | X| X|
X| X
---|---|---|---|---|---|---|---
| IEEE 802.3at PoE
(voltage range at PD: 42.5V to 57V)| | | X| X| X| X
DC IN| Permanent DC power, min. 24V max. 60V| | | | | | X
EN 50155 compliance __ at 48V| | | | | | X
Table 11. Individual power requirements (FM4200 Fiber to FM4800 Fiber)
11. Heat radiation data When in use, all Cisco gateway units and radio transceivers generate heat
as a by-product of electrical activity. Heat radiated by a Cisco device may be
of concern in confined locations such as server rooms (where the cumulative
heat generated by a collection of electrical and electronic devices may cause
damage to sensitive electronic components) and outdoor equipment enclosures
(in which electronic components may overheat if the enclosure is not properly
ventilated). WARNING
The outer surfaces of some Cisco units may become hot during normal operation.
Such units have a ‘Hot Surfaces’ warning triangle on their outer enclosures.
During normal operation, do not touch or handle such unit enclosures without
personal protective equipment.
The following table shows nominal heat-radiation figures for all Cisco devices
under idle conditions and under full-load conditions.
All heat-radiation figures are given in British Thermal Units (BTU) per hour.
Federal Communications Commission (FCC) radio interference statement
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.
FCC Caution: to assure continued compliance, use only shielded interface
cables when connecting to computer or peripheral devices. You are cautioned
that changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment. This
transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. FCC Radiation Exposure Statement This equipment
complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum
distance of 20 centimeters between the radiator and your body.
This device has been assembled using components that comply with Part 15 of
the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
This product is not suitable for use in a domestic environment, as it may
cause electromagnetic interference, which may require the user to take
necessary measures to minimize such interference.
Anatel Resolution 680 – This equipment is not entitled to protection against
harmful interference, and is prohibited from causing interference in duly
authorized systems.
Device certification for Taiwan (RoC)
EN 55032:2015/A1:2016 Class A
EN 61000-3-2:2014
EN61000-3-3:2013
EN 55024:2010 BSMI
EMC standard: CNS 13438
Safety standard: CNS 14336-1
Unit
Restricted substances and their chemical symbols
Lead(Pb)
Mercury(Hg)
biphenyls(PBB)
Polybrominated diphenyl ethers (PBDE)
Enclosure
–
Metallic mechanical parts (bracket, heatsink, fasteners etc.)
–
O
PCBA| –| O| O| O| O| O
Cables/connectors| –| O| O| O| O| O
Accessories| –| O| O| O| O| O
1. 0.1 wt %〞0.01 wt %〞
2. O〞
(Manufacturing company name)|
---|---
(Manufacturing company name)| Cisco Systems, Inc.
(Manufacturing company address)| 170 West Tasman Dr. San Jose, CA 95134, USA
16.1. Preamble
This License Agreement strictly prohibits you from using the Cisco Firmware on
any device other than a Cisco Device. You are also prohibited from removing or
modifying any Cisco or Cisco copyright notice, trademark or user interface of
the Cisco Firmware or any Cisco Device.
The Cisco Firmware is copyright-protected material under United States and
international copyright and other applicable laws. Unauthorized copying, use
or modification of any part of this firmware, or violation of the terms of
this Agreement, will be prosecuted to the maximum extent allowable under law. 16.2. Notice
This is an agreement between you and Cisco a division of Cisco (hereafter
known as ‘Cisco’).
You must read and agree to the terms of this firmware license agreement
(hereafter known as the ‘agreement’) before any Cisco firmware can be
downloaded, installed or used. By clicking the ‘Accept’ button on any Cisco
firmware download web page, or by downloading, installing or using Cisco
firmware and/or by using any Cisco device running Cisco firmware, you are
agreeing to be bound by the terms and conditions of this agreement. If you do
not agree with the terms and conditions of this agreement, then you should not
download, install or use any Cisco firmware, and you agree to forego any
implied or statedrights to download, install or use Cisco firmware. 16.3. Definitions
For the purpose of this Agreement, the following terms shall have the
following meanings:
‘Open Source Software means any software or software component, module or
package that contains, or is derived in any manner (in whole or in part) from,
any software that is distributed as free software, open source software or
similar licensing or distribution models, including, without limitation,
software licensed or distributed under any of the following licenses or
distribution models, or licenses or distribution models similar to any of the
following: (a) GNU’s General Public License (GPL) or Lesser/Library GPL
(LGPL); (b) the Artistic License (e.g., PERL); (c) the Mozilla Public License;
(d) the BSD License; and (e) the Apache License;
‘Cisco Device’ means a Cisco networking device that you purchase or otherwise
rightfully acquire;
‘Cisco Firmware’ means the firmware in object code form made available by
Cisco for Cisco Devices; and ‘You’ and ‘Your’ mean the company, entity or
individual who owns or
otherwise rightfully acquires the Cisco Device into which the Cisco Firmware
will be incorporated. 16.4. License grant Cisco grants you a non-exclusive, non-transferable license to use a copy of
the Cisco Firmware and accompanying documentation and any updates or upgrades
thereto provided by Cisco according to the terms set forth below. You are
authorized by this license to use the Cisco Firmware in object code form only,
and solely in conjunction with applicable and permitted Cisco-branded products
and/or services and in accordance with the applicable documentation. You are
granted a limited and non-exclusive license (without the right to sub-license)
to use the Software solely for the Cisco Devices that you own and control, and
solely for use in conjunction with the Cisco Firmware. 16.5. Uses and restrictions on use You may:
(a) download and use Cisco Firmware for use in Cisco Devices, and make copies
of the Cisco Firmware as reasonably necessary for such use, provided that you
reproduce, unaltered, all proprietary notices that exist on or in the copies. You may not, and shall not permit others to:
(a) use the Cisco Firmware on any devices or products that are not owned by
you or your business organization;
(b) use the Cisco Firmware on any non-cisco Devices;
(c) copy the Cisco Firmware (except as expressly permitted above), or copy the
accompanying documentation;
(d) modify, translate, reverse engineer, decompile, disassemble, or otherwise
attempt
(i) to defeat, avoid, bypass, remove, deactivate, or otherwise circumvent any
software protection mechanisms in the Cisco Firmware, including without
limitation any such mechanism used to restrict or control the functionality of
the Cisco Firmware, or
(ii) to derive the source code or the underlying ideas, algorithms, structure
or organization from the Cisco Firmware (except that the foregoing limitation
does not apply to the extent that such activities may not be prohibited under
applicable law); or
(e) distribute, rent, transfer or grant any rights in the Cisco Firmwareor
modifications thereof or accompanying documentation in any form to any person
without the prior written consent of Cisco.
(f) remove any Cisco or Cisco copyright notice, or Cisco or Ciscobranding from
the Cisco Firmware, or modify any user interface of the Cisco Firmware or
Cisco Device.
Cisco Devices must be properly installed and they are sold for installation by
a professional installer only. Cisco Devices must be installed by a
professional installer of wireless networking products certified by Cisco and
they are not designed for installation by the general public. It is your
responsibility to follow local country regulations, including operation within
legal frequency channels, output power, and Dynamic Frequency Selection (DFS)
requirements. You are responsible for keeping the devices working according to
these rules.
(g) The Cisco Firmware contains technological protection or other security
features designed to prevent unauthorized use of the Cisco Firmware, including
features to protect against use of the Cisco Firmware beyond the scope of the
license granted herein, or in a manner prohibited herein. You agree that you
shall not, and shall not attempt to, remove, disable, circumvent or otherwise
create or implement any workaround to, any such copy protection or security
features.
This license is not a sale. Title and copyrights to the Cisco Firmware, and
any copy made by you, remain with Cisco and its suppliers. Unauthorized
copying of the Cisco Firmware or the accompanying documentation, or failure to
comply with the above restrictions, will result in the automatic termination
of this license and will make other legal remedies available to Cisco. 16.6. Open-source software
You hereby acknowledge that the Cisco Firmware may contain Open Source
Software. You agree to review any documentation that accompanies the Cisco
Firmware or is identified in the documentation for the Cisco Firmware, in
order to determine which portions of the Cisco Firmware are Open Source
Software and are licensed under an Open Source Software license. To the extent
that any such license requires that Cisco provides you with rights to copy,
modify, distribute or otherwise use any Open Source Software that is
inconsistent with the limited rights granted to you in this Agreement, then
such rights in the applicable Open Source Software license shall take
precedence over the rights and restrictions granted in this Agreement, but
solely with respect to such Open Source Software. You acknowledge that the
Open Source Software license is solely between you and the applicable licensor
of the Open Source Software. You shall comply with the terms of all applicable
Open Source Software licenses if any. Copyrights to the Open Source Software
are held by the copyright holders indicated in the copyright notices in the
corresponding source files, or as disclosed at
www.cisco.com. 16.7. Termination This license will continue until terminated. Unauthorized copying of the
Cisco Firmware or failure to comply with the above restrictions will result in
automatic termination of this Agreement and will make other legal remedies
available to Cisco. This license will also automatically terminate if you go
into liquidation, suffer or make any winding-up petition, make an arrangement
with your creditors, or suffer or file any similar action in any jurisdiction
in consequence of debt.
Furthermore, Cisco may immediately terminate this Agreement if (i)you fail to
cure a breach of this Agreement (other than a breach pursuant to Cisco
intellectual property rights) within thirty (30) calendar days after its
receipt of written notice regarding the such breach, or (ii) you breach any
Cisco intellectual property right. Upon termination of this license for any
reason, you agree to destroy all copies of the Cisco Firmware. Any use of the
Cisco Firmware after termination is unlawful. 16.8. Feedback You may provide suggestions, comments, or other feedback (‘Feedback’) with
respect to Cisco Firmware, and Cisco Devices. Feedback, even if designated as
confidential by you, shall not impose any confidentiality obligations on
Cisco. You agree that Cisco is free to use, disclose, reproduce, license or
otherwise distribute and exploit any Feedback provided by you as Cisco sees
fit, entirely without obligation or restriction of any kind on account of
intellectual property rights, or otherwise. 16.9. Consent to the use of data
You acknowledge and agree that Cisco may, directly or indirectly through the
services of third parties, collect and store information regarding the use and
performance of the Cisco Firmware and Cisco Devices, and about equipment
through which it otherwise is accessed and used.
You further agree that Cisco may use such information for any purpose related
to any use of the Cisco Firmware and Cisco Devices by you, including, without
limitation, improving the performance of the Cisco Firmware or developing
updates and verifying your compliance with the terms of this Agreement and
enforcing Cisco’s rights, including all intellectual property rights in and to
the Cisco Firmware.
Cisco shall have the right to collect and analyze data and other information
relating to the provision, use, and performance of various aspects of the
Cisco Firmware and Cisco Devices and related systems and technologies
(‘Data’), and you give Cisco the right to use and disclose such Data (during
and after the term of this Agreement)in accordance with Cisco’s Privacy
Policy. If you choose to allow diagnostic and usage collection, you agree that
Cisco and its subsidiaries and agents may collect, maintain, process, and use
diagnostic, technical, usage, and related information, including but not
limited to a unique system or hardware identifiers, information about your
device, system and software, that is gathered periodically to provide and
improve Cisco’s products and services, facilitate the provision of software
updates, product support and other services to you (if any) related to Cisco
products, and to verify compliance with the terms of this license. Cisco may
use this information, as long as it is collected in a form that does not
personally identify you, for the purposes described above.
To enable Cisco’s partners and third-party developers to improve their
software, hardware, and services designed for use with Cisco products, Cisco
may also provide any such partner or third-party developer with a subset of
diagnostic information that is relevant to that partner’s or developer’s
software, hardware and/or services, as long as the diagnostic information is
in a form that does not personally identify you. 16.10. Warranty disclaimer
Cisco Firmware, including without limitation any open source software, any
Cisco Device, and any accompanying documentation are provided ‘As is, and
Cisco and its suppliers make, and you receive, no warranties or conditions,
whether express, implied, otherwise, or in any communication with you, and
Cisco and its suppliers specifically disclaim any implied warranty of
merchantability, satisfactory quality, fitness for a particular purpose, or
non-infringement and their equivalents.
Cisco does not warrant that the operation of the Cisco Firmware will be
uninterrupted or error-free or that the Cisco Firmware will meet your specific
requirements. You acknowledge that Cisco has no support or maintenance
obligations for the Cisco Firmware. 16.11. Limitation of liability Except to the extent that liability may not by law be limited or excluded,
in no event will Cisco or its suppliers be liable for loss of, or corruption
to data, lost profits or loss of contracts, cost of procurement of substitute
products or other special, incidental, punitive, consequential or indirect
damages arising from the supply or use of the Cisco Firmware, howsoever caused
and on any theory of liability (including without limitation negligence).
This limitation will apply even if Cisco or an authorized distributor or
authorized reseller has been advised of the possibility of such damages,
notwithstanding the failure of the essential purpose of any limited remedy. In
no event shall Cisco’s or its suppliers or its resellers’ liability exceed
five hundred United States dollars (US$ 500). You acknowledge that this
provision reflects a reasonable allocation of risk. 16.12. Exclusion of liability for emergency services Cisco does not support, nor are the services intended to support or carry,
emergency calls to any emergency services, including but not limited to 911
dialing.
Cisco will not be held responsible for any liability or any losses, and you,
on behalf of yourself and all persons using the services through the licensed
products, hereby waive any and all such claims or causes of action for losses
arising from or relating to, any party’s attempts to contact emergency service
providers using the licensed products, including but not limited to calls to
public safety answering points.
Cisco will not be held liable for any losses, whether in contract, warranty,
tort (including negligence), or any other form of liability, for any claim,
damage, or loss, (and you hereby waive any and all such claims or causes of
action), arising from or relating to your (i) inability to use the services to
contact emergency services, or (ii) failure to make additional arrangements to
access emergency services.
The parties expressly acknowledge and agree that Cisco has set its prices and
entered into this agreement in reliance upon the limitations of liability and
disclaimers of warranties specified herein, which allocate the risk between
Cisco and the end user and form a basis of the bargain between the parties. 16.13. Export control You acknowledge that the Cisco Devices, Cisco Firmware, documents,
technical data, and any other materials delivered under this Agreement are
subject to U.S. export control laws, and may also be subject to export or
import regulations in other countries. You agree to comply strictly with these
laws and regulations and acknowledge that you have the responsibility to
obtain any licenses to export, re-export, or import as may be required after
delivery to you. You shall not, directly or indirectly, export, re-export or
release the Cisco Devices and Cisco Firmware, too, or make the Cisco Devices
and CiscoFirmware accessible from any jurisdiction or country to which export,
re-export or release is prohibited by law, rule, or regulation. In particular,
but without limitation, the Cisco Devices and Cisco Firmware may not be
exported or re-exported
(a) into any U.S. embargoed countries or
(b) to anyone on the U.S. Treasury Department’s list of Specially Designated
Nationals or the U.S. Department of Commerce Denied Person’s List or Entity
List.
By using the Cisco Devices and Cisco Firmware, you represent and warrant that
you are not located in any such country or on any such list. You acknowledge
and agree that you shall strictly comply with all applicable laws,
regulations, and rules, and complete all required undertakings (including
obtaining any necessary export license or other governmental approval), prior
to operating the Cisco Devices and Cisco Firmware, or exporting, re-exporting,
releasing or otherwise making the Cisco Devices and Cisco Firmware available
outside the U.S. You acknowledge and agree that Cisco has no further
responsibility after the initial delivery to you, and you hereby agree to
indemnify and hold Cisco harmless from and against all claim, loss, liability
or damage suffered or incurred by Cisco resulting from, or related to your
failure to comply with all export or import regulations. 16.14. General
This Agreement shall not be governed by the 1980 U.N. Convention on Contracts
for the International Sale of Goods. Rather, this Agreement shall be governed
by the laws of the State of Illinois, including its Uniform Commercial Code,
without reference to conflicts of laws principles. You agree to the exclusive
jurisdiction and venue of the State and Federal courts in Illinois, United
States.
This Agreement is the entire agreement between you and Cisco and supersedes
any other communications or advertising with respect to the Cisco Firmware and
accompanying documentation. If any provision of this Agreement is held invalid
or unenforceable, such provision shall be revised to the extent necessary to
cure the invalidity or unenforceability, and the remainder of the Agreement
shall continue in full force and effect.
This Agreement and all documents, notices, evidence, reports, opinions, and
other documents given or to be given under this Agreement (collectively with
this Agreement, ‘Documents’) are and will be written in the English language
only. In the event of any inconsistency between any Document in the English
language and any translation of it into another language, the English-language
Document shall prevail. If you are acquiring the Cisco Firmware on behalf of
any part of the U.S. Government, the following provisions apply: The Cisco
Firmware and accompanying documentation are deemed to be ‘commercial computer
software and ‘commercial computer software documentation’ respectively,
pursuant to DFAR Section 227.7202 and FAR 12.212(b), as applicable. Any use,
modification, reproduction, release, performance, display or disclosure of the
Cisco Firmware and/or the accompanying documentation by the U.S. Government or
any of its agencies shall be governed solely by the terms of this Agreement
and shall be prohibited except to the extent expressly permitted by the terms
of this Agreement. Any technical data provided that is not covered by the
above provisions is deemed to be ‘technical data-commercial items’ pursuant to
DFAR Section 227.7015(a). Any use, modification, reproduction, release,
performance, display or disclosure of such technical data shall be governed by
the terms of DFAR Section 227.7015(b).
Cisco is a trademark of Cisco Systems in the United States and worldwide.
Contact us
Worldwide Headquarters:
Cisco Systems LLC
81 Prospect Street
Brooklyn, New York 11201
United States of America
Tel. +1 (617) 209 -6080
Fax. +1 866-458-1522 info@fluidmesh.cominfo@cisco.com
Technical Support desk: support@fluidmesh.com www.fluidmesh.comwww.cisco.comsupport@cisco.com Regional headquarters for Europe, the Middle East, and Africa:
Tel. +39 02 0061 6189 Regional headquarters for the United Kingdom:
Tel. +44 2078 553 132
Regional headquarters for France:
Tel. +33 1 82 88 33 6 Regional headquarters for Australia and New Zealand:
Tel: +61 401 747 403
3.3. Cisco Network Addressing
Figure 7. Cisco FM4500 Embedded (Hardware RESET button)
Type of connector and cable:
•
Find and choose the correct configuration file by following the software
prompts.
If
the unit has been set to Bridge Mode, you must set the Bridge ID of the remote
unit to which the local unit must be linked. Set the Bridge ID by doing the
following steps:
More than one two-way wireless link may be shown in the Detected Links table. Find the two-way link for which the local antenna must be adjusted.
IMPORTANT
Figure 29. Advanced Tools window (Ping test tool)
Figure 30. Advanced Tools window (Bandwidth test tool)
Figure 31. Advanced Tools window (Path MTU test tool)
Figure 34. Sample Pass list (Example 1)
Figure 35. Sample Pass list (Example 2)
Figure 36. Sample Block list (Example 3)
Figure 37. Configurator (Pass list / Block list dialog)
Figure 38. Multicast dialog (Mesh End mode)
Figure 39. Multicast dialog (Bridge mode)
Figure 40. Configurator interface (Unit ID information)
Figure 41. SNMP dialog (SNMP disabled)
Figure 42. SNMP dialog (v2c selected)
Figure 43. SNMP dialog (v3 selected)
Figure 44. Configurator GUI (RADIUS dialog)
Figure 45. Configurator GUI (NTP dialog)
Figure 46. Configurator GUI (L2TP Configuration dialog)
Figure 47. Configurator GUI (VLAN SETTINGS dialog)
Figure 48. Configurator GUI (FLUIDITY dialog for transceiver
devices)
Figure 49. Configurator GUI (MISC SETTINGS dialog)
Figure 50. Default credentials notification banner
Figure 51. VIEW MODE SETTINGS dialog (Viewmode Credentials section)
Figure 52. Configurator GUI (VIEW MODE SETTINGS dialog)
Figure 54. Management Settings dialog (Change
Figure 55. Configurator UPGRADE dialog) GUI (typical FIRMWARE
Figure 57. MANAGE PLUG-INS dialog (Demo Mode activated)
Figure 60. Configurator GUI (LOAD OR RESTORE SETTINGS dialog)
Figure 63. Web browser (Authentication Required dialog)
Figure 65. Partner Portal Plug-ins page (License code plug-in)
Figure 68. Partner Portal Plug-ins page (License code deactivation)
Figure 70. Partner Portal (Plug-ins web page)
Figure 72. MANAGE PLUG-INS DIALOG (Upload Plug-ins CSV section)
