Both Lighting BO-TUBE192 IP65 Wireless Battery 360 Degree Pixel Tube User
Manual
Introduction
Unpacking:
Thank you for purchasing this product, all products has been
thoroughlytestedandhas been shipped in perfect operating condition. Carefully
check the shipping cartonfor damagethat may have occurred during shipping. If
the carton appears to be damaged, carefullyinspectyour fixture for any damage
and be sure all accessories necessary to operate the unit hasarrivedintact. In
the case damage has been found or parts are missing, please contact the
manufactureror your dealer for further instructions. Do not return this unit
to your dealer without first contacting.
Introduction: The Light is a DMX intelligent and battery powered LED par
light. Thispar lightislight weight and compact which makes it a great piece
for mobile DJ‟s and clubs.
Warning! To prevent or reduce the risk of electrical shock or fire, do
not expose thisunit torainor moisture
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairsyourself; doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact the manufacturer or your dealer.
PLEASE recycle the shipping carton whenever possible.
General Instructions
To optimize the performance of this product, please read these operating
instructionscarefullytofamiliarize you with the basic operations of this unit.
These instructions contain important safetyinformation regarding the use and
maintenance of this unit. Please keep this manual withtheunit,for future
reference.
Notice :please pay attention to ventilation, to prevent thebatteryoverheat cause burning When charging
Specifications
- Power input : 100-240V AC 50-60Hz
- Power: 28W
- Battery capacity: 9600mAh
- Light Source: LED5050 192*0.2W RGBWA 5in1
- Channel mode : 5/6/7/12/40/80/160CH
- Control mode: wireless dmx(Guangzhou/Sweden protocol), infrared remote, Master-slave, sound, auto,App control
- Maximum running time (full light): 1 hour /2 hours /3 hours /4 hours /5 hours/ 6 hours /7hours/8hours/9hours /10 hours /11 hours /12 hours mode is optional. Maximum running time (solid light): up to 8 hours. Stroboscopic: 1-20HZ
- Dimming: 4 dimming modes
- Effect: 68 preset colorful effects
- Control panel: OLED display screen
- IP rating: IP65
- Net weight: 1.7kg
- Dimensions: 5314361506mm
- Heat dissipation system: natural heat dissipation
- Shell: aluminum alloy, semi-light oxidized fine black sand.
Features:
- System functions: voice control/self-propelled/color temperature/color saturation2. System upgrade: wireless DMX512 software upgrade
- Temperature protection function
- Battery management function
- Infrared remote control, wireless DMX512 (Guangzhou/Sweden protocol)
- Support mobile APP control (Android and Apple)
Charging
Most important : FIRST CHARGE THE FIXTURES FOR 6-7Hours on the First
Charge before use. Plug in Power cord. Turn off Power Switch and Turn off
other switch to charge.
Operation
Control Pane
DMX Channel
| Address | 001–512 | Address 001-512 |
|---|---|---|
| 5CH | 5 channel | |
| 6CH | 6 channel | |
| 7CH | 7 channel | |
| 12CH | 12 channel | |
| 40CH | 40 channel | |
| 80CH | 80 channel | |
| 160CH | 160 channel | |
| DMX Fail | Hold | DMX512 data hold |
| Blakout | DMX512 data does not hold (black field) | |
| Dimmer Curve | Curve 1 | linear curve |
| Curve 2 | square curve | |
| Curve 3 | logarithmic curve | |
| Curve 4 | S-curve | |
| Custom | Red：0-255 | red manual dimming |
| Green：0-255 | Green manual dimming | |
| Blue：0-255 | blue manual dimming | |
| White：0-255 | white manual dimming | |
| Yellow：0-255 | Yellow manual dimming | |
| Program | Color | DIM:0-255 |
Color:1-27
Strobe:0-255
Lee Color| DIM:0-255
Lee Color| L101
L102
L105
L106
L107
L110
L111
L115
L116
L118
L119
L121
L124
L126
L127
L128
L132
L135
L139
L147
L151
L152
L158
L164
L174
L179
L180
L201
L203
L204
Strobe:0-255|
CCT| DIM:0-255|
| CCT| 2700K|
3000K|
3200K|
3500K|
3800K|
4100K|
4400K|
4700K|
5000K|
5300K|
5600K|
5900K|
6200K|
6500K|
6800K|
7100K|
| 7400K|
7700K|
8000K|
8300K|
8600K|
8900K|
9200K|
9500K|
9800K|
10000K|
| 10500K|
11000K|
10500K|
11000K|
11500K|
12000K|
G/M:-1.00–1.00|
HSI| DIM:0-255|
HUE:0-360|
STA:0-100|
Auto| Auto Mode:0-60|
Speed:1-16|
Color:0-27|
Sound| Sound Mode:0-3|
SENS:0-100|
Color:0-27|
WIFI| LED_XXX|
Master/Slave| Master|
Slave|
Wireless DMX| On|
Off|
Clear|
Pairing|
Run Time| 1h/2h/3h/4h/5h/6h/7h/8h/9h/10h/11h/12h|
Informatio n| Version1.0|
Current Time 00H35M 00S|
IR| ON|
OFF|
MenuLock| ON|
OFF|
Back Light| Always On|
10s|
20s|
30s|
FactoryReset| ON|
YES|
| | | | |
DMX Channel Functions
When using a DMX controller, use the chart below to reference each channel’s function.
| CH | 5CH | 6CH | 7CH | 12CH | 40CH | 80CH | 160CH |
|---|---|---|---|---|---|---|---|
| CH1 | 0-255red dimming | 0-1 closed light1-255 totaldimming | 0-1 closed | ||||
| light1-255 totaldimming | 0-1 closed light1-255 total dimming | R-1 | R-1 | R-1 | |||
| CH2 | 0-255green dimming | 0-10 no strobe 11-255strobe | 0-10 no strobe11-255 | ||||
| strobe | 0-10 no strobe11-255 strobe | G-1 | G-1 | G-1 | |||
| CH3 | 0-255blue dimming | 0-4 none5-255 RGBcolor mixing | 0-255 red dimming | 0-10 |
cycle color mixing 11-19 red20-28 green29-37 blue38-46 white47-55 yellow56-64 red + green 65-73 green + blue 74-82 red + blue 83-91 red + green92-100 green
- blue 101-109 red + yellow 110-118 red + green 119-127 green + blue 128-136
red137-145 blue + yellow 146-154 yellow + white 155-163 green+white164-172
green+amber 173-181 red + blue + white182-190 red + yellow + white191-199
green + blue + white200-208 green + blue + yellow209-217 blue + yellow +
white218-226 red + green +blue + white| B-1| B-1| B-1
| | | | 227-235 red + green + blue + white236-244 green + blue + white + yellow245-255red+green+blue+white+ yellow| | |
CH4| 0-255white dimming| 0-255dimming| 0-255 green dimming| 0-16 none17-33 base color red 34-50 background color green51-67 background color blue68-84 background color white85-101 background color yellow102-118 base color red+ green119-135 background color green + blue136-152 base color red+ blue153-169 background color red + green 170-186 background color green + blue 187-203 background color red + yellow 204-220 background color red + green 221-237 background color green + blue 238-254 background color red + blue255 base color blue +yellow| W-1| W-1| W-1
CH5| 0-255Amber dimming| 0-4 none5-255 color temperature| 0-255 blue dimming| 0-1 none2-255 base light| Y-1| Y-1| Y-1
CH6| | 0-255 color saturation| 0-255 white dimming| 0-10 none11-214 effects (60 types, 3 values for one effect)| R-2| R-2| R-2
| | | | 215-220 full effect221-255 voice control| | |
CH7| | | 0-255 Amberdimming| 0-255 effect speed| G-2| G-2| G-2
CH8| | | | 0-255 red dimming| B-2| B-2| B-2
CH9| | | | 0-255 green dimming| W-2| W-2| W-2
CH10| | | | 0-255 blue dimming| Y-3| Y-3| Y-3
CH11| | | | 0-255 white dimming| R-3| R-3| R-3
CH12| | | | 0-255 yellow dimming| G-3| G-3| G-3
CH13| | | | | B-3| B-3| B-3
CH14| | | | | W-3| W-3| W-3
CH15| | | | | Y-3| Y-3| Y-3
CH16| | | | | R-4| R-4| R-4
CH17| | | | | G-4| G-4| G-4
CH18| | | | | B-4| B-4| B-4
CH19| | | | | W-4| W-4| W-4
CH20| | | | | Y-4| Y-4| Y-4
CH21| | | | | R-5| R-5| R-5
CH22| | | | | G-5| G-5| G-5
CH23| | | | | B-5| B-5| B-5
CH24| | | | | W-5| W-5| W-5
CH25| | | | | Y-5| Y-5| Y-5
CH26| | | | | R-6| R-6| R-6
CH27| | | | | G-6| G-6| G-6
CH28| | | | | B-6| B-6| B-6
CH29| | | | | W-6| W-6| W-6
CH30| | | | | Y-6| Y-6| Y-6
CH31| | | | | R-7| R-7| R-7
CH32| | | | | G-7| G-7| G-7
CH33| | | | | B-7| B-7| B-7
CH34| | | | | W-7| W-7| W-7
CH35| | | | | Y-7| Y-7| Y-7
CH36| | | | | R-8| R-8| R-8
CH37| | | | | G-8| G-8| G-8
CH38| | | | | B-8| B-8| B-8
CH39| | | | | W-8| W-8| W-8
CH40| | | | | Y-8| Y-8| Y-8
……..| | | | | | …….| …….
CH156| | | | | | | R-32
CH157| | | | | | | G-32
CH158| | | | | | | B-32
CH159| | | | | | | W-32
CH160| | | | | | | Y-32
Advanced parameter settings:
（In A001 mode, press the “ENTER”keyfor3seconds to enter
| Red | 000-255 | Red current regulation |
|---|---|---|
| Green | 000-255 | Green current regulation |
| Blue | 000-255 | blue current regulation |
| White | 000-255 | white current regulation |
| Yellow | 000-255 | yellow current regulation |
| State | Single | currently bright |
| Whole | full light | |
| T.Limit | 060 | Power reduction setting (OFF/function off, power reduction |
on/40-100degrees adjustable range)
Delay| YES| Dimming delay on
NO| Dimming delay off

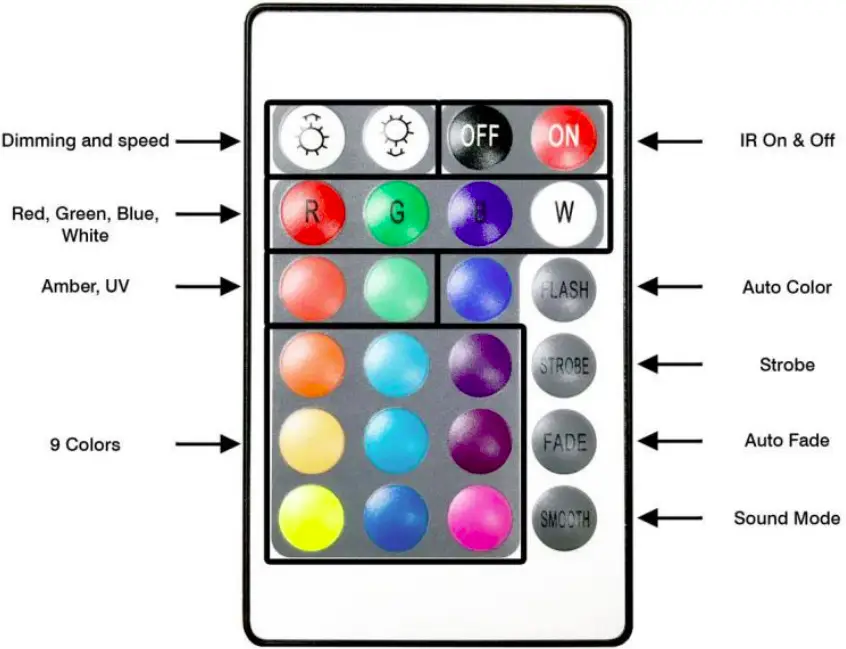

Infrared remote control functions
- dimming up button
- dimming down button
- OFF closed light pause
- ON light running
- R, G, B, W, A keys are 5 kinds of basic color, up and down keys to adjust thebrightness. 6, The UV key is the color temperature, up and down keys to adjust the color temperature
- The 0 key is A001 mode, and the up and down keys adjust the address code8, 1-9 number keys are 9 static color mixing (AC 1…AC 9)
- The AUTO key is the color-changing mode, and the up and down keys adjust thespeed
- The STROBE key is the color selection strobe mode (27 types are optional), andtheup and down keys are used to adjust
WIFI mode of operation
In the “User Settings” screen, press the MENU key to select “Program”, and
usetheUP/ DOWN keys to select “WiFi” (WIFI mode). Press the ENTER button,
there will be aWiFi name,then you can set your phone to make the connection
control. Open the phone setupfunction, and find the wireless network WLAN
entry, to connect the device named LED_xxx.
For IOS,Please search “Both Lighting” in app store.
For Android,Please Scan this QR code for download.
