PEM PFTR Roller Bearing Fasteners Owner’s Manual
- June 22, 2024
- PEM
Table of Contents
PEM PFTR Roller Bearing Fasteners
Product Information
Fastener drawings and models are available at www.pemnet.com. Custom sizes are available on special order. Contact us for more information.
Specifications
- Type: PFTRTM Roller Bearing Fasteners
- Min. Sheet Thickness: 0.040 in / 1mm
Material and Finish Specifications
- Type PFTRCS: Roller Bearing Retainer (3)
- Type PFTRFS: Roller Bearing Retainer (3)
- Standard Finishes: 300 Series Stainless Steel, Carbon Steel Tested per ASTM A380 Nickel per ASTM B733
Installation
Self Clinching Installation
- Prepare a properly sized mounting hole in the sheet. Do not perform any secondary operations such as deburring.
- Place the fastener into the anvil hole and place the mounting hole (preferably the punch side) over the shank of the fastener.
- With the installation punch and anvil surfaces parallel, apply squeezing force until the head of the nut comes into contact with the sheet material.
Flaring Installation
- Prepare a properly sized straight-through mounting hole in the sheet.
- Place the fastener into the anvil hole and place the mounting hole over the shank of the fastener.
- Using a punch flaring tool and a recessed anvil, apply squeezing force until the shoulder of the fastener contacts the sheet.
- As the fastener seats itself in the proper position, the punch tool will flare the extended portion of the shank outward to complete the installation. If installed into a smooth panel, the fastener shank will protrude after installation. Flare may protrude up to 0.5mm Max.
FAQ
-
Q: Can custom sizes be ordered?
A: Yes, custom sizes are available on special orders. Please contact us for more information. -
Q: What type of finishes are available for the fasteners?
A: The standard finishes include Through Hardened Passivated and/or Semi- bright Electroless for Stainless Steel, and Carbon Steel Tested per ASTM A380 Nickel per ASTM B733.
PEM® PFTRCS™ and PFTRFS™ roller bearing fasteners are easily installed, preassembled low friction rollers, that give design engineers a more user- friendly option for the high friction of simple slide shelves without incurring the cost of expensive sliding rail assemblies.
- Low-profile bearings can be captivated with either a clinch or flare, creating a cost-effective tray slide method
- Simple installation and ease of design into limited footprint spacing applications
- Supports loads while guiding and positioning components
- Eliminate the need for oil lubricants and loose hardware typically used in drawer sliders
- Self-clinching and flaring roller-bearing fasteners are easily installed into pre-punched or drilled holes in sheets as thin as .040” / 1mm
Fastener drawings and models are available at www.pemnet.com. Custom sizes are available on special orders. Contact us for more information.
PEM® PFTRCS™ Self Clinching Roller Bearing Fasteners
Type| Fastener Diameter Code| Min. Sheet Thickness Code| A (Shank) Max.| Min. Sheet Thickness| Hole Size in Sheet
+.003” /
+0.08mm
| C
Max.
| D
Nom.
| E
±.006” /
±0.15mm
| T
Nom.
| Min. Dist. Hole C/L to Edge
---|---|---|---|---|---|---|---|---|---|---
in.| mm| in.| mm| in.| mm| in.| mm| in.| mm| in.| mm| in.| mm| in.| mm
PFTRCS| 5.0| 1.0| .038| 0.97| .040| 1| .130| 3.3| .129| 3.28| .154| 3.9| .197|
5| .177| 4.5| .177| 4.5
PFTRCS| 9.0| 1.0| .038| 0.97| .040| 1| .240| 6.1| .239| 6.08| .154| 3.9| .354|
9| .177| 4.5| .295| 7.5
PEM® PFTRFS™ Flaring Roller Bearing Fasteners
Type| Fastener Diameter Code| Min. Sheet Thickness Code| A (Shank) Nom.| Sheet Thickness Range| Hole Size in Sheet
+.003” /
+0.08mm
| B Max.| D Nom.| E ±.006” /
±0.15mm
| T Nom.
---|---|---|---|---|---|---|---|---|---
in.| mm| in.| mm| in.| mm| in.| mm| in.| mm| in.| mm| in.| mm
PFTRFS| 5.0| 1.0| .071| 1.8| .040 – .047| 1 – 1.2| .130| 3.3| .129| 3.28|
.154| 3.9| .197| 5| .177| 4.5
PFTRFS| 9.0| 1.0| .071| 1.8| .040 – .047| 1 – 1.2| .240| 6.1| .239| 6.08|
.154| 3.9| .354| 9| .177| 4.5
Material and Finish Specifications
| Component Material| Standard Finishes| For Use in Sheet Hardness HRB 80 / HB 150
or less (2)
---|---|---|---
Type| 300 Series Stainless Steel| Through-Hardened Carbon
Steel| Passivated and/or Tested per ASTM A380| Semi-bright
Electroless Nickel per ASTM B733 (1)
PFTRCS
| Roller Bearing| •| | •| | •
Retainer (3)| | •| | •
PFTRFS
| Roller Bearing| •| | •| | No limit
Retainer (3)| | •| | •
Part Number Code for Finishes| None| EN|
- See PEM Technical Support section of our website for related plating standards and specifications.
- HRB – Hardness Rockwell “B” Scale. HB – Hardness Brinell.
- Fastener retainer is waxed eliminating the need for lubrication.
Custom sizes are available on special order.
Contact us for more information.
Installation
Self Clinching Installation
- Prepare a properly sized mounting hole in sheet. Do not perform any secondary operations such as deburring.
- Place the fastener into the anvil hole and place the mounting hole (preferably the punch side) over the shank of the fastener.
- With the installation punch and anvil surfaces parallel, apply squeezing force until the head of the nut comes into contact with the sheet material.
Installation tooling(1)
Fastener Dia. Code| HAEGER® Part Number|
PEMSERTER® Part Number
---|---|---
Anvil| Punch| Anvil| Punch
5.0| H-330-5MM| H-108-0020L| 8026559| 975200048
9.0| H-330-9MM| H-108-0020L| 8026560| 975200048

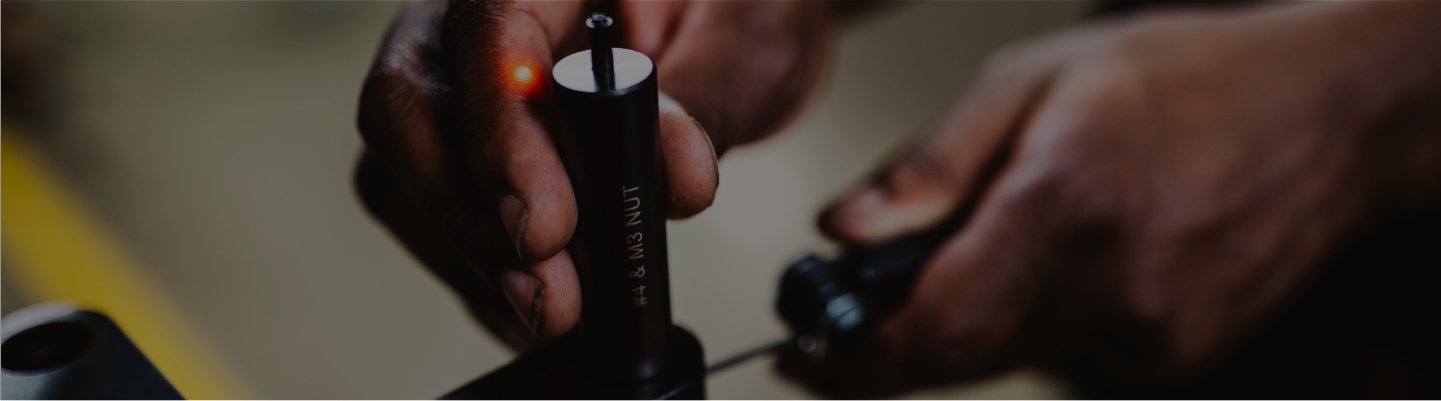

- Click here for a quote on Haeger® custom installation tooling.
Flaring Installation
- Prepare a properly sized straight-through mounting hole in sheet.
- Place the fastener into the anvil hole and place the mounting hole over the shank of the fastener as shown in the diagram.
- Using a punch flaring tool and a recessed anvil, apply squeezing force until the shoulder of the fastener contacts the sheet. As the fastener seats itself in the proper position, the punch tool will flare the extended portion of the shank outward to complete the installation. If installed into a smooth panel, the fastener shank will protrude after installation. Flare may protrude up to 0.5mm Max.
Installation tooling(1)
Fastener Dia. Code| HAEGER® Part Number|
PEMSERTER® Part Number
---|---|---
Anvil| Punch| Anvil| Flaring Punch
5.0| H-330-5MM| H-193-5.0-1.0| 8026559| 8026557
9.0| H-330-9MM| H-193-9.0-1.0| 8026560| 8026558
- Click here for a quote on Haeger® custom installation tooling.
Additional
PFTRCS™ Performance Data
Fastener Diameter Code| Test Sheet Thickness|
Test Sheet Material
---|---|---
Cold-Rolled Steel HRB 53
Installation| Pushout| Side- Load
(in.)| (mm)| (lbs.)| (kN)| (lbs.)| (N)|
(lbs.)| (N)
5.0| .040| 1| 1416| 6.3| 100| 445| 45| 200
9.0| .040| 1| 2316| 10.3| 150| 670| 85| 380
Part Number| Max. Number of Traveling Cycles at
200mm/s (2)| Bearing Load Max.
---|---|---
(lbs.)| (N)
PFTRCS-5.0-1.0| 100| 45| 200
PFTRCS-9.0-1.0| 210| 45| 200
PFTRFS™ Performance Data
Fastener Diameter Code| Test Sheet Thickness|
Test Sheet Material
---|---|---
Cold-Rolled Steel HRB 65| Cold-Rolled Steel HRB 60
Installation| Pushout| Side- Load| Installation|
Pushout| Side- Load
(in.)| (mm)| (lbs.)| (kN)| (lbs.)| (N)|
(lbs.)| (N)| (lbs.)| (kN)| (lbs.)| (N)|
(lbs.)| (N)
5.0| .040| 1| 2517| 11.2| 287| 1280| 83| 370| 2517| 11.2| —| —| —| —
.047| 1.2| —| —| —| —| 326| 1450| 105| 470
9.0| .040| 1| 3215| 14.3| 342| 1520| 130| 580| 3215| 14.3| —| —| —| —
.047| 1.2| —| —| —| —| 388| 1730| 139| 620
Part Number| Max. Number of Traveling Cycles at
200mm/s (2)| Bearing Load Max.
---|---|---
(lbs.)| (N)
PFTRFS-5.0-1.0| 100| 45| 200
PFTRFS-9.0-1.0| 210| 45| 200
- Published installation forces are for general reference. Actual set-up and confirmation of complete installation should be made by observing the proper seating of the fastener as described in the installation steps. Other performance values reported are averages when all proper installation parameters and procedures are followed. Variations in mounting hole size, sheet material, and installation procedure may affect performance. Performance testing this product in your application is recommended. We will be happy to provide technical assistance and/or samples for this purpose.
- The maximum number of traveling cycles is tested at 200mm/s under 200N load.
All PEM® products meet our stringent quality standards. If you require
additional industry or other specific quality
certifications, special
procedures and/or part numbers are required. Please contact your local sales
office or representative for further information.
Regulatory compliance
information is available in the Technical Support section of our website.
Specifications are subject to change without notice. See our website for the
most current version of this bulletin.
North America: Danboro, Pennsylvania USA | E-mail:
info@pemnet.com | Tel:
+1-215-766-8853 |
800-237-4736 (USA)
Europe: Galway, Ireland | E-mail:
europe@pemnet.com | Tel: +353-91-751714
Asia/Pacific: Singapore | E-mail:
singapore@pemnet.com | Tel: +65-6-745-0660
Shanghai, China: E-mail: china@pemnet.com |
Tel: +86-21-5868-3688
Visit our PEMNET™ Resource Center at www.pemnet.com
Technical support e-mail:
techsupport@pemnet.com
PennEngineering www.pemnet.com
