Endorphines 210329 Eurorack Final Output Multiband Processor

SEE YOU AT THE PARTY

6 HP width, ﬁnal output multiband processor for eurorack
Improve your raw Eurorack mixes to sound powerful on stage instantly
Mode 1: 3-band EQ (Low, Mid, High)
Mode 2: 3-band compressor with intuitive adjustment and brickwall limiter (1.5 ms look ahead, to make the compression more precise)
Mode 3: Mid/Side stereo ﬁeld processing
All 3 modes (EQ, compressor, mid/side processing) available simultaneously
96 kHz 16 bit digital stereo audio processing
Depth: 30mm (with ribbon cable plugged in)
Power requirements: +12V: 135 mA, -12V: 25 mA

Video manual: https://youtu.be/lYiCIMF3fm0

Instruction

FIRMWARE UPDATE:

Download the latest ﬁrmware for GOLDEN MASTER:
https://www.endorphin.es
power OFF your modular system:

You will see the Illuminati LED slowly blinking blue:
with simple mono or stereo, cable connect the audio output from your computer headphone output into AUDIO IN 1 jack of the module

Press PLAY and wait until the audio ﬁle is played back (approx. 1 min.). Illuminati LED will quickly blink in blue.
The module will reboot automatically.

Don’t play any other sounds on your computer during the update process.
When Illuminati LED ﬂashes RED, the signal is too low or too high. Stop audio playback. Reset the process by pressing
MODE button once. Regulate the signal level and restart the audio playback from the beginning.

Video update guide: https://youtu.be/WKt7FdRGRYI

How to use[

](https://manuals.plus/wp- content/uploads/2022/04/Endorphines-210329-Eurorack-Final-Output-Multiband- Processor-fig-4.png)

THE 3 MODES (work simultaneously) EXPLAINED:

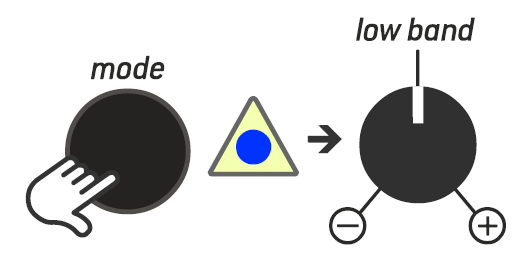

BLUE: Low/Mid/High knobs adjust each band’s volume with 100% in the middle. Band crossover points are around 300 Hz and 3 kHz.

RED: Low/Mid/High knobs adjust each band’s compressor settings: From mild (full CCW) to normal (middle) to harsh (full CW)

ENDORPHIN.ES® – GOLDEN MASTER Module design by Andreas Zhukovsky Collection Spring / Summer 2022 Endorphin.es are made in Barcelona, Spain Follow, like, post and tag us at instagram: @endorphin.es

FUCHSIA:
Low/Mid/High knobs adjust each band’s stereo spread: Mid/Side setting

The Middle channel is extracted and subtracted from the left and right channels. The more you turn the knob CW from the center, the more side information is left in the channels

Visit us:
http://endorphin.es
https://youtube.com/user/TheEndorphines
https://facebook.com/TheEndorphines
https://www.instagram.com/endorphin.es
https://twitter.com/endorphin_es
For technical requests: support@endorphin.es
For general requests: info@endorphin.es

WARRANTY

RTFM – be so kind and read the manual. It will provide you with the information you need to fully indulge the module you justpurchased – for which we like to thank you. Enjoy your sound experiences, dear sonic traveller. Beginning from the product’s purchase date a 1-year warranty is guaranteed for each product in case of any manufacturing errors or other functional deﬁciencies during runtime.
The warranty does not apply in case of:

damage caused by misuse • mechanical damage arising from careless treatment (dropping, vigorous shaking, mishandling, etc.)
damage caused by liquids or powders penetrating the device • heat damage caused by overexposure to sunlight or heating • electric damage caused by improper connecting

The warranty covers replacement or repair, as decided by us. Please contact us via email for a return authorization before sending anything. Shipping costs of sending a module back for servicing is paid by the customer. Device complies with all EU regulations concerning RoHS lead-free manufacturing and WEEE disposal
