BINTHEN BCM500DSTYW Intelligent Curtain Instruction Manual
- June 2, 2024
- BINTHEN
Table of Contents
BINTHEN BCM500DSTYW Intelligent Curtain
Product Specifications
Product Model| Torque| Operating Voltage| Frequency| Power| Max Load|
Communication Signal| Noise Level
---|---|---|---|---|---|---|---
BCM500DSTYW| 1.2Nm| AC100V-240V| 50/60HZ| 40W| 50KG| Wifi 2.4G| 35Db IP3X
BCM500DSTYW-2Nm| 2.0Nm| AC100V-240V| 50/60HZ| 80W| 80KG| Wifi 2.4G| 35Db IP3X
Product Usage Instructions
Manual Operation:
When powered on, the curtain can be pulled by hand for 10cm to initiate
automatic opening or closing.
Manual Operation without Power:
In the absence of power, the curtain can still be controlled manually.
Obstacle Stop Function:
The motor is equipped with an obstacle stop function to halt movement when
encountering an obstruction, ensuring system protection.
Automatical Position:
The motor can remember the open and close positions, eliminating the need for
frequent resetting by users.
Multi-Control:
Users have the flexibility to choose different control methods such as remote
control or switches.
Freely Assembling:
The product allows for DIY design and customized tracks for personalized
installation.
Frequently Asked Questions (FAQ)
Can children play with the curtain motors?
No, children should not play with curtain motors that are powered on to avoid any potential hazards.
What should be done if the motor needs repair?
Do not attempt to open the motor or perform repairs yourself as it may void the warranty. Contact a qualified professional for repairs.
Curtain Introduction
HANGZHOU BINTHEN INTELLIGENCE TECHNOLOGY CO., LTD (BINTHEN) focuses on the design, research and development, manufacturing, and sales of intelligent curtain products. BINTEN mainly produces intelligent home products such as curtain electric rails, electric curtain lifting systems, electric Roman poles, curtain tubular motors and controllers, shutter motors and controllers, opening and closing curtain motors and controls, and supporting products.
Intelligent curtain motor for every common home
- Manual Operation: When powered on, the curtain could be pull by hand with 10cm. Then the curtain open or close automatically.
- Manual operation without power: Without power, the curtain could be controlled by hand.
- Obstacle stop function: the motor could stop when it meets obstacle ,in order to protect the system.
- Automatical position: motor could remember the close and open position, users do not need to reset.
- Multi-control: users can choose different ways to control, such as remote contorl or swtich.
- Freely assembling: DIY design and customized tracks.
- This document contains important technical and safety information about the device and its safety use and installation.
- Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely. Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any).
- BINTHEN is not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure of following the user and safety instructions in this guide.
Attention! Please refer to the User Manual and Intelligent Control Manual for complete installation steps and usage instructions.
System Instruction
Motor Parameters
Product Model| Torque| Operating Voltage| Frequency| Power| Max Load| Runing
Noise| Protection Level| Communication Type| Signal Frequency| Maximum Average
EIRP Power
---|---|---|---|---|---|---|---|---|---|---
BCM500DS- TYW| 1.2Nm| AC100V-240V| 50/60HZ| 40W| 50KG| 35Db| IP3X| Wifi 2.4G|
433.93MHz| 15.55dBm
BCM500DS- TYW-2Nm| 2.0Nm| AC100V-240V| 50/60HZ| 80W| 80KG| 35Db| IP3X| Wifi
2.4G| 433.93MHz| 15.55dBm
BCM500DS- TYZ| 1.2Nm| AC100V-240V| 50/60HZ| 40W| 50KG| 35Db| IP3X| ZigBee
2.4G| 433.93MHz| 15.55dBm
BCM100DC| 1.2Nm| AC100V-240V| 50/60HZ| 40W| 50KG| 35Db| IP20| switch| x| x
BCM100D5X| 1.2Nm| AC100V-240V| 50/60HZ| 40W| 50KG| 35Db| IP20| switch| x| x
BCM100D- RS485| 2.0Nm| AC100V-240V| 50/60HZ| 80W| 80KG| 35Db| IP20| Z-wave|
868MHz| 15.55dBm
Operational range (depending on terrain and building structure): up to 50 m
outdoors, up to 30 m indoors.
CAUTION! Do not let children play with curtain motors that are powered
on.
MOTOR SOLUTIONS
3 WIRES
Functions
3 wires motor as basic motor can be control by remote, weak current dry
contact switch and so on, applicable to multi-scene.
Change the control mode
Change the control mode for weak current dry contact switch:
Hold close and stop buttons in same time for 3 seconds, the motor will vibrate
once, control mode change to next mode.
- Mode 1: applicable to double interlock switch(Factory default settings)
- Mode 2: applicable to double reset switch
- Mode 3: applicable to single reset switch
Wiring diagram for weak current double button switch:
Wiring diagram for weak current double button switch:
4 WIRES
Functions
4 wires motor not possess RF control, not support remote control, only use
strong current switch. Applicable to hotel, smart home and decoration project
etc.
Wiring diagram and functions
Notice: switch type is strong current double interlock switch, 4 wires
motor can’t connect with weak current switch.
5 WIRES
Functions
5 wires motor possess RF control, support remote control, strong current dry
contact switch, strong current switch,plug-in card power supply and so
on.Applicable to hotel,smart home and decoration project etc.
Change the control mode
Change the control mode for weak current dry contact switch:
Hold close and stop buttons in same time for 3 seconds, the motor will vibrate
once, control mode change to next mode.
- Mode 1: applicable to double interlock switch(Factory default settings).
- Mode 2: applicable to double reset switch.
- Mode 3: applicable to single reset switch.
- Mode 4: applicable to plug-in card power supply.
Wiring diagram for plug-in card power supply
Wiring diagram for weak current double button switch
Wiring diagram for weak current single button switch
Wiring diagram for strong current double button switch

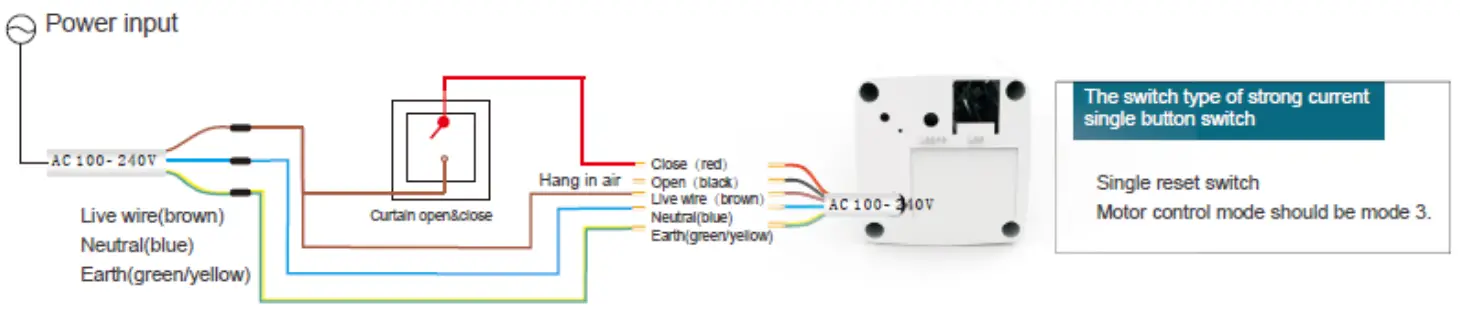

Wiring diagram for strong current single button switch
RS-485
Functions
RS-485 motor possess RF control, support remote control and RS485 bus control.
Applicable to smart home and hotel project etc.
Wiring diagram for RS485
Other control modes
RS485 motor can be control by remotes and weak current dry contact switch,
more details please check 3 wires motor solutions.

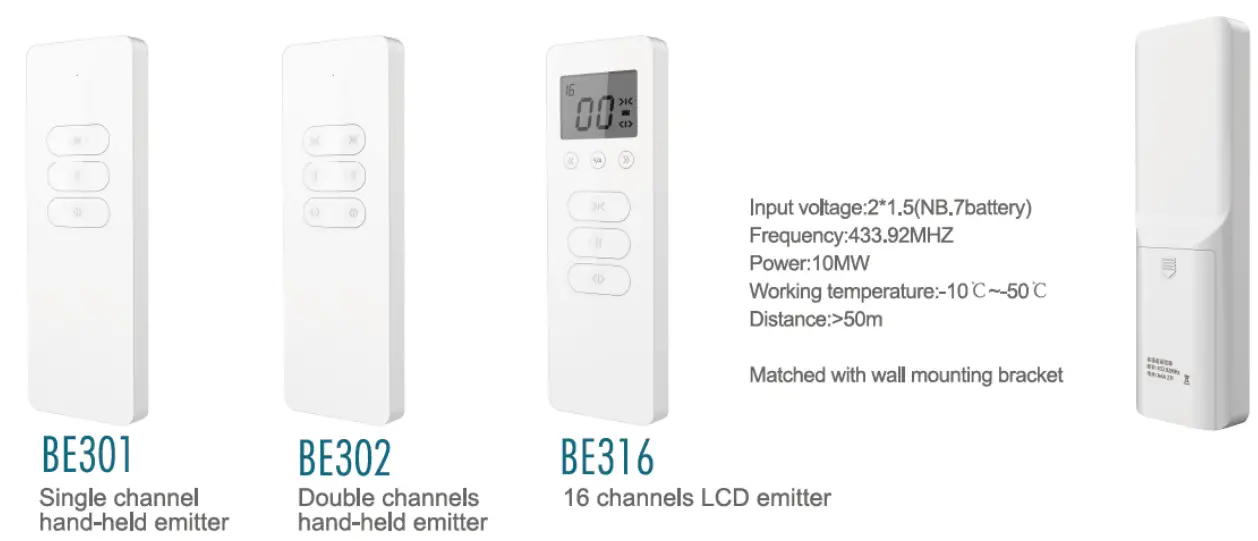

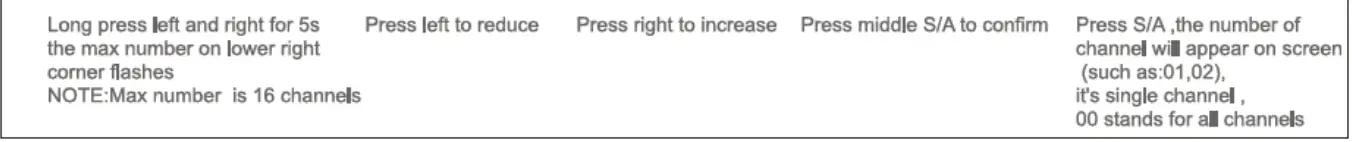

Remote control Instruction
Notice
- CAUTION! Danger of electrocution. When Mounting/installing the Device directly to the power grid has to be performed with caution by a qualified electrician. Do not open the motor or attempt repairs or modifications. Opening the motor will void the warranty.
- CAUTION! Connect the Device only in the way shown in the Users Manual. Any other method could cause damage and/or injury.
- CAUTION! Use the Device only with a power grid that complies with all applicable regulations. short circuit in the power grid may damage the Device.
- CAUTION! Do not install the device at a place it is possible to get wet.
- CAUTION! Do not allow children to play with the Device. Keep the Devices and Remote control away from children.
- RECOMMENDATION! The device may be connected to and may control electric circuits and appliances only if they comply with the respective standards and safety norms.
- The curtain motor must be installed on the corresponding curtain track as below for normal use.
Declaration of conformity
Hereby, HANGZHOU BINTHEN INTELLIGENCE TECHNOLOGY CO., LTD declares that the the specified curtain motor model BCM700D-TY, BCM100DA, BCM100D-tuya zigbee, BCM100DC, BCM100D5X, BCM100D5X2Nm, BCM100D-RS485, BCM100DB, BCM100DB-tuya zigbee, BCM300DS, BCM300D5X, BCM300D-TY, BCM300DB, BCM400D-KNX, BCM500DS-TYW, BCM500DS-TYW-2Nm, BCM500DS-TYZ, BCM500DS-Zwave, BCM500DS-HK, BCM10D-TYB, BCM10D-TYZ.BCM10D-TYW. BCM400D-Matter, BCM400DMudbus, BCM20D, BCM20D-TYZ, and remote controller models BE301E, BE302E, BE316, BE601, BE602, BE201B, E202, BE102, BE206, BE216L, BE306 are in compliance with radio equipment Directive 2014/53/ EU.
The full text of the EU declaration of conformity is available at the following internet address:
- https://cdn.shopify.com/s/files/1/0236/7776/3648/files/curtain_motor_DOC_60335.pdf?v=1705047367
- https://cdn.shopify.com/s/files/1/0236/7776/3648/files/curtain_motor_DOC_IEC62368.docx?v=1705047385
- https://cdn.shopify.com/s/files/1/0236/7776/3648/files/remote_DOC.pdf?v=1705047385
Manufacturer: HANGZHOU BINTHEN INTELLIGENCE TECHNOLOGY CO., LTD
Address: BUILDING 1 FLOOR 9, Heting Street899, Qingshanhu Street, Lin ‘a
District, Hangzhou City, Zhejiang Province, China
Tel.: +86- 571-88697092
Read User Manual Online (PDF format)
Read User Manual Online (PDF format) >>
