MIUZZY M242 Cordless Vacuum Cleaner Instruction Manual

MIUZZY M242 Cordless Vacuum Cleaner

Specifications:

• Model Number: M242
• Cordless Vacuum Cleaner
• Manufacturer: Miuuzy Global

Product Usage Instructions

Important Safety Instructions:
Before using the cordless vacuum cleaner, please read and adhere to the following important safety instructions:

Personal Safety:

1. Store the device indoors in a dry place out of reach of children.
2. Ensure that the device is not used by children, physically or mentally.

Electrical Safety:

1. Only use batteries and chargers provided by the manufacturer.
2. Do not modify the charger in any way.
3. Ensure that the charger voltage matches the main voltage.

Battery Safety:

1. Avoid exposing the appliance to high-temperature environments to prevent battery explosions.

Product Care and Maintenance:
Proper care and maintenance are essential for the longevity of your cordless vacuum cleaner:

• Regularly clean the filter to maintain optimal suction power.
• Avoid overcharging the battery to prevent damage.

FAQ:

• Q: Can I use this vacuum cleaner on wet surfaces?
  A: No, it is not recommended to use the vacuum cleaner on wet surfaces to avoid electric shock.

• Q: How often should I clean the filter?
  A: It is advisable to clean the filter after every few uses or when you notice a decrease in suction power.

• Q: Can I replace the charging cable if it gets damaged?
  A: No, the included charging cable is not replaceable. If damaged, please use another charger directly.

If you have any questions, please email to support@miuzzyglobal.com

Important Safety Instructions

IMPORTANT : READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Do not use the device or leave it outdoors when it’s raining.

WARNING: Basic safety precautions should always be observed when  using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury.
Personal Safety:

1. Store indoors in a dry place out reach of children;
2. The device cannot be used by child ren, physically and mentally fragile people and people lack of related experience and knowledge, unless they are supervised by others and they fully understand the possible potential hazards.
3. Keep children away from the device. Otherwise, children must be supervised when using or maintaining the appliance.
4. Use the manufacturer’s recommended attachments and accessories only. Using other accessories may have a risk of safety hazard.
5. Take extra care when cleaning stairs;
6. Keep the appliance and accessories away from hot surface;
7. Do not block the outlet of the appliance or hinder the airflow. Keep dust, lint, clothing or fingers away from the outlet.
8. Do not block the outlet and attachments of the device.

Electrical Safety:

1. Only use batteries and chargers supplied by the manufacturer;
2. Never modify the charger in any way;
3. The charger has been designed at a specific voltage. Always make sure the main voltage is the same as the specific voltage.
4. There is a risk of fire when a charger that is designed for a specific battery type is used with another type of batteries.
5. Check if there is damage or tear and wear on the charging cable. A damaged or entangled charging cable may increase the risk of fire and electric shock.
6. Do not abuse the charger;
7. Never carry the charger by the cord;
8. Do not pull the charging cable when the charge is plugged into an outlet.
9. Do not wrap the charger with the charging cable when you store the charger.
10. Keep the charger away from hot surfaces and sharp edges;
11. The included charging cable is not replaceable. If the charging cable is damaged, please change another charger directly.
12. Do not operate the charger or the appliance with wet hands;
13. Do not store or charge the appliance outdoors;
14. The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

Battery Safety:

1. This appliance included Li-ion batteries. Please do not expose the appliance to high-temperature environments as the batteries may explode.

2. Liquid from the battery may cause irritation or burns;

3. For any emergency, please contact professional staff for help immediately.

4. Li-ion batteries may leak corrosive fluid under extreme conditions.
   Do no touch the liquid. If the liquid splashes on your skin, wash your skin immediately with soap and water. If the liquid splashes in the eye, flush your eye with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle and dispose of the battery based on local regulations.

5. A short circuit may cause a fire.

6. When the battery is not in use, keep it away from clips, coins, keys, nails, screws or other small metal objects;

7. When you dispose of the appliance, remove the battery and dispose of the battery safely in accordance with local regulations.

Attention:

1. If the appliance hits an object, please check if there is any damage.
2. Do not use the appliance if any part is damaged or defective;
3. Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations; Repairs by unqualified persons may have a risk of damaging the appliance;
4. Never modify the appliance in any way as this may increase the risk of personal injury;
5. Only use replacement parts or accessories provided or recommended by the manufacturer.

Intended Use

1. The appliance is designed for use in dry environments for vacuum cleaning only;
2. Do not use the appliance on any wet surface or to clean any liquid;
3. Do not use the appliance to clean flammable or burning objects;
4. Use the appliance properly based on this user manual;
5. Don’t use the appliance on concrete, tarmacadam or other rough surfaces.

WARNING:

1. Do not use water, solvents, or polishes to clean the outside of the appliance; Clean it with a dry cloth;
2. Never immerse the unit in water and do not clean it in a dish washer.

PRODUCT INSTRUCTIONS

Accessory Instructions

• Multi-Task Roller Brush with LED
  The roller brush increases the cleaning efficiency, ideal for removing stubborn dirt in the carpets, dust and debris on hard floors.

• Long Suction Nozzle
  The crevice tool is used for corners, niches and other hard-to-reach places, such as car seat and mat, picture frame, etc.

• Soft Dusting Brush
  Angled bristles on slender and the oval shape provide anti-static cushioned contact, suitable for cleaning dust on sofa, curtain or other fabric furniture or delicate surfaces, electronics and more.

• Cleaning Tool
  Use the end with small blade to remove the hair and debris wrapped around the roller brush. Use the end with little brush to clean the the dustbin and the HEPA filter.

• Power Adapter
  Charge the battery of the vacuum cleaner with the power adapter.

• HEPA Filter
  The HEPA filter increases the cleaning efficiency and removes up to 99.8% of ultrafine dust particles down to 0.3 microns.

On Screen Display

Note:

1. Speed adjustment:
   click the Speed button to change the suction power.

   • When the machine is powered on, it is in the small mode by default, and the green circular indicator will light up.
   • Click the “Speed” button to switch the machine to the medium mode, then the blue circular indicator ring will light up.
   • Click the “Speed” button again to switch the machine to the maximum mode, and the red circular indicator ring will light up.

2. Fault indication:

   • When the roller brush is clogged, the red light of the roller brush clog indicator will flash, and then the floor brush will stop working.After
     cleaning the dust or dirt, restart the machine, and it will work normally. When the machine is clogged, the red light of the dust blocking indicator light will flash. After clean the dust or dirt, restart the machine, and it will work normally.

Assembly

Assemble and Disassemble the Retractable Metal Tube

• Insert the retractable metal tube into the main motor.
• Press the release button and then remove the retractable metal tube.

Assemble and Disassemble the Motorized Floor Brush

• Insert the motorized floor brush to the retractable metal tube.
• Press the release button and then remove the motorized floor brush.

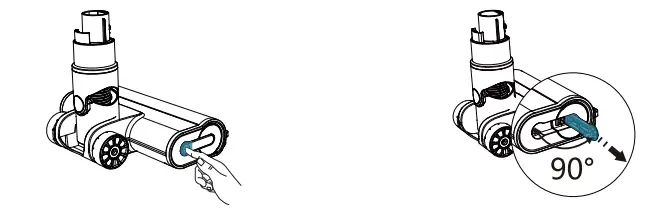

Assemble and Disassemble the Roller Brush

• Press the roller brush release button according to the diagram.
• Open it to 90°, and then pull it out to remove the roller brush.

Disassemble the Dustbin

1. Press the dustbin release button to clean it


2. Press the dust cup release button and use upward force to remove the dust cup

3. Remove the sponge and filter assembly from the dust cup, then rotate the cone counterclockwise to disassemble it

4. Pull the Hepa outwards

Assemble and Disassemble the Battery

• Press the battery release button and remove the battery.
• Slide the battery into place.

PRODUCT OPERATION

How to Operate the Vacuum

• Press the switch button and then the vacuum will start to work.
• Press the switch button again and then the vacuum will stop working.

• Press the extend-retract tube button with one hand, extending or retracting to choose the suitable vacuum cleaner height for more comfortable cleaning with the other hand;

Battery Charging:
Three Ways to charge the Vacuum cleaner:

1. Charge the vacuum cleaner head by power adapter;
2. Remove the battery from the vacuum cleaner and charge it separately by power adapter;
3. Charge the whole vacuum cleaner by power adapter.

Charging mode : directly insert into the charging socket of the battery to charge.
Battery Indicator Light:

1. When the battery power is low to one bar, the low battery indicator flashes, indicating that the machine’s battery power is low;
2. When the battery is in the charging state, the blue battery indicator light flashing;
3. When the battery is fully charged, the battery indicator lights on constantly and shows five bars on the screen.

How to Empty the Dustbin
Press the Dustbin Release Button

Note:

1. Please clean the dustbin when the dust reaches the MAX level;
2. We suggest to clean the dustbin each week even the dust doesn’t reach its MAX level.

Maintenance

Clean the Filter Components
Disassemble the filter system as above, then clean it.

1. Cleaning the dustbin: wipe with a brush or dry cloth.
2. Cleaning the stainless steel filter: wipe with a brush or dry cloth. If it is too dirty, wash it and dry it in the sun.
3. HEPA cleaning: clean the HEPA 2-3 months, if it is too dirty, please replace the HEPA in time.

Note:
It is recommended to clean the HEPA filter 2-3 months for better cleaning efficiency . Please make sure dry the filter completely before use. Otherwise, it will affect the life of the machine.

Clean the Roller Brush
Remove the roller brush and clean the hair and other dirt tangled on the roller brush with the cleaning tool. If the roller brush is too dirty, please wash it and dry it completely in a well-ventilated place under the sun.

Product Storage
Assemble the rack against the wall and place the machine on the rack. Place the accessories in the charging station slot.

Maintenance

• Do not carry out any maintenance or repair work beyond this user manual.
• Store the machine indoors. Do not use or store it below 37.4°F (3°C). Ensure the machine is at room temperature before operating.
•  Clean the machine only with a dry cloth. Do not use any lubricants, cleaning agents, polishes or air fresheners on any part of the machine.

When using the MIUZZY vacuum cleaner, basic precautions should always be followed. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

1. Please use the original parts for the machine. Do not use non-original parts without the permission of the manufacturer. If there is any malfunction due to using non-original parts, the warranty will be automatically ended. The manufacturer is not responsible for any loss of life or property.
2. Please check if the product is damaged or the accessories are completely received after you have received the package.
3. Do not use the vacuum with any damaged cord or plug. If the appliance has been dropped, damaged, left outdoors, dropped into water, or is not working, return it to the manufacturer.
4. Children below 15 years old and incapacitated persons should use this machine under the supervision of their guardians.
5. When a fault occurs, the power adapter should be pulled out immediately and the defective product should not be in working status.
6. Please do not disassemble and repair all the electric parts including but not limited to motors, battery and power adapter, which is easy to damage the machine and cause other insecurity.

Prohibited sign
Any content with the logo means being prohibited. Otherwise, it may cause damage to the product or endanger the personal safety of the user.

Warning sign
All contents with the logo mean it must be handled in strict accordance with the requirements. Otherwise, it may cause damage to the product or endanger personal safety of the user.

Troubleshooting

Note:
If you have any questions, please email to support@miuzzyglobal.com

Warranty

The 2-Year Limited Warranty
Applies to purchases made from authorized retailers of MIUZZY. Acco rding to the requirements outlined in this instruction manual, subject to the following conditions and exclusions.
WHAT IS COVERED?

• Your MIUZZY machine has a 2-year warranty against original defects in material and workmanship. when used for private household purposes in accordance with the
• MIUZZY Instruction Manual.
• This warranty provides, at no extra cost to you, all labor and parts necessarily to ensure your machine is in proper operating condition during the warranty period.
• This warranty will only be valid if the machine is used in the country in which it was sold.

Customer Service

Please contact us if you need any help as following:

• Technical Support
• Package is NOT in perfect condition
• Parts missing
• Any other quality issues

Email: support@miuzzyglobal.com
Website: www.miuzzyglobal.com

HAIWAI CONSULTING LTD
113, GloucesterPlace, Fly, London, England, W1U 6JR Email: haiwaiconsultingltd@gmail.com

Tiger-Zhou UG (haftungsbeschränkt) Handelsregister: Leipzig HRB 37896 Shukowstr. 6 04347 Leipzig, Deutschland Email: Tiger-Zhou@web.de

Made in China
