Westridge 305-P324270 Upholstered Side Chair
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small hardware that may have come loose inside the carton during shipment. Identify and count all hardware and compare with the hardware list below. When placing furniture on non-carpeted flooring, HMI recommends the use of floor protection such as an area rug or furniture pads. Area rugs and padding are not included with the purchase.
Specifications
- Product Name: Upholstered Side Chair
- Model Number: 305-P324270
- Manufacturer: Made in Vietnam
- Intended Use: Residential Use Only

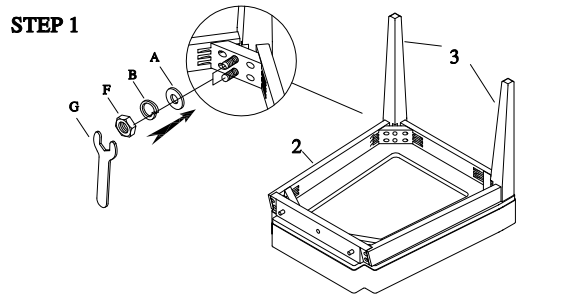

Assembly Instruction
- Check all packing material for loose hardware inside the carton.
- Identify and count all hardware using the provided hardware list.
- Place furniture on non-carpeted flooring with floor protection like an area rug or furniture pad.
Parts List
- Chair Back x1
- Seat Cushion x1
- Front Leg x2
Hardware List
- Flat washer x1
- Lock washer x1
- Allen Bolt 5/16192mm x9
- Allen Bolt 5/16*1-3/4 x1
- Allen key x1
- Het Nut x4
- Open Wrench x1

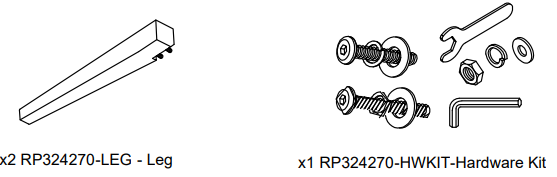

REPLACEMENT PARTS
Made in Vietnam Residential Use Only.
