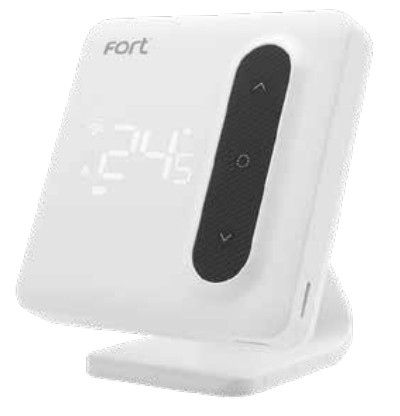

ECSPST Fort Programmable Thermostat
The latest product manuals and software is available online: https://www.espuk.com/technical_support
https://www.espuk.com/technical_support/
Features
- Large LED display
- Touch button
- Permanent user settings, and program settings during power loss
- One button “Holiday” mode
- Programming Periods;
- 7 Day individual, 5/2 split (Monday – Friday, Saturday & Sunday)
- 6 Separate time/temperature periods per day
- Key lock facility
- Low battery indication
- Frost protection
- Optional Intelligent function; Optimal Start
- Open window function
- Integrated with Clicksmart+ App
Product Overview
Thermostat
- Wireless icon “ ” always on when paired with the receiver, flashes when connection is intermittent
- Frost protection icon
- Call for heat icon
- Programming mode icon
- Low battery alert
- Confirm icon
- Up button
- ON/OFF button
- Room temperature or setting temperature display
- Down button
Receiver
Default Programming Schedule
Note: The programming schedule can be configured within the ClickSmart+
app
| Period 1 | Period 2 | Period 3 | Period 4 | Period 5 | Period 6 |
|---|---|---|---|---|---|
| Morning ON | Morning OFF | Afternoon ON | Afternoon OFF | Evening ON | Evening OFF |
| 06:00 | 20°C | 08:00 | 16°C | 11:00 | 20°C |
Thermostat Functions
Functions
Switching between ON & Standby modes
Press “ ” to turn the Thermostat into the ON mode. Press and hold “ ” again to
switch the thermostat into standby mode. When in standby mode the Thermostat
will display “ ”.
Note: When in standby mode, only frost protection is active on the
thermostat.
Key Lock Function
In main display interface, press and hold “ ” “ ” at the same time to lock
or unlock the keys. When locked, the thermostat will display “ ”.
Frost Protection
If the room temperature falls below 5°C, frost damage can occur. To protect
your home, the Thermostat once it detects the ambient temperature is below 5°C
will send a Call for heat, until the temperature is above 8°C, and will then
end the Call for heat. This is indicated by a “ ” icon.
This feature can be disabled in the configuration menu
Open Window/Door Detection Function
If the room temperature drops 1.5°C in 3 minutes, this function will activate
and display “[] ”, then turn down all heating. When the room temperature
increases by 1.5°C or after 30 minutes, the thermostat will return to normal
operation.
Press any button to cancel this function when it is active.
Low Power Alert
When the thermostat is critically low on power, it will alert the user by
displaying “ ” to notify them to change the batteries.
Optimal Start
If optimal start is enabled, the thermostat will start the call for heat
slightly before the schedule calls for it. So that by the scheduled start
time, the ambient temperature is already at the set temperature.
This feature can be enabled in the configuration menu
Fault
If there is damage to the internal sensor the user will be alerted by the
display message “ ”.
Operating Modes
Schedule Mode
The thermostat will run according to the set schedule, the screen will display
a solid “ ” icon.
Boost Mode
The boost mode, will send a call for heat until the next program in the
schedule and will continue to send the call for heat until the set temperature
is achieved.
When in schedule mode (indicated by a solid “ ” icon), press the “ ” or “ ”
and set the desired temperature, the Thermostats display will flash to
indicate it is activating the boost mode.
When a boost is currently active it will display the “ ” icon flashing.
Manual Mode
The “Manual” mode sets the thermostat to the desired temperature and will
continue to do so until, the user ends the Manual mode.
Pressing “ ” will toggle between Schedule mode & Manual Mode. The Thermostat
will indicate it is in Manual mode by not displaying the “ ” icon.
Thermostat Configuration
To configure the thermostat using its controls you will need to do the
following:
- In standby mode indicated by the Thermostat displaying “ ”, long press “ ” to enter the configuration menu.
- The first item will display “ ”, press “ ” to enter the configuration for the first item.
- You can adjust the setting by pressing “ ” or “ ”.
- “ ” will flash, and then press “ ” will save current settings, and exit to the configuration menu.
- Use the “ ” or “ ” to select the configuration menu, and then press “ ” to enter the next configuration, and follow the steps 3 & 4.
- Finally once all menus have been configured, long press “ ” to save and exit the configuration menu.
Restore factory settings:
After entering the configuration menu, press and hold both the “ ” and “ ”
buttons, to restore the thermostat to factory settings, the thermostat will
display “ ” and flash 3 times.
This will remove any custom configuration setting(s) and programming
setting(s)
Step No.| Displayed (Factory Default)| Press “” or “” to
select| Descriptions
---|---|---|---
1| | -4°C to +4°C| Temperature calibration
2|
| +20°C to +35°C| Select maximum setting temperature range
3| | +5°C to +20°C| Select minimum setting temperature range
4| | 0.5°C to 3°C| Start heating conditions:
When setting temperature -Room temperature ≥ 0.5°C (0.5~3°C option), start
heating.
Room temperature ≥ Setting temperature, stop heating.
5| | 4 / 6| Number of programming periods per day; 2 ON & 2 OFFs / 3 ON & 3
OFFs
6| | | Intelligent function (Optimal start)
7| | | Frost Protection function
8|
| | Thermostat Relay Output
9| | | Thermostat LED Display option
ON: LEDs displays on Thermostat VIA app.
OFF: LEDs don’t display on Thermostat VIA app.
Thermostat Installation
Battery Installation
Note: Ensure the
batteries are correctly installed, and the polarities are correctly aligned.
- Desk mounted
-
Wall mounted
1 Put the back board on the installation box| 2 Secure backplate to installation box using bolts
Secure thermostat to backplate| Complete
Installation Plan A
Our products are designed to comply with the recommended codes of practice
and is to be installed and serviced by competent persons in accordance with
the relevant wiring regulations.
Warning: Before any installation or maintenance, ensure that the electrical
supply is switched off at the breaker.
The receiver needs to be installed in the boilers vicinity, and within the
desired wireless networks signal area. The Thermostat can be installed
anywhere within range of the receiver.
Note: Distance between thermostat and receiver cannot
be greater than 100m (open field).
Install receiver on the wall
Open backplate from the top| Install the backplate onto the wall.
Clip the receiver onto the backplate| Complete
Installation Plan A Wiring **Installation Plan B
Our products are designed to comply with the recommended codes of practice and to be installed and serviced by competent persons in accordance with the relevant wiring regulations.
Warning: Before any installation or maintenance, ensure that the electrical supply is switched off at the breaker.
When installing the Thermostat directly to the boiler, ensure the receiver is within the WiFi coverage area.
Note: Distance
between thermostat and receiver cannot be greater than 100m (open field).
When the Thermostat is connected directly to the boiler, item 8 of the configuration should be “ON” .[Page 5].
As default it is set to OFF
Install receiver as gateway with plug adapter**
Install rear bulkhead| Press and rotate to clip in the adapter| Complete
Installation Plan B Wiring
Remove the buckle with a flat headed screwdriver| Take off safety cover
Wire into connections| Reinstall safety cover
Pairing the Thermostat and Receiver
As default, the Thermostat & Receiver are pre-paired
Press “ ” to turn off the receiver, when in the OFF condition, press and hold
the “ ” button for at least 3 seconds, the LED will now illuminate yellow
constantly.| On the Thermostat when in “Standby” mode, press and hold “ ” for
3s.| The Thermostat will then show “ ”.
On the Thermostat:
Press the “ ” to enter pairing mode, it will display “ — ”, and the icon “ ”
will be flashing.| If pairing is successful, the Thermostat will display “ ”,
and the “ ” icon will now constantly display, and then will automatically go
back into the OFF interface.
Product Description
The WiFi Smart Thermostat (ECSPST) forms part of the ESP Fort range of smart
products, and can also be used in conjunction with Scolmores ClickSmart+ range
of products.
Users are able to control the Smart Thermostat using the ClickSmart+ app,
manually and using voice controls (once correctly configured).
The ECSPST can be used to program your heating schedule, and the desired
heating temperature.
Preparation for use
To use the ECSPST you will need to download the ClickSmart+ app.
Ensure that you have a mobile device running iOS 8 or higher, or Android 4.1x
or higher, and a sufficient WiFi network connection.
It is important to know your Wi-Fi network and W-Fi network’s password before
pairing the Thermostat to the ClickSmart+ app.
https://a.smart321.com/clicksmartplus
Download the ClickSmart+ App on your mobile device from the App Store or
Google Play.
You can scan the above QR code to directly download the app Sign in or
register following the instructions on the ClickSmart+ App.
Installation Instructions
- On the ClickSmart+ app’s home page, click on the “+” symbol in the top right of the home screen.
- Then click on “ESP” on the left handside.
- And finally click on “Smart WiFi Thermostat with RF”
- The app will then display on screen instructions for pairing the ECSPST onto the Wi-Fi network.
How to integrate the ECSPST into Alexa
Once the ECSPST has been configured with the ClickSmart+ App, you can then
control the thermostat using voice commands.
Open the Alexa app, and press
“More” on the bottom task bar| Press “Skills & Games”| Press the magnifying
glass
Search for “Click Smart +”, and click on “Click Smart +”
Press “ENABLE TO USE”| The Alexa app will then take you through the Account
Binding Process, you must use the ClickSmart+ Account you used to pair your
ECSPST| Alexa will start searching for Alexa Voice
compatible Click Smart + products.
How to integrate the ECSPST into Google Home
Once the ECSPST has been configured with the ClickSmart+ App, you can then
control the thermostat using voice commands.
Open the Google Home app and press “settings”| Press “Add Device”| Press “Works with Google”
Press on the magnifying glass,
then search for “Click Smart +”, and finally click onto “Click Smart +”
The Google Home app will then take
you through the Account Binding Process, you must use the ClickSmart+ Account
you used to pair your ECSPST
Google Home will now
contain all compatible Click Smart + products.
Voice Commands
After waking up the Alexa device or Google Home/Assistant Device, you can use
the below voice commands:
Amazon Alexa
Turn On
Turn Off
What is the temperature of
Make it warmer in
Make it cooler in
Set
Google Home/Assistant
Turn On
Turn Off
Set
