ANNFUZ A1870 SN Indicator Lock Installation Guide
- June 17, 2024
- ANNFUZ
Table of Contents
INSTALLATION INSTRUCTIONS
FOR INDICATOR LOCK
FOR USE ON DOORS
35mm TO 45mm THICK
A1870 SN Indicator Lock
Step1. Install the latch and tighten the screws.
A. How to adjust the latch. B. How to install.
Step2. Install strikes with supplied screws.

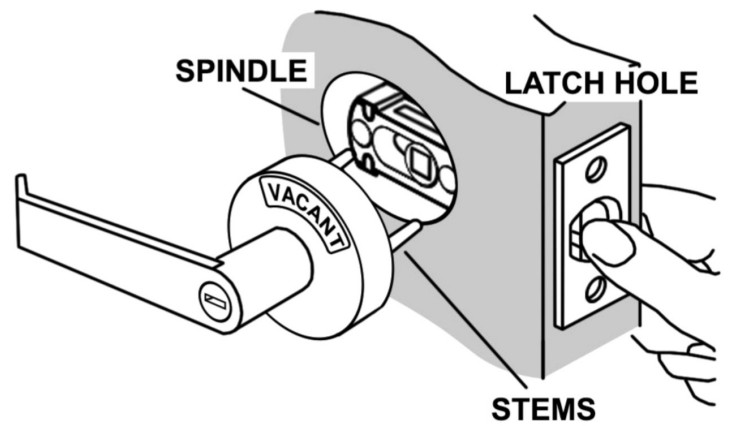

Step3. Install Exterior mechanism.
A. The lock has to be in unlocked position; the indicator should display
“Vacant”
B. Install
Indicator.
C. To
reverse the level L-R Remove the handle with included key and reverse the
handle.
INSTALLATION OF LOCK
Step4. Install Interior part of the lock.
A. Install the interior handle. Make sure the position is “Unlock”
Suitable
for door thickness:1-3/8″(35mm) to 2″(50mm)
