MICHEON BAMBAM BAM1 LED Indicator Light User Manual
- June 16, 2024
- MICHEON
Table of Contents
MICHEON BAMBAM BAM1 LED Indicator Light
FUNCTION
Basic Key Operation
Turn On
Press for 3 seconds and the headphones will be turned on after the blue LED
light is on for 3 seconds
Turn Off
Press for 3 seconds and the headphones will be turned off after the red LED
light on for 3 seconds
Mode Conversion
The headphones will automatically switch to TF mode when inserting
TF card
- The headphone will automatically switch to BT mode when pulling out the TF card.
- After inserting the TF card, you can switch to BT mode by single press M, and press repeatedly to switch between TF mode and BT mode.
Volume Adjustment
Short press and control volume.
Music Selection
- Long press for skipping to the next song.
- Long press for skipping to the previous song.
Play/Pause/Phone call
- Music Play: Short press
- Music Pause: Short press
- Answer Calls: Short press when a call comes in
- Hang Up: Short press when finished a call
- Refuse to Answer: Long press when a call comes in
- Double press U when BT is connected, will re-dial the last phone number in your call record
Button Instructions
Music Selection
- Long press A for skipping to the next song.
- Long press V for skipping to the previous song.
Button Instructions
MODE DESCRIPTION
Turn On/Off Decoration Light
You can turn on/off the decoration light by long pressing “Volt” and “Vol-”
for 6 seconds after the headphones are turned on.
Headphone Turn-On Mode
Long press turn on key for 3 seconds, and the headphones will be turned on and
automatically enter into BT mode. It will search to pair or reconnect to the
last successfully connected cell phone. Also, the decoration light will be
light on.
BT Mode
Without inserting the TF card, long press the turn-on key for 3 seconds, and
the headphones will be turned on and enter into BT mode, with red and blue LED
twinkling alternately. Turn on the BT function on your cell phone, and search
BAM1, click to connect. After connecting successfully, the blue LED stays on
indefinitely, and when in music is playing, the blue LED flashes slowly.
TF Mode Play
Long press turn on the key for 3 seconds, if insert the TF card, it will play
the music in the TF card. You can adjust the volume by short pressing and Long
pressing and can switch to the previous or next song. You can pause or play
music by short press. You can switch between BT mode and TF mode by short-
pressing M.
OTHER FUNCTIONS
Charging Mode
New headphones come with power and support several times usage. When in low
battery, pls charge it for around 3 hours with a USB charging cable. The
headphones will turn off automatically when charging. The Red LED light is on
in charge and will go off while fully charged.
Power Status
When the headphones are connected to the lOS device, the current power status
of the headphones will be shown in the upper right corner of the device
screen. When the headphones in low battery, it will prompt “battery low”, and
also red LED flash quickly.
Line-in Mode
- Turn on status: plug in the audio cable, the headphones turn off, and you can listen to the music with the audio cable.
- Turn off status: plug in the audio cable, the headphones can’t be turned on, you can only listen to the music with the audio cable.
Note: If you want to listen to the songs on the BT or TF card, you need to unplug the audio cable and turn it on to use it.

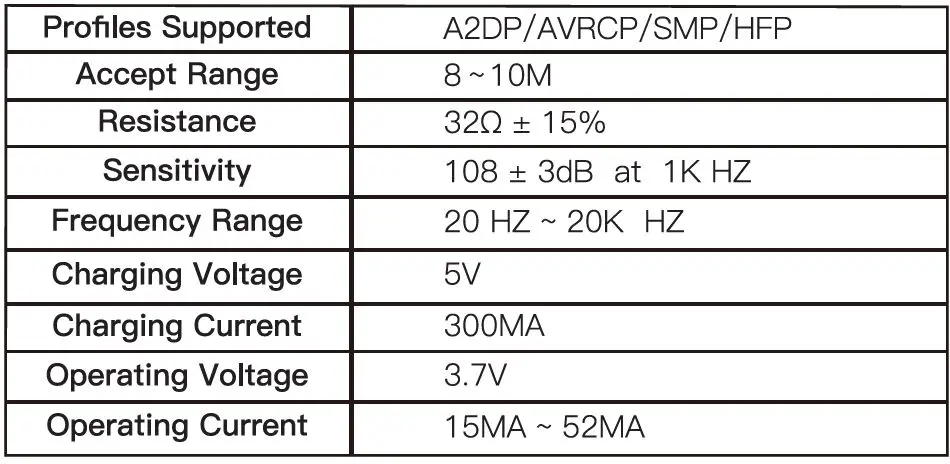

SPECIFICATION
Packing List
Warm Tips
- Please charge the headphones with a 5V 1A charger, high voltage may damage the headphones.
- When the headphones have not been used for more than 3 months, they need to be charged before use.
- When the headphones have not been used for a long time, we suggest you charge every 3 months to provide good protection for the battery.
PRECAUTIONS
Attention
- Please keep or use the headphones at normal temperature, and avoid direct sunlight.
- Please keep the headphones away from fire or another hot object.
- Please keep the headphones away from damp places or submerged in liquid, keep them dry.
- Please don’t try to use another method for charging other than the USB charging cable we provide.
- Please don’t disassemble, repair or modify.
- Please pay attention to excessive clashes, if any damage (like dents, deformation, corrosion, etc.), please turn to us for help.
- If the headphone produces an abnormal smell, higher than normal temperature, colour or shape changes abnormally, please stop use and turn to us for help.
Warning
- There is a danger of explosion if you improperly replace the battery. It can only be replaced with a battery of the same type or equivalent.
- The battery (battery pack or assembled battery) must not be exposed to conditions such as sunlight, fire, or a similar overheating environment.
- The device should not suffer from water droplets or water splashes, and also should not be placed in vases or similar objects filled with liquids.
- This product does not belong to children’s toys. Children under the age of 14 need to be accompanied by their parents to use.
- Using a headset at high volume for long periods may cause damage to your hearing
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation. Any Changes or modifications not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, under part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio. frequency energy and, if not installed and used by the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
Warranty Description
Please keep the warranty card and valid purchase proof properly, and show them together when sending the product for repair. If you can’t provide the warranty card or relevant purchase certificate, the calculation date of the product warranty will be based on the product manufacture date.
Warranty Regulations
-
If you have any questions during use, please don’t hesitate to call 510-519-9492 for help.
-
Within one year from the purchase date, if the product with quality issue and the technical staff of our company has confirmed that the issue occurs under normal use, we will provide free replacement
services. -
In the following cases, our company refuses to provide free warranty service, only provides maintenance services, free of labour costs, and only charges for parts:
- The product’s main part has been damaged due to incorrect operation, negligent use or irresistible reasons.
- The product has been dismantled or repaired without our company’s authorization
- The headphone driver unit has been used at high volume, and the diaphragm is deformed due to debris or impact.
- The headphone cable is broken, crushed, and immersed in water, the case is damaged, deformed, and some other man-made damage reason.
- The original warranty card and valid purchase proof can’t be provided, and the purchase date is beyond the warranty period.
- The free service provided by this warranty card does not include product accessories, other decorations, gifts, etc.
Product Qualification Certificate
After inspection, the product meets the technical standards and is allowed to
leave the factory.
