LOFTNESS N49375 Skid Loader Mulching Head Owner’s Manual

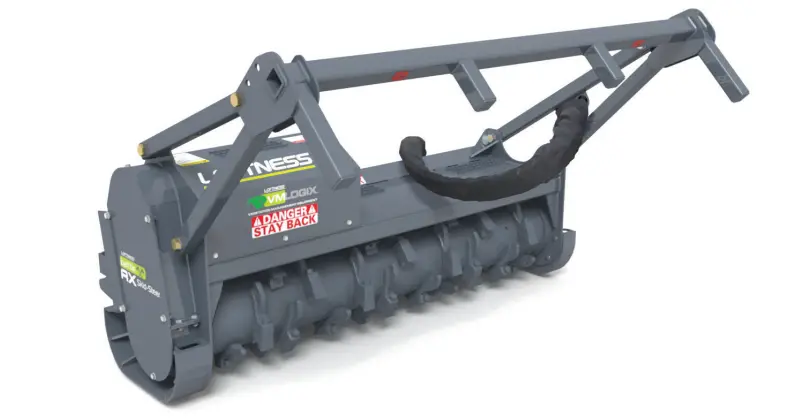

N49375 Skid Loader Mulching Head

Battle Ax Skid Loader
Skid Loader Mulching Head
61 • 71
Owner’s Manual and Parts Book
(Originating with Serial Number
84-926 thru 84-1430)
Model Number:
Serial Number:
Date of Purchase:

|
---|---
http://www.vm-logix.com| http://www.loftness.com

LOFTNESS SPECIALIZED EQUIPMENT, INC.

LIMITED WARRANTY POLICY

The limited warranty policy begins upon delivery of the unit to the original customers.
All Loftness products have a one (1) year limited warranty. The XLB10 Grain Bag Loader has a two (2) year limited warranty.
If any Loftness product is used as rental or leased equipment the limited warranty period is for only 30 days from the delivery date to the original customers.
Loftness Specialized Equipment, hereinafter referred to as LOFTNESS, a manufacturer of quality machinery since 1956, warrants new LOFTNESS machinery and/or attachments at the time of delivery to the original purchaser, to be free  from defects in material and workmanship when properly set up and operated in accordance with the recommendations set forth in the LOFTNESS Operator’s Manual.
LOFTNESS’ liability for any defect with respect to accepted goods shall be limited to repairing the goods at an authorized dealer or other LOFTNESS designated location, or replacing them as LOFTNESS shall elect. The above shall be in  accordance with LOFTNESS warranty adjustment policies.
WARRANTY REQUIREMENTS
Warranty registration form must be filled out and returned to Loftness Specialized Equipment to validate all warranty claims.
To receive a warranty claim, a return authorization from LOFTNESS must be obtained. The failed part may then be returned in an untampered status. This warranty does not include freight or delivery charges incurred when returning machinery for servicing.
Dealer mileage, service calls and pick-up/delivery charges are the customer’s responsibility.

LIMITATIONS OF WARRANTY
LOFTNESS products are designed to provide years of dependable service when proper use and maintenance is adhered to. The potential for misuse in many applications exists; therefore, a limited warranty is provided as follows.
This warranty shall not apply to any machine or attachment which shall have been repaired or altered outside the LOFTNESS factory or authorized LOFTNESS dealership or in any way so as in LOFTNESS’ judgment, to affect its stability or reliability, nor which has been subject to misuse, negligence or accident, nor to any machine or attachment which shall not have been operated in accordance with LOFTNESS’ printed instructions or beyond the company recommended  machine rated capacity. LOFTNESS may elect to have an area representative evaluate the condition of the machine before warranty is considered.
In addition, this limited warranty provides no coverage for general wear or maintenance items, misuse, environmental conditions and/or contamination for which they were not designed or not intended, including but not limited to the following items:

• Use of machine beyond its rated capacity;
• Improper knife replacement;
• Missing knives;
• Striking foreign objects
• Lack of lubrication
• Failures caused by running in an “out-of-balance” condition;
• Tires;
• Conveyors;
• Auger wear;
• Saw blades;
• Brakes and brake pads; and
• Hydraulic hoses damaged by being caught in “pinch points” or by moving parts.

EXCLUSIONS OF WARRANTY
Except as otherwise expressly stated herein, LOFTNESS makes no representation or warranty of any kind, expressed or implied. The implied warranty of merchantability and fitness for a particular purpose are excluded from this limited  warranty. The remedies set forth in this warranty are the only remedies available to any person under this warranty. LOFTNESS shall have no liability to any person for incidental, consequential or special damages of any description,  whether arising out of express or implied warranty or any other contract, negligence, or other tort or otherwise. This exclusion of consequential, incidental and special damages is independent from and shall survive any finding that the  exclusive remedy failed of its essential purpose. Upon purchase, the buyer assumes all liability, all personal injury and property damage resulting from the handling, possession or use of the goods by the buyer.
No agent, employee or representative of LOFTNESS has any authority to bind LOFTNESS to any affirmation, representation or warranty concerning its machinery and/or attachments except as specifically set forth herein. (October 2020)

To the Dealer:
In order to ensure compatibility/performance of the Loftness attachment and the customer’s power unit, it is IMPERATIVE that this Pre-Delivery Inspection (“PDI”) be completed using the customer’s actual power unit.

PRE-DELIVERY INSPECTION
Dealer: By initialing each line I understand and promise that I have completed the following:

• Verified the attachment is set up properly for customers power unit. (check model code with manual)
• Greased all grease zerks till grease purges out of bearing.
• Removed all shipping brackets.
• Adjusted push bar out of shipping position. (if equipped) (full forward position recommended)
• Installed head on customer’s unit that will be running the attachment and set hydraulic flow per power unit manufacturer owner’s manual for preferred flow.
• Recorded the Serial Number / Make / Model of the power unit.
  Power unit. S/N _____ Make ____ Model

  ---

  Recorded the Serial Number and Model of the Loftness attachment. S/N ____ Model
  Verified power unit manufacturer outlined Auxiliary coupler orientation for pressure, return & case drain line.
  Verified/recorded rotor RPM at full throttle per model & chart in Loftness owner’s manual. RPM _
  _ Performed an Auxiliary system pressure stall check on the power unit only and verified that max pressure rating is
  achieved per power unit manufacturer specifications. Recorded pressure observed PSI
  PDI completed by: ____ Print ___ Signed/Date
  Contact Loftness factory if any of the tests are not within power unit or Loftness specifications.

DELIVERY
Showed customer all grease zerks.
Showed customer adjustable push bar options. (if equipped)
Showed customer how to properly engage hydraulics to operate attachment.
Reviewed owner’s manual, all on-product warnings and instructions, and safe operation with customer.
_ Assisted customer with completing / submitting Warranty Registration Form to Loftness by one of the below options.
Dealer also needs to submit a copy of this completed PDI to Loftness and maintain the copy in owner’s manual for unit.
Mail to:
Loftness Specialized Equipment
Delivered to Customer by:____Print
PO Box 337
Hector, MN 55342
__Signed/Date
Email to: Cheryl Schmalz
Cheryl@loftness.com

LOFTNESS COPY

To the Dealer:
In order to ensure compatibility / performance of the Loftness attachment and the customer’s power unit, it is IMPERATIVE
that this Pre-Delivery Inspection (“PDI”) be completed using the customer’s actual power unit.

PRE-DELIVERY INSPECTION
Dealer: By initialing each line I understand and promise that I have completed the following:
Verified the attachment is set up properly for customers power unit. (check model code with manual)
Greased all grease zerks till grease purges out of bearing.
Removed all shipping brackets.
Adjusted push bar out of shipping position. (if equipped) (full forward position recommended)
Installed head on customer’s unit that will be running the attachment and set hydraulic flow per power unit manufacturer owner’s manual for preferred flow.
Recorded the Serial Number / Make / Model of the power unit.
Power unit. S/N _____ Make ____ Model

Recorded the Serial Number and Model of the Loftness attachment. S/N ____ Model
Verified power unit manufacturer outlined Auxiliary coupler orientation for pressure, return & case drain line.
Verified/recorded rotor RPM at full throttle per model & chart in Loftness owner’s manual. RPM _
_ Performed an Auxiliary system pressure stall check on the power unit only and verified that max pressure rating is
achieved per power unit manufacturer specifications. Recorded pressure observed PSI
PDI completed by: ____ Print
Contact Loftness factory if any of the tests are not within power unit or Loftness specifications.
DELIVERY
Showed customer all grease zerks.
Showed customer adjustable push bar options. (if equipped)
Showed customer how to properly engage hydraulics to operate attachment.
Reviewed owner’s manual, all on-product warnings and instructions, and safe operation with customer.
__ Assisted customer with completing / submitting Warranty Registration Form to Loftness by one of the below options.
Dealer also needs to submit a copy of this completed PDI to Loftness and maintain the copy in owner’s manual for unit.
Mail to:
Loftness Specialized Equipment
Delivered to Customer by: ___Print
PO Box 337
Hector, MN 55342____Signed/Date
Email to: Cheryl Schmalz
Cheryl@loftness.com

CUSTOMER COPY

Ordering Code

Battle Ax Skid Loader (Example)
The ordering code will consist of two numbers (machine size), two letters (machine type), one letter (tooth type), two numbers (motor system), one letter (sprocket/belt combo), one number (threshold setting), and one letter (options).  An example for a Battle Ax of this type would be as shown below.

Introduction

Owner Information
Thank you for your decision to purchase a Battle Ax skid loader-mounted shredder from Loftness. To ensure maximum performance of your machine, it is mandatory that you thoroughly study the owner’s manual and follow its recommendations. Proper operation and maintenance are essential to prevent injury or damage and to maximize machine life.
The Loftness Battle Ax is an effective, reliable machine used for maintaining grass, weeds, brush and trees.
Efficiently cuts and mulches up to 6″ diameter material.
Intermittently cuts larger diameter material. For best results, operate the machine as low to the ground as possible without the teeth striking ground or other  obstructions. Lifting or tilting the Battle Ax increases therisk of flying debris.  Because of the high speed of the teeth, the life of the teeth will be reduced if it is operated in rocky terrain or in areas where many obstacles are present. Areas to be mowed should be free of debris such as rocks, bottles, large branches etc.  The teeth cut and pulverize the grass, weeds and brush. The Battle Ax deposits cut material over the entire width-of cut, which eliminates bunching or windrowing behind the machine.
Operate and maintain this machine in a safe manner and in accordance with all applicable local, state, and federal codes, regulations and/or laws, and in compliance with on-product labeling and these instructions.
Make sure that all personnel have read this owner’s manual and thoroughly understand safe and correct operating, installation and maintenance procedures.
Continuous improvement and advancement of Loftness products may result in changes to your equipment that may not be reflected in this publication. Loftness reserves the right to make product improvements to the machine at any time. Although great care has been taken to ensure the accuracy of this publication, Loftness does not assume any liability for errors or omissions.
Warranty Policy
Be sure to read and understand the Warranty Policy at the beginning of this manual. It is also important that you fill out the Warranty Registration form(s) completely with your dealer so as not to void the warranty.

Serial Number Location

The arrows above indicate the location of the serial number tag (1) and the location of the serial number stamped into the frame (2).
Always use your model and serial number when requesting information or when ordering parts.

Manual Storage

Keep the owner’s manual and the entire documentation packet in the storage compartment provided on your Battle Ax. The owner’s manual must be available for all operators.

Battle Ax Features

• Downward Rotation Design
• Premium Strength Steel Body & Rotor
• Front Mounted
• Hydraulic Driven
• Universal Skid-Loader Mount
• Adjustable Tree Pusher
• Claw Hooks On Tree Pusher
• 17 in. (43 cm) Diameter Rotor (2000 – 2200 RPM)
• 2.1875 in. (56 mm) Piloted Double Taper Roller

Bearings

• Anti Wrap Bearing Protection
• Heavy Duty Bearing Block
• Fixed Displacement Gear; or Variable Displacement

Piston Type Motor

• Dual Cross-Over Relief Protection
• Pressure Gauge
• Steel Chain Deflectors
• Synchronous Belt
• Tapered-Lock Sprockets
• Skid Shoes – Adjustable +.5 in. to -1.5 in. (+12.7 to -38.1 mm)
• Hydraulic Hoses and Hose Holder
• Adjustable Shear Bar
• Double Carbide; Quadco Planer Teeth (sharpenable); or Hardened Quadco Teeth

Safety Instructions

Safety First
Safety Alert Symbol
This message alert symbol identifies important safety messages on the machine and in the owner’s manual. When you see this symbol, be alert to the possibility of personal injury and carefully read the message that follows.

In the owner’s manual and on decals used on the machine the words DANGER, WARNING, CAUTION, IMPORTANT, and NOTE are used to indicate the following:
DANGER: This word warns of immediate hazards which, if not avoided, will result in severe personal injury or death. The color associated with Danger is RED.
WARNING: This word refers to a potentially hazardous situation which, if not avoided, could result in severe personal injury or death. The color associated with
Warning is ORANGE.
CAUTION: This word refers to a potentially hazardous or unsafe situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. The color associated with Caution is YELLOW.
IMPORTANT: Highlights information that must be heeded.
NOTE: A reminder of other related information that needs to be considered.
If Safety Decals on this machine are ISO two panel pictorial, decals are defined as follows:

• The first panel indicates the nature of the hazard.
• The second panel indicates the appropriate avoidance of the hazard.
• Background color is YELLOW.
• Prohibition symbols such as and STOP if used, are RED.

Be certain all machine operators are aware of the dangers indicated by safety decals applied to the machine, and be certain they follow all safety decal instructions. Contact Loftness for safety decal replacement.
Loftness cannot anticipate every possible circumstance that may involve a potential hazard. The warnings in this owner’s manual are not all inclusive.
Owner’s Responsibility
Due to the potential danger of flying debris, it is the owner’s responsibility and is “ABSOLUTELY MANDATORY that IMPACT-RESISTANT SHIELDING” be installed on the machine to protect the operator.
It is ABSOLUTELY MANDATORY that all personnel read and follow all safety precautions before operating the machine and attachment.
Make sure that all personnel have read this owner’s manual, and thoroughly understand safe and correct installation, operation, and maintenance procedures.
Operate and maintain this machine in a safe manner and in accordance with all applicable local, state, and federal codes, regulations and/or laws; and in compliance with on-product labeling and this owner’s manual instructions.
Make sure that all personnel know how to stop the machine and attachment by disengaging all controls.
See “Mandatory Shut-Down Procedure” on page 6.
Make sure the attachment is installed on the machine correctly before being placed in service. At regular intervals thereafter, the attachment should be serviced in accordance with procedures outlined in this owner’s manual.

Mandatory Shut-Down Procedure

• Stop the machine and attachment on a level surface and lower the attachment to the ground.
• Move throttle to idle position.
• Disengage all power to the attachment.
• Shut off engine and remove the key.
  Wait until the rotor has stopped completely before inspecting the attachment.

Safety Rules
These are general safety considerations. Additional precautions may be necessary to operate your machine in a safe manner. Be certain you are operating your machine in accordance with all safety codes, OSHA rules and regulations,  insurance requirements and local, state, and federal laws.

• Read and observe all warnings decals on the machine before attempting to operate the attachment. Do not attempt to operate this attachment unless all factory devices and decals are in place. Keep safety decals clean of dirt and  grime. Keep all guards, shields and decals in place.

• Remove from area of operation all foreign objects such as bottles, rocks, wire, etc., that might become tangled in the rotor, causing damage to the machine or be thrown striking other objects.

• Do not allow any people and animals within 300 feet of the machine and attachment during operation.

• Do not allow anyone to operate the attachment until he or she has read the owner’s manual and is completely familiar with all safety precautions. Keep the work area clear of all unauthorized personnel.

• Do not allow persons under the influence of alcohol, medications, or other drugs that can impair judgment or cause drowsiness to operate or maintain the machine.

• Always use an approved roll bar and seat belt for safe operation. Overturning a machine without a roll bar and seat belt can result in injury or death.

• Use the handholds and step plates when getting on and off the machine to prevent falls. Keep steps and platform cleared of mud and debris.

• Always have an operator in the machine while the attachment is in operation. Never leave the machine and attachment running and unattended.

• Operate the attachment only from the operator’s seat.

• Keep your feet on the pedals, (floor plates) seat belt fastened snuggly and seat bar lowered, (if equipped), when operating the attachment.

• The adjustable push bar could contact the machine in some positions. Before starting the power unit, set the push bar in the most forward position, then slowly rotate the attachment back while an assistant checks for clearance.  Repeat this process in the other settings to determine which positions are usable with your machine.

• Never attempt to make any adjustments while the attachment is running or the key is in the “ON” position in the machine. Before leaving the operator’s position, disengage power to the attachment, shut off engine and remove ignition key.

• Disengage auxiliary hydraulics and place all machine controls in neutral and engage the parking brake before starting the engine.

• Become familiar with and know how to operate all safety devices and controls on the machine and attachment before attempting to operate. Know how to stop the machine and attachment before starting it.

• Repeated impact of the knives with hard objects can  cause excessive wear and damage to the skid-loaderor attachment. Be sure to maintain recommended ground clearance as specified in this manual.

• Should excessive vibration occur, disengage the auxiliary hydraulics immediately and shut off engine.
  Do not continue to operate the attachment until the problem has been determined and corrected.

• Do not start, operate, or work on this attachment until you have carefully read and thoroughly understand the contents of this manual and the operator’s manual for your machine.

Battle Ax Skid Loader Identification

Safety Decal Locations
Check and replace any worn, torn, hard to read or missing safety decals on your machine.

![LOFTNESS N49375 Skid Loader Mulching Head

• warning 3](https://manuals.plus/wp-content/uploads/2023/12/LOFTNESS-N49375 -Skid-Loader-Mulching-Head-warning-3.png)

Set-up Instructions

Pusher Bar Assembly

NOTE: Assembling the pusher bar requires two people or the use of an approved lifting device to support the push bar as it is being adjusted.
Ensure pusher bar is being safely supported.
Loosen nuts (1 and 2).
Remove nut, bolt, and washer (3) securing the rear arm (4) to the rear of the frame.
Repeat on other side.

NOTE: When removing the hardware (3) on the left side, remove the shipping support stand (5) and discard.

Move rear arms into position so hole in lower end of rear arm (4) aligns with the top hole (6) of the side plates (indicated by the shipping tag). Remove the shipping tag.
NOTE: The pusher bar is factory-set so the upper hole in the rear arm (4) aligns with hole “A”. If a different pusher bar angle is desired, remove nut and bolt (2) from their current position while holding on to the rear arm (4). Once the  hardware is removed, let the rear arm rest on pusher bar side assembly (7).
Repeat procedure on other side.
Raise or lower the pusher bar and align the rear arm (4) with the desired hole (A ,B, or C) on the pusher bar side assembly.
Reinstall all hardware and tighten (1, 2, and 6) securely.
This must be done on both sides.

Installing the Battle Ax to the Loader
Fully raise the attachment-locking levers on the loader mounting plate.

Tilt the loader mounting plate ahead. Drive forward with the loader and hook the top edge of the loader mounting plate under the top flange (1) on the Battle Ax mounting plate. Be careful not to damage the locking levers on the loader  mounting plate.
Tilt the loader mounting plate back until the Battle Ax mounting plate is firmly against the loader mounting plate, but Do Not lift the attachment off the ground.

WARNING: Before you leave the operator’s seat: Lower the lift arms, put the attachment on the ground. Stop engine and remove ignition key. Engage the parking brake.
Fully lower the attachment-locking levers on the loader mounting plate.
WARNING: Locking-wedge pins must extend through the holes in attachment- mounting plate. Levers must be fully down in the locked over-center position. Failure to secure wedge pins can allow attachment to come off, causing serious injury or death.

NOTE: The hydraulic hose quick couplers shown above are not supplied with the Battle Ax.
Install the Battle Ax quick couplers to the loader.
NOTE: The case drain quick coupler (1) of the Battle Ax must be connected to the loader’s auxiliary hydraulic system for proper operation of the Battle Ax.
IMPORTANT: It is the owner’s responsibility to assure that the hydraulic hoses from the power unit to the attachment are not caught in pinch points, or in any way damaged by moving parts.

Checking Rotor Rotation

Raise the Battle Ax off the ground and place blocks (1) underneath the skids. Lower the Battle Ax down on the blocks.
DANGER: Keep hands, feet, and clothing clear of belts, sprockets, and rotor while

Engage the loader auxiliary hydraulics, the rotor should start rotating in forward direction. The rotation should be counterclockwise as viewed from the left side of the Battle Ax.
NOTE: If the rotor is rotating backward, reverse the quick couplers (not supplied) on the Battle Ax hydraulic hoses. Re-install the couplers (not supplied) on the loader and test for correct rotor rotation.
WARNING: The Battle Ax can be damaged if rotor is operated in reverse rotation.

Checking Rotor Speed

Remove right side belt cover. Apply a small piece of reflective tape (1) to the outer edge of the lower sprocket.
Point an electronic (photo) tachometer (2) towards the edge of the sprocket to check the rotor speed.
NOTE: The tachometer shown is not supplied with the Battle Ax.
Test the rotor RPM with loader engine at full throttle.
DANGER: Keep hands, feet, and clothing clear of belts, sprockets, and rotor while loader is running.
See “Motor & Sprocket Selection Chart” on page 25 for rotor RPM. If it is outside this recommended range, it may be necessary to disconnect the Battle Ax and test the hydraulic output of the loader with a flow meter to see if it corresponds with the factory specifications.

Skid Adjustment

NOTE: The skid(s) can be adjusted to increase or decrease the distance between the ground and the rotor.
Remove the four nuts (1) and raise or lower the skid to the desired height. Re-install the four nuts and tighten securely against the skid.
Repeat the procedure on the opposite side.

Cutter Bar Adjustment

NOTE: The cutter bar can be adjusted back or forward to increase or decrease the distance between the bar and the rotor.
Most operators find the best performance is achieved by adjusting the cutter bar as close as the slots will allow (approximately a 1/4″ gap from knife to cutter bar). A wider gap generally increases finished partical size and horsepower requirements.
WARNING: Shut down and disconnect hydraulic hoses from skid loader before adjusting the cutter bar.
Loosen the seven bolts with washers (1) securing the cutter bar (2) to the frame. Move the cutter bar either forward or back making sure the distance moved is consistent through the entire length of the cutter bar.
Retighten bolts.
Over time, the cutter bar edge will become worn and rounded from use. There are a total of 4 wear edges available by removing and flipping the bar, side to side and front to back.
CAUTION: If adjusting the cutter bar after the machine has been used, the cutter bar should be completely removed to clear any debris away from contact surfaces before assembly and tightening. FAILURE TO DO SO COULD RESULT  IN SEVERE DAMAGE TO THE MACHINE!.

Operating Instructions

Getting Started
For best results, the areas to be mowed should be free of debris such as bottles, metal objects, rocks and wire etc. The teeth cut and pulverize the brush, grass and weeds.
Operate the Battle Ax as low to the ground as possible without the teeth striking ground or other obstructions.
Because of the high speed of the teeth, the life of the teeth will be reduced if it is operated in rocky terrain or in areas where many obstacles are present. The Battle Ax deposits cut material over the entire width-of-cut, which eliminates  bunching or windrowing behind the machine.

WARNING: Due to the potential danger of flying debris, it is the owner’s responsibility and is “ABSOLUTELY MANDATORY that IMPACT-RESISTANT SHIELDING” be installed on the machine to protect the operator.
WARNING: Lifting or tilting the Battle Ax increases the risk of flying debris.

DANGER: Keep hands and feet out! Do not step on or climb over the unit while machine is in operation, or engine is running. Do not carry passengers.
WARNING: Do not operate the attachment above the rated RPM. Check with your Loftness dealer to be sure your attachment is set-up with the correct hydraulic motor to match the hydraulic flow GPM (Gallons Per Minute) of your machine.
WARNING: Flying debris can gather on the skid-loader and needs to be cleaned off, especially around the radiator and oil cooler screens, engine compartment and exhaust areas. Periodic cleaning will help prevent the possibility of fire.
WARNING: DO NOT allow ANY people or  animals within 300 feet of the work area while operating this machine.

Operation

Tilt attachment mounting frame back and raise the Battle Ax slightly above the ground when moving the machine.
NOTE: Operate the Battle Ax as low to the ground as possible without the teeth striking ground or other obstructions.
WARNING: Lifting or tilting the Battle Ax increases the risk of flying debris.
WARNING: DO NOT allow ANY people or animals within 300 feet of the work area while operating this machine.
Lower the Battle Ax until the skids contact the ground.
Engage the auxiliary hydraulics. Move the loader and Battle Ax forward and begin mowing.
NOTE: Various mowing conditions, and desired finished cut appearance, will determine proper ground speed.

Log Moving

Disengage hydraulic power to rotor before moving logs and brush with pusher bars.
Raise the loader lift arms and tilt the Battle Ax forward until the push bar extensions are over the log or item being moved. Lower the lift arms and position the log between push bar extensions and the Battle Ax. Move the loader  backwards, dragging the log to the desired location.

Hydraulic Hose Storage

When not in use, protect the hose couplers by securing the hydraulic hoses in the storage position on the left side pusher arm.

Maintenance

General Maintenance
To ensure efficient operation, you should inspect, lubricate, and make necessary adjustments and repairs at regular intervals. Parts that are starting to show wear should be ordered ahead of time, before a costly breakdown occurs and you have to wait for replacement parts. Keep good maintenance records, and adequately clean your Battle Ax after each use.
Proper lubrication is important. Too little lubricant will cause premature failure of a bearing. Too much lubrication usually causes high operating temperature and early failure of seals. Follow all lubrication instructions and schedules  included in this section.

Maintenance Schedule

Every
8| Machine| | X| | | |
Loose Bolts| | | | | X|
Hoses and Wiring| X| | | | |
Oil Leaks| X| | | | |
Rotor Bearing| | | | X| |
Teeth| X| | | | |
Every
100| Belt Tension| X| | | | |
Drive Belt| X| | | | |
Safety Labels| X| | | | |
Every
500| Overhung Load Adapter| X| | | | | X

Lubrication
Grease Point Location

www.loftness.com
Loftness Specialized Equipment, Inc.
650 So. Main Street • PO Box 337 • Hector, MN 55342
Tel: 320.848.6266 • Fax: 320.848.6269 • Toll Free: 1.800.828.7624
Printed in USA
© Loftness 2021

References

• p65warnings.ca.gov

Read User Manual Online (PDF format)

Read User Manual Online (PDF format)  >>

Download This Manual (PDF format)

Download this manual  >>
