Table of Contents
EL2000 Mach 3
Configuration Guide
53834 EL2000-TC Balboa Wireless Earphones Bluetooth
| Output Features | Quadrant |
|---|---|
| J1 + W1 | – 2-Speed Pump 1 |
| J2 + W7 | – Circ Pump or Fiber Optic (Separate Relay 120V or 240V) |
| J3 + W2 | – 1-Speed Blower (with 1-speed Pump 2) W15 to J97 |
| – OR 1-Speed Pump 3 (with 1-speed Pump 2) W15 to J97 | 7-C |
| J4 + W8 | – Audio Visual (always hot – no relay) |
| J5 + W12 | – 2-Speed Pump 2 (with NO Blower on J3) W15 to J98 |
| – OR 1-Speed Pump 2 (See J3/W2) | 7-C |
| J9 + W13 | – Ozone (Separate Relay 120V or 240V) |
| J12 + W9 | – Spa Light (12V or 120V) Check J37 Setting |
X-Mount P
PN 53933
Used for mounting any Expander Board in a plastic enclosure.
Standoffs attach to heater mounting bracket.
ADCM SPLITTER KIT PN 54530
Required when using a Menu-driven panel.
Kit includes PCB, stand-offs, and cable.
Note: Software v29 or higher required.
- J2 connects to ADCM IN (J69) on main PCBA.
- J3 connects to Menu Panel or Transceiver.
- J6 connects to tester or F.A.S.T. station.
EL2000 Mach 3 Expander Board Options
X-B PN 53310
Used for a 1-speed Blower output ONLY.
- W15 (9-A) connected to J98 (8-B)
X-P PN 53544
Used for a 1-speed Pump or Mister output.
- W15 (9-A) connected to J97 (9-B)
X-TB PN TBD
Used for a multi-speed Blower (requires v29+ software and “bL” set to “2”
or “3”)
Or can be used for a 1-speed Blower.
- W1 connects to Red or White AC on Main PCBA.
- J3 connects to Black AC on Main PCBA.
- J2 connects to J6 (Ext. Rly) on Main PCBA.
X-P231 PN 53681
Can replace the X-P in cases where branch circuit protection is needed for
high amperage devices that would over-burden power input fuse F7 (1-B) on the
main PCBA. This allows J6 on the X-P231 to connect directly to Black AC (1-C)
on the main EL2000 PCBA.
X-P632 PN 53680
Used for a 2-speed Pump output or for two 1-speed Pumps. Can also be used for
other optional setups.
- J6 on X-P632 connects directly to Black AC (1-C) on the main EL2000 PCBA.

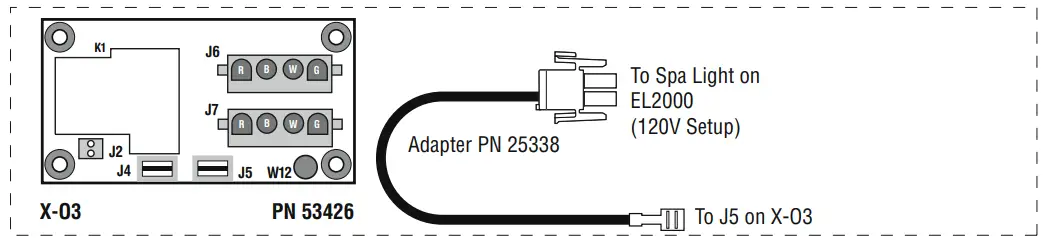

X-FOW Kit PN 53912
Special setup with X-03 and Adapter PN 25338 to operate a fiber-optic light
and color wheel independently. Required to operate a Fiber Optic when a Circ
Pump is installed on Main PCBA at J2.
Document PN 40483_L
04-05-2007
