Kanewell 903SNL-2F-AB Twin Compact Adjustable Saddle Seat
Product Information
The product is a chair with adjustable features designed for comfort and functionality. It is available in two models: 903SNL-2F-AB and 903SNV-2F-AB.
The chair consists of the following parts:
- Seat Top
- Mechanism with Back Adjustment Function
- Gas Cylinder
- Aluminum Base
- Casters (x5)
- M8 x 14 mm Screw (x4)
Optional accessories include an Adjustable Foot Ring and Glide Accessory.
Models: 903SNL-2F-AB, 903SNV-2F-AB
Assembly Instructions
Please follow the steps below to assemble the chair:
- Lay out all the parts and ensure you have all the items listed in the Parts List.
- Insert the 5 casters into the outer holes on the base. Alternatively, if you have purchased fixed glides, they can be installed instead.
- If you have purchased the Adjustable Foot Ring, slide it over the bottom of the Gas Cylinder. Then, insert the large bottom end of the Cylinder into the center hole on the Base.
- Connect the Mechanism with the Seat Top using the provided M8 x 14mm screws. Tighten them securely.
- Place the assembled Seat Top with the Mechanism on top of the Gas Cylinder. Ensure that the top of the Gas Cylinder is properly fitted into the hole of the seat Mechanism.
Mechanism Adjustment Functions
The chair offers various adjustment functions for your comfort:
- Seat Posture/Tilt Angle: Pull up the left lever to release the mechanism, then push the lever down to lock it in place at the desired tilt angle.
- Seat Height: Lift the lever on the right to raise or lower the seat to the desired height. Release the lever to lock it in place.
- Seat Splay: Turn the adjustment knob to the left to release the lock. Spread the seat halves to the desired splay and re-tighten the lock by turning it to the right.
- Footring Height (if equipped): Loosen the locking knob by turning it to the left. Raise or lower the footing to the desired height. Tighten the lock by turning it to the right.
Note : Glide Accessory and Footring Accessory are optional and not included with the chair.
Caution: Do not use this chair as a step ladder. Check for loose screws
and tighten them every month. Regular safety inspections should be conducted.
Distributed by: Micwil Group of Companies Ltd. The Micwil Building, 102
Wheeler St., Saskatoon SK S7P 0A9 Tel:
1-866-335-3746 Website:
www.micwil.com
Parts List
- Seat Top
- Mechanism (w/Back Adjustment Function)
- Gas Cylinder
- Aluminum Base
- Casters (x5) (or optional fixed glides)
- M8 x 14 mm Screw (x4)
- 1 x Adjustable Foot Ring (optional)
- 5 x Glide Accessory (optional)
Before Assembly
Please Read Instructions Fully Before Assembly
Tools Needed: Phillips Head Screwdriver or socket/wrench

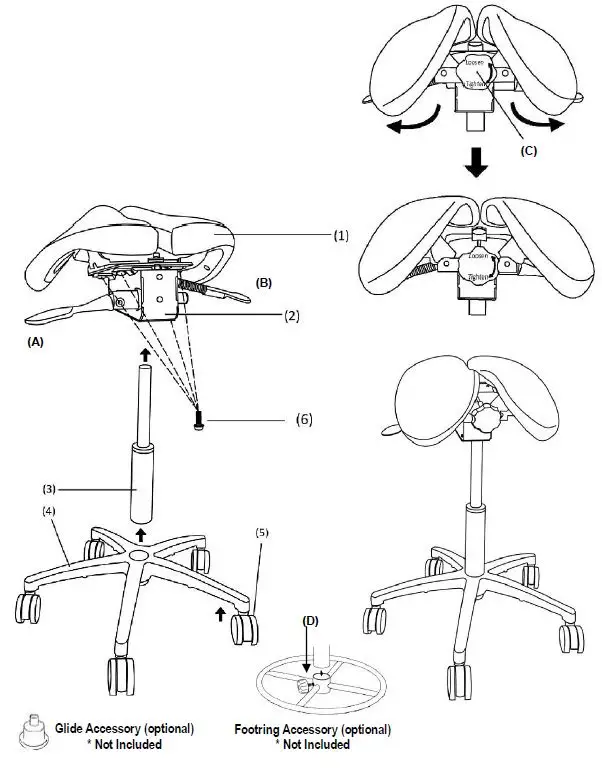

- Step 1: Lay out all parts and check against Parts List.
- Step 2: Insert the 5 casters (5) into the outer holes on the base (4). (Note: Optional fixed glides can be purchased separately.)
- Step 3: Slide the Footring (if purchased) over the bottom of the Gas Cylinder, then insert the large bottom end of the Cylinder into the center hole on the Base.
- Step 4: Connect the mechanism (2) with the Seat Top (1) by using the 4 x M8 x 14mm screws (6) and tighten.
- Step 5: Place the Seat Top (1) with Mechanism (2) on top of the Gas Cylinder (3) and make sure the top of the Gas Cylinder has been properly fitted into the hole of seat Mechanism.
Mechanism Adjustment Functions
- (A) Seat Posture/Tilt Angle: Pull up the left lever (A) to release the mechanism, then push lever down to lock the mechanism in place at the desired tilt angle.
- (B) Seat Height : Lift the lever on the right (B), let the seat rise or lower to the desired height, then release the lever.
- (C) Seat Splay: Turn adjustment knob (C) to the left to release the lock, spread seat halves to desired splay, and re-tighten lock by turning to the right..
- (D) Footring Height (if equipped): Loosen locking knob (D) by turning it to the left, raise or lower footring to desired height, tighten lock by turning to the right.
Caution : Do not use this chair as a step ladder. Check for loose screws
and tighten them every month.
As with any equipment, routine safety inspections should be conducted.
Distributed by:
Micwil Group of Companies Ltd.
The Micwil Building, 102 Wheeler St., Saskatoon SK S7P 0A9
Tel: 1-866-335-3746
www.micwil.com
