Perma 2777 Extra Tall Easy Fit Baby Gate Instruction Manual
- June 10, 2024
- Perma
Table of Contents
Extra Tall
Easy Fit Baby Gate
INSTRUCTION MANUA
INSTALLATION VIDEO https://qrstud.io/eb7lxtn #2777 White
2781 Warm Black

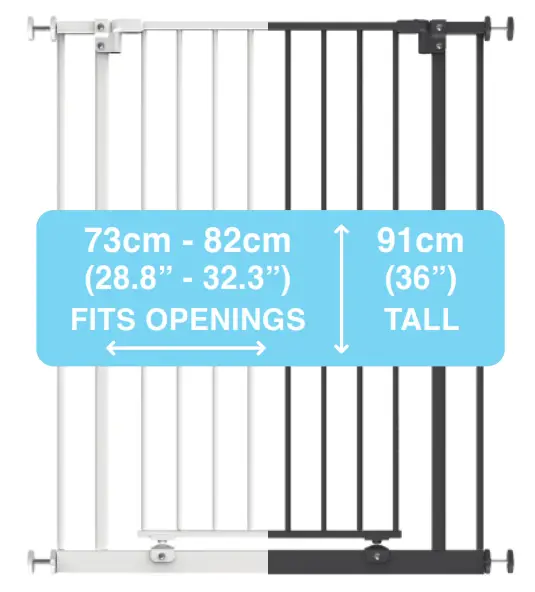

2777 Extra Tall Easy Fit Baby Gate
IMPORTANT! READ AND FOLLOW
THESE INSTRUCTIONS
CAREFULLY AND KEEP
FOR FUTURE REFERENCE.
This product complies with safety standard EN 1930:2011
SAFETY INFORMATION
GENERAL
Read this instruction manual carefully and keep it in a safe place for future
reference.
The correct use and maintenance of this product is essential.
MAINTENANCE
Regularly check that the gate is functioning correctly, lubricate hinges and
moving components. Tighten and adjust mounts to ensure secure smooth
operation. Inspect all components regularly and stop using if any component is
damaged or missing.
Refer to pages 12 & 13 for operation and cleaning instructions.
WARNING
- To prevent serious injury or death, securely install gate or enclosure and use according to manufacturer instructions.
- Incorrect installation can be dangerous.
- Danger to older children if climbing over the product.
- Do not use the safety barrier if any components are damaged or missing.
- The safety barrier must not be fitted across windows.
- Never install this product on glass doors. Install this product against reliable doors or walls.
- If the safety barrier is used at the top of the stairs, it should not be positioned below the top level.
- The minimum distance to the first step of the stairs is 25cm (10”) when used at the top of stairs.
- If the safety barrier is used at the bottom of the stairs, it should be positioned at the front of the lowest tread possible.
- This safety barrier has a manual closing system.
- Never leave child unattended when using this product.
- Children have died or been seriously injured when gates / enclosures are not securely installed.
- NEVER use to keep child away from pool.
- Always check that the safety barrier is correctly closed.
- Use only with the locking / latching mechanism securely engaged.
- Gate must be installed as close to the ground as possible, as per the installation guides.
- Never use with a child able to climb over or dislodge / open the gate or enclosure.
- Regularly check that the safety barrier is properly installed and secure.
- ALWAYS install and use gates / enclosures as directed, using all required parts. All parts should be obtained from after sales support.
- Barrier must be fitted between rigid surfaces such as plaster board, timber or hard wall.
- This product is intended for use with children from 6 to 24 months or small to medium pets from 4.5kg (10 Ibs) up to 18kg (40 Ibs).
- Do not put any goods which can be grabbed by children or pets near this product to prevent injury.
- Before using this product, carefully inspect for any loose parts and whether any parts need to be tightened.
- This safety barrier is for domestic use only.
- You MUST install wall cups to keep gate in place without wall cups, child can push out and escape.
WHAT’S IN THE BOX
PARTS
INSTALLATION
Gate Placement
When the gate is unpacked, you may notice a gap at the door opening. This is
normal with pressure mounted gates and the gap will disappear when it is
installed correctly.
Gate Placement
Gate must be installed in a structurally sound opening.
Ensure mounting surface (e.g. wall, door frame, stair way) is strong, rigid
and has an even surface. Measure the space to be enclosed.
Gate extensions are availiable through our website.
Scan the QR Code to try our Gate
Extension Calculator:
NOTE: Only use one extension on each side of gate.
Inside Opening or Doorway
Step 1.
Screw Adjuster Bolts and Screws together, then place into mounting holes in
each corner of the gate.
Step 2.
Place the gate in desired opening, ensure the bottom rail is completely flat
on the floor and the Mounting Cups are aligned directly above eachother, mark
position of each
Mounting Cup with a pencil.
Step 3.
Stick the Mounting Cup in position with the Adhesive Pads and then place gate
into position.
For added security, fix each cup to the wall using
a small Phillips head screwdriver and the Screws provided.
NOTE: This gate must only be fixed to a solid and secure
surfce.
If unsure, check with a qualified builder or trades person that the
installation you intend is suitable and safe in chosen location.
Step 4.
Align gate with Mounting Cups and tighten the Adjuster Screws by turning
clockwise, start with the bottom Adjuster Screws then move to the top. Tighten
equally until there is only a 1.5mm gap in the locking mechanism. Regularly
check tension of all Adjuster Bolts and tighten if necessary.
OPERATION
HOW TO OPEN
- Using one hand, place thumb on the button and grip Gate Panel with fingers. Slide button and lift Gate Panel.
- Open gate in either direction. When released gate will swing closed automatically.
- To enable stay open feature, open gate to a 90° angle. The gate will not swing closed.
NOTE: Always check gate is properly closed and secure at all times.
CLEANING INSTRUCTIONS
Simply use a soft damp cloth to wipe gate, dry after cleaning. Do
not use chemical or abrasive cleaners.
SUPPORT
WARRANTY CERTIFICATE
Congratulations! You have made an excellent choice of this quality product.
Our commitment to quality also includes our service. Should you, contrary to
expectations, experience defects due to manufacturing faults, we will provide
you with a warranty against defects as follows:
WARRANTY
The product is guaranteed to be free from from defects in workmanship and
parts for a period of 12 months from the date of purchase. Defects that occur
within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion. The benefits conferred by this
warranty are in addition to all rights and remedies in respect of the product
that the consumer has under the Competition and Consumer Act 2010 and similar
state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure
and for compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
PROOF OF PURCHASE
This warranty is valid for the original purchase and is not transferable.
Please keep your purchase docket, tax invoice or receipt as proof of purchase
and date of which the purchase was made.
EXTENT OF WARRANTY
This warranty is limited to defects in workmanship or parts. All defective
products or parts will be repaired or replaced. This warranty does not cover
consumable items.
NORMAL WEAR AND TEAR
This warranty does not cover normal wear and tear to the products or parts.
EXCLUSIONS
This warranty does not cover:
- Any defects caused by an accident, misuse, abuse, improper installation or operation, lack of reasonable care, unauthorised modification, loss of parts, tampering or attempted repair by a person not authorised by the distributor.
- Any product that has not been installed operated or maintained in accordance with the manufacturer operating instructions provided with the product.
- Any product that has been used for purposes other than domestic use.
TO MAKE A CLAIM
If a defect in the goods appears within 12 months, you are entitled to claim a
warranty. Please contact after sales support via the link below:
www.permachildsafety.com/contact-us Please ensure that you have a copy of proof of purchase so that we are
able to respond as quickly and efficiently as possible.
WARRANTY CARD
DETAILS:………………………
PRODUCT NAME: Extra Tall Easy Fit Baby Gate
PRODUCT NUMBER: White 2777, Warm Black 2781 (Please circle)
YOUR NAME:…………………………………………………………..
ADDRESS:………………………………………………………………..
PHONE: ……………………………..
EMAIL: …………………………….
DATE OF PURCHASE:……………….
LOCATION OF PURCHASE:………………………..
We recommend that you keep a copy of your receipt, showing the date of
purchase, with this warranty certificate and keep for your reference. In the
event of a product fault, please contact after sales support. Ensure that you
include the product details (as shown on this card) so that we are able to
respond as quickly and efficently as possible.
AFTER HOURS SUPPORT
Scan the QR code for Live Chat Support or visit: permachildsafety.com
