AEL Lantern Field Installable
House Side Shield
INTRODUCTION
Product Description
The following Field Installable House Side Shield accessories are available
for 247CL, ARDCL, and AVPCL2.
| Part Number | Description |
|---|---|
| *276VY0 | FHSSLEM10-15R2/R5 |
| *276W0U | FHSSLEM10-15R3 |
| *276W0W | FHSSLEM20-30R2/R5 |
| *276W11 | FHSSLEM20-30R3 |
| *276W15 | FHSSLEM45R2/R5 (ARDCL/AVPCL2 only) |
| *276W2R | FHSSLEM45R3 (ARDCL/AVPCL2 only) |
The following Field Installable House Side Shield is intended to limit the light directed directly behind the luminaire. These shields are not to be used with factory installed House Side Shields (HSS). This component is designed for simple installation in the field using 3 or 4 screws.
INSTALLATION
Tools and Materials Required
5/16” nut driver or slotted screwdriver
Procedure:
- Open the fixture by unscrewing the latch screw(s) (or by using the tool-less trigger latch[es], if applicable) and swing the lid open.
Refer to Figure 1 for 247CL latch screw location and Figure 2 for ARDCL/AVPCL2 latch screw locations.
|
---|---
2. Place the house side shield assembly on top of the light engine module as shown in Figure 3.
- Use the 4 included screws to fasten the house side shield assembly to the sheet metal plate, as shown in Figure 4. Tighten to 20-30 in-lbs of torque.

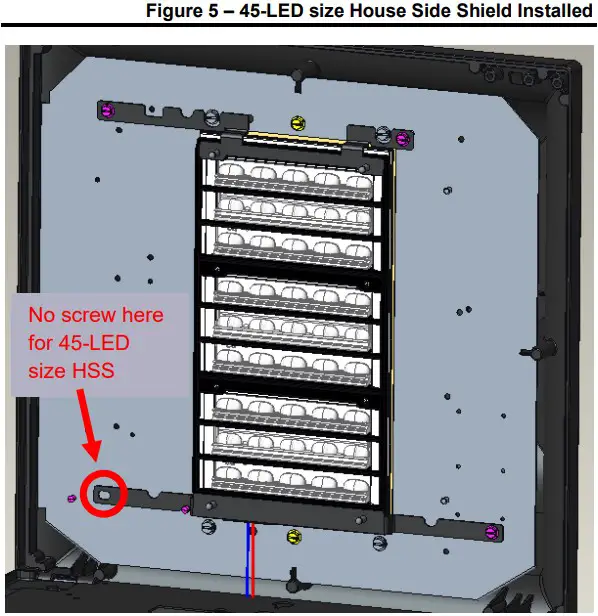

a. For models with 45-LED light engines (model numbers ARDCL P45x and AVPCL2 P45x only), only 3 screws will be used as shown in Figure 5.
|
---|---
4. Gently close the lid and tighten the latch screw(s) (or close with tool-less trigger latch[es], if applicable).
