Introduction manual

Please read the instruction manual thoroughly before using the product Some features may be changed without prior notice to improve the performance of the product

To prevent safety accidents, check the product before and during use. If abnormal symptoms are found, stop using the product immediately, contact self—examination center or a customer service center and use the Product Well,.

• Accelerated  lever (throttle)

• ■Chock the accelerator lever ler namel operation before awing. k
  Before Owing. check if the lever is returned to Hs engine! Positiort

• Maintaning smooth operation when along. k Check or replace 11 there s a large gap or impact of the acceleralion lover.

• Requires regular inspection of the bolls the serve the accelerator lever.

Folding part fork end nod pert

• Extreme and stunt drying s strictly Prohbited, kin the event
• ln the event of heavy operation of prohobited carrying the weight of the handle and the fixed bolts on the shimed parl, neck and fork pails. the associated DOM may become,  loss binding and loose due to fatigue damage or delarnation, aria parts need to be replaced alter a certain peiod of use.

WARNING
Ensure mat bolts. nuts are seoare and tree 1mm loss wherever the product constructed.

signs of Creek and Other damage must be verified always before use. x Lock the folding lever firmly so the 101Cfn0 does not loosen %hie driving.

• Replace cables it they are not operating smoothy.
  when operating the Drake lever. alter a major mead. such as a tat the brake lever must be nspected or replaced.

• Pria to driving. the braking force must be checked at at times.

• check Drake function aril brake pad consumption.

• Conlirm the working • stake c4 the brake.

Front and rear suspension

• Ensure that the mounting bolts and nuts are tightened.
• fter a fall. Major impact. check the suspensios for damage and replace Them before use
• If a certain amount of time is spent and there is a decrease n (eaten°, and otter functions replase before using


Please familiarize yourself with the manual before using the product. Some features can be changed without prior notice to improve the performance of the product.

Please read the following notes before using the products

1. Please read this manual odor° ustny the product. () After you read if please keep it where easy to find.
2. In this User’s manual, some device—based features and items may not be available or may be optional.
3. The images used on user manual may diller from the actual product as images intended to help your understand. e
4. This product and its documentation subject might be changed without notice.

WARNING

*General safety precautions

• This products ‘Cade for SirYjIg-t use, Do not burn your passenger.
• Do not drive in environment with a risk of accident.
• Belore use, check the tread plate bghtervng bolts, tire conditions, other equipment conditions. and safety conditions.
• Do not allow moisture to enter the product’s components. Connecting the charger white water is flowing in can cause fire or electric shock. If moisture enters the product. please stop using it immediately and contact the customer center for inspection.
• All wet conditions such as rain, snow, hail, etc. are prohibited. Clean with water is a source of trouble and subject to fire.
• Any disassembly. modification or modification of products and components is not warranted and the manufacturer and dealer is not responsible for any problems caused by them.
• The electronic control system of this product has been developed with safely first, so please do not change the electric circuit or install other electric devices.
• Never modify the electrical circuit. Any manipulation of the electric circuit may cause shock, lire, explosion and damage to the product.
• Please be careful not to injure yourself when folding and moving the product alter folding.
• If the battery gauge has only one space remaining, stop operation and charge
• Regularly check the connection status between the wires and the connector.
• Avoid driving in places where people are crowded or where pedestrian sale& is a concern
• D0 not use it on slippery places or ice roads, rainy and snowy days due to water.
• Do not use it on steep grades over 15 degree.
• Be safe at low speeds on ramps.
• For safety during operation, please operate safety within 20km/h.

*Prerequisite checks before driving

• Cnecrs he accelerat)on level (throttle) to! normal operation before driving and refrain from the sudden operation.
• It the braking force is insufficient. change the pads. adjust the gap, and adjust the brake alter checking the brake ‘magnetic field
• Turn on the power to check the remaining battery capacity before driving.
• Avoid driving at night for safety reasons and in case of unavoidable night driving. Please make sure to drive with the driving mode that suits you.
• Practice slowing down and stopping slowly to cope with possibly unexpected situations when driving.

*Prevention d safety accidents while driving

• Profective equipment (heels. gloves, upper body protection. knee. elbow protection . joint protection. etc.) must be worn before use.
• Do not carry out any dangerous movements. and always put both hands on the handlebars to ensure that the brakes are immediately held in case of unforeseen circumstances.
• Do not drive on angled jaws(hills) or stairs.
• Do not carry heavy objects on the handle bar.
• Unlicensed, drunk driving and cargo—loaded driving are prohibited. Observe the Road Traffic Act and related statutes according to the location of use.
• Extreme driving and dexterity driving are prohibited because the product is severely impacted, causing failure and accident. Manufacturing and retailers will not be responsible for any problems caused by this
• Acceleration on the downhill is very dangerous because braking distances are longer and visibility is difficult, so do not accelerate at all and the brakes should be used properly to slow down, Stop driving and lower the heat of the brake drum as the brakes may overheat on very long downhill roads.
• When turning left and right, slow down sufficiently to avoid the risk of rollover, check if there are any obstructions, and then keep the wide radius and turn slowly.
• Please pay attention to terrain and ground. If you at driving on unpaved roads, please drive slowly.
• Please retrain from driving on roads where there are many cars.
• For safety during operation, please operate safely within 20km/h.

Components and name

Components guidance

Battery charger

**Use Manual

**

**key

**

Bolt
(M6 5×10) 6pcs

Hex wrench
**(2.5.4.56mm)

**

Please note that the charging terminal mil be damaged ii the charging ccrnection impacted while the charger is connected. The lithium ion battery must be charged orly with the charger included with the product. II you charge the battery with a non—stardand or non—cerblied charger. it may cause prcdr.ct ‘aloe or fire.

**** connection sequence
Product charger connection ) ‘2) Connect the charger plug to the socket

Names of external components

1. Control panel
2. Handle
3. Throthle lever
4. Brake lever
5. Key box
6. Fending knob
7. Front Wheel
8. FRONT AND REAR ARM COVER
9. Charging pod
10. Foot mat
11. Stand
12. Rear wheel
13. Tail lamp

(a)  Randle bar
(b) Handle post
(c) Main body

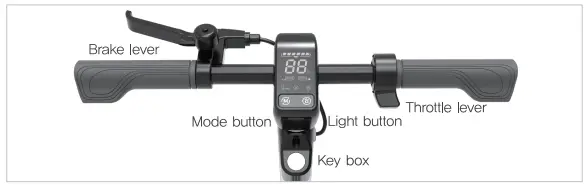

Dashboard

Name and setup of the instrument panel

User driving settings

Insert the key into the keybox and turn in to the right to supply power Turning the key to the left will turn off the power.

1. Press M button once with power on to convert ECO/POWER mode. 3. Press 8 button with power on to turn on the light and press again to turn oil light.
4. Press 8 button for about 2 seconds with power on to run cruise function. Press it again for about 2 seconds to cancel the cruise.

Driving

Driving method

1. Insert the key into the keybox and turn in to the right to supply power.
2. Set the desired driving mode (check the “dashboard setting’)
3. When Power is ON. push the scooter and gently press the accelerate to operate.
4. Use the brake lever to slow down and stop. 5 Turning the key to the left will turn oft the power.
   • Please note, Mere is a built—in kick & go function, so when driving for the first time, push the product with one loot so the kickboard can move forward. Alter doing som you must use the accelerator to drive.


♦FORCE Driving mode can be selected manually according to the user’s desire.

• Eco mode :
• This mode allows smooth and efficient driving by adjusting the
• output and acceleration
• Power mode
• Users can use maximum output and torque of the product.
• This mode allows active driving with last response speed. However, in Power made.
• the speed is automatically limited when the speed exceeds 25 km/h according to law

**** If you brake continuously on the downhill. you must be cautious of the use as it may cause the brake function deterioration and accidents. Also. be sure to drive safely at low speed as it may cause damage to the motor and controller during excessive driving.

Folding

Handiest folding method

(a) Loosen the folding knob 7-10 turns in  Push the folding knob in the direction the direction of the arrow (Counterclockwise),
(b) push the folding knob  in the and push the handle post in the 10 direction when the handle post is pushed to the right — the bck is released.
© Lower the folding knob until the handle post ‘clicks’ and then turn the folding dial in the opposite direction to tighten it.
(d) Unfold the product in the reverse order of folding, then tighten the folding dial to secure the handle post,

Handlebar Install method

(a) Connect the signal cable connotes” of the handleposl and the handlebar as shown in Figuieia and insert the handlebar into the handpost as shown in Figure®.
(b) Secure the handlebar to the handpost unsent the enclosed M65x10 bolt and hex wrench.

Lock the folding lever firmly so that the folding does not loosen while driving.

Charger

Charging the battery

Disconnection of the battery

• Pressing the Y for 2 sec nds. will the battery to be unlocked from the scooter with a ‘CLICK” sound from the battery look
• t the same time. the battery disconnect indicator is extinguished on the display.
• Lift the battery handle to disconnect the battery from scooter.
• l you want to charge fast. purchase additional charger and connect the two chargers at the sane time, with will cut the charging time by hall.

Connection of battery
Insert the back part first as shown. then place the front part naturally and press down the battery. 3

(NOTICE

The scooter does not have a charging port, the battery must be disconnected and charged. In addition, when power is completely depleted, the locking device is not energized and the battery is not disconnected. Therefore. make sure to charge it before it is fully discharged and keep the battery separately from the body when it is not used for a long lime,

* Charger connection guide

• If you connect the charger to the product and then plug the outlet, it may cause a spark. Please make sure to charge in the same way as the connection procedure below.

**** Charger connection sequence 4.
Connect the charger (product) (,connect the charger plug to the socket

*Charging Instruction

• Charging port is located on the right side of the neck.
• Charging lakes 6^-7 hours.
• It the driving speed drops while using the product, please charge it immediately.
• Charger indicator lamp color is red during charging. The indicator turns green when charging is complete. Two hours after the product is fully charged, the power is automatically cut off and the indicator light on the charger is turned off,
• Be sure to charge it outdoors with good ventilation and in an environment without flammable substances,

Battery

Using and managing Litium ion batteries

Warning

• Energy density of battery is very hgh. So, there is a possibility that it the battery pack is charged for a brig time under short—circuit short-circuit, leakage, or battery failure, it may be ignited. Therefore, it should be avoided to charge the room indoors for a long time in the absence of a person, or to charge la a long time while sleeping at night.
• 11 the protection circuit is damaged 11 there is any leakage or smell from the battery, stop using it immediately and contact the DIX* of putteee for technical SuPPOrt and service.
• if Overheating. Srietre. ignition, etc. is detected in products equipped with lithium-ion batteries, charging and use ShotAd be Slopped immediately, In the event of a lire, make sure to use a lire extinguisher.
• Cnly genuine batteries and chargers supplied through the manufacturer must be used. Manu—facturers and salespeople are not responsible for any problems caused by the use of third—party batteries and chargers (faults and causes of lire).
• 11 should be charged from 0 to 40 degrees Celsius, and should be stored at temperatures between —20 and 60 degrees Celsius. Charging or discharging at temperatures over this range may damage the battery,
• Lithium—ion batteries should be stored away from direct sunlight or high temperatures.
• If you enter a warm room from outside cold, such as in winter, condensation may occur inside due to temperature differences. Don’t charge it right away, but after a certain period of time, you have to charge it alter the temperature difference decreases.
• Care should be taken to avoid exposure to chrldren or pets.
• Be careful not to Shat—cinxil the charging terminal or change the POlatity, and be Careful that the battery may be damaged or explode in case 01 external shock or short circuit.
• When the battery is installed in the procket, you must not run la a long time in uneven road surface, do not carry jumps or drops, and check the battery it a strong shock from the accident is applied to the battery,
• In We event of flooding, stop using it immediately and contact your dealer for assistance. Never connect a charger when the battery is flooded, as there is a risk of elechic shock and Ike.
• Do not disassemble it. It is prohibited to incinerate when disposing. It should be classified as Industrial waste and Care ShOuld be taken 10 avoid Shorts at the terminals.
• Do not disassemble it. It e prohibited to incinerate when disposing. It should be classified as industrial waste and care should be taken to avoid shorts at the terminals.

Precaution for handling lithium-Ion batteries

Warning

1. If you are not going to use it for a long time, please separate the battery and connection cable.
2. You must recharge and maintain it least once a month to use the battery longer.
3. Since the battery is a consumable item, it is not a free A / S item. Please use it after repurchasing in case of complete discharge.
4. Operating in sub—zero weather conditions can significantly reduce battery life. So please do not use below minus 5 degrees.
5. Be sure to familiarize yourself with the characteristics of charging and discharging.
6. Disagsembling or tuning the product without going through the designated service center may cause the product to malfunction.
7. Do not drop the battery. It may permanently damage the battery and cause serious injury, Before charging the battery, check the battery, charger, and connectors damage, If the battery, charger and related parts are damaged, stop charging.
8. Do not completely discharge the battery. After using the battery, please be sure to charge the battery. If not used, charge it regularly at least once a month,

Precaution of charging

• Musl be using the standard charger supplied with the product. Using non—standard charger may cause product malfunction and fire,
• Charge your batteries for 6-7 hours and do not charge your batteries for more than 10 hours to prevent the batteries from overheating,
• It is prohibited to charge outdoors and use it in places such as places with flammable substances or enclosed areas,Be sure to charge it only in a well ventilated place when the person is aware of it.
• The charger is not waterproof. Water inflow can cause breakdown and fire, so please take care of it thoroughly.
• Be sure to close the charging port protection cap when driving and storing.
• The product cannot be operated while the battery is charging.
• Do not use this product’s battery and charger for other products,
• Disconnect the charger power plug when you go out or go to bed during charging.

Specification

FORCE SPECIFICATION(sIngle/dual)

15 A
Battery : Protection module (PCM) installed / Power isautoma tically tumed of due to slow battery transferring
Short circuit and Interruption protection Battery protection with short circuit detection and circuit protection

To improve Quality and safety of the product. the specifications might be changed without prior notice.

FORCE Introduction manual ilatioL;-racs -2, High-Tech Development District, Wiehai-city
Shandong, China
