POWERHORSE 750126 Trash Pump 183 GPM Instructions
- July 22, 2024
- POWERHORSE
Table of Contents
POWERHORSE 750126 Trash Pump 183 GPM
Powerhorse Trash Pump
Product Specifications
- Equipment Type: Pump (Trash)
- Discharge Capacity: 183 Gal/min
- Discharge Port Diameter: 2 In. Npt
- Displacement: 212cc
- Dry Weight: 83.6 Lbs
- Engine: Dh212
- Engine Brand: Powerhorse
- Fuel Capacity for Burner: 2.9 Gal.
- Impeller: Cast Iron
- Mechanical Seal Material: Silicone Carbide (Pump Case/Impeller)
- Motor Power: 6 Hp
- Pressure: 42 Psi
- Pump Type: Full Trash
- Run Time: 8 Hrs
- SKU: 750126.POW
- Solids Handling: 3/4 In.
- Suction Head Lift: 26 Ft.
- Suction Port Diameter: 2 In. Npt
- Total Head Lift: 98 Ft.
Product Usage Instructions
- Setup
- Place the trash pump on a flat, stable surface.
- Ensure the fuel tank is filled with the appropriate fuel.
- Connect the suction hose to the suction port and the discharge hose to the discharge port.
- Starting the Pump
- Turn the engine switch to the ON position.
- Pull the starter cord gently until you feel resistance, then give it a firm pull to start the engine.
- Adjust the throttle to the desired speed for pumping.
- Pumping Operation
- Monitor the pump for proper operation and ensure there are no leaks in the hoses.
- Maintain a safe distance from the pump while it is in operation.
- Shut off the pump if any issues or abnormalities are noticed.
- Shutdown and Maintenance
- Turn off the engine switch to shut down the pump.
- Clean the pump after each use to prevent clogs and damage.
- Regularly check and replace the silicon carbide seal if necessary.
Frequently Asked Questions (FAQ)
-
Q: How often should I change the oil in the pump engine?
- A: It is recommended to change the oil after every 50 hours of operation or at least once a season.
-
Q: Can this pump handle debris and small solids?

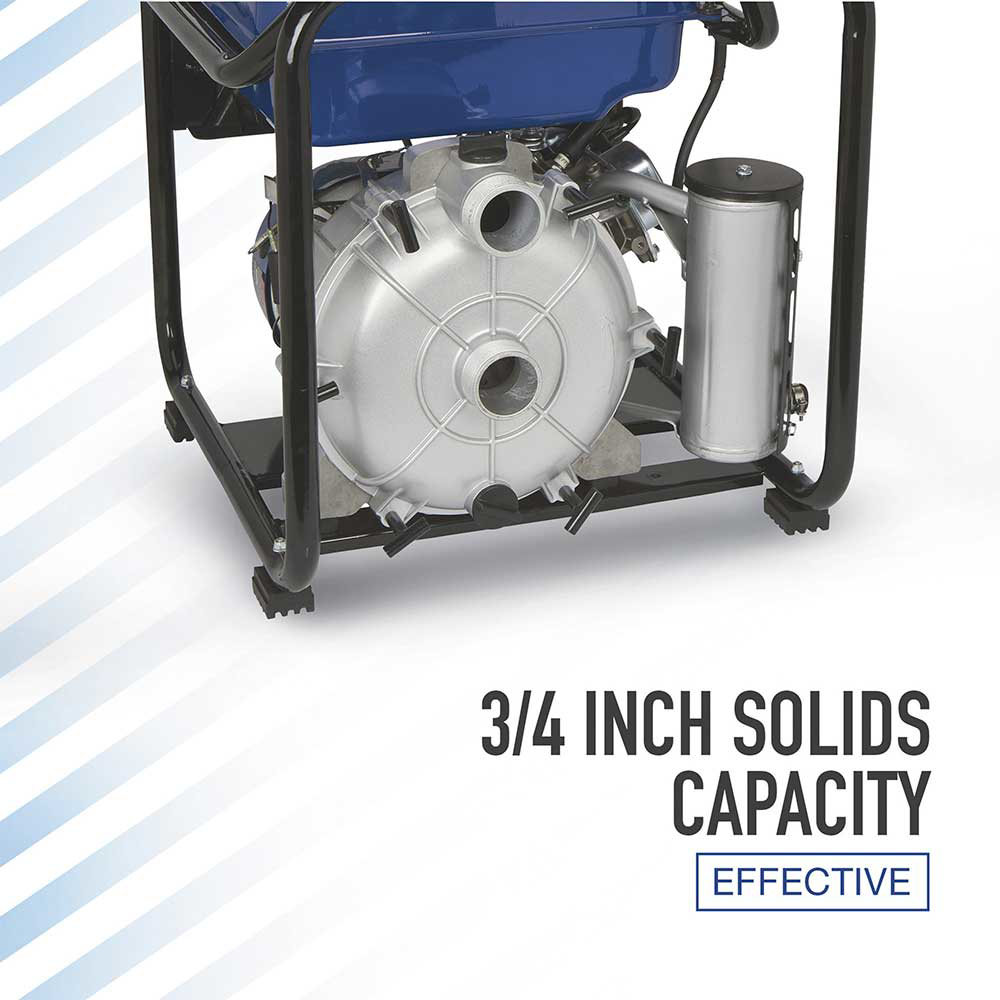

- A: Yes, this pump is designed to handle solids up to 3/4 inch in size.
-
Q: What type of fuel should I use for this pump?
- A: Use unleaded gasoline with an octane rating of at least 87 for optimal performance.

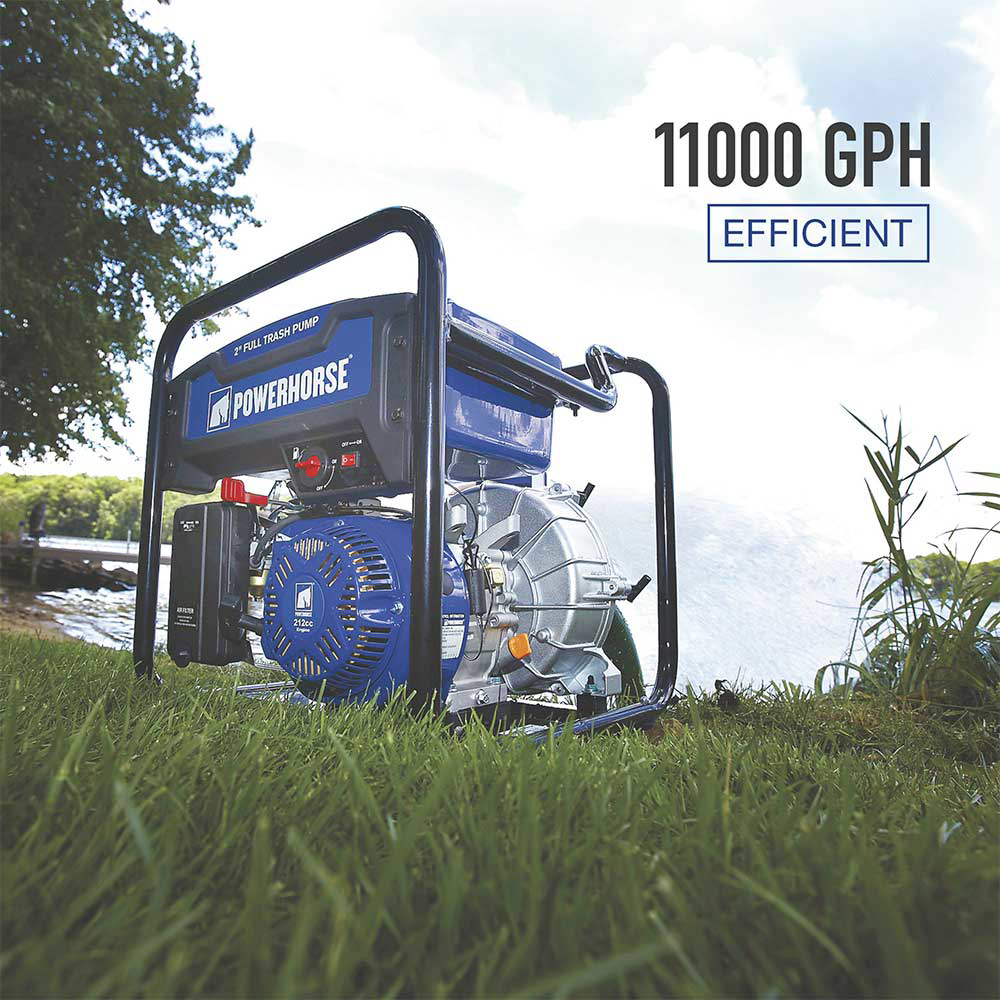

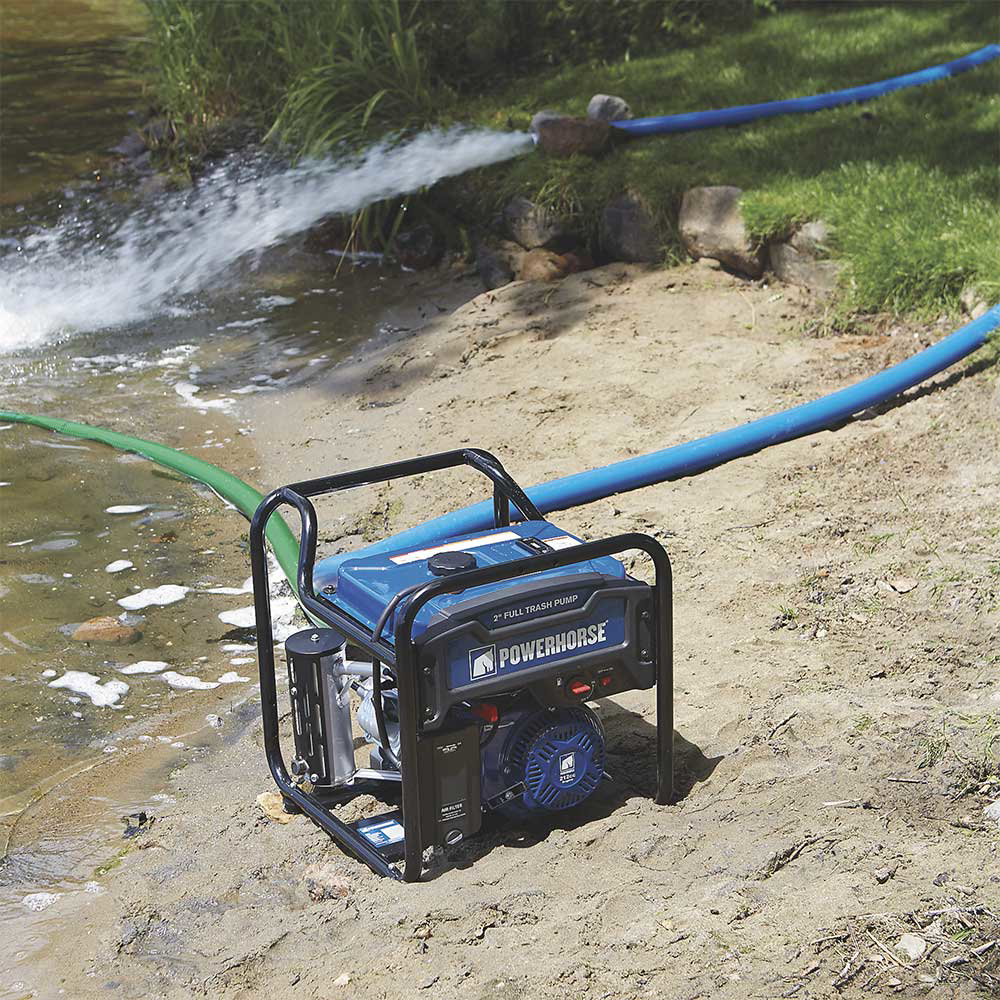

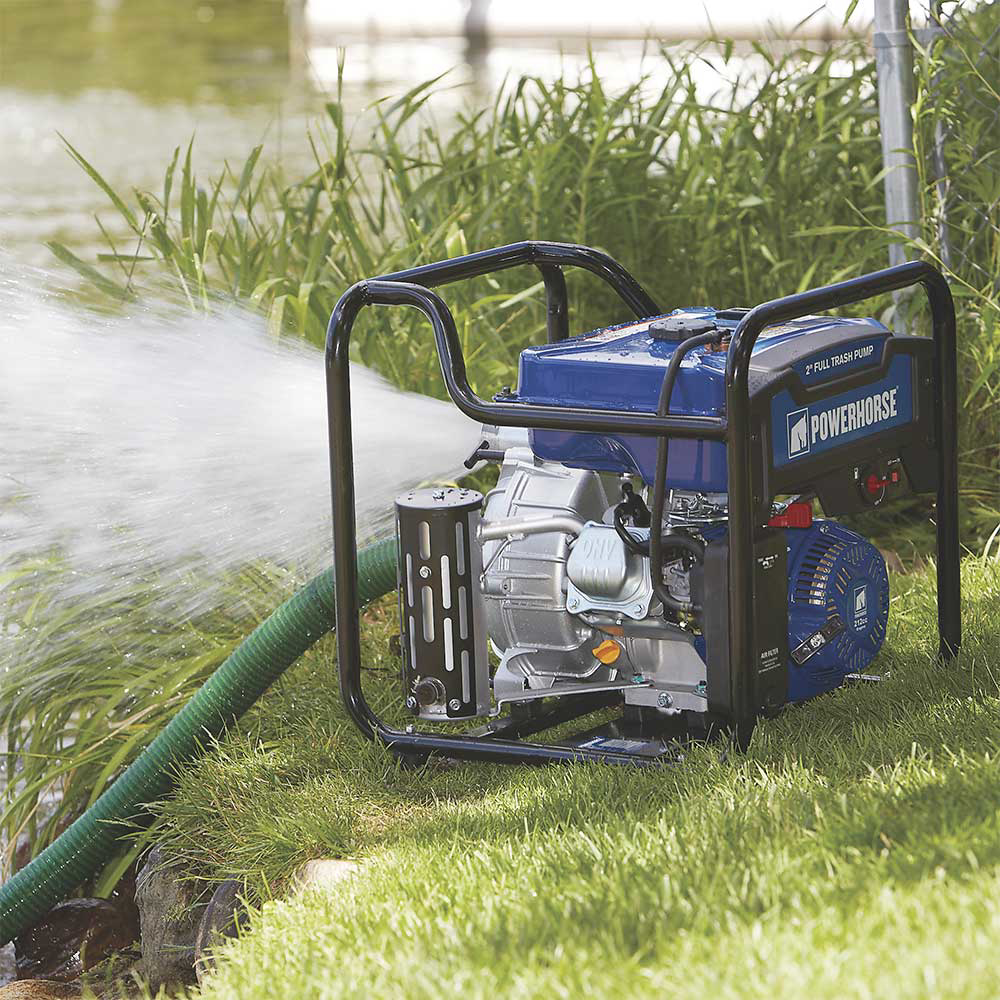

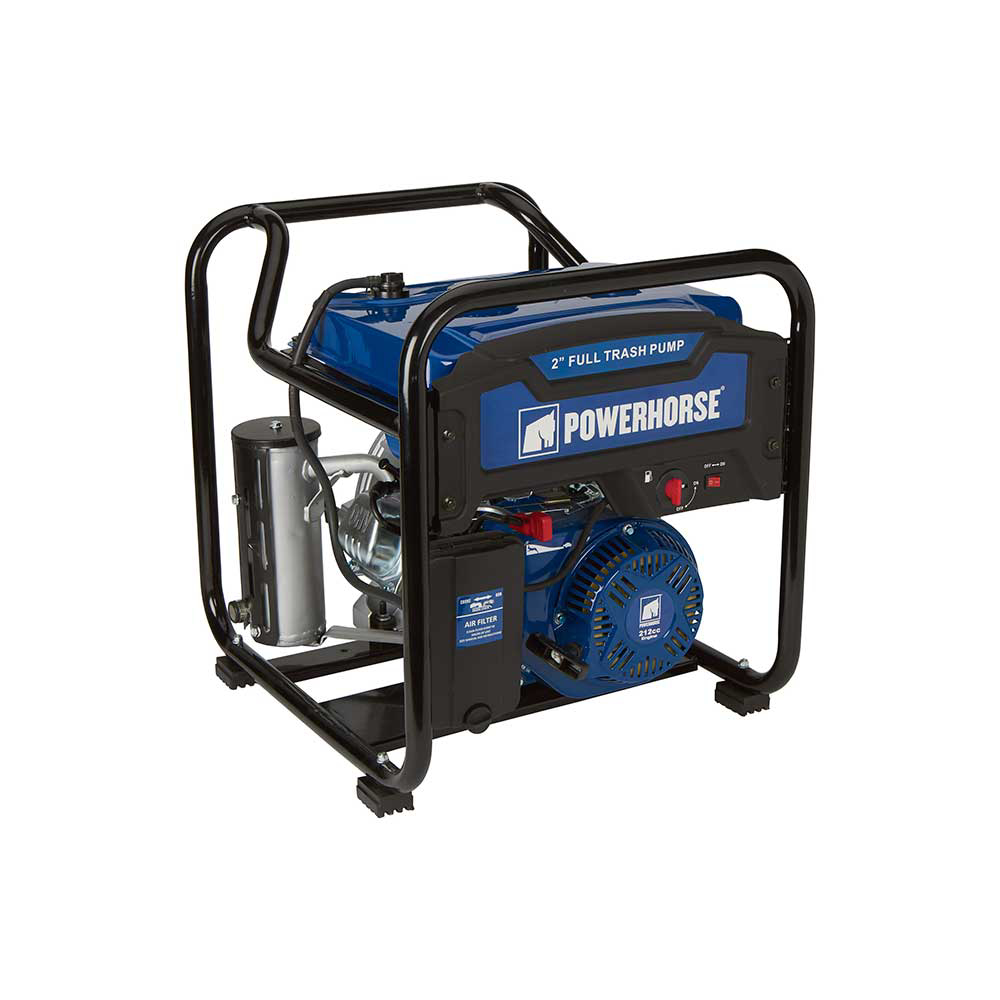

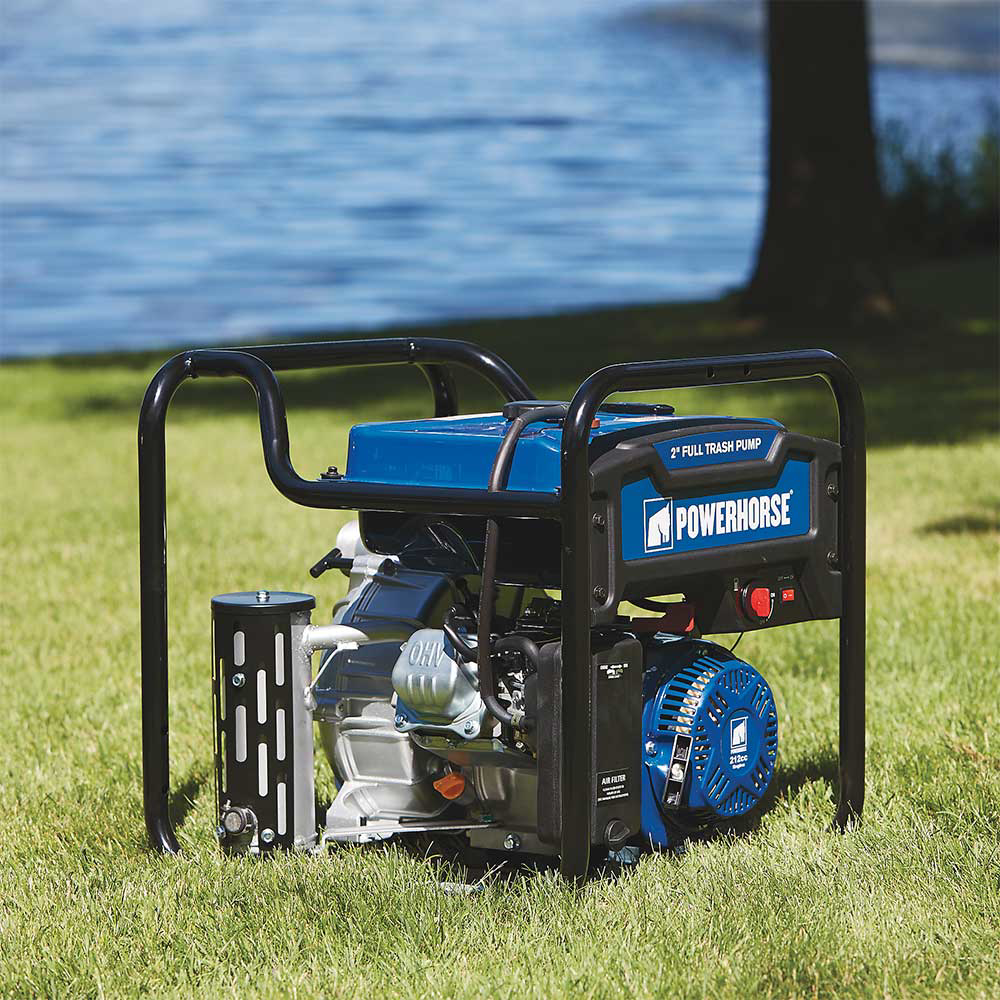

Powerhorse Trash Pump | Extended Run | 2 In. | 183 GPM
Powerhorse extended run full trash pump is ideal for big jobs needing superior performance and durability. Ruggedly built with a protective steel roll cage, high-quality silicon carbide seal, and a rugged cast iron impeller and volute. For corrosion resistance, it features an aluminum pump housing.
- SKU: 750126
- Manufacturer Part Number: 750126
- Brand: Powerhorse
WARNING: Cancer and reproductive harm. www.p65Warnings.ca.gov
Features and Benefits
- 212cc OHV engine
- Cast iron impeller and volute
- Silicon carbide seal
- Aluminum pump housing
- Corrosion-resistant aluminum pump housing
Product Specifications
- Equipment Type Pump (Trash)
- Discharge Capacity 183 Gal/min
- Discharge Port Diameter 2 In. Pnt
- Displacement 212cc
- Dry Weight 83.6 Lbs
- Engine Dh212
- Engine Brand Powerhorse
- Fuel Capacity for Burner 2.9 Gal.
- Impeller Cast Iron
- Mechanical Seal(Pump Case/Impeller) Silicone Carbide
- Motor Power 6 Hp
- Pressure 42 Psi
- Pump Type Full Trash
- Run Time 8 Hrs
- SKU 750126.POW
- Solids Handling 3/4 In.
- Suction Head Lift 26 Ft.
- Suction Port Diameter 2 In. Npt
- Total Head Lift 98 Ft.
Pricing and Availability Subject to Change
