TESTACY Infrared Thermometer User Guide

Infrared Thermometer User Guide

Model: K3

Introduction

Specification

1. Accuracy: +0.2 degrees (34 45 C), place it in the operating environment for 30 minutes before use)
2. Abnormal automatic alarm: flashing +“Di Di” sound
3. Automatic measurement: measuring distance 5cm∼10cm
4. Screen: Digital display
5. Charging method: USB charging or battery(18650 Li-ion).
6. Install method: nail hook, double-sided adhesive sticking, bracket fixing
7. Environment temperature: 10ºC∼40ºC (Recommended 15ºC∼35ºC )
8. Infrared measuring range: 0∼50ºC
9. Response time: 5s
10. Input: DC 5V
11. Weight: 350g
12. Dimensions: 170”115”140mm
13. Standby: About one week
14. Counting capacity: 999

Status Description

1. Standby: The red dot in the bottom of the display lights up in (Fig. 1)

2. Insufficient power: The horizontal bar lights up in the middle of the (Fig. 2)

3. Normal temperature: Flashing green lights and alarm ‘Di’. (Fig. 3)

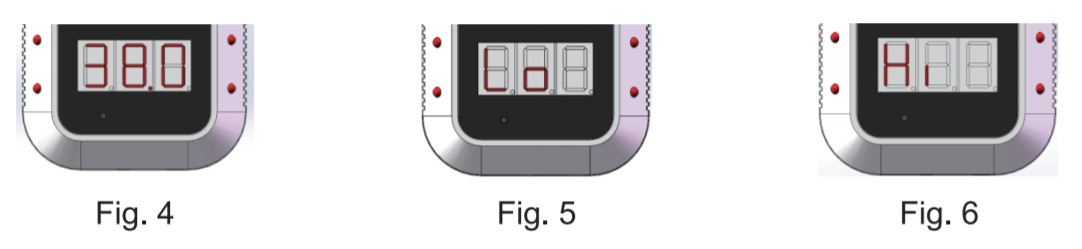

4. Abnormal temperature: Flashing red lights and alarm ‘Di Di’.(Fig. 4)

5. Default (bod: object mode)
   ’Lo’: Ultra-low temperature alarm. (Fig.5)
   ‘HI’: Ultra-high temperature alarm. (Fig. 6)

Operation Instruction

1. Temperature measurement: Front of the thermometer and approach it within 5-10 cm. (Fig. 7)


2. Mode switching: There is a small hole on the back of the device (Fig. 8). You can use a 3mm diameter screwdriver to insert the hole and then press the button
   (1)Temperature unit: Press ’mode switch hole’ then select ’C’ or ’F’ (Fig.9,

10. C: Celsius F: Fahrenheit
    (2) Mode: Long press mode switch hole for 3 seconds to switch the temperature measurement mode (Sur: surface mode, bod’ object mode, Cou: counting mode)


3. Install and replace the battery
   (1)Remove three screws
   (2)Open the back base and install 18650 Li-battery


4. Install method

Shenzhen Qiangwei Electronic Co., Ltd
Add: 4F, Building 3, Xialingpai Industrial Zone, Dalang
Subdistrict, Longhua District, Shenzhen, China
Email: Qwdz.aftersaIes@gmail.com

Made in China
